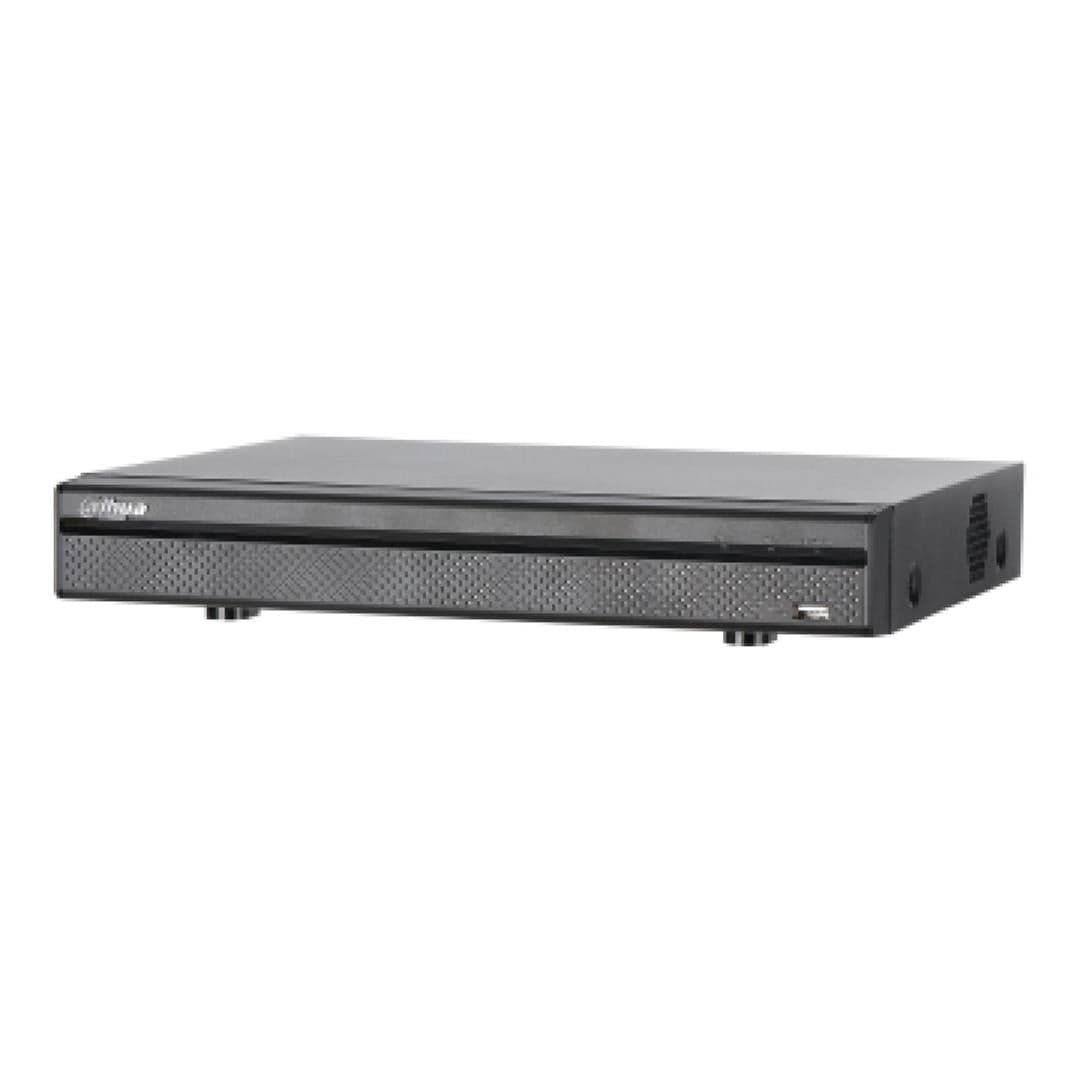

Dahua XVR5104HE-X1 4-channel Penta-brid Mini 1U 1 HDD DVR

Dahua XVR5104HE-X1 4-channel Penta-brid Mini 1U 1 HDD DVR

4 Channel Penta-brid 1080P Mini 1U Digital Video Recorder

• H.265+/H.265 dual-stream video compression
• Supports HDCVI/AHD/TVI/CVBS/IP video inputs
• Max 6 channels IP camera inputs, each channel up to 6MP; Max 24Mbps incoming bandwidth
• Smart Search and Intelligent Video System

Specifications:

Main Processor: Embedded Processor

Operating System: Embedded LINUX

Video and Audio

Analog Camera Input: 4 Channel, BNC

HDCVI Camera: 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps

AHD Camera: 5MP, 4MP, 1080P@25/30, 720P@25/30fps

TVI Camera: 5MP, 4MP, 1080P@25/30, 720P@25/30fps

CVBS Camera: PAL/NTSC

IP Camera Input: 4+2 Channel, each channel up to 6MP

Audio In/Out: 4/1, RCA

Two-way Talk: Reuse audio in/out, RCA

Recording

Compression: H.265+/H.265/H.264+/H.264

Resolution: 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF

Record Rate:

• Main stream: 5M-N(1~10fps), 4M-N/1080P(1~15fps); 1080N/720P/960H/D1/CIF (1~25/30fps)
• Sub stream: D1/CIF(1~15fps)

Bit Rate: 32Kbps ~ 6144Kbps Per Channel

Record Mode: Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval: 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Audio Compression: G.711A, G.711U, PCM

Audio Sample Rate: 8KHz, 16 bit Per Channel

Audio Bit Rate: 64Kbps Per Channel

Display

Interface: 1 HDMI ,1 VGA

Resolution: 1920×1080, 1280×1024, 1280×720

Multi-screen Display:

• When IP extension mode not enabled: 1/4
• When IP extension mode enabled: 1/4/6

OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network

Interface: 1 RJ-45 Port (100M)

Network Function: HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)

Max. User Access: 128 users

Smart Phone: iPhone, iPad, Android

Interoperability: ONVIF 16.12, CGI Conformant

Video Detection and Alarm

Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection: Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis

Alarm input: 8

Relay Output: 3

Playback and Backup

Playback: 1/4

Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode: USB Device/Network

Storage

Internal HDD: 1 SATA Port, up to 6TB capacity

eSATA: N/A

Auxiliary Interface:

USB: 2 USB 2.0

RS232: N/A

RS485: 1 Port, for PTZ Control
