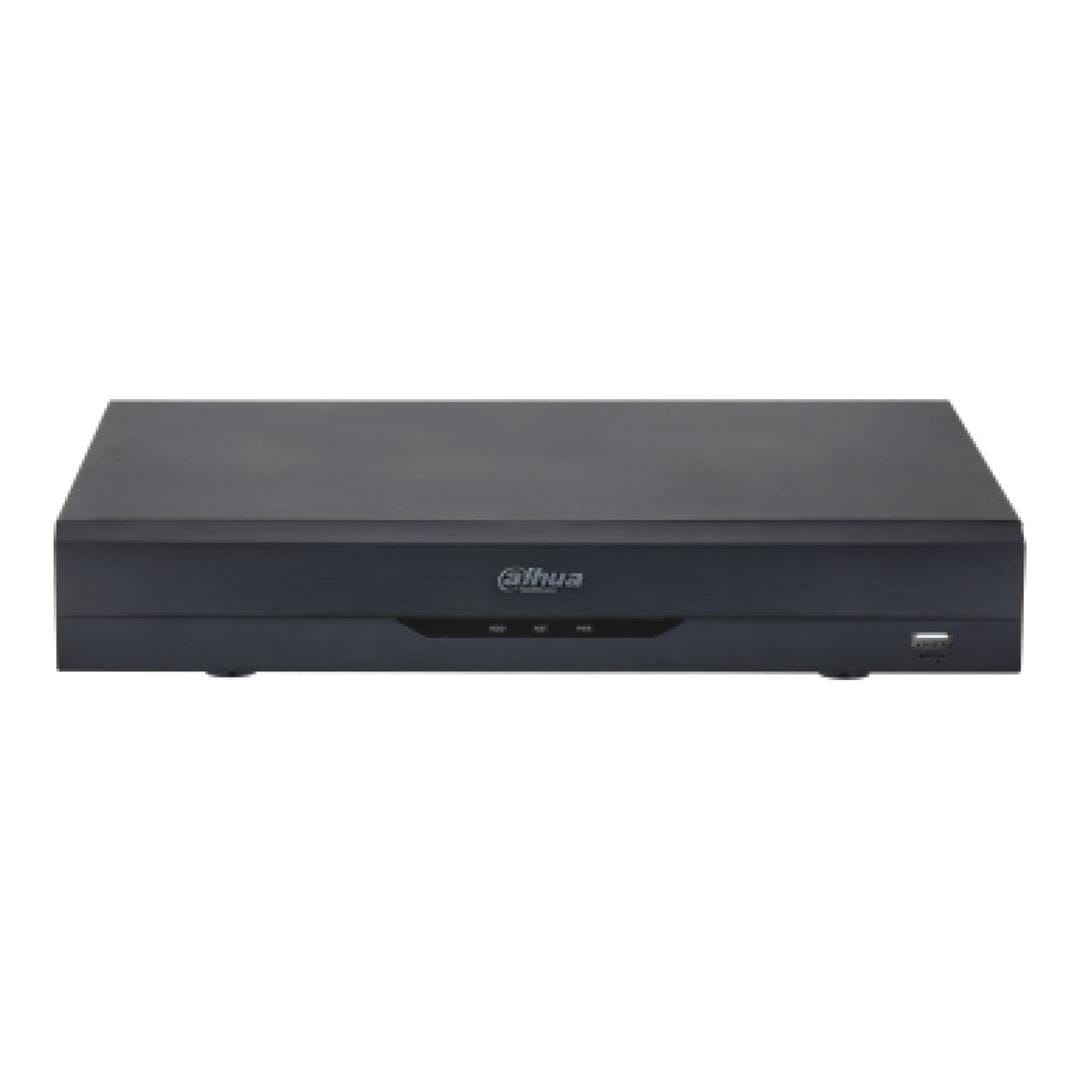

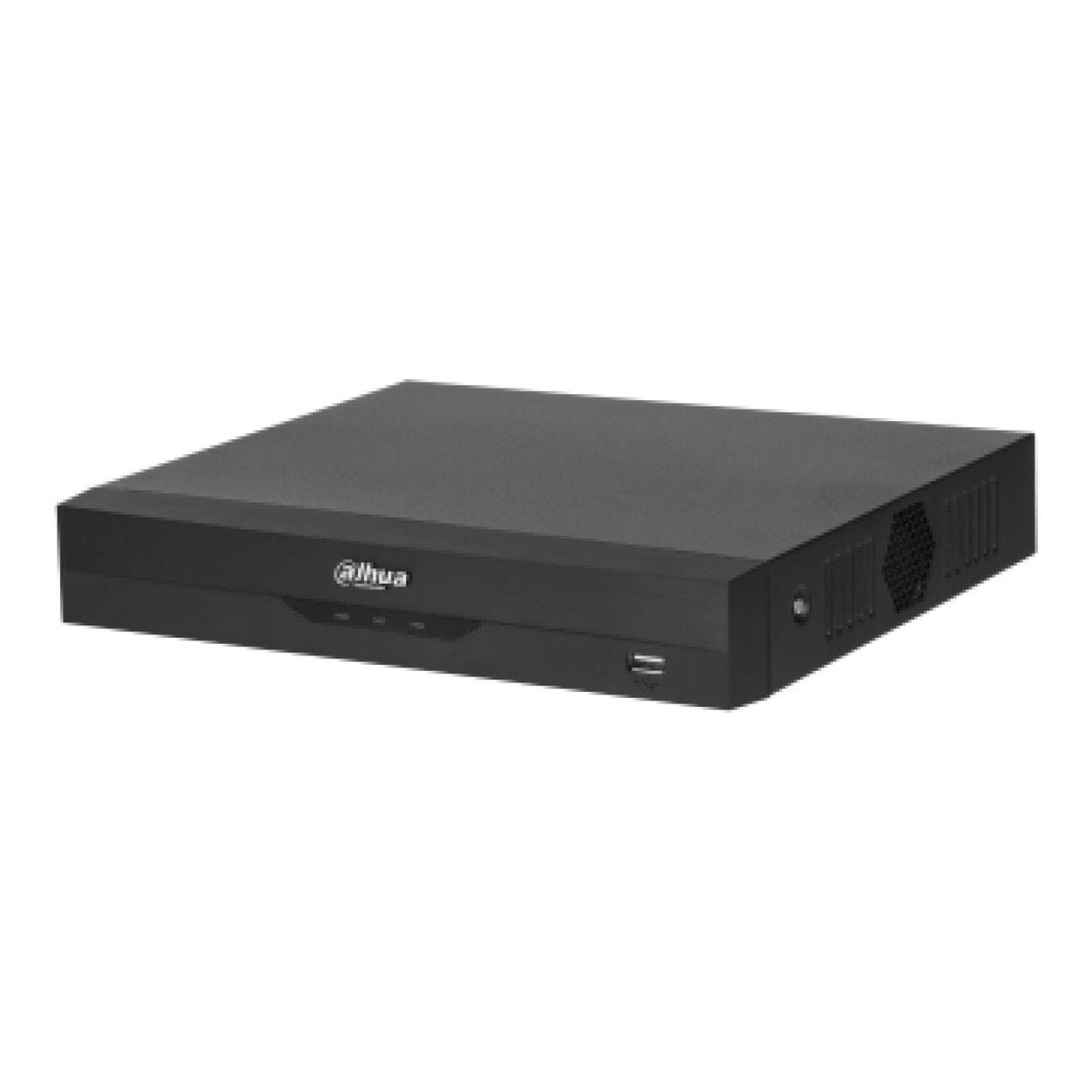

Dahua XVR4116HS-I(V2.0) WizSense 16-channel Penta-brid Compact 1U 1 HDD DVR

Dahua XVR4116HS-I(V2.0) WizSense 16-channel Penta-brid Compact 1U 1 HDD DVR

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR4000-I Series featuring max.full-channel SMD Plus to benefit customers from AI upgrade (The number of channels differs depending on the model. Please refer to the specifications below for information on the number of channels.). This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.

SMD Plus

With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.

Smart Dual Illuminators

With Smart Dual Illuminators technology, you can select Smart Illumination Mode for the system to automatically switch between IR mode and white light mode. It allows white light to be turned on when a target is detected by the SMD Plus/Perimeter Protection function of AI-enabled XVR. This significantly reduces light pollution at night. Together with other modes, including IR Mode and White Light Mode, the smart dual illumination technology can meet the requirements of a wide variety of scenes.

One-click Arming/Disarming

With just one click, you can enable or disable alarm linkages to show messages, send emails, output audio alarms and more, through the mobile app and platform.

Customizable Alarm Audio

Designed for your convenience, the TiOC alarm can be customized to meet your needs. It is flexible, allowing you to directly upload your customized audio through the mobile app and XVR.

AI Coding

Compared with H.265/H.264, AI coding can reduce more than 50% bit rate and storage requirements without loss of decoding compatibility, providing clear human and vehicle details.

Smart H.265+

Smart H.265+ Codec reduces bit rate and storage requirements by up to 90%, outranking standard H.264 video compression and eliminating the need to invest in a new camera.

Long-distance Transmission

The HDCVI system supports long distance transmission over coaxial cable and UTP, max. 700 m for 4K/4MP, 800 m for 1080p and 1200 m for 720p.

Audio over Coax

The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.

Specifications:

Main Processor: Industrial-grade processor

Operating System: Embedded Linux

Operating Interface: Web; Local GUI

SMD Plus by Recorder: 8-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change

Analog Camera: Input 16 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.

Camera Input

• CVI: 1080p@ 25/30 fps, 720p@25/30 fps
• TVI: 1080p@ 25/30 fps, 720p@25/30 fps
• AHD: 1080p@ 25/30 fps, 720p@25/30 fps
• CVBS: PAL/NTSC

IP Camera Input

• Up to 18 channels of IPC access
• 2 IP channels by default + 16 channels (analog channels are converted to IP channels)
• incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps
• *After IP channels are added beyond the existing channels, the AI Function (SMD) will be disabled.

Encoding Capacity

Main Stream: the 1st channel 1080N/720p (1 fps–25/30 fps), others 1080N/720p (1 fps–15 fps); 960H/D1/CIF (1 fps–25/30 fps)

Sub steram: CIF (1 fps–7 fps)

Dual-stream: Yes

Video Bit Rate: 32 kbps–6144 kbps

Audio Sampling: 8 kHz, 16 bit

Audio Bit Rate: 64 kbps

Video Output: 1 HDMI, 1 VGA

HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

Multi-screen Display: 1/4/8/9/16

Third-party Camera Access: ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung

Audio Input:

• 1-channel RCA
• 16-channel BNC (Coaxial Audio)

Audio Output: 1-channel RCA

Two-way: Talk Yes (share the same audio input with the first channel)

HDD Interface: 1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature

RS-485: 1 port, for PTZ control

USB: 2 USB ports (USB 2.0)

HDMI: 1

VGA: 1

Network Port: 1 (10/100 Mbps Ethernet port, RJ-45)
