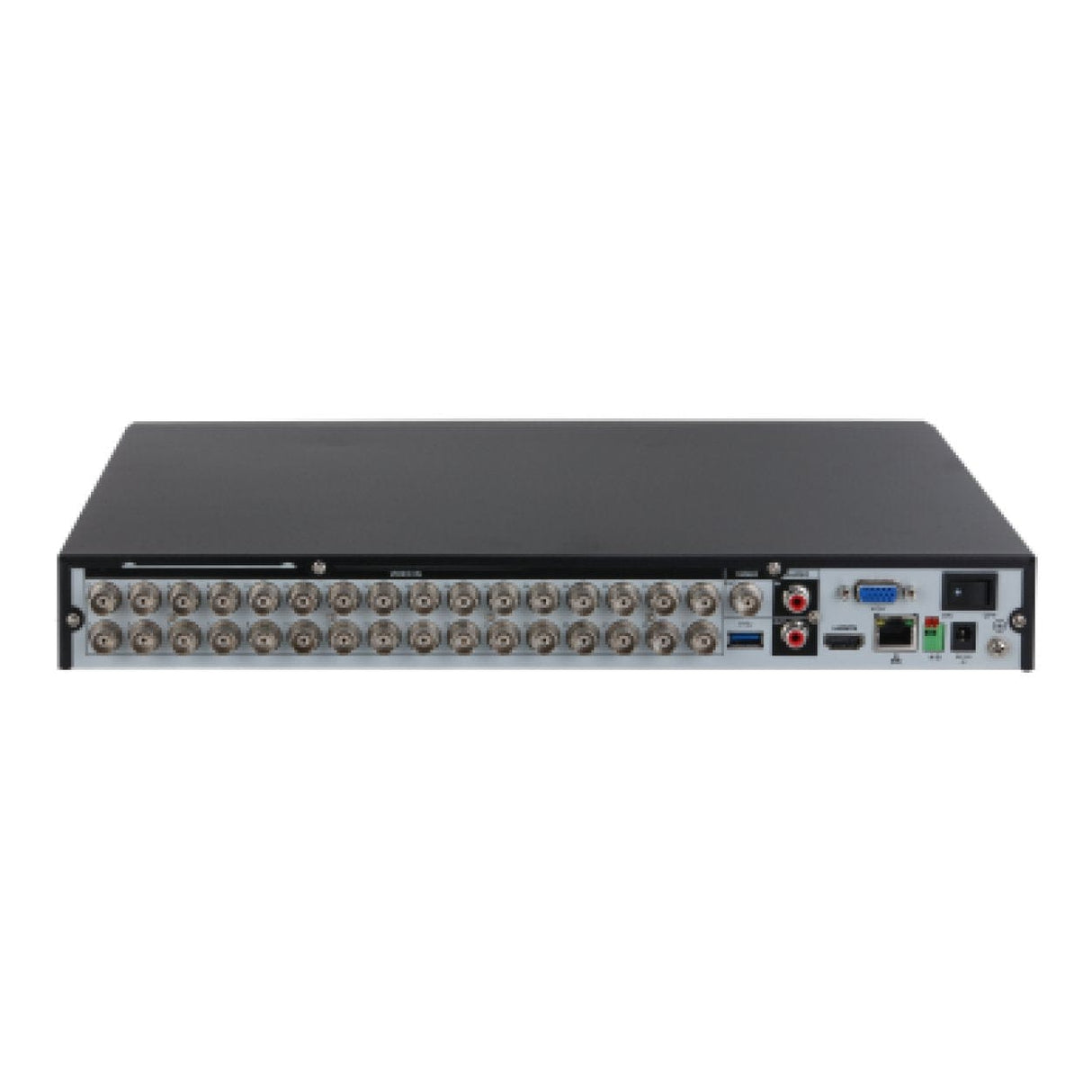

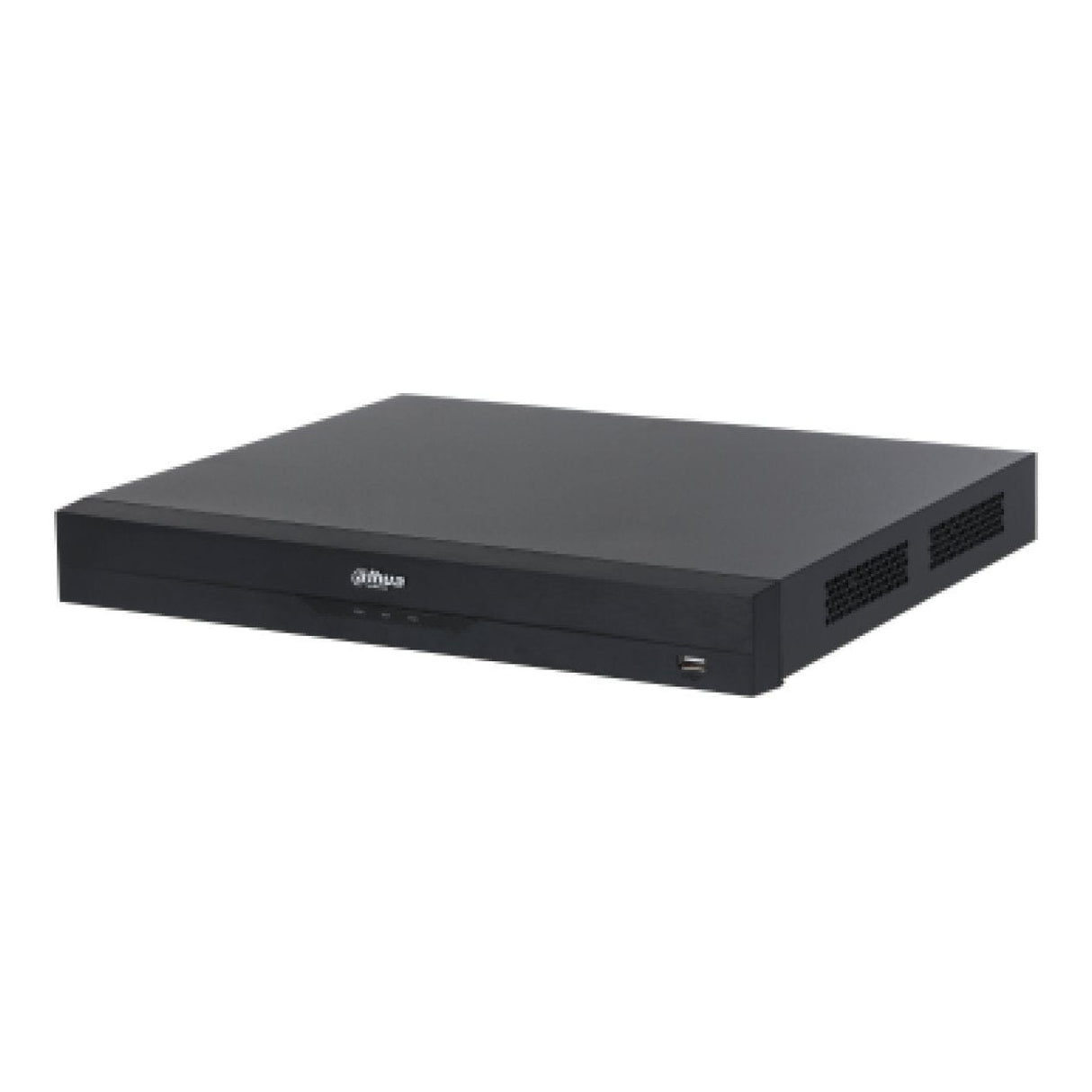

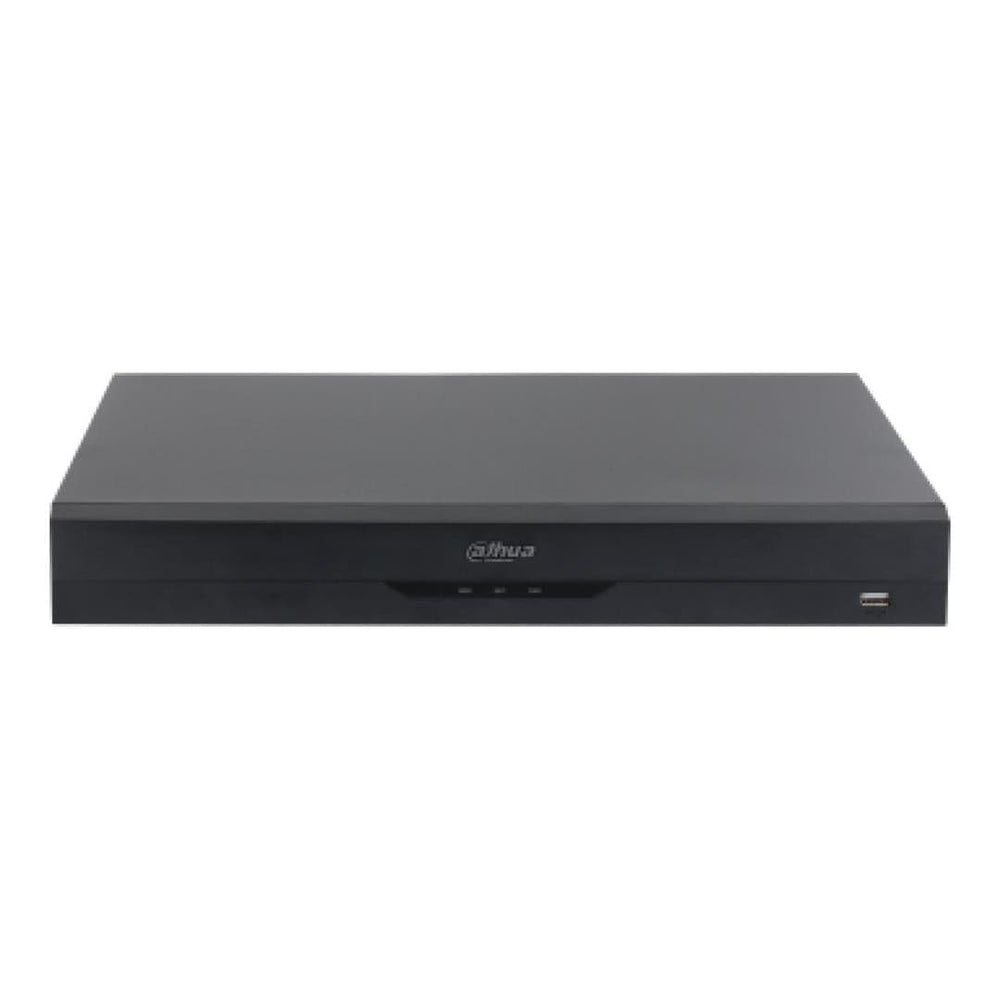

Dahua WizSense 4K 32-channel Penta-brid 1U 2 HDD DVR

Dahua WizSense 4K 32-channel Penta-brid 1U 2 HDD DVR

Specifications:

Main Processor: Industrial-grade processor

Operating System: Embedded Linux

Operating Interface: Web; Local GUI

QuickPick 2.0 AI by Recorder (Number of Channels): 6 channels

Perimeter Performance AI by Recorder (Number of Channels):

• Advanced Mode: 6 channels, 10 IVS rules for each channel
• General Mode: 12 channels, 10 IVS rules for each channel

Face Attributes: 6 attributes

Face Detection Performance of AI by Recorder (Number of Channels): 6 channels(up to 12 face images/s each channel)

Privacy Protection Performance of AI by Recorder (Number of Channels): 1 channel

Face Database Capacity: Up to 10 face databases with 20,000 images.

Face Recognition Performance of AI by Recorder (Number of Channels): 6 channels

SMD Plus by Recorder: 32 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD Plus by Camera: 64 channels

AI Video Quality Analytics by Recorder: 32 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white

Scene Changing by Recorder: 1 channel

Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

Mobile Phone Access: iOS; Android

Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK

Browser: Chrome; IE; Safari; Edge; Firefox

CVBS Output: 1 channel

Audio Input: 1-channel RCA; 32-channel BNC (Coaxial Audio)

Audio Output: 1-channel RCA

Two-way Talk: Yes (share the same audio input with the first channel)

Disk Interface: 2 SATA ports. Each disk can contain up to 16 TB. This limit varies depending on the environment temperature.

RS-485: 1

USB: 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)

HDMI: 1

VGA: 1

Network Port: 1 (10/100/1000 Mbps Ethernet port, RJ-45)
