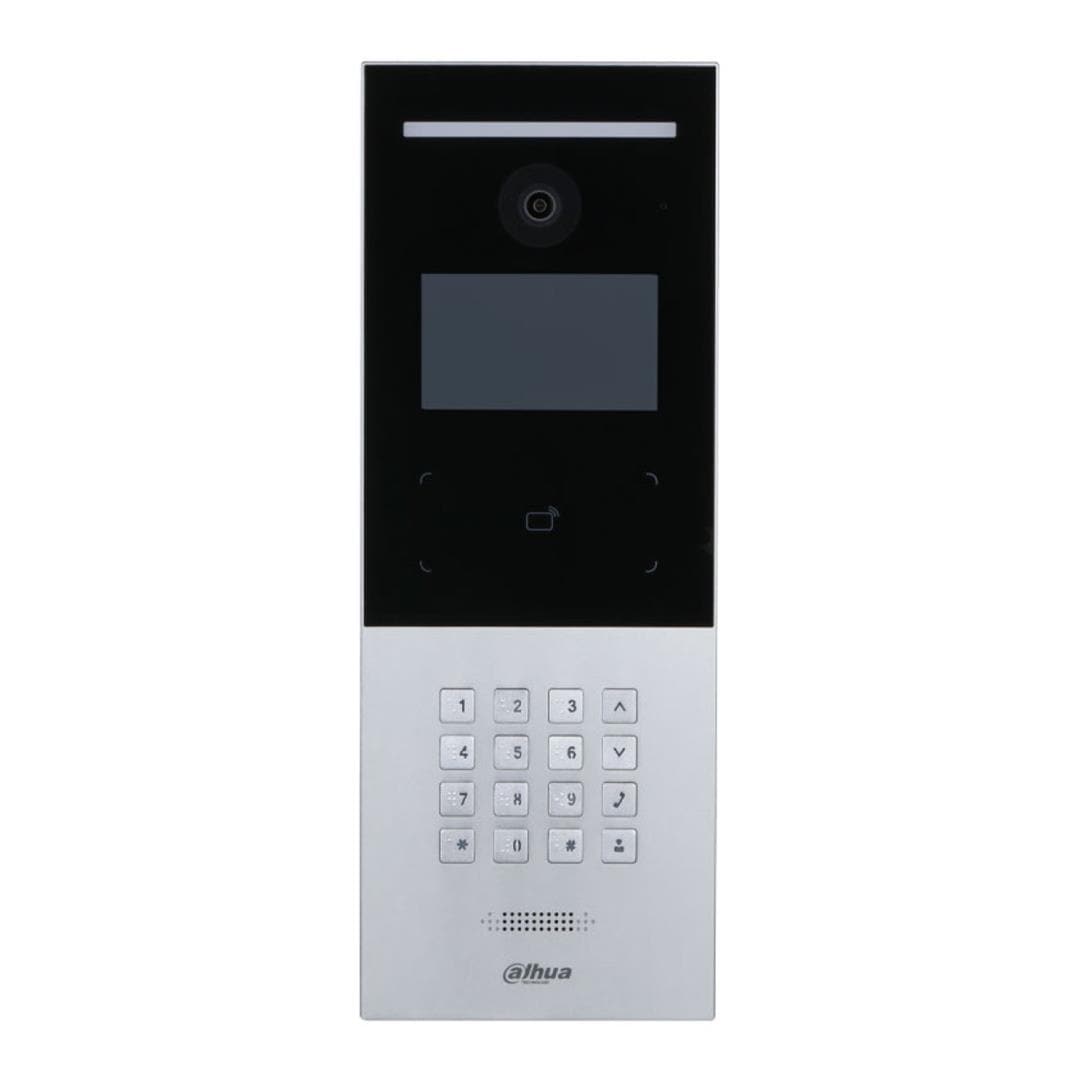

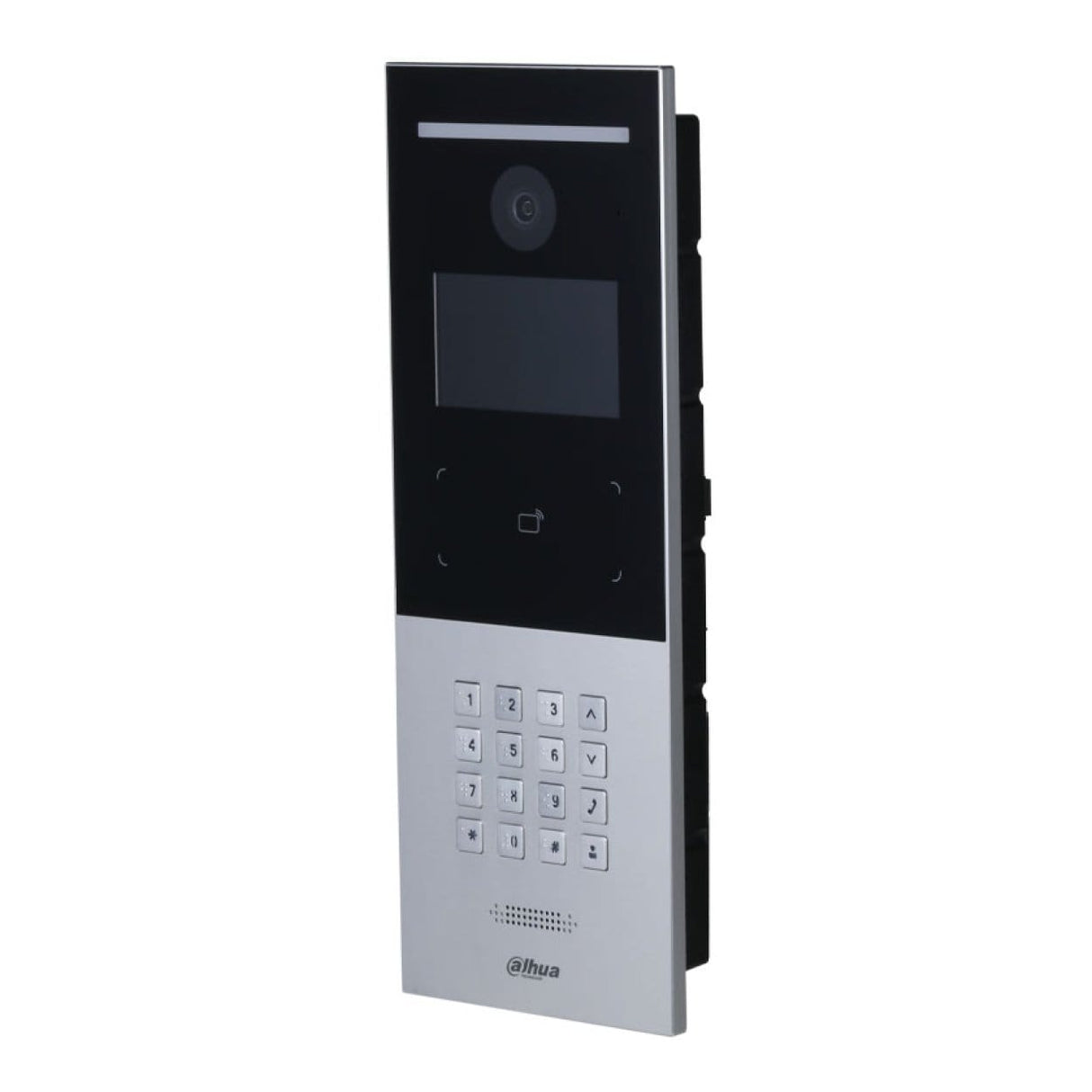

Dahua VTO6521F-S2 2MP IP Video Apartment Door Station

Dahua VTO6521F-S2 2MP IP Video Apartment Door Station

Video intercom can be used with the Indoor Monitor (VTH), Master Station (VTS) and app.

Features:

• IP video door entry system with 2MP@25 ips camera
• 4.3" LCD screen
• IC card reader
• Bidirectional audio
• Smart illumination
• Integrated alarms
• IP65 protection
• PoE
• 12 VDC power supply.

Specifications:

Main Processor: Embedded Processor

Operating System: Embedded Linux OS

Button Type: Mechanical

Interoperability: ONVIF;CGI

Network Protocol: RTSP;DNS;FTP;RTP;RTMP;SIP;SSH;HTTP/HTTPS;ONVIF

Screen Type: Non-touchscreen

Display Screen: 4.3-inch display screen

Screen Resolution: 800 (H) × 480 (V)

Camera: 1/2.8" 2 MP CMOS high-definition, low illumination,

Field of View: H: 95°; V: 50°; D: 110°

WDR: 120 dB

Noise Reduction: 3D NR

Video Compression: H.264; H.265

Video Resolution:

• Main stream: 720P/D1/WVGA;
• Sub stream: 1080P/720P/D1/WVGA/CIF/QVGA

Video Frame Rate: 25 fps

Web Configuration: Yes

Auto Registration: Yes

Card Type: IC card

Card Reading Distance: 0 cm–5 cm (IC card)

Issue Card Locally: Yes

Casing Material: Aluminum alloy

Card Capacity: 20,000

RS-485: 1

Wiegand: 1 (they can be set as an input or output port)

Alarm Input: 2 channels

Alarm Output: 2 channels

Power Output: 1 port (12 V, 500 mA)

Exit Button: 1 channel

Door Status Detection: 1 channel

Lock Control: 1 channel, open by default

Network Port: 1 × 10 Mbps/100 Mbps Ethernet port

Tamper Alarm: Yes
