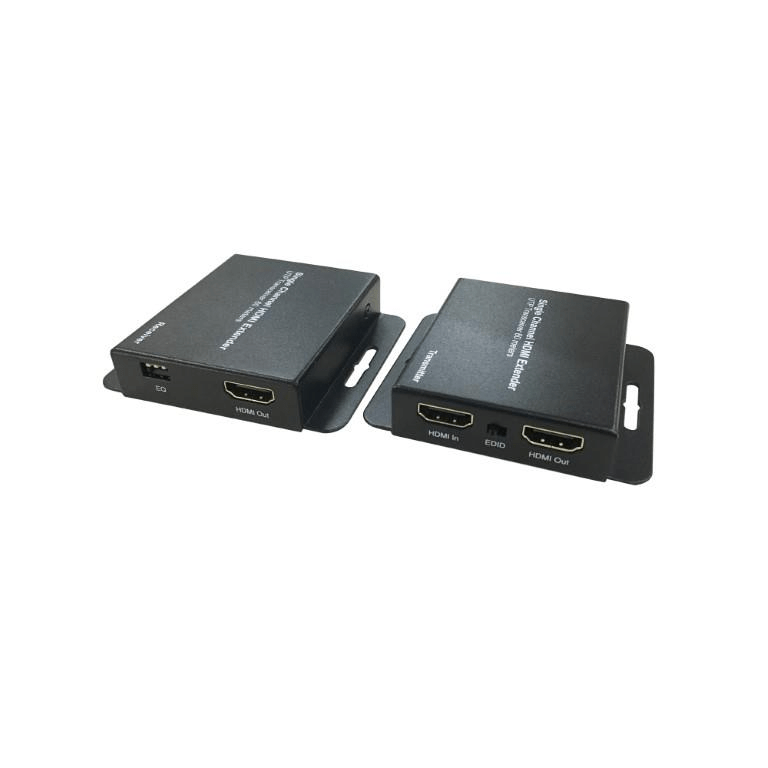

Dahua PFM700-E HDMI Extender with Transmitter and Receiver

Dahua PFM700-E HDMI Extender with Transmitter and Receiver

Features

• Power supply: Input voltage DC5V, only supply for transmitter.
• Transmission effect: Real-time transmission HDMI video signal, no delay, strong anti-interference.
• Transmission distance: HDMI transmission distance 50m, with CAT6 of pure copper cable(DC impedance is less than 9.5 ohm for every 100 meters).
• Infrared function: support to transmit one-way infrared remote control signal.
• Main functions: Use single UTP (CAT-5E and CAT-6) to transmit 1-ch HDMI video signal, support HDMI 1.3; Support HDMI local loop output; Support EDID.
• Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities.
• Appearance structure: No need to install driver program and set network parameters, easy to use and convenient to install.

Technical Specifications
Product: PFM700-E
Properties
Transmission Signal: 1-ch HDMI
Transmission Distance: 50m, with CAT6 of pure copper cable (DC impedance is less than 9.5 ohm for every 100 meters).
Video Transmission Properties
Video Signal Input Interface: HDMI interface
Video Input Port: HDMI interface
Twisted-pair Video Transmission Port: RJ45 port
Input Voltage: DC5V
Power: TX <3W ; RX <3W
HDCP Version: Support HDCP1.2
HDMI Version: Support 1.3 and lower version
Resolution Output Signal
Resolution: 1080P/1080I/720P/576P/576I/480P/480I
Output Voltage: 0.5 ~ 1.5Vp-p
Physical Properties
Dimension (L x W x H)

• Transmitter: 79.5 x 68 x 16.5 mm (port length included)
• Receiver: 79.5 x 68 x 16.5 mm

Shell: Iron
Product colour: Black
Transmitter weight: 133g
Receiver weight: 133g

Package Information

• 1x HDMI Extender PFM700-E (1x Transmitter, 1x Receiver)
• 1x User manual
• 1x Windband IR Tx cable
• 1x Windband IR Rx cable
• 1x DC5V1A power adapter
