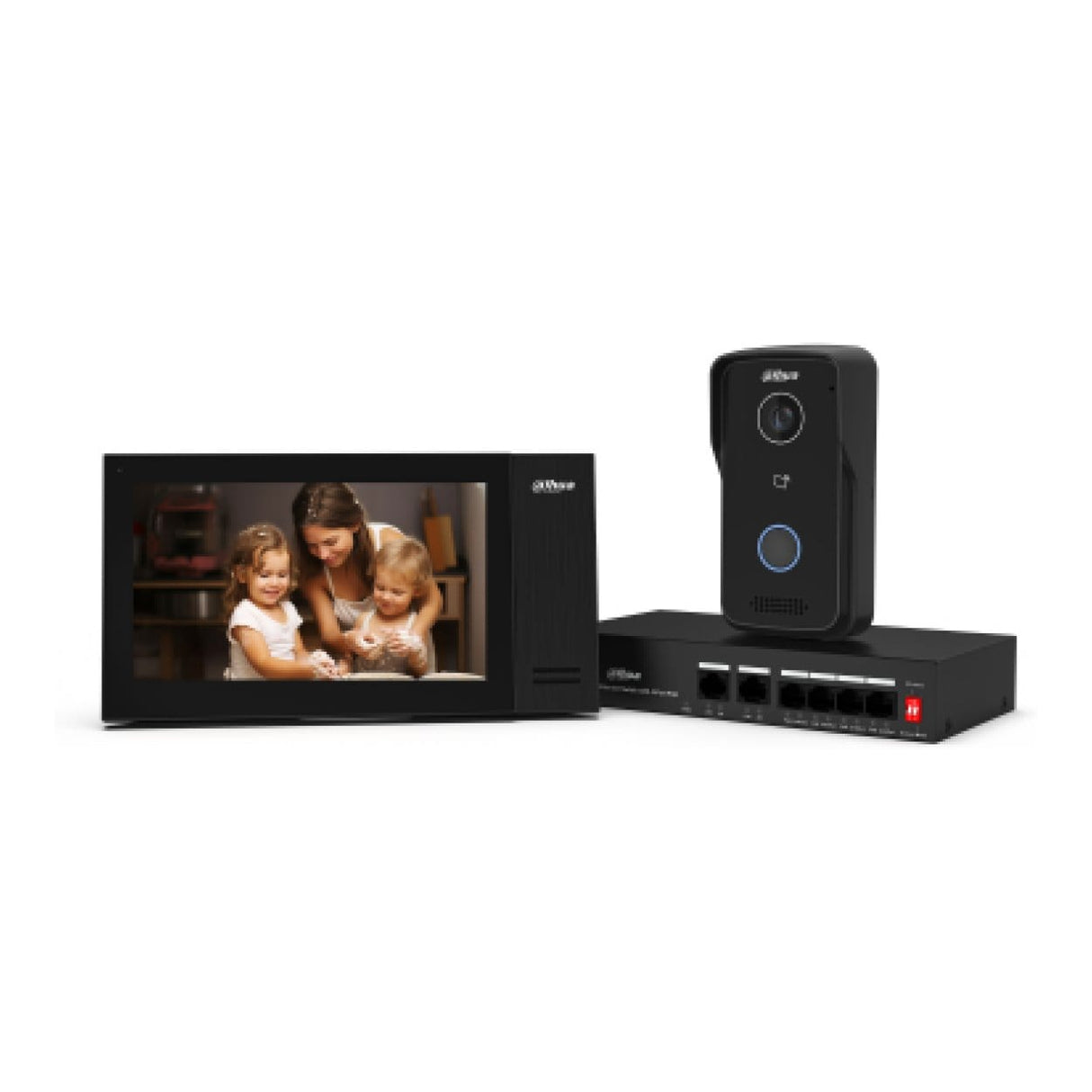

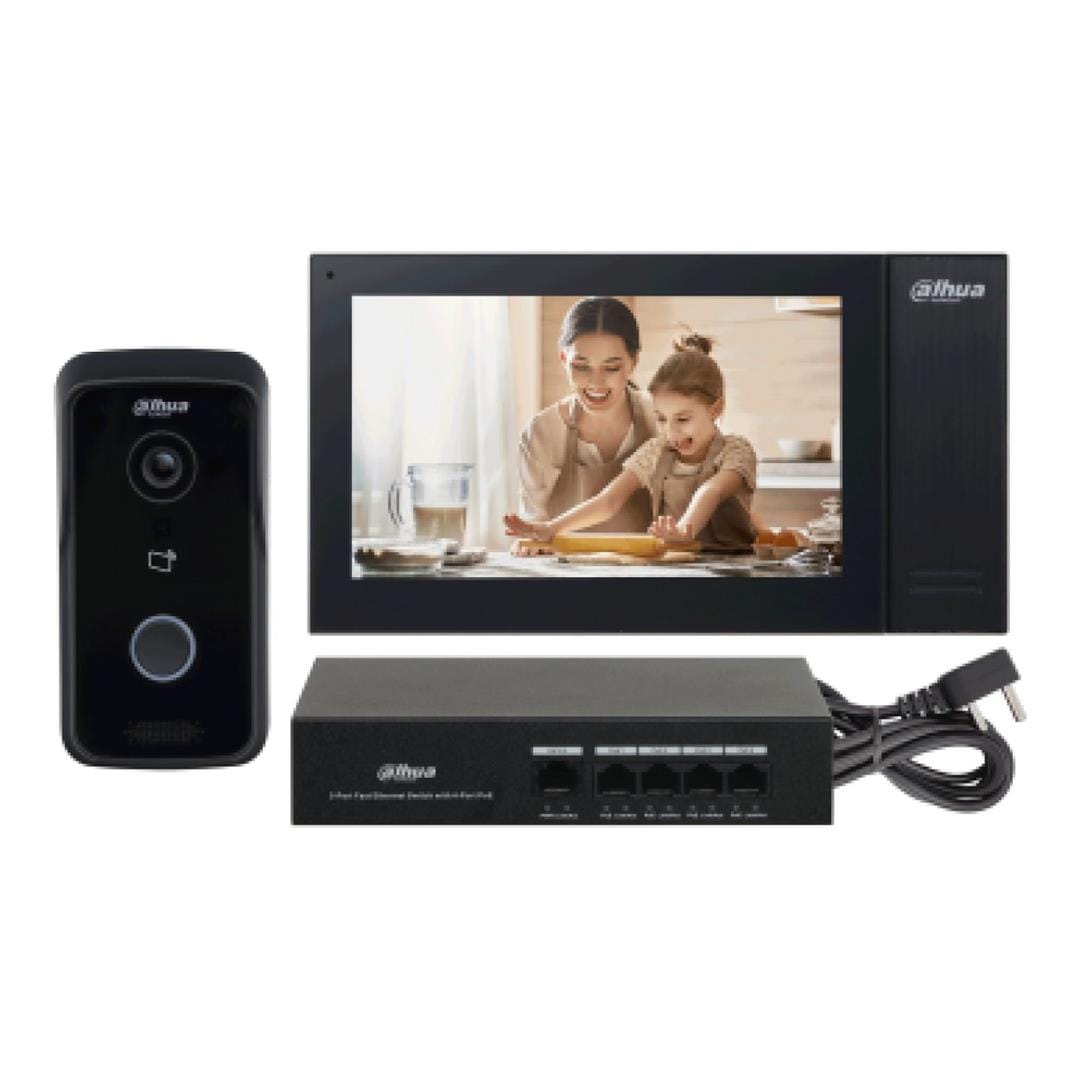

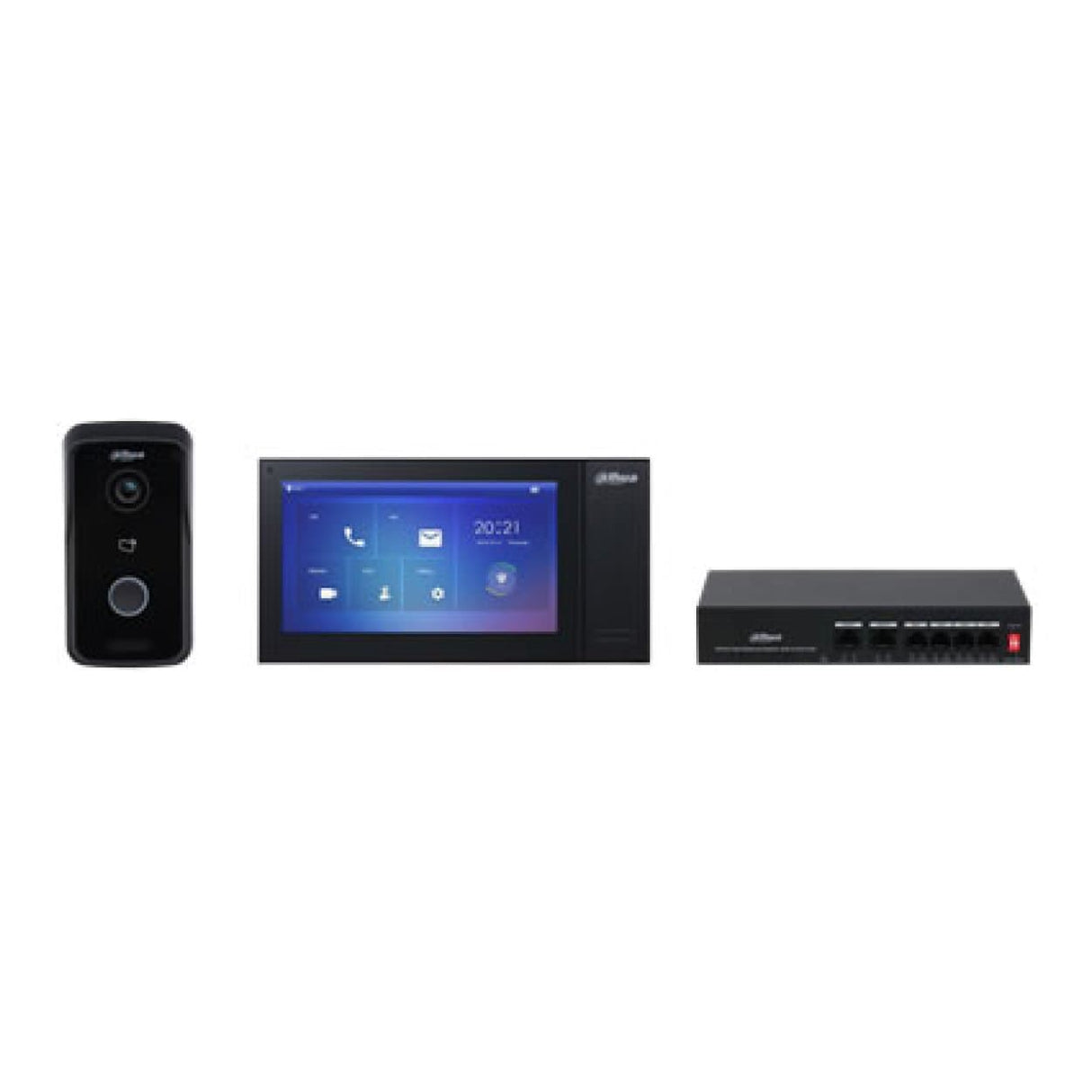

Dahua KTP02 IP Villa Door Station with 7-inch Indoor Monitor

Dahua KTP02 IP Villa Door Station with 7-inch Indoor Monitor

IP Villa Door Station

• High definition camera; WDR
• Operating temperature -30°C to 60°C
• IP65(Silicone sealant is needed. For
• etails, see the quick start guide.)
• Supports auto IR illumination and D/N
• Card/app remote/indoor monitor unlock
• Supports two-way voice call; support calls between door stations and app
• 10,000 cards
• Tamper Alarm
• Support standard PoE power supply
• Control two locks

IP Indoor Monitor

• IPC surveillance
• Alarm integration
• High performance
• Embedded 8GB SD card
• Support standard PoE
• Quick configuration without computers

Specifications:

DHI-VTO2111D-P-S2

Main Processor: Embedded processor

Operating System: Embedded LINUX operating system

Button Type: Mechanical

Interoperability: ONVIF

Internet Protocol: SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP

Camera: 1/4" 1MP CMOS high definition, low illumination/WDR, color/IR

Angle of View: Horizontal: 107°; vertical: 61°; diagonal: 122°

WDR: 120 dB

Noise Reduction: 3D noise reduction

Video Compression: H.264

Video Resolution:

• Main stream: WVGA, 720P, D1
• Sub stream: CIF, WVGA, QVGA, 1080P, D1

Frame Rate: PAL: 25 fps NTSC: 30 fps

Video Bit Rate: 256 K to 4 M

Light Compensation: Auto IR

D/N ICR: auto switch

Audio Compression: G.711a; G.711u; PCM

Audio Input: 1

Door Status: Detection 1

Lock Control: 1, normally closed by default

Network: 1 10Mbps/100Mbps network port (8-core white ribbon cable)

Tamper: Yes

DHI-VTH2421FB-P

Main Processor: High performace embedded processor

Operating System: Embedded LINUX OS

Screen Type: Capacitive screen

Display: 7-inch TFT screen

Resolution: 1024 × 600

Video Compression: H.264

Audio Compression: G.711A, G.711U, PCM

Audio Input: 1 channel all-direction microphone

Audio Output: Built-in 1.5W loudspeaker

Audio Mode: Support dual-way bidirectional talk

Audio Enhancement: Support echo cancellation/DNR

Audio Bit Rate: 16 kbps

Communication Mode: Full digital

Information Release: Support to receive and view notifications issued by center

Leave Videos or Text Messages: Yes

DND Mode: Support to set DND period

Sub-station Quantity: 9

Audio Output: Built-in speaker

Audio Mode: Two-way voice call

Audio Enhancement: Echo suppression and cancellation/digital noise reduction

Audio Bit Rate: 16 kHz, 16 Bi

Communication: Full digital

Unlock Mode: Card/App remote/indoor monitor unlock

Card Type: IC card

Motion Detection: Video motion detection

Auto Snapshot: Auto snapshot can only be enabled on indoor monitors

Leave Photos and Messages: Yes (Insert an SD card into the indoor monitor.)

Web Configuration: Yes

Card Reading Distance: 3cm–5cm

Casing: PC+Acrylic

Card: 10,000

DH-PFS3006-4ET-36

Main Processor: High performace embedded processor

Ethernet Port: 4 PoE ports with 10/100 Mbps Base-TX; 2 uplink ports with 10/100Mbps Base-TX

PoE Power Consumption: Port1-4 ≤30 W, whole PoE budget ≤36 W

PoE Protocol: IEEE802.3af, IEEE802.3at

Weight: 0.56 kg

Dimension(W×D×H): 194.0 mm × 108.1 mm × 35.0 mm
