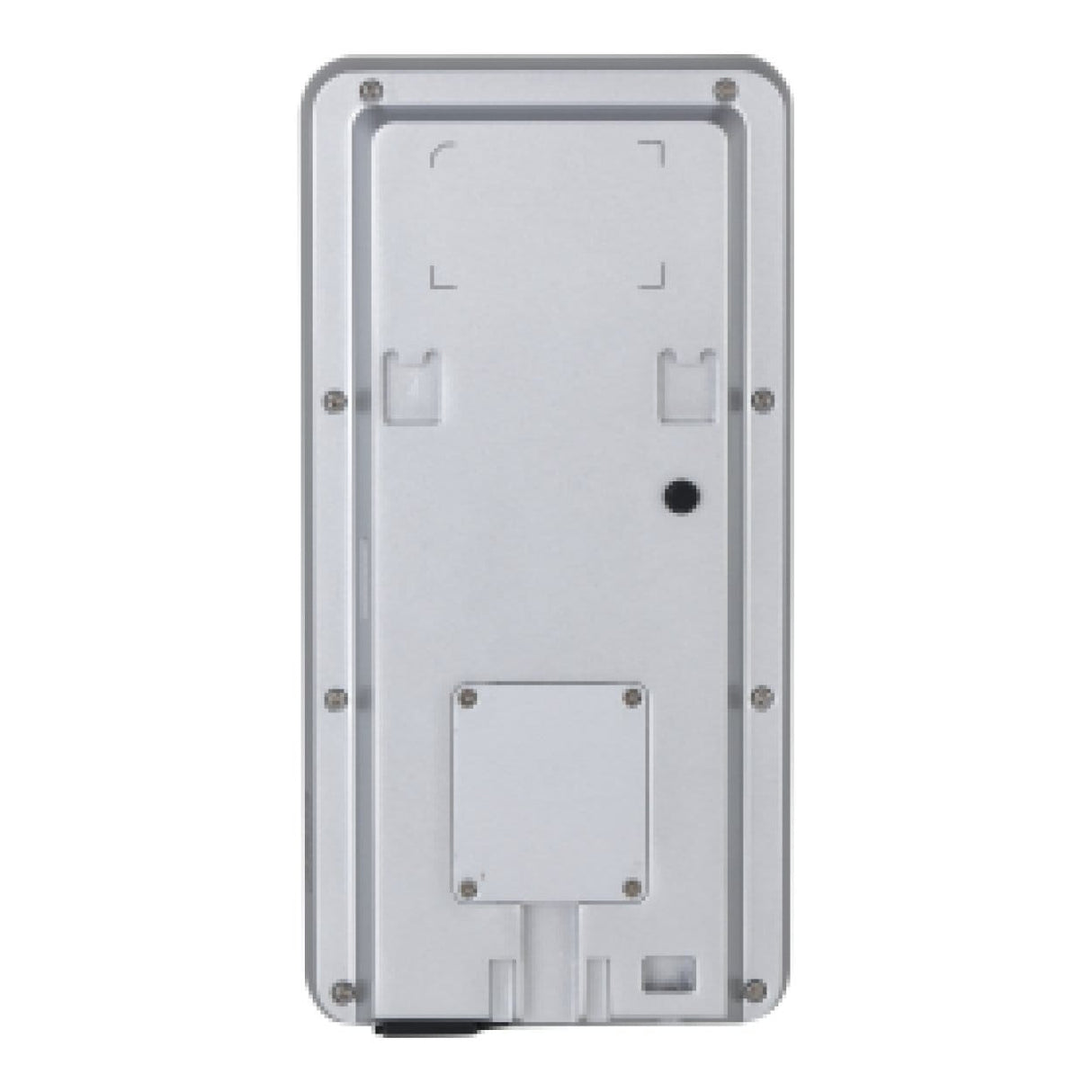

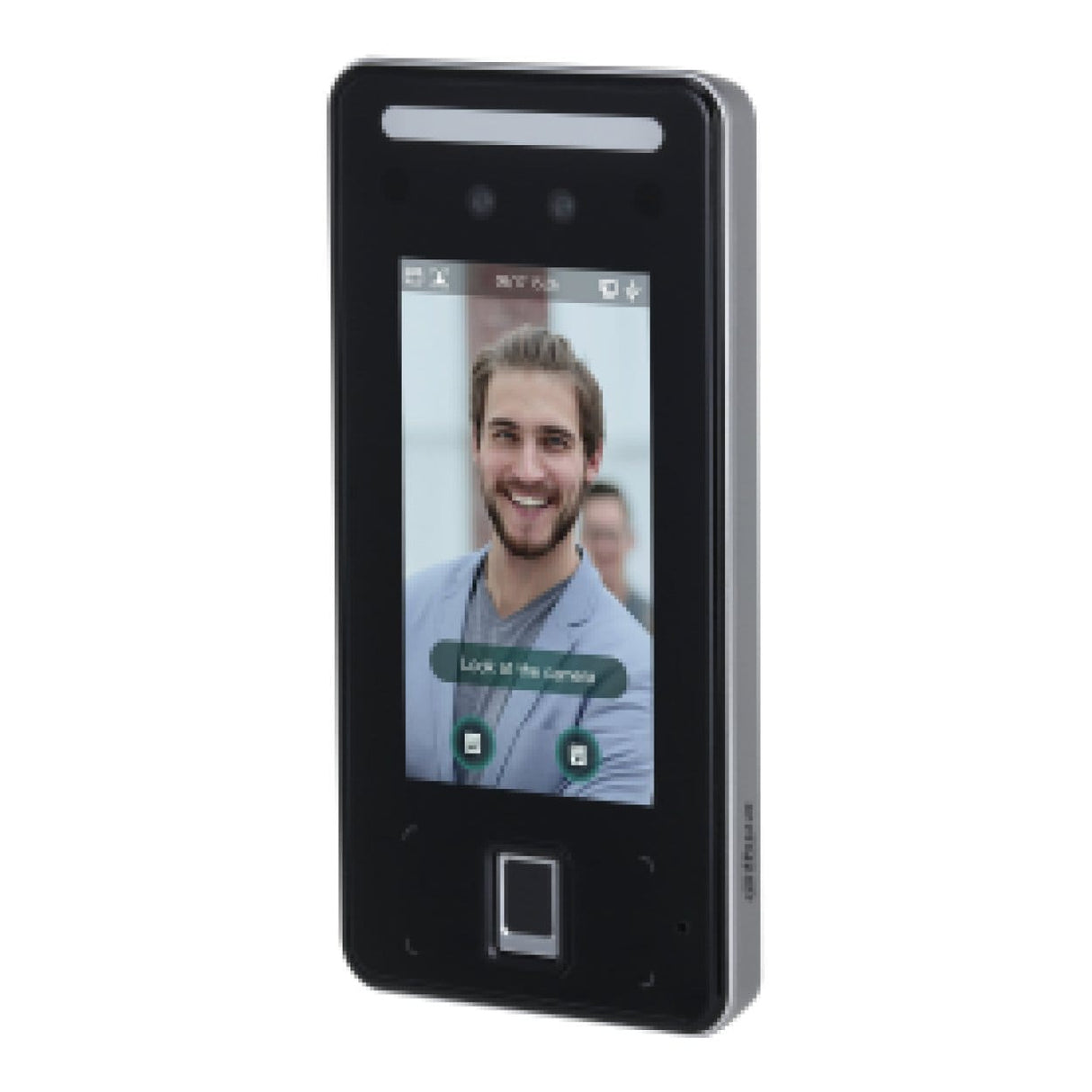

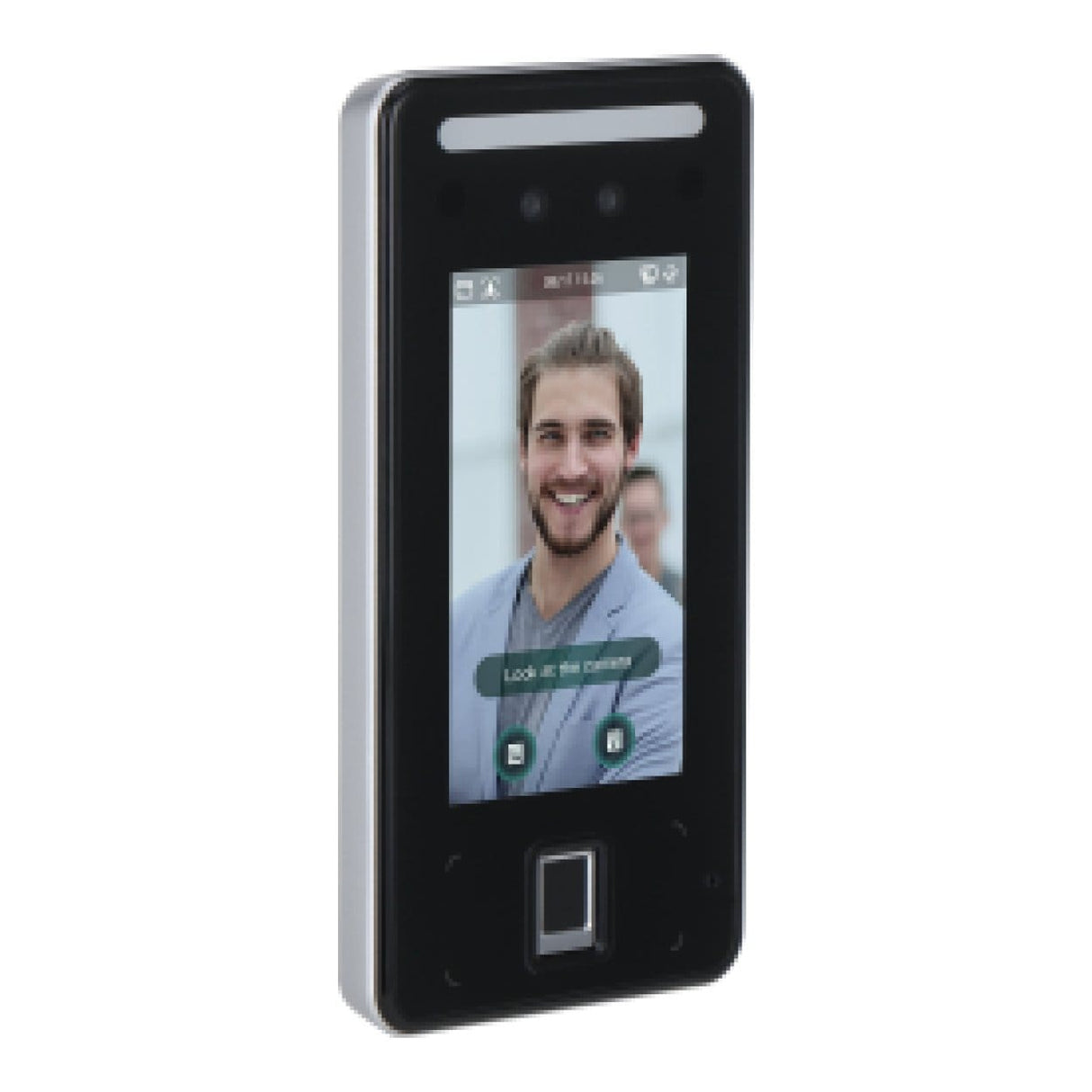

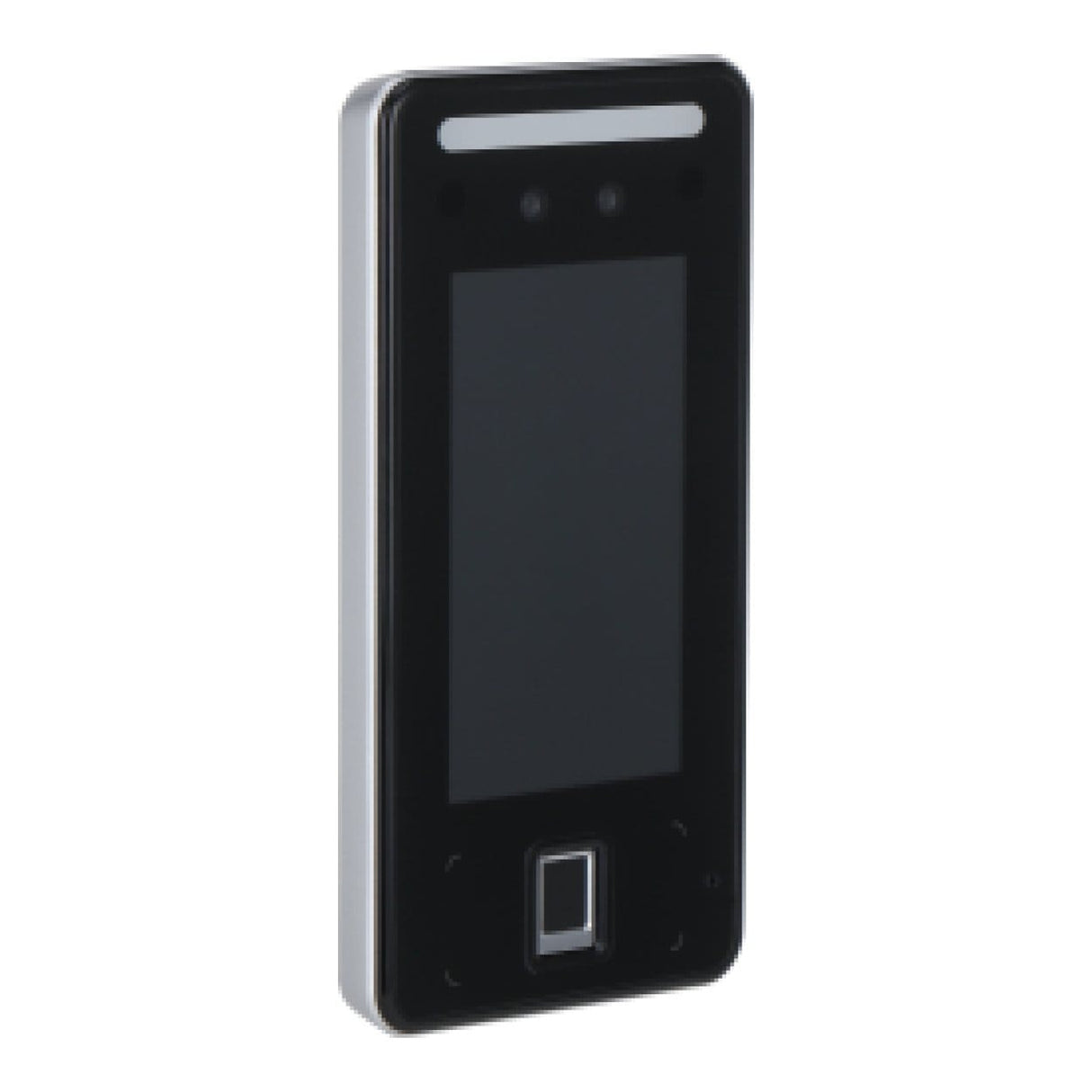

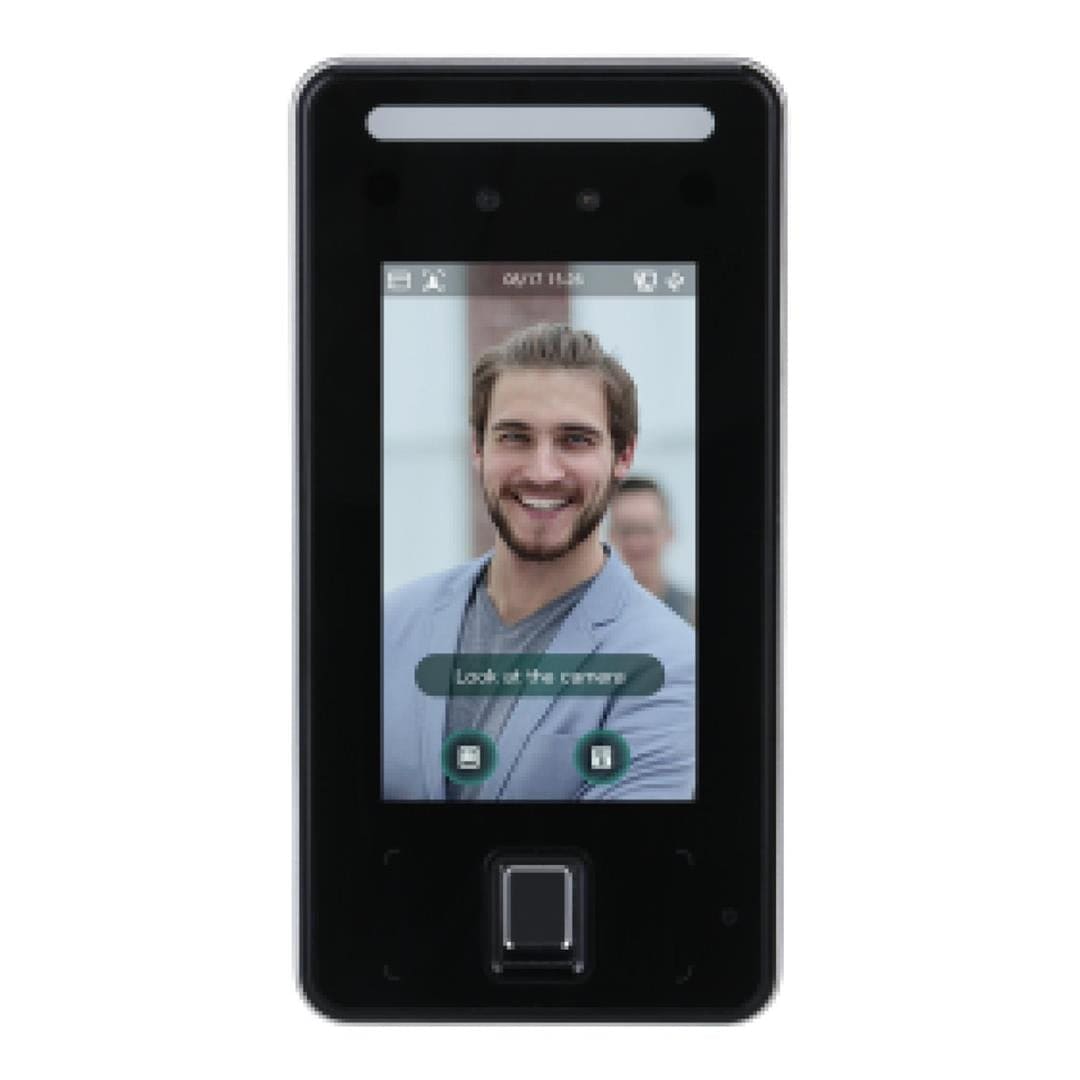

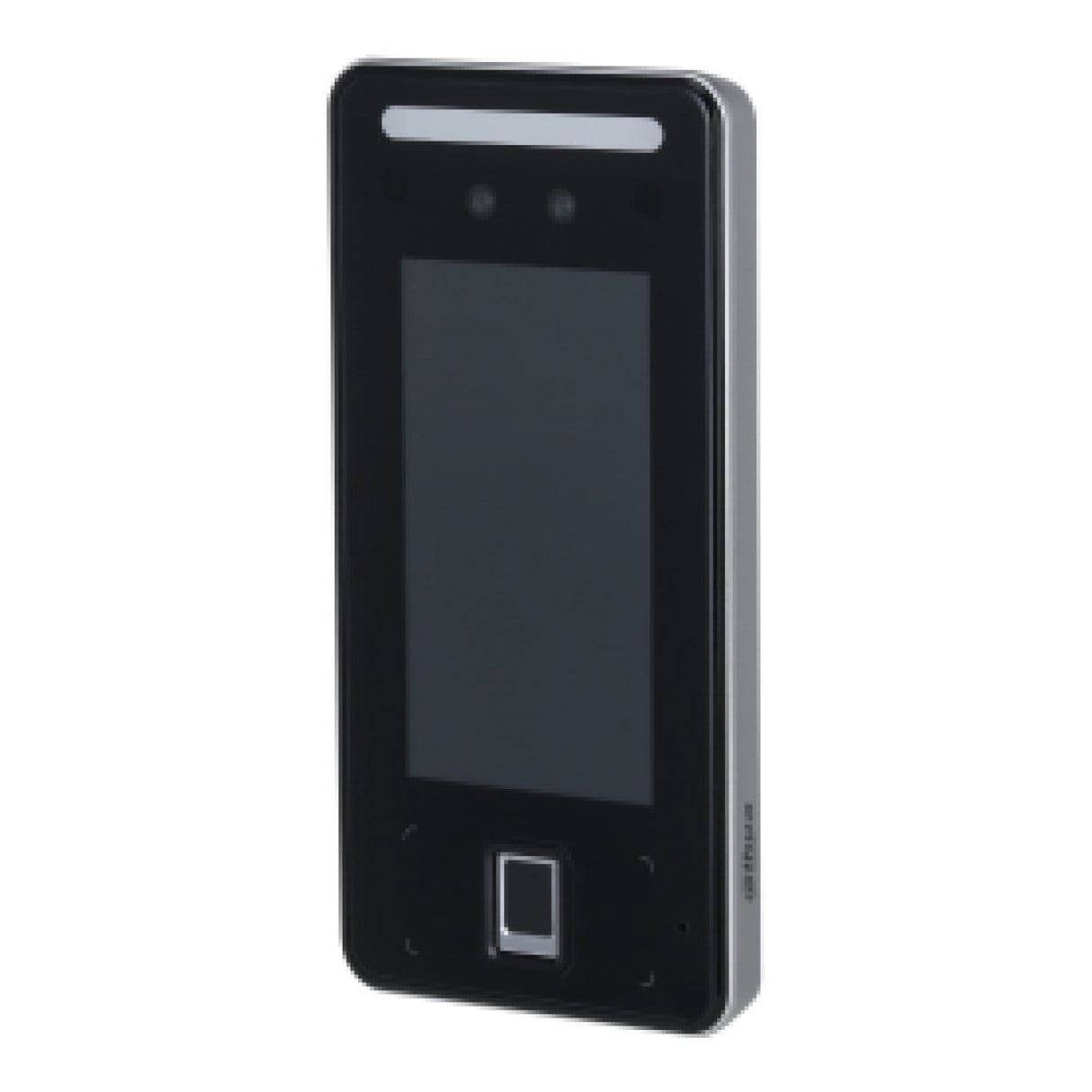

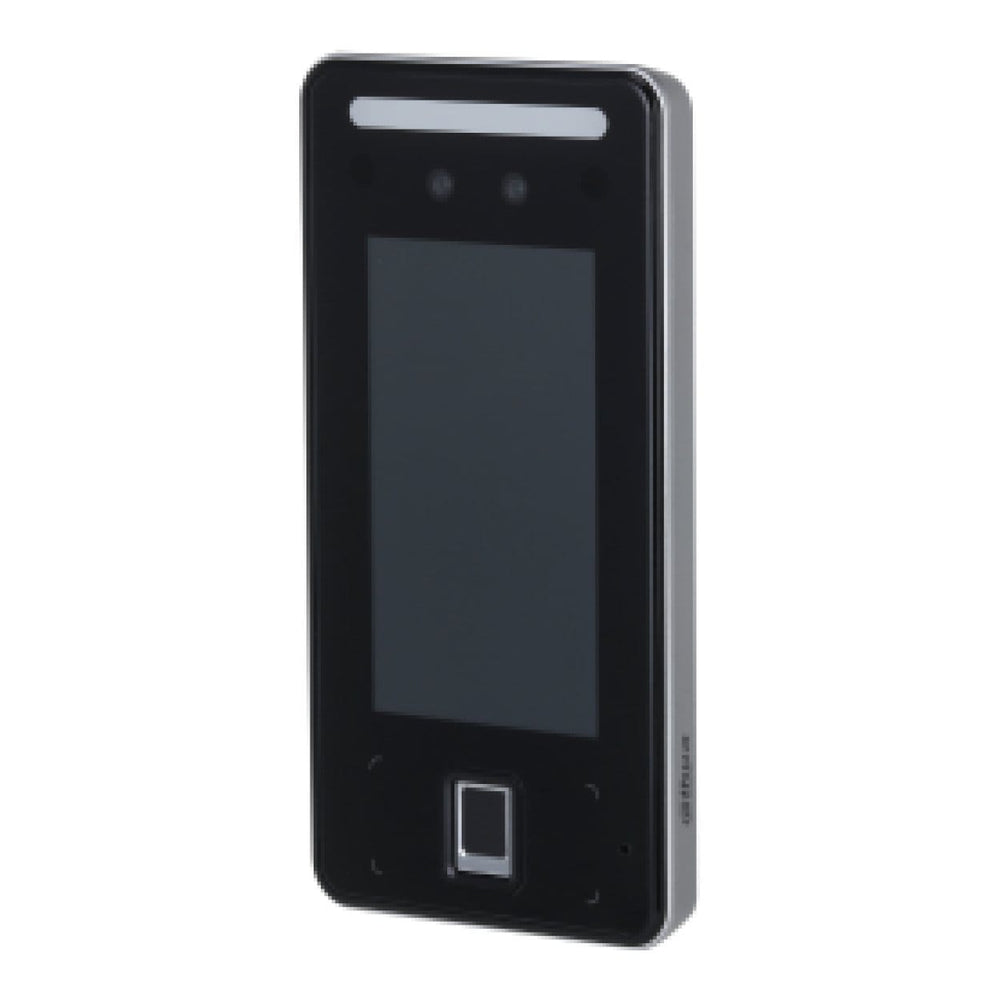

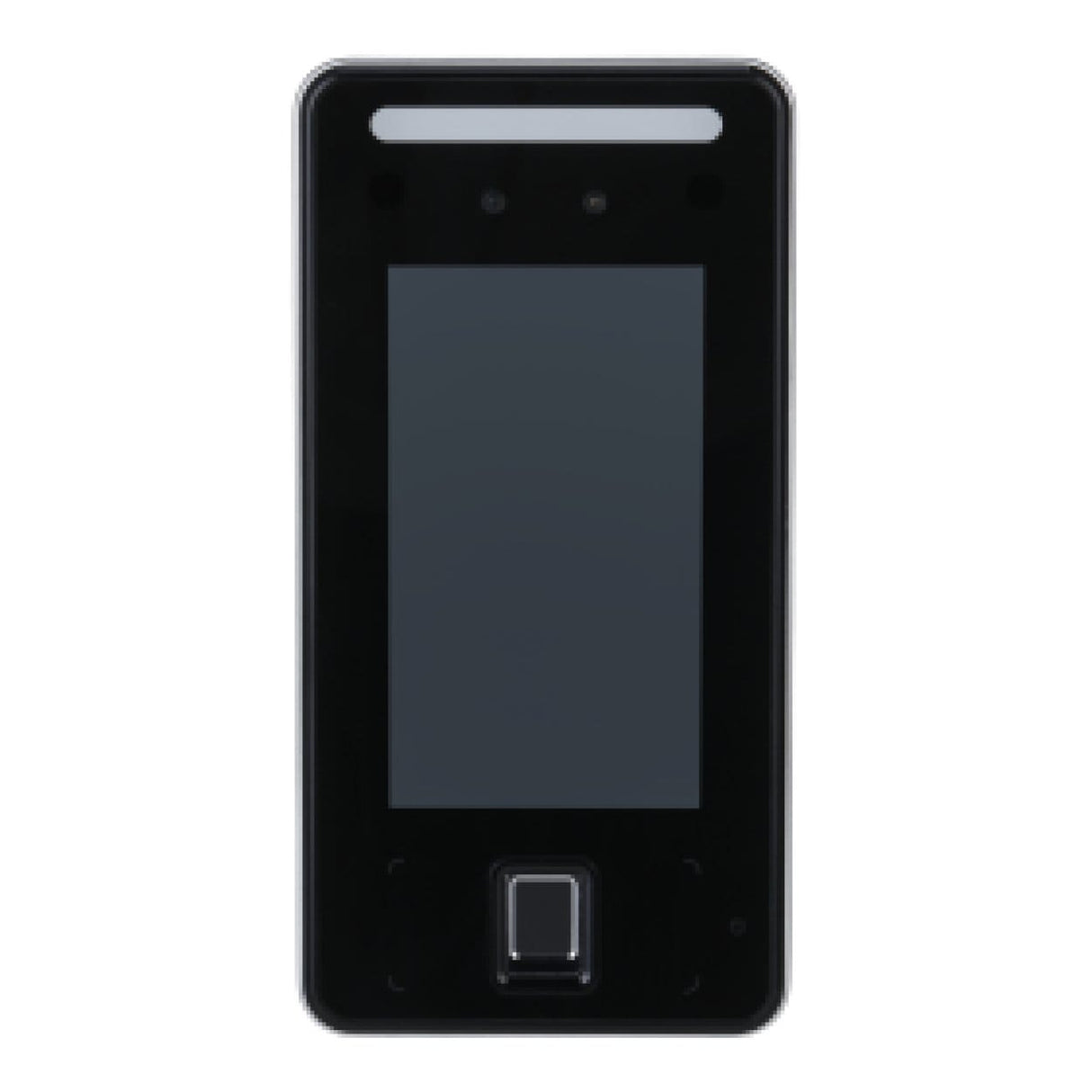

Dahua ASI6214J-MFW-V1 Single Door Face Recognition Access Controller

Dahua ASI6214J-MFW-V1 Single Door Face Recognition Access Controller

Dahua Single Door Face Recognition Access Controller

• Comes with a 4.3-inch LCD with a resolution of 272 (H) × 480 (V).
• 2MP CMOS dual-lens camera with IR and white light illumination and WDR functions.
• Multiple unlock methods including face, card, password, fingerprint and QR code. You can configure scheduled unlock methods, or combine them to create your own personal unlock methods.
• Supports 20,000 users, 20,000 faces, 10,000 fingerprints, 50,000 cards, 20,000 passwords, 50 administrators, and 300,000 records.
• Recognizes faces 0.3 m to 1.5 m away (0.98 ft-4.92 ft) at an accuracy of 99.9%, and compares 1 face with N faces at the speed of 0.2 seconds/ person.
• Supports security extension modules for access control, preventing doors from being forcefully opened.
• Supports local attendance management and exporting attendance reports.
• Supports face mask detection and safety helmet detection.
• Supports visitor QR code and doorbell.
• Supports video intercom and app control.
• TCP/IP and Wi-Fi connection.
• IP65 rated.
• Plays advertisements in video and image format

Specifications:

Main Processor: Embedded Processor

Network Protocol: UDP;TCP;IPv6;IPv4;RTSP;SIP;P2P;RTP

OSDP Protocol: Yes

Interoperability: CGI;ONVIF

SDK and API: Yes

Basic

Product Type: Standalone

Display Screen: 4.3-inch LCD

Screen Type: Capacitive Touchscreen

Screen Resolution: 272 (H) × 480 (V)

Camera: 2MP CMOS high definition camera

WDR: DWDR

Light Compensation: Auto white light;Auto IR

Voice Prompt: Yes

Speaker: Yes

Casing Material: PC and ABS metal back case

Function

Unlock Mode: Unlock through card, password, face, fingerprint, QR code and remote unlock. You can also combine them to create your own personal unlock methods.

Card Type: IC card; Desfire card (EV3,Compatible with Dahua card by default)

Period List: 128

Holiday Period: 128

Network Update: Yes

First User Unlock: Yes

Remote Verification: Yes

Restricted List/Trusted List: Yes

Advertisement Playing: Plays advertisements in video and image format

Wi-Fi: Yes

Wireless Standard: IEEE802.11b/802.11g/802.11n

Wireless Frequency Range: 2.4 GHz

Max Transmission Power: ≤20 dBm@2400-2483.5 MHz

Wireless Security Encryption: WPA/WPA2;WPA-PSK/WPA2-PSK

Peripheral Card Reader: 1 × RS-485 card reader, and 1 × Wiegand card reader

Multi-user Authentication: Yes

Real-time Monitoring: Yes

Multi-factor Authentication: Yes

Capture Function: Yes

Web Configuration: Yes

Auto Registration: Yes

RFID: Modulation Type

ASK

Frequency Range: 13.56 MHz

Max. Transmission Power: 42dBuA/m @10m

Performance

Card Reading Distance: 0 cm–2 cm (0"–0.79")

Face Recognition Height Range: 0.9 m–2.4 m (2.95 ft–7.87 ft)

Face Recognition Distance: 0.3 m–1.5 m (0.98 ft–4.92 ft)

Face Recognition Accuracy: 99.9%

Face Recognition Time: 0.2 s

Fingerprint Sensor Type: Capacitive

Fingerprint Verification Mode: 1:N

Fingerprint Comparison Time: 1.5 s

Fingerprint Recognition Time: 0.5 s

Code Type: Printed code, and electronic code

User

User (Card) Type: Normal, VIP, patrol, guest, blocklist, customized user 1, customized user 2 and more.

Capacity

User Capacity: 20000

Face Image Capacity: 20000

Fingerprint Capacity: 10000

Card Capacity: 50000

Password Capacity: 20000

Record Capacity: 300000

Port

RS-485: 1

Wiegand: 1, input and output port

USB: 1 × USB 2.0 port

Network Port: 1 × 10 Mbps/100 Mbps Ethernet port

Alarm Input: 1 (On/off signal)

Alarm Linkage: Yes

Exit Button: 1

Door Status Detection: 1

Lock Control: 1
