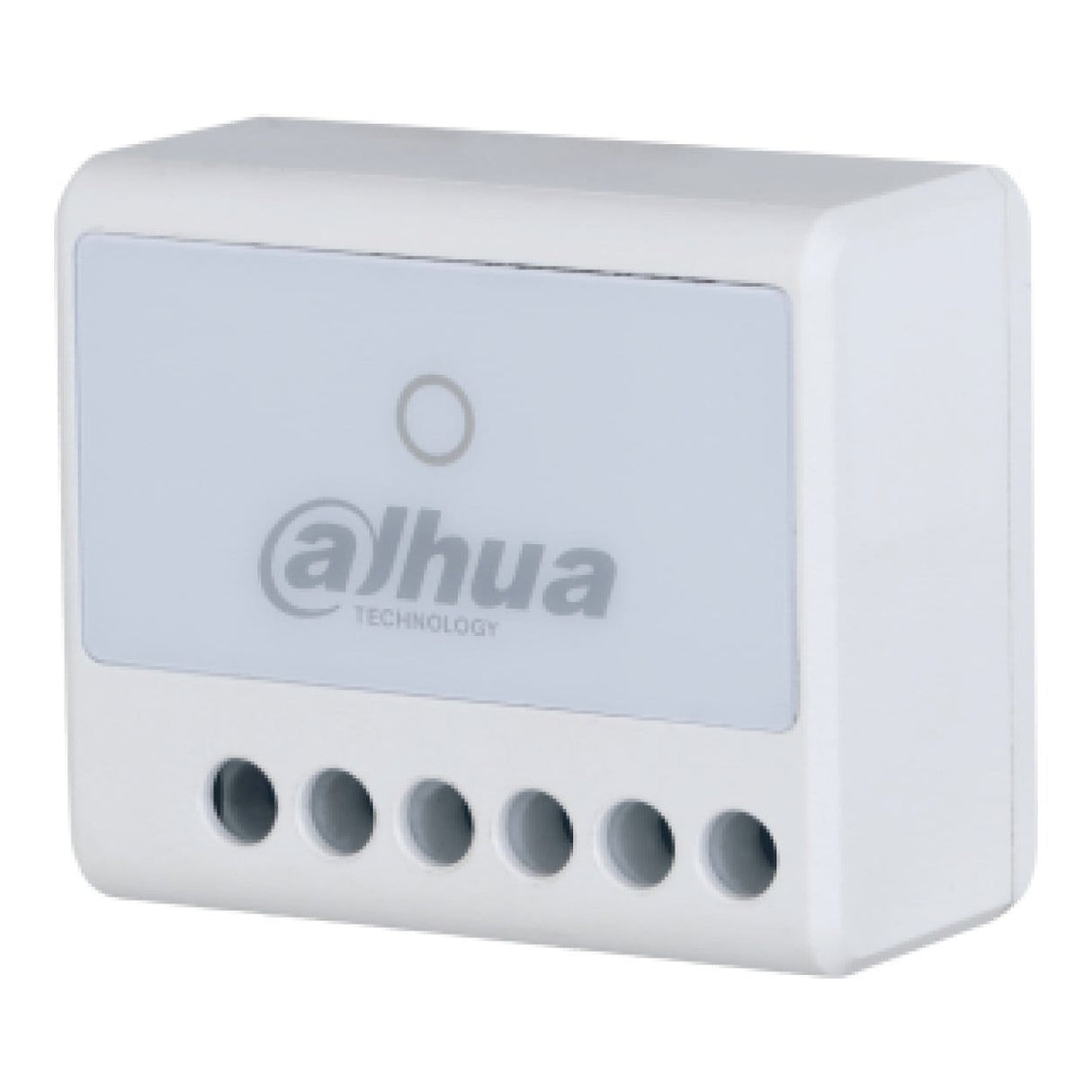

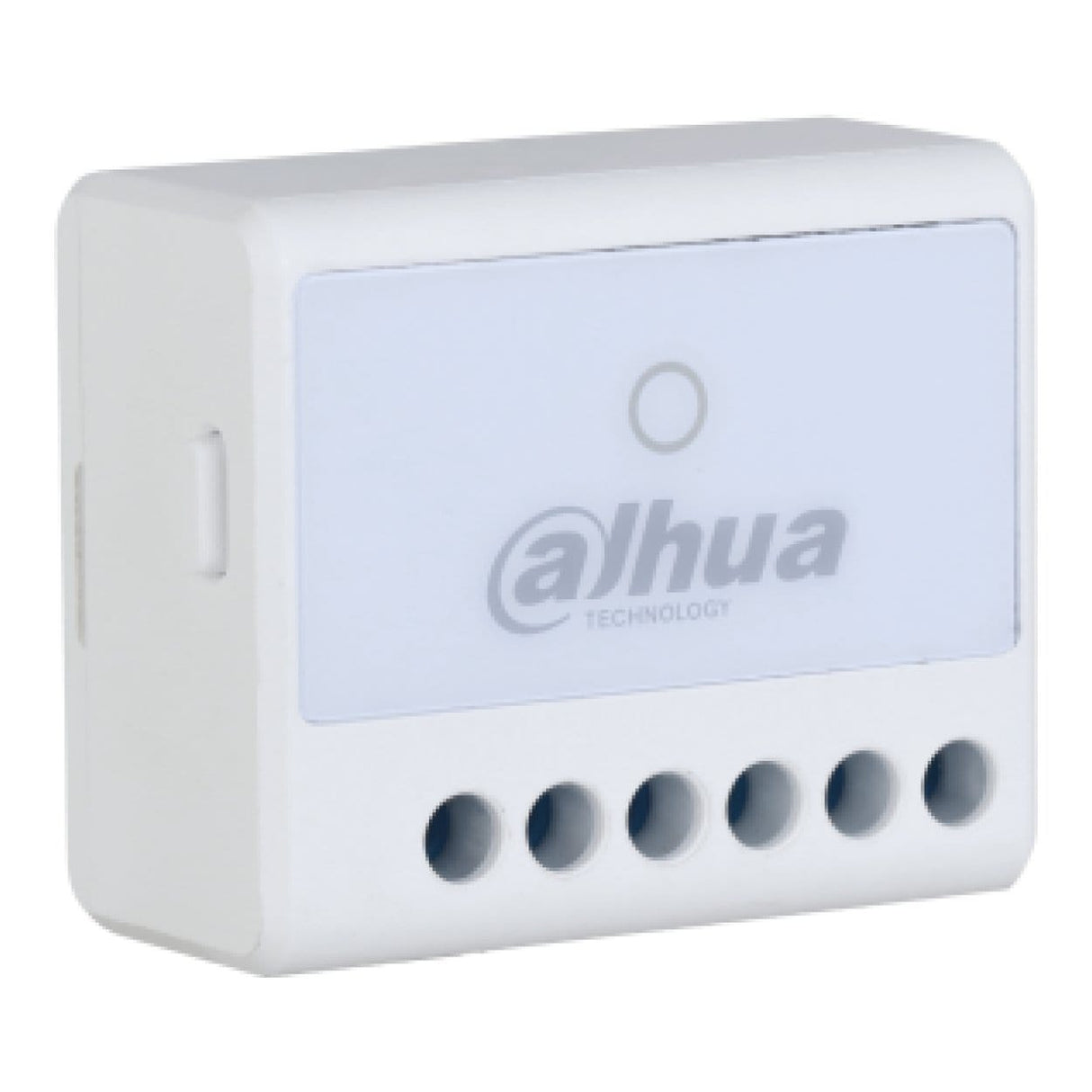

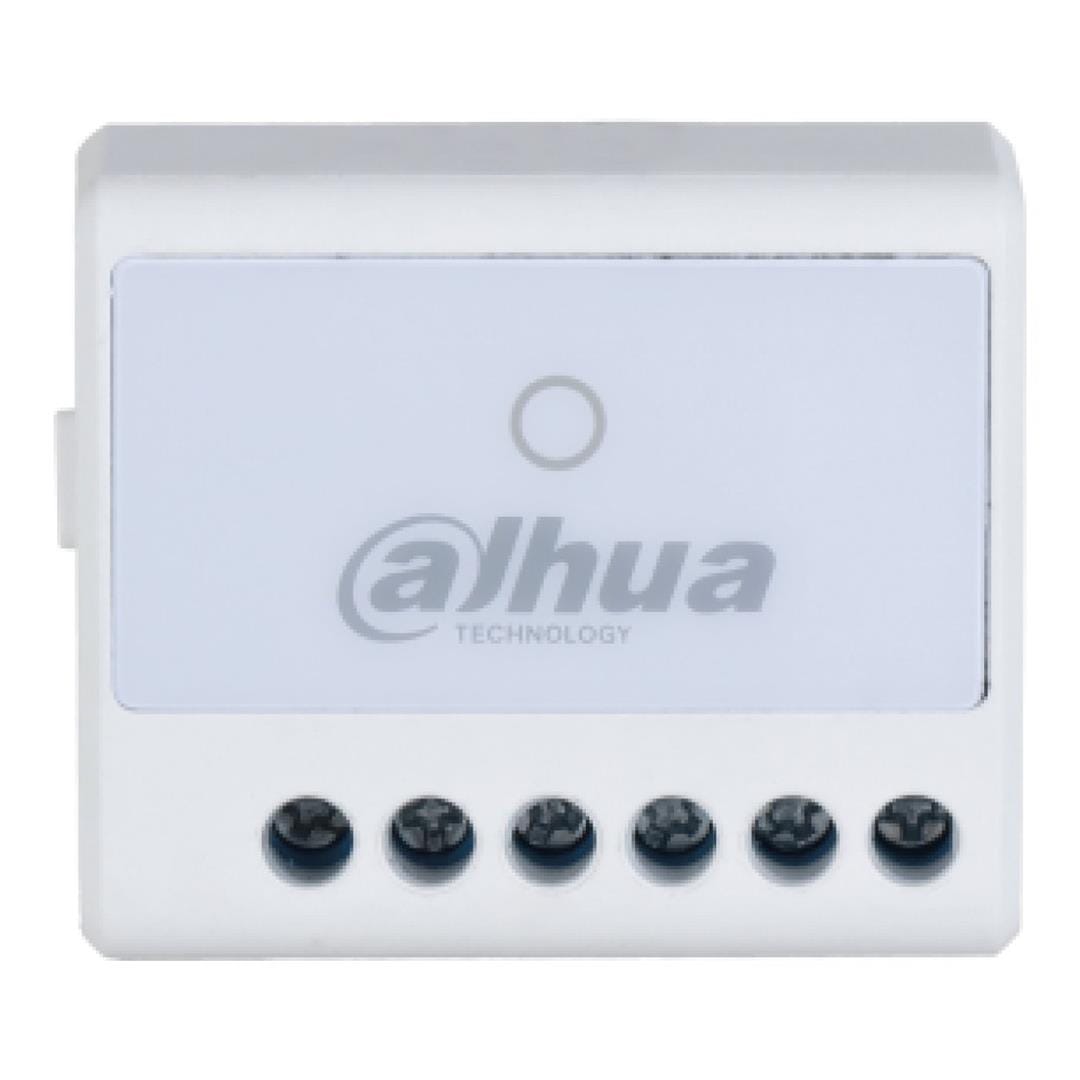

Dahua ARM7011-W2(868) Wireless Relay

Dahua ARM7011-W2(868) Wireless Relay

Dahua Wireless Relay

• Frequency hopping and two-way communication technology ensure that communication is stable.
• Supports jamming detection and communication encryption.
• Supports cloud update and automatically restores when cloud update fails.
• Overheating protection.
• Voltage detection.
• 1 channel external tamper input.

Specifications:

Alarm Input: 1 for tamper, NO/NC

Relay Output: 1, NO/NC (0–36 VDC, Max 5A)

Indicator Light: 1 for multiple statuses (pairing, communication)

Button: 1

Remote Update: Cloud update

Test Mode: Yes

Carrier Frequency: 868.0 MHz–868.6 MHz

Communication Mechanism: Two-way

Communication Distance: 1200 m (3937.01 ft) in open areas

Encryption Mode: AES128

Frequency Hopping: Yes

Power Supply: 7–24 VDC

Operating Temperature: –10 °C to +55 °C (indoor)

Operating Humidity: 10%–90% (RH)

Storage Temperature: –10°C to +55°C

Storage Humidity: 10%–90% (RH)

Product Dimensions: 39mm × 33mm × 19mm

Gross Weight: 60 g

installation: Wall mount

Casing material: PC + ABS

Certifications: CE
