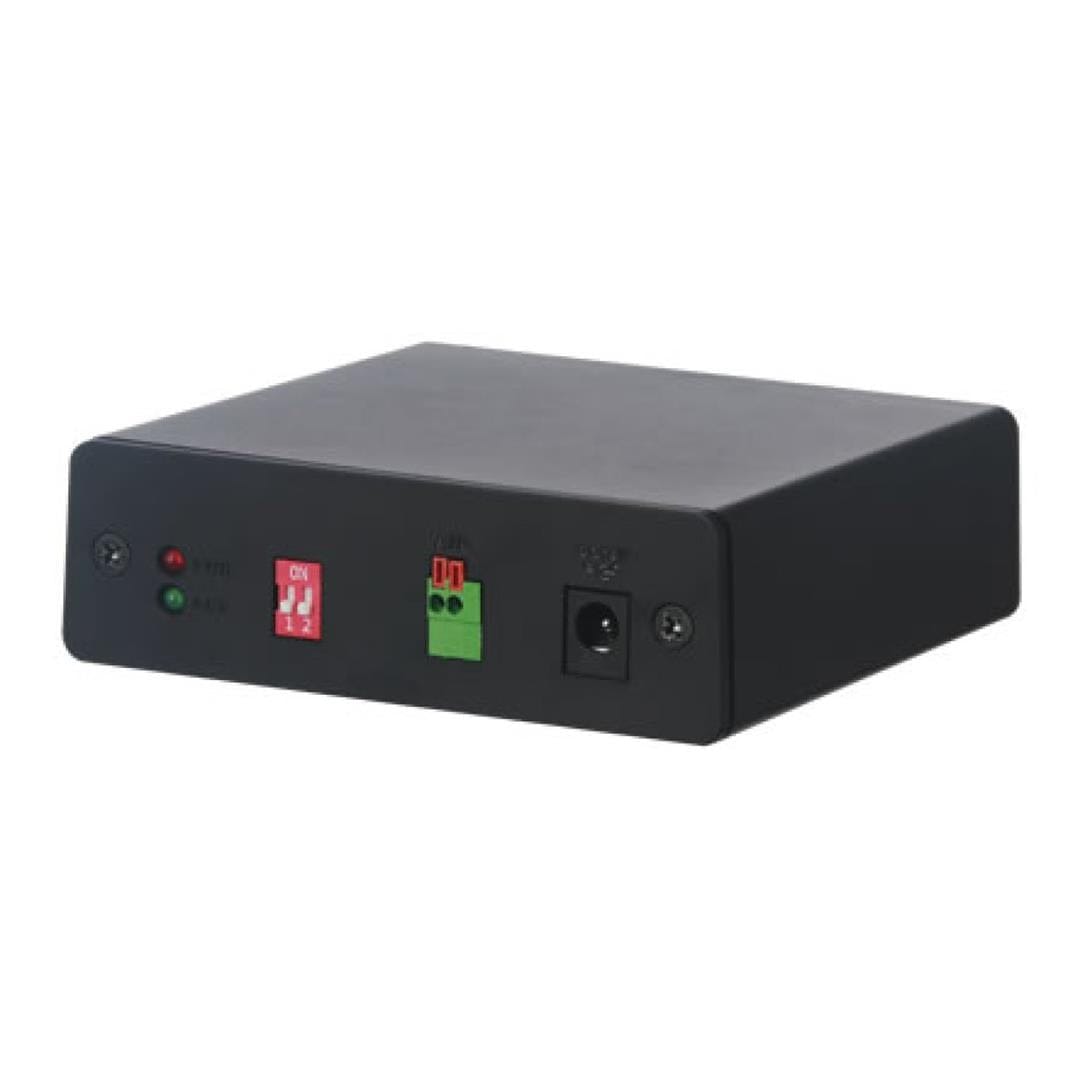

Dahua ARB1606 Alarm Box

Dahua ARB1606 Alarm Box

Features:

• Support through RS485 access to NVR&XVR
• Support 16ch Alarm In/6ch Alarm Out interface
• Support 2-bit DIP switch (0/1) to determine the different alarm box access; Max support 4 alarm boxes having access to the back-end storage device
• Support universal 12V power supply; Support using a separate adapter or through 1 to 2 power cable using the DVR adapter to supply the alarm box with power
• The front panel has a power indicator (PWR) which maintains lightening when the device is powered up; The front panel has a signal communication indicator (ACT) which lights up every 1 second when the communication is established between the alarm box and XVR/NVR equipment.
• Linked alarm can be configured on the alarm input and output interface when the communication is established between XVR/NVR device and the alarm box.

Specifications:

Communication 1: RS485 port

DIP Switch: 2-bit

Alarm In: 16ch

Alarm Out: 6ch

Power Supply: 12V/1A (or use 1 to 2 power cable to use the DVR power)

Power Consumption: 0.2W

Operating Temperature: -10°C ~ +55°C

Operating Humidity: 10%~ 90% RH

Dimensions: 97.68mm×90.3mm×33mm

Net Weight: ≤0.2kg

Installation: Desktop installation
