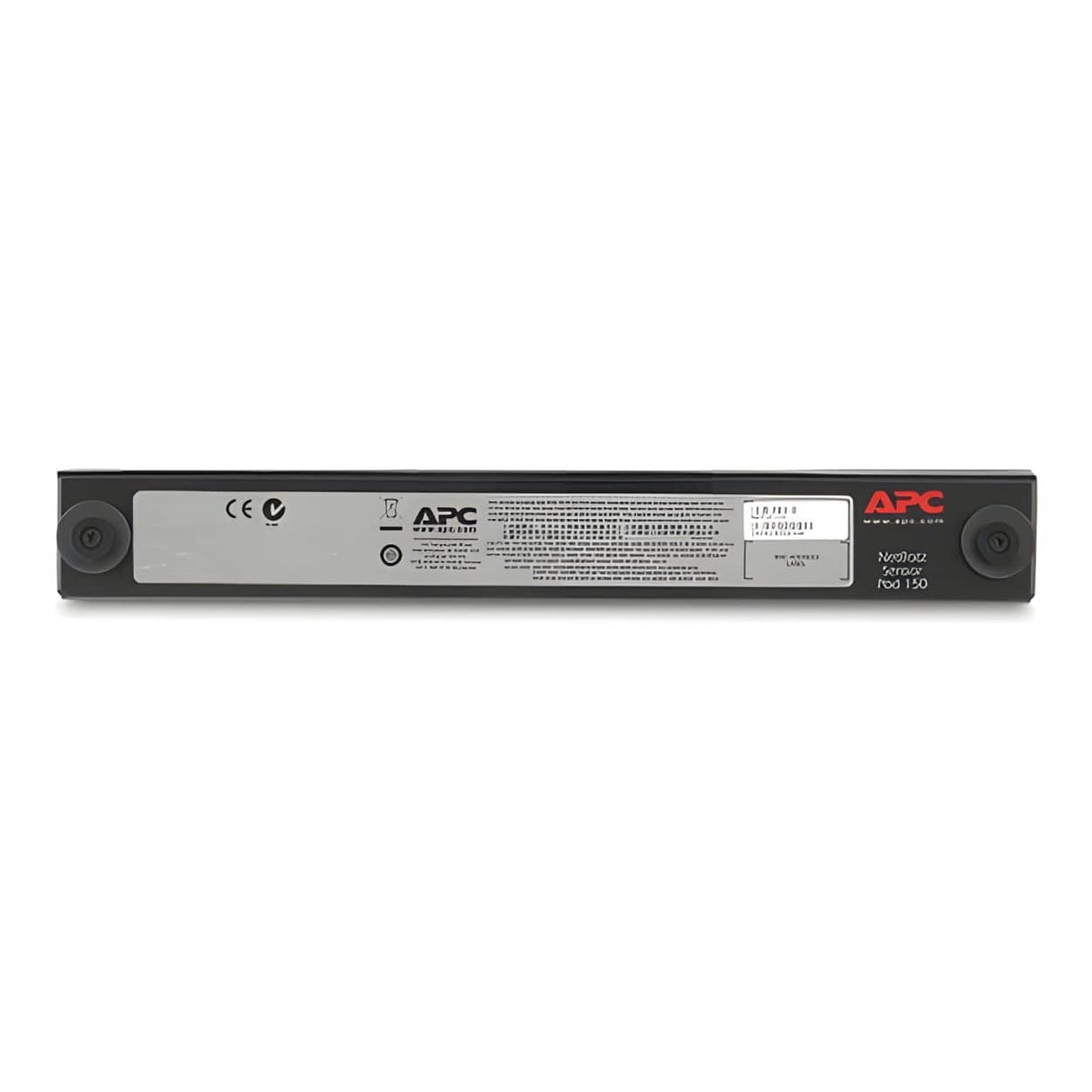

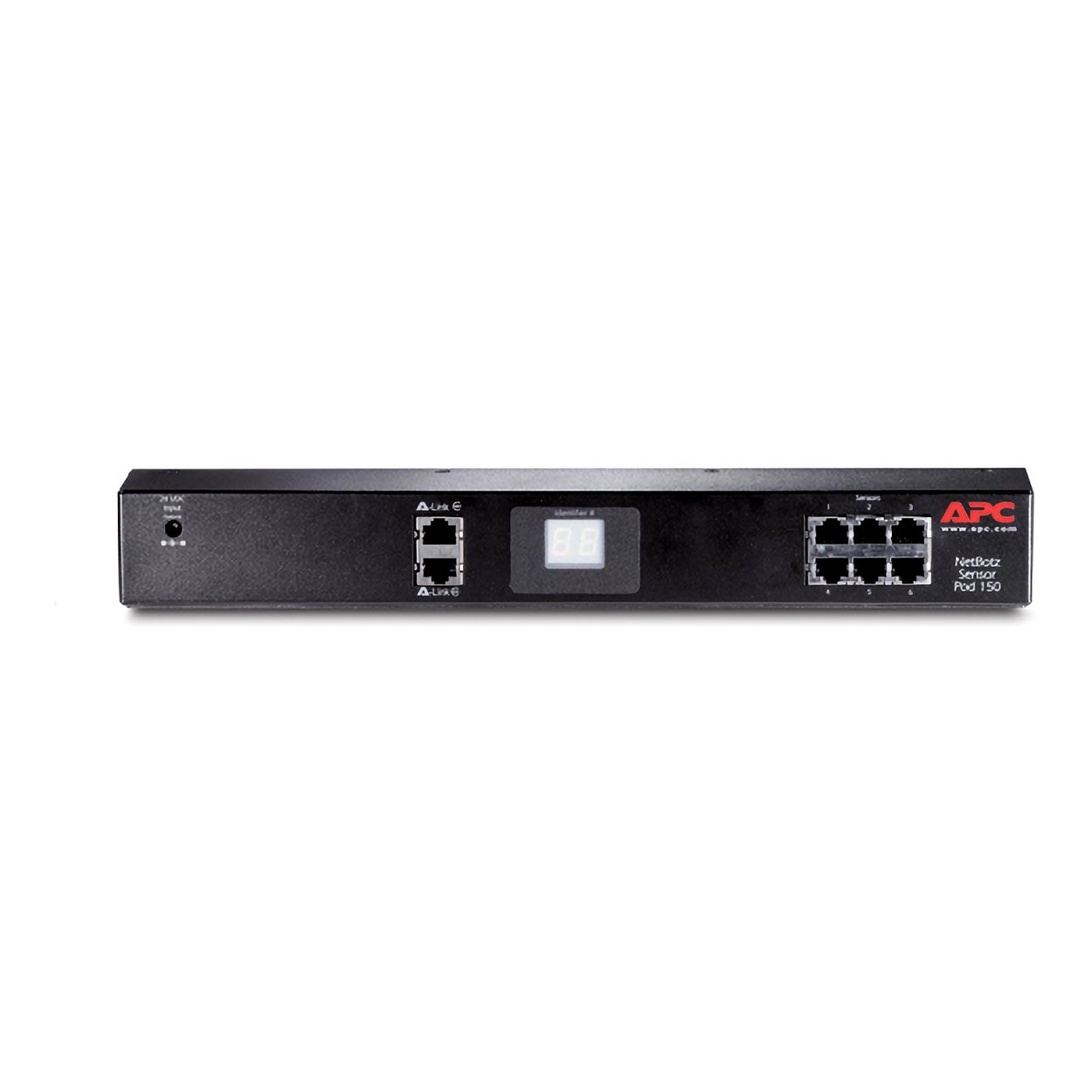

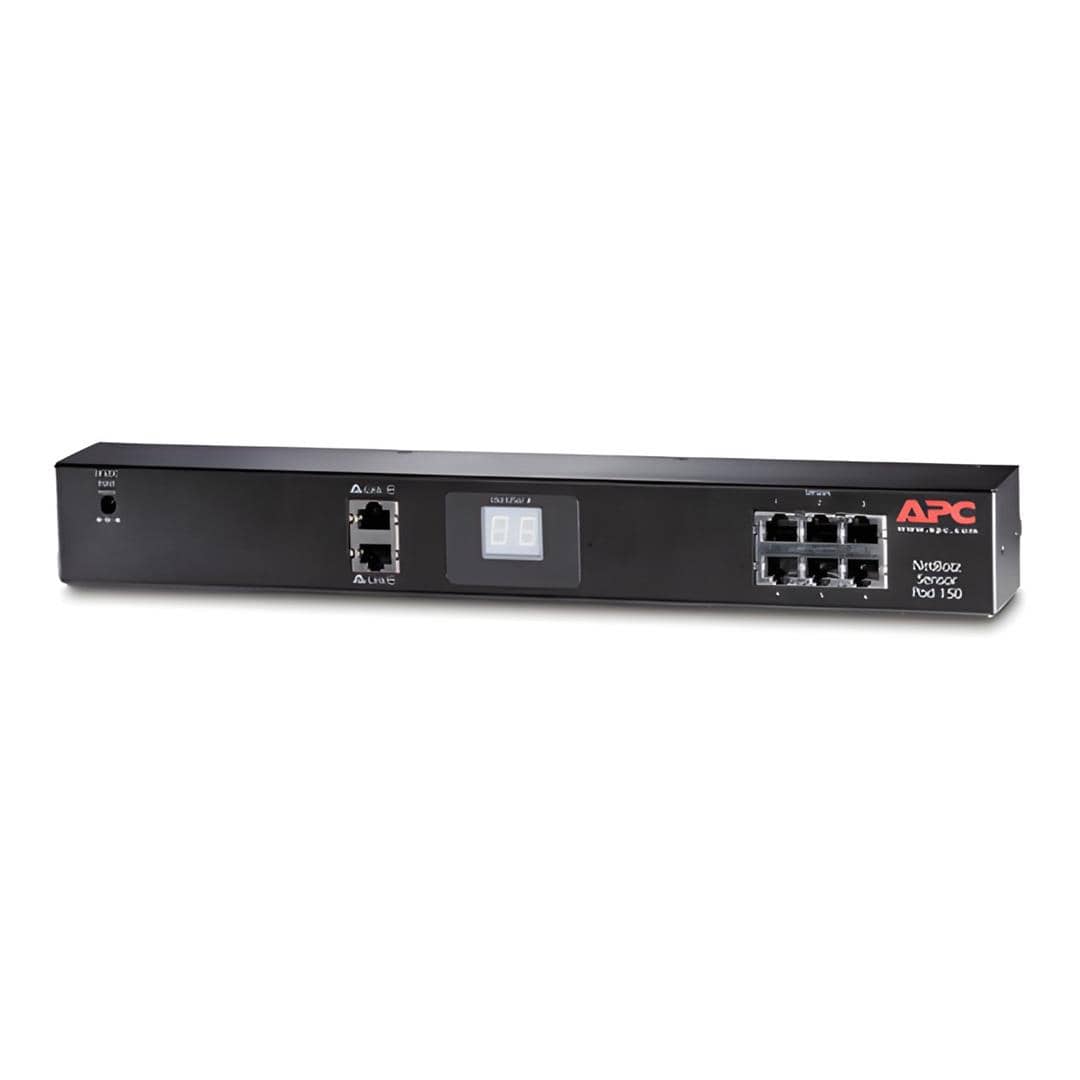

APC NetBotz NBPD0150 Rack Sensor Pod 150

APC NetBotz NBPD0150 Rack Sensor Pod 150

The Netbotz 150 Rack mount sensor pod provides 6 access to add additional 6 Universal Sensors to your existing NetBotz Appliance installation. Compatible with current generation 250A, 750 and 755 appliances as well as NetBotz 455, 450 and 570 appliances. Connect multiple Pods using proprietary NetBotz A-Link connection. Powered either by PoE Type 2 ethernet connection or by accessory 12V DC Power Supply.

Features:

• Connect additional 6 sensors for your Netbotz 250A, 750 or 755 Appliance
• Collect tempurature, humidity, leak/spot, door switch or 3rd party sensor data
• Designed for Rack mounting installations
• Allows to increase the space monitored by NetBotz security & environmental monitoring system

A-Link communication port

Deployment flexibility allows sensor pods to be up to 1000 meters from a compatible NetBotz appliance.

Rack mountable

Includes horizontal, vertical and toolless-mount capabilities.

Low profile sensors

Small sensors allow for placement flexibility.

Optional sensors

Add sensors to compatible NetBotz Appliances for monitoring temperature, humidity, fluid, vibration, dust particles, etc.

Technical Specifications:

Product Type: Rack Enclosure
Product Range: NetBotz
Rack Height: 1U

Physical Specifications
Height: 4.3 Cm
Width: 33.7 Cm
Depth: 4.3 Cm
Product Weight: 0.61 Kg
Mounting Location: Front
Mounting Preference: No Preference
Mounting Mode: Rack-Mounted

Compliance & Certifications
Standards:

• FCC Part 15 Class A
• ICES-003

Certifications:

• AS/NZS 3548 (C-Tick) Class A
• CE
• GOST
• NOM
• VCCI Class A

Environmental Conditions
Operating Temperature: 0°C To 45°C
Operating Altitude: 0 To 10,000 Ft
Operating Humidity: 0% To 95%

Storage Temperature: -15°C To 65°C
Storage Altitude: 0 To 15,240 M
Storage Humidity: 0% To 95%

Packaging Information
Package Type: PCE
Units Per Package: 1
Package Dimensions (H X W X L): 6.4 X 45.7 X 22.2 Cm
Package Weight: 1.816 Kg

Warranty
Warranty: 24 Months

What's in the Box:

• Rack Enclosure
• Cable Ties
• Documentation CD
• Installation Guide
• Temperature/Humidity Sensor
