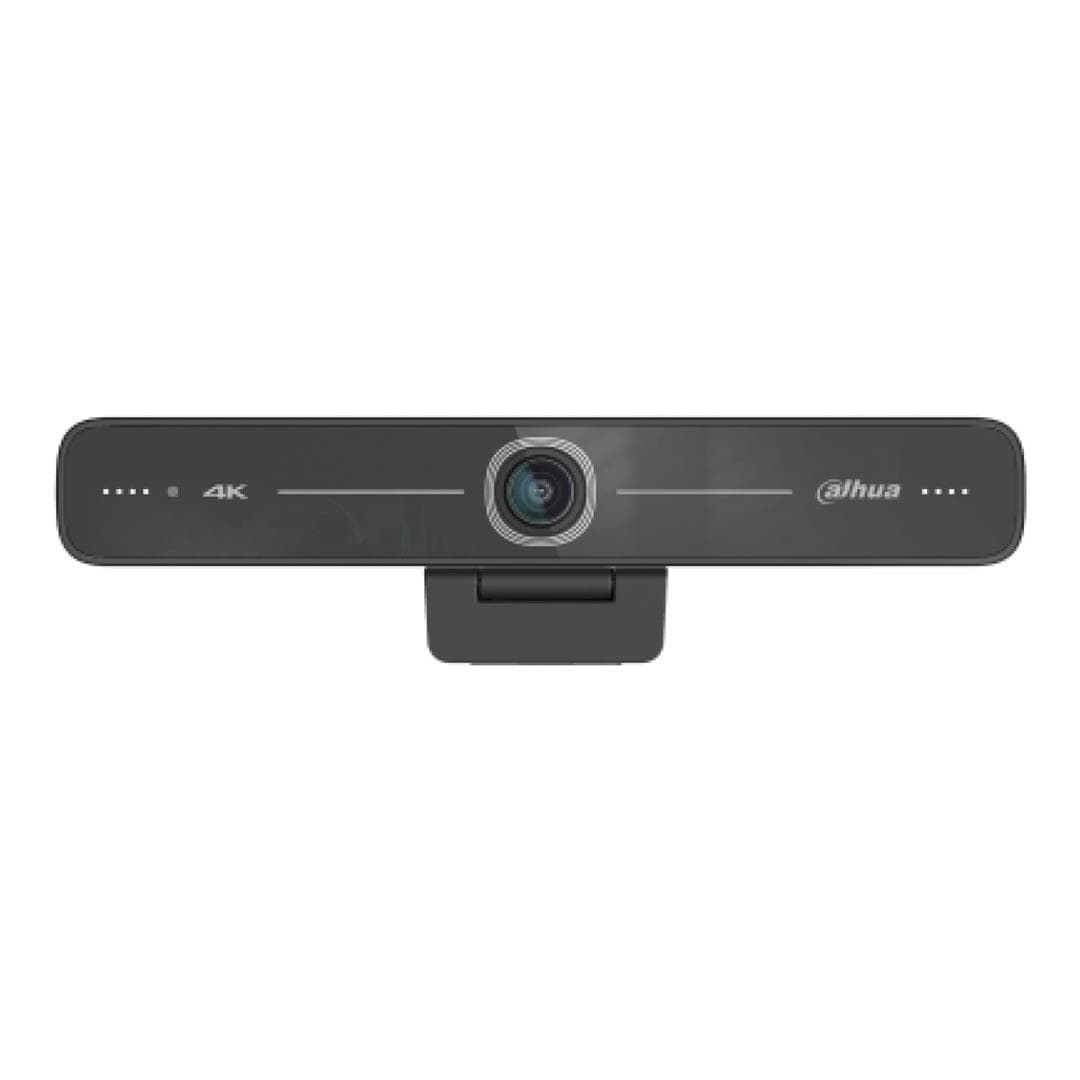

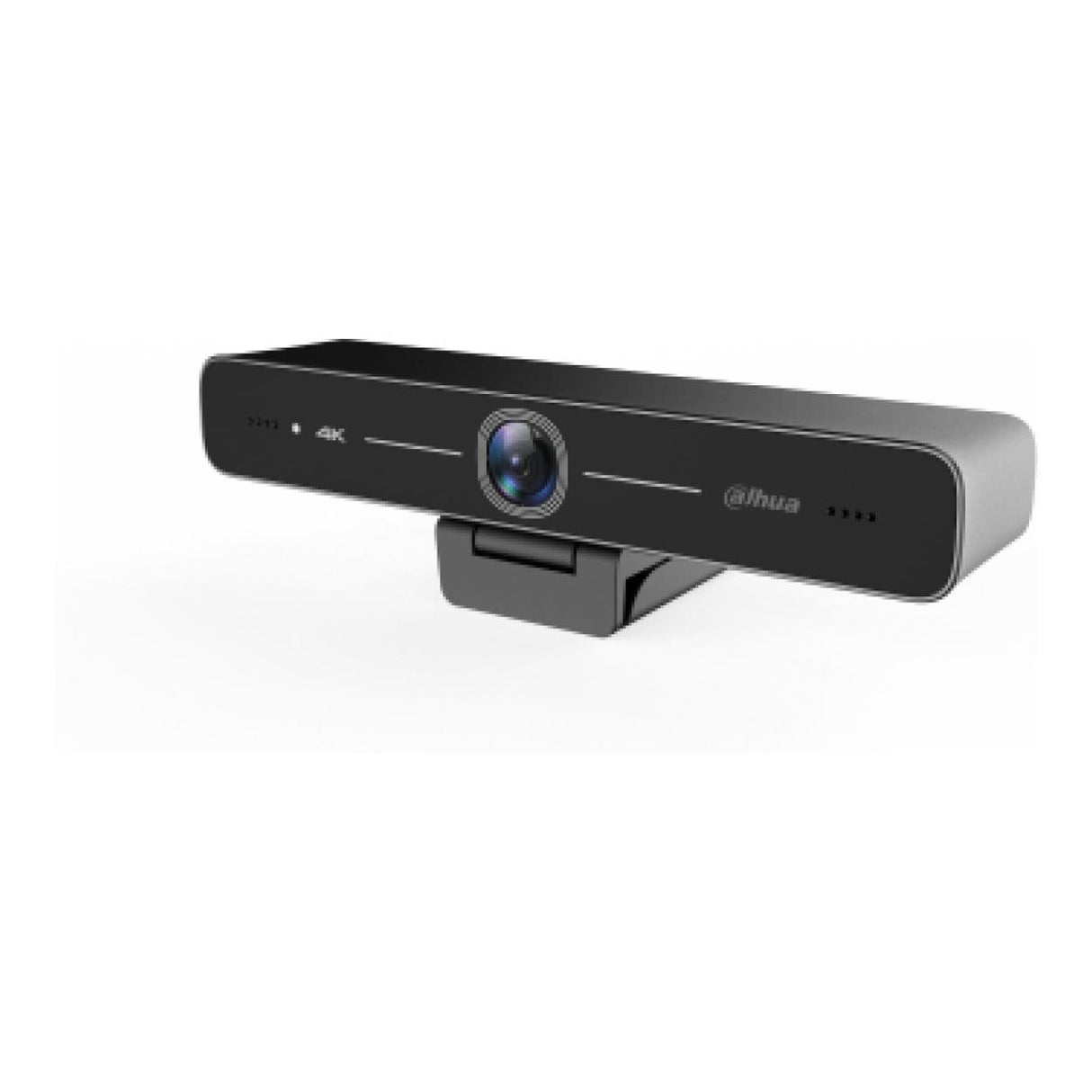

Dahua PKC-UC0B 8MP 2.26mm USB Camera

Dahua PKC-UC0B 8MP 2.26mm USB Camera

8MP USB Camera

• 4K Ultra HD and a USB 3.0 port for video output.
• Up to 10× digital zoom and supports EPTZ.
• Adopts 2 built-in Mics that can pick up sound in all directions, and that have unique noise compression algorithms that extend the sound pickup distance to 6 meters.
• A clamp is included, and the camera can be easily mounted to the LCD screen, laptop, and desktop, or installed on a tripod.
• The USB port supports plug-and-play, eliminating the need for a drive.

Specifications:

Image Sensor: 8MP CMOS

Max. Resolution: 3840 (H) × 2160 (V)

Video Frame Rate:

• MJPG: 3840 × 2160@30; 2560 × 1440@30; 1920 × 1080@30; 1600 × 896@30; 1280 × 720@30; 1024 × 576@30; 960 × 540@30; 800 × 600@30; 800 × 448@30; 720 × 576@30; 720 × 480@30; 640 × 480@30; 640 × 360@30; 480 × 270@30; 352 × 288@30; 320 × 240@30 and more
• H.264: 3840 × 2160@30; 2560 × 1440@30; 1920 × 1080@30; 1600 × 896@30; 1280 × 720@30; 1024 × 576@30; 960 × 540@30; 800 × 600@30; 800 × 448@30; 720 × 576@30; 720 × 480@30; 640 × 480@30; 640 × 360@30; 480 × 270@30; 352 × 288@30; 320 × 240@30 and more
• YUY2: 1920 × 1080@30; 1280 × 720@30; 1024 × 576@30; 800 × 600@30; 800 × 448@30; 640 × 480@30; 640 × 360@30; 480 × 270@30; 320 × 180@30 and more
• NV12: 1920 × 1080@30; 1280 × 720@30; 1024 × 576@30; 800 × 600@30; 800 × 448@30; 640 × 480@30; 640 × 360@30; 480 × 270@30; 320 × 180@30 and more

Field of View:

• H: 100°
• V: 56°
• D: 115°

Focal Length: 2.26 mm

Digital Zoom: 10×

Min. Illumination: 0.1 lux

Lens Type: Fixed-focal

Max. Aperture: F1.8 ± 5%

Exposure Mode: Auto; Manual; Shutter Prio; Brightness Prio

Image Setting: Brightness, definition, saturation, contrast, white balance, gain, anti-flicker, brightness compensation and more

S/N Ratio: >50 dB

USB: 1 × USB 3.0, Type B (supports outputting audio signals)

Video Compression: MJPG, YUY2, H.264, NV12

Built-in MIC: 2

Audio Input: Yes

USB Video Communication Protocol: UVC, UAC

Operating Voltage: 5 V

Operating Current: Max. 1 A

Power Consumption: Max. 5 W

Operating Temperature: –10 °C to +50 °C

Operating Humidity: 20%–80% (RH)

Storage Temperature: –10 °C to +60 °C

Storage Humidity: 20%–90% (RH)

Product Dimensions: 180 mm × 42.5 mm × 46.3 mm (L × W × H)

Weight: 0.23 kg
