Delock DisplayPort 1.2 Female to DisplayPort Female Panel-mount Cable 85113

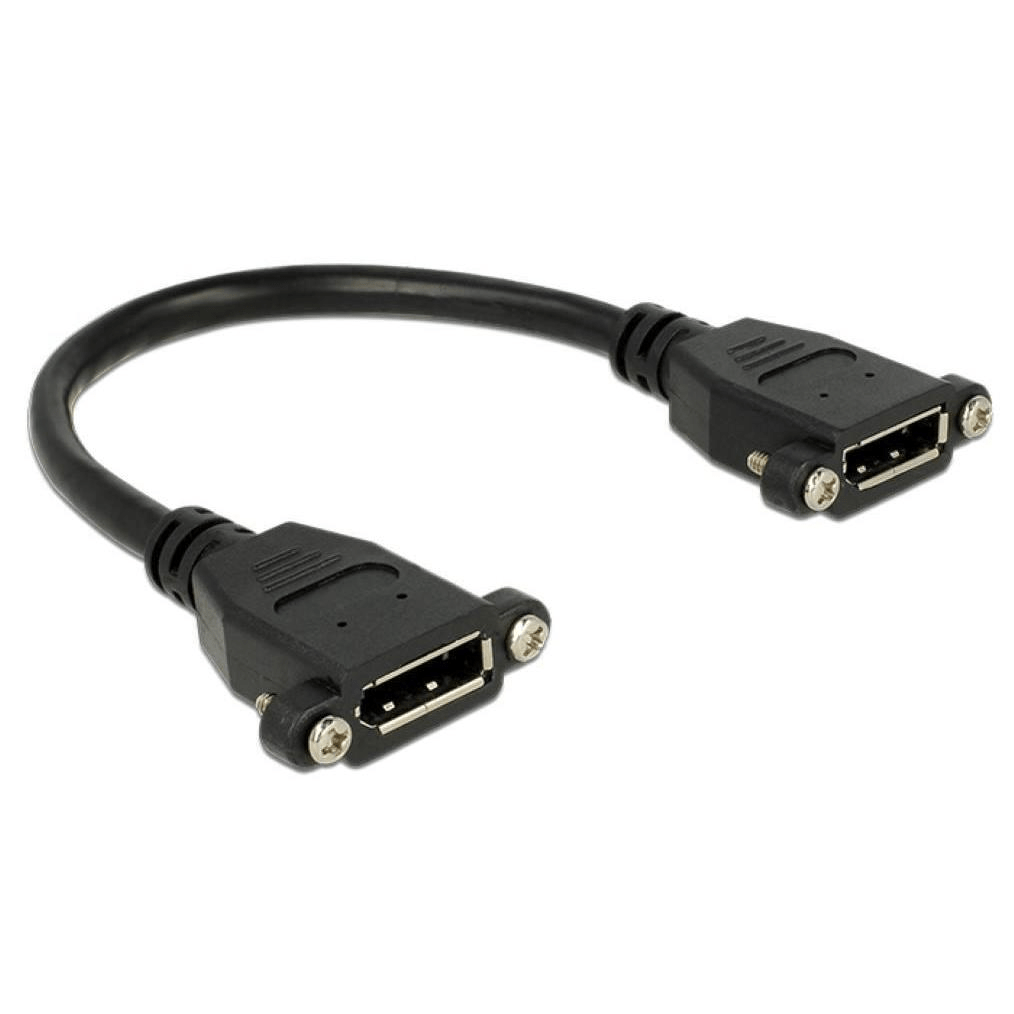

Delock DisplayPort 1.2 Female to DisplayPort Female Panel-mount Cable

Description

This cable by Delock can be used to extend an DisplayPort connection and to connect various devices. The female port can be attached with two screws, e.g. to a slot bracket, a cable duct or an enclosure with the corresponding opening. In this way, it is possible to install a DisplayPort connector in an easily accessible position.

Specification

• 1 x DisplayPort 20 pin female >
• 1 x DisplayPort 20 pin female panel-mount
• DisplayPort 1.2 specification
• Pin 20 is connected (supports 3.3 V)
• Screw type: #4-40 UNC
• Mounting hole: ca. 18 x 7 mm, screw hole pitch ca. 27 mm
• Cable gauge: 30 AWG
• Cable diameter: ca. 6 mm
• Gold-plated connectors
• Transfer of audio and video signals
• Data transfer rate up to 21.6 Gb/s
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected
• hardware)
• Colour: black
• Length incl. connectors: ca. 25 cm

System requirements

• A free DisplayPort interface

Package content

• DisplayPort panel-mount cable
• 2 screws
