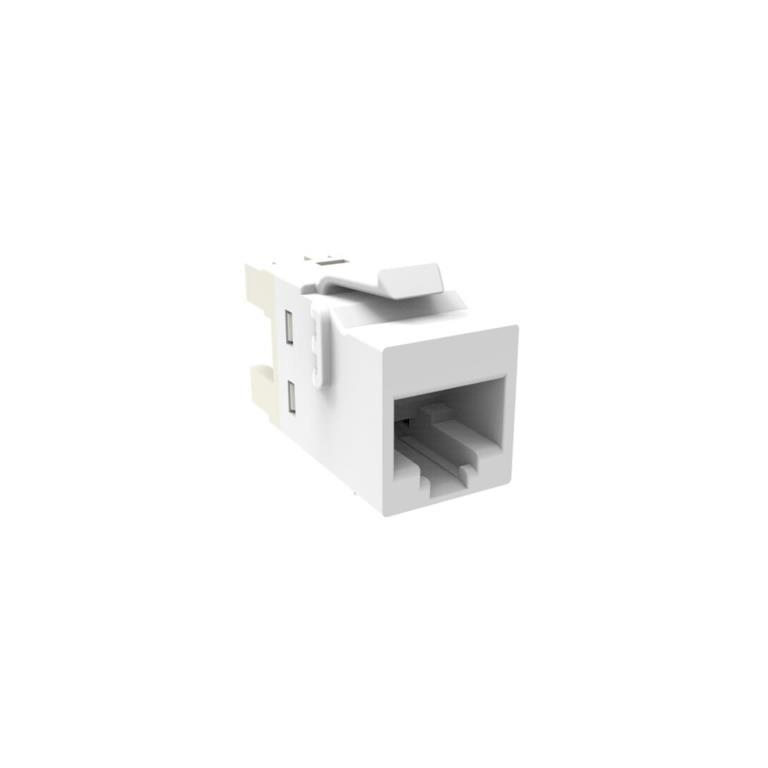

CommScope KJ-Series RJ45 CAT5e Unshielded Modular Jack 1-2291217-3

CommScope KJ-Series RJ45 CAT5e Unshielded Modular Jack 1-2291217-3

Optimize your network setup with the KJ-Series Modular Jack, designed for Cat5e applications. This RJ45 unshielded jack ensures reliable data transmission with support for data speeds up to 1 Gbps. The ProWhite finish provides a clean and professional appearance, making it ideal for both home and office installations. Engineered for easy installation and long-lasting performance, the KJ-Series Modular Jack is the perfect solution for creating stable and efficient network connections.

• ANSI/TIA Category: 5e
• Cable Type: Unshielded
• Colour: Alpine white | Alpine white
• Conductor Type: Solid | Stranded
• Integrated Dust Cover Type: None
• Mounting: Hubbell faceplates | Leviton faceplates | Panduit faceplates
• Mounting Note: Color matches with KJ-style Alpine white or Pro white Faceplates and Surface Mount Boxes
• Outlet Type: Keystone
• Termination Tool: 110 Punchdown tool | SL Termination tool
• Termination Type: IDC
• Transmission Standards: ANSI/TIA-568-C.2 | ISO/IEC 11801 Class D
• Wiring: T568A | T568B
• Remote Powering: Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002
• PoE Durability: Supports IEEE 802.3bt Type 4 (90 W) applications after 3000 plug to jack mating cycles
• Plug to Jack Mating Cycles: Complies to IEC 60603-7 series
• Flammability Rating: UL 94 V-0
• ROHS: Compliant
• CHINA-ROHS: Below maximum concentration value
• REACH-SVHC: Compliant as per SVHC revision on www.commscope.com/ProductCompliance
• UK-ROHS: Compliant
