Aten UE3410F 10m Ultra HD USB-C Active Optical Cable

Aten UE3410F 10m Ultra HD USB-C Active Optical Cable

The UE3410F 10m Ultra HD USB-C DisplayPort 2.1 Active Optical Cable is designed for high-performance video conferencing, professional presentations, and connectivity with various USB-C peripherals such as tablets, monitors, and camera devices. Supporting DisplayPort 2.1 over USB-C, it ensures stable video transmission and ultra-high USB data transfer rate (up to 10 Gbps), adapting to connected device specifications. With strong EMI/RFI resistance and active optical design, it guarantees rapid, long-distance transmission without signal degradation.

Ideal for commercial, educational, and healthcare applications, this cable delivers reliable performance across a wide range of devices, ensuring pristine visuals and smooth plug-and-play connectivity.

Features:

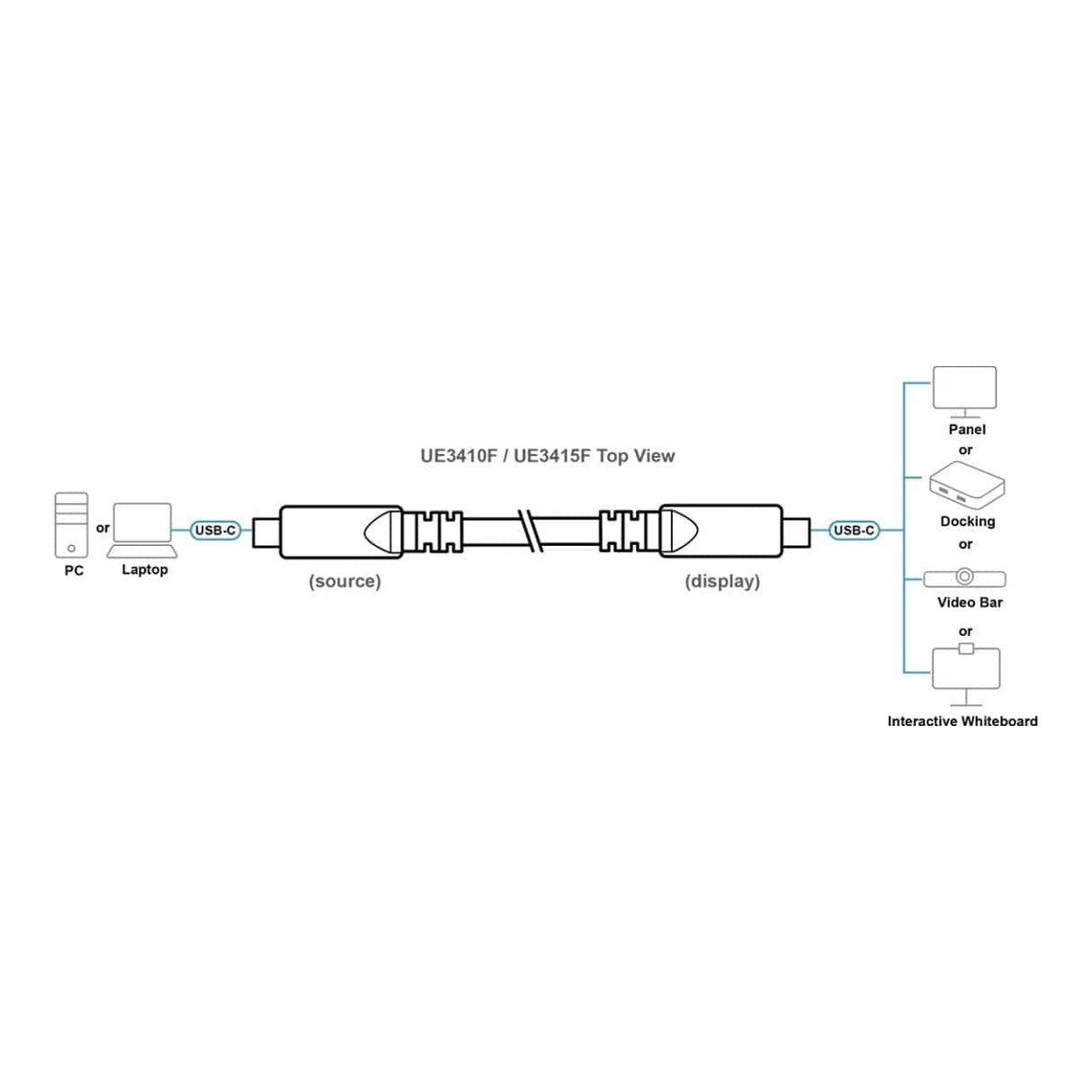

• Extends distance between PCs and USB-C peripherals up to 10 m
• Supports 60W Power Delivery
• Supports either 4-lane DP2.1 UHBR10 + USB 2.0 (480 Mbps) or 2-lane DP 1.4 + USB 3.2 Gen 2 (10 Gbps) depending on the requirements of the connected device
• Supports resolutions up to 4K@60Hz (without HDR or DSC)
• Backward compatible with USB 2.0 / 1.1
• Highly resistant to EMI and RFI due to high quality material construction
• Plug-and-play

Full-featured USB-C Active Optical Cable

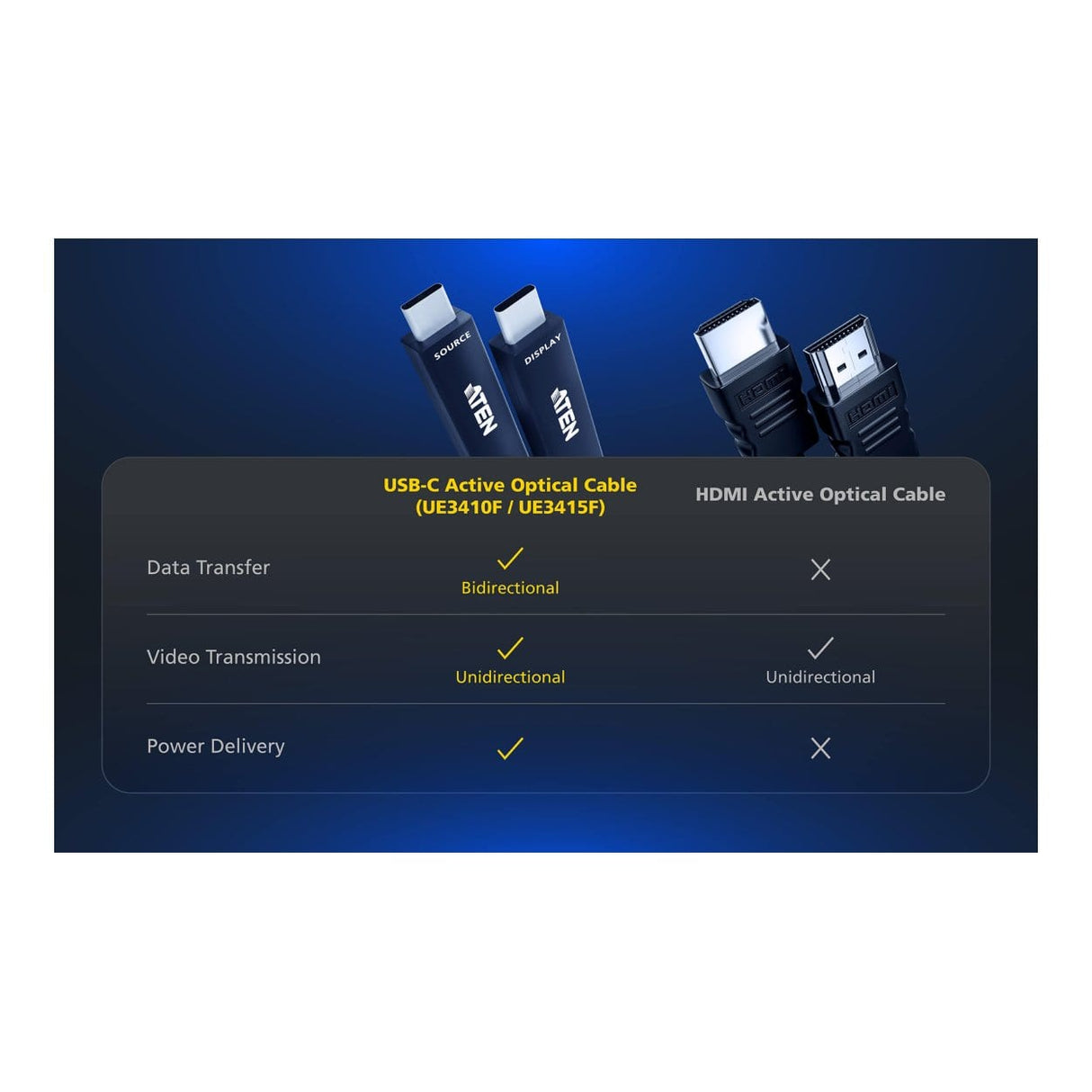

The full-featured USB-C Active Optical Cable supports high-bandwidth USB-C 3.2 Gen 2 data transfer, DisplayPort 2.1 video streaming, and power delivery.

Adaptive DP Lane Switching for Optimal USB and Display Output

Whether it‘s 4-lane DP 2.1 UHBR10 (Ultra High Bit Rate 10) with USB 2.0 or 2-lane DP 1.4 with USB 3.2 Gen 2 at 10 Gbps, the connected device intelligently selects the optimal DisplayPort mode to ensure smooth, high-speed transmission and maximum compatibility for the intended application.

Up to 60W Power Delivery

The capacity to supply power up to 60W to modern devices and peripherals ensures all-around, hassle-free operation.

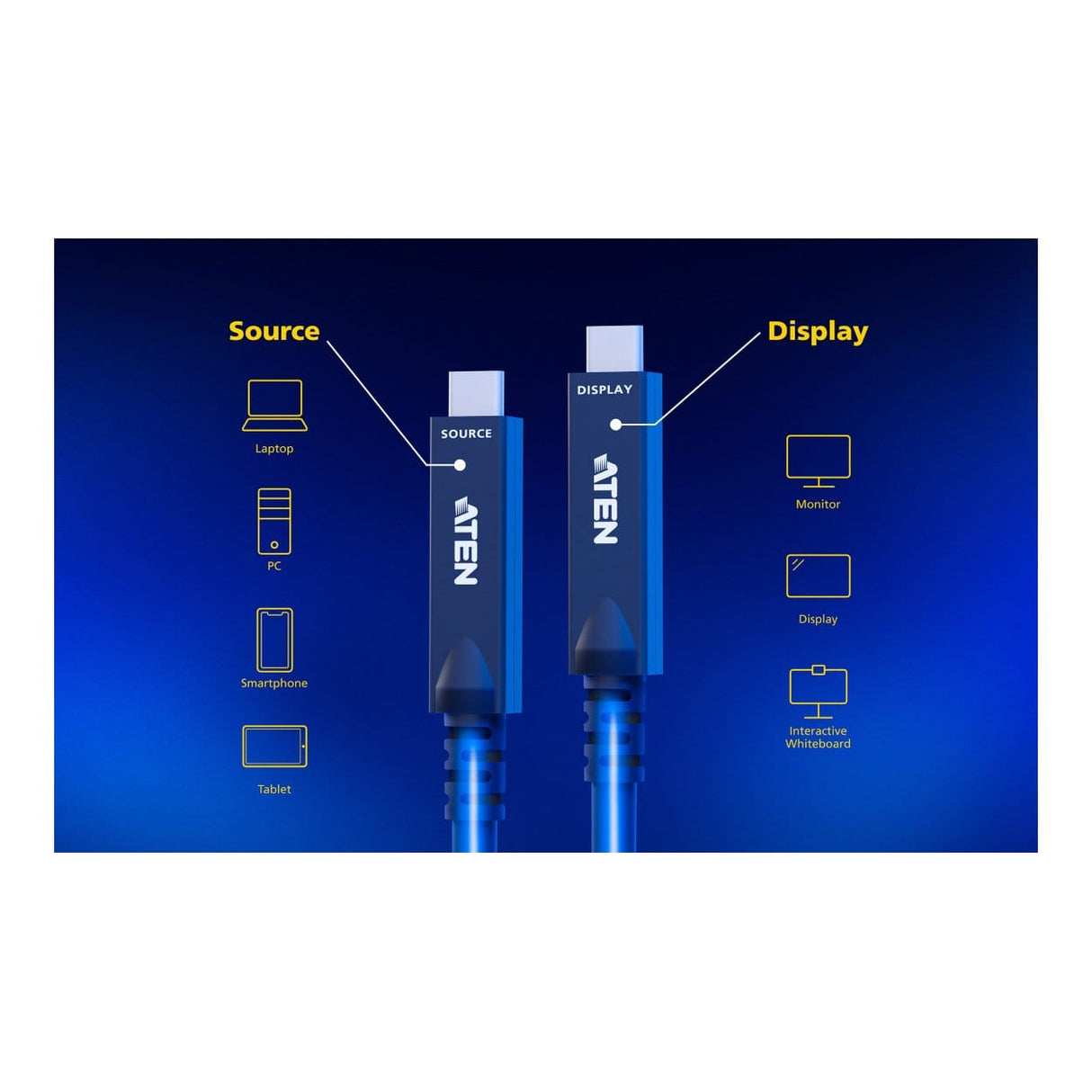

Wide Compatibility with Assorted USB-C Devices

The USB-C Active Optical Cables supply a smooth link-up between source and display, ensuring exceptional display of these USB-C supported devices.

Technical Specifications:

Connectors
USB Port: 1 x USB-C Male
Downstream: 1 x USB-C Male

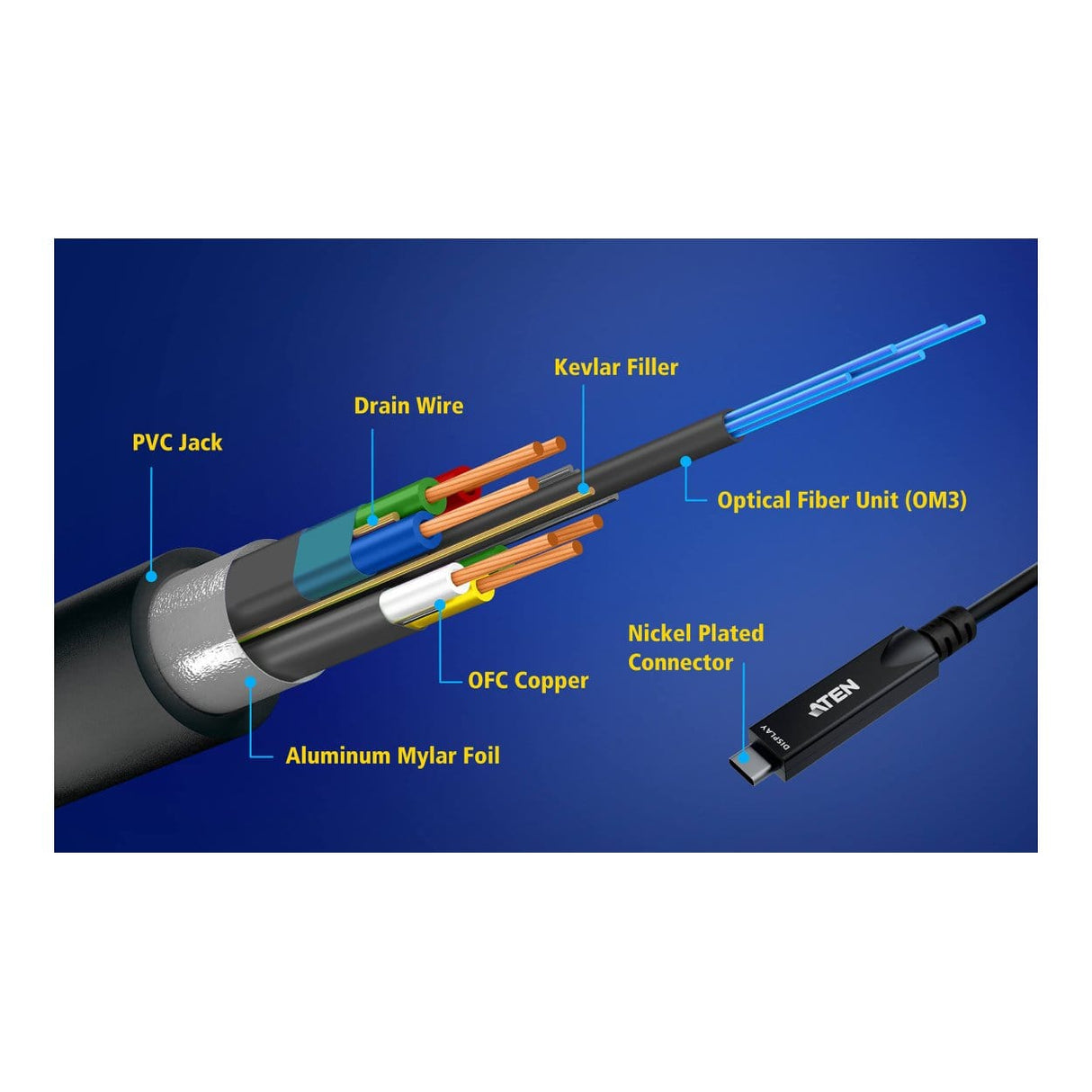

Cable Type: Hybrid type with optical fiber and copper wire
Cable Length: 10 m
Data Rate: Up to 10 Gbps
Power Consumption: DC5V: 1.2 W / BTU/h

Note:

• The measurement in Watts indicates the typical power consumption of the device with no external loading.
• The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental
Operating Temperature: 0–40°C
Storage Temperature: -20–60°C
Humidity: 10–80% RH

Jacketed
Material: PVC
Color: Black

Physical Properties
Housing: Connector Case: Zinc-Alloy
Weight: 0.77 kg (1.7 lb)
