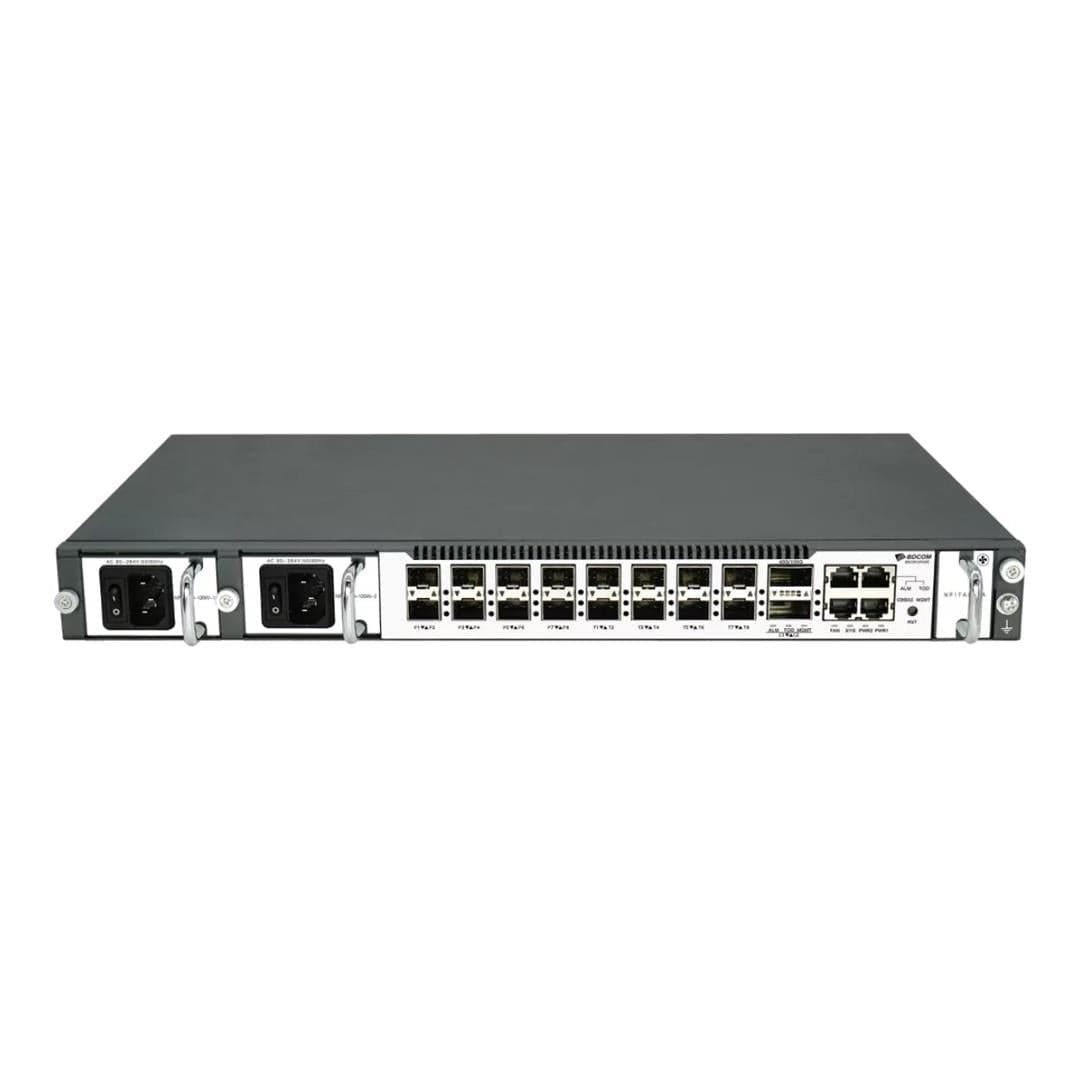

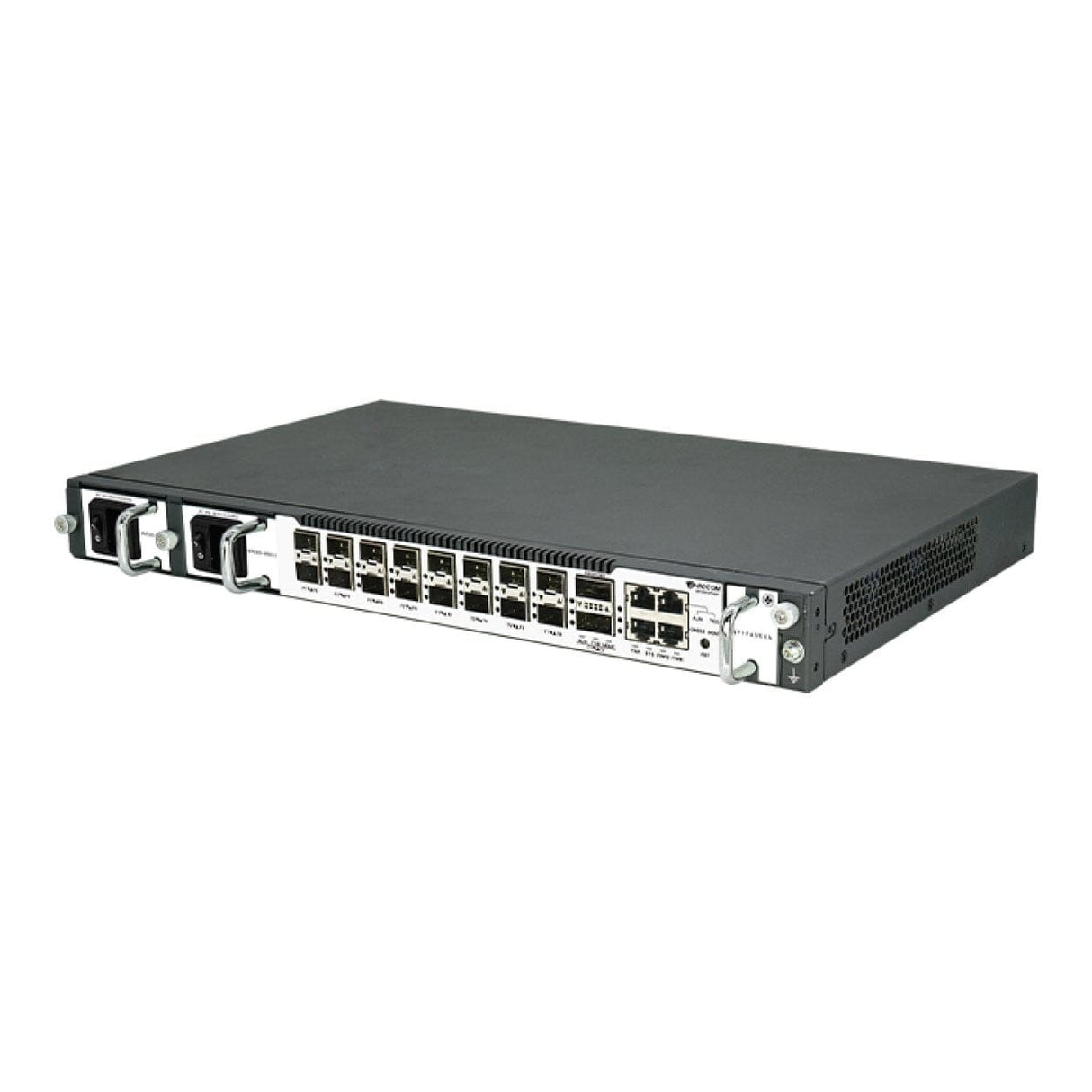

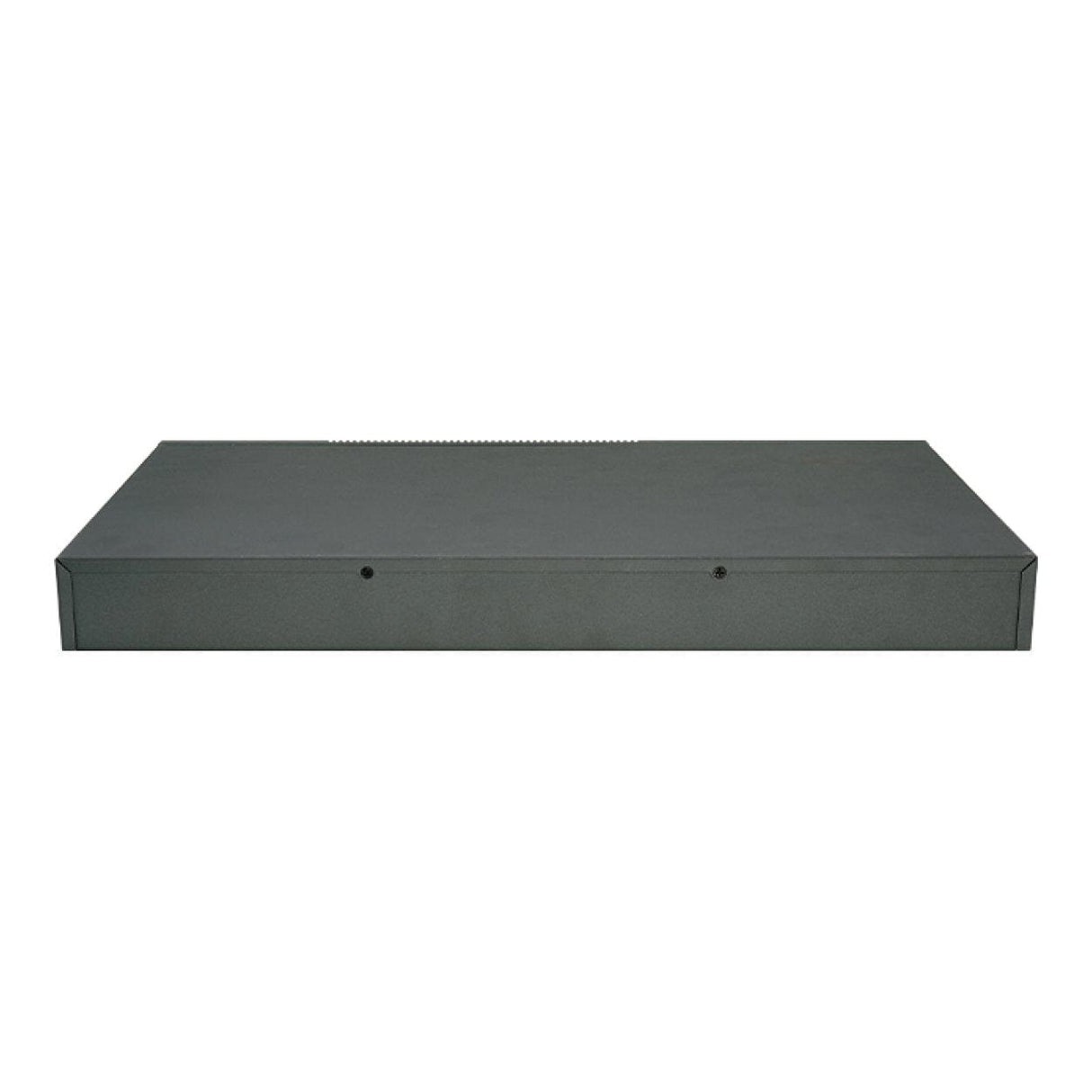

BDCOM 8-port XGS-PON Combo L3 OLT Switch GP3600-8CGP

BDCOM 8-port XGS-PON Combo L3 OLT Switch GP3600-8CGP

BDCOM GP3600-8CGP is newly launched NG-PON OLT which is complies with ITU-T G.984/G.987/G.988 and PRC Community Industry Standard “Technical requirements for access network-Gigabit-capable passive optical network (GPON)”, and fully abides by the CTC2.0 standard to automatically discover and work harmoniously with ONUs of different manufacturers.

Features:

• 8-Port 10G SFP+, 2-Port 100G QSFP28
• Support multiple link redundancy protocols such as FlexLink/STP/RSTP/MSTP/ERPS/LACP
• 1U height, compact
• 8-port XGS-PON Combo supports access of GPON ONU, XGPON
• ONU and XGS-PON ONU

Technical Specifications:

Standards

ITU-T G.984/G.987/G.988
PRC Community Industry Standard “Technical requirements for access network Gigabit-capable passive optical network (GPON)
China Telecom GPON Technical Requirement CTC2.0
IEEE 802.1D, Spanning Tree
IEEE 802.1Q, VLAN
IEEE 802.1w, RSTP
IEEE 802.3ad-based LACP

VLAN

Supports 4K VLAN 802.1Q
Supports VLAN based on port, MAC and protocol
Supports dual-Tag VLAN function, port-based static QinQ and flexible QinQ function

Multicast

L2 Multicast
IGMP Snooping
MLD Snooping

QoS

Supports traffic rate limiting based on custom business flow
Supports packet mirroring and packet redirection based on custom service flows
Supports priority marking based on custom service flow, support Remark of 802.1P, DSCP priority
WRR, SP and FIFO queue schedule
Supports port-based priority scheduling function, supports queue scheduling
Supports algorithms such as SP, WRR and SP+WRR

Management

Supports Console, Telnet and SSH 2.0 command line configuration
Supports WEB configuration
Supports FTP and TFTP file upload and download management
Supports SNMP V1, V2 and V3
Supports RMON
Supports SNTP clock
Supports SysLog

Network Security

Supports user hierarchical management and password protection
Supports IEEE 802.1X authentication and centralized MAC authentication
Supports Radius and TACACS+ authentication
Supports MAC address learning number limit and black hole MAC function
Supports SSH 2.0, providing a secure encrypted channel for user login
Supports SNMP v3 encrypted management
Supports port isolation and hardware isolation of port packets
Supports broadcast packet rate suppression
Supports IP Source Guard to automatically create IP, MAC, port and VLAN binding tables, and supports manual binding table entries
Supports DHCP Option82 and PPPoE+
Supports ARP flood attack automatic suppression and ARP spoofing protection
Supports prevention of various DOS attacks and virus attacks against the CPU on the control layer
