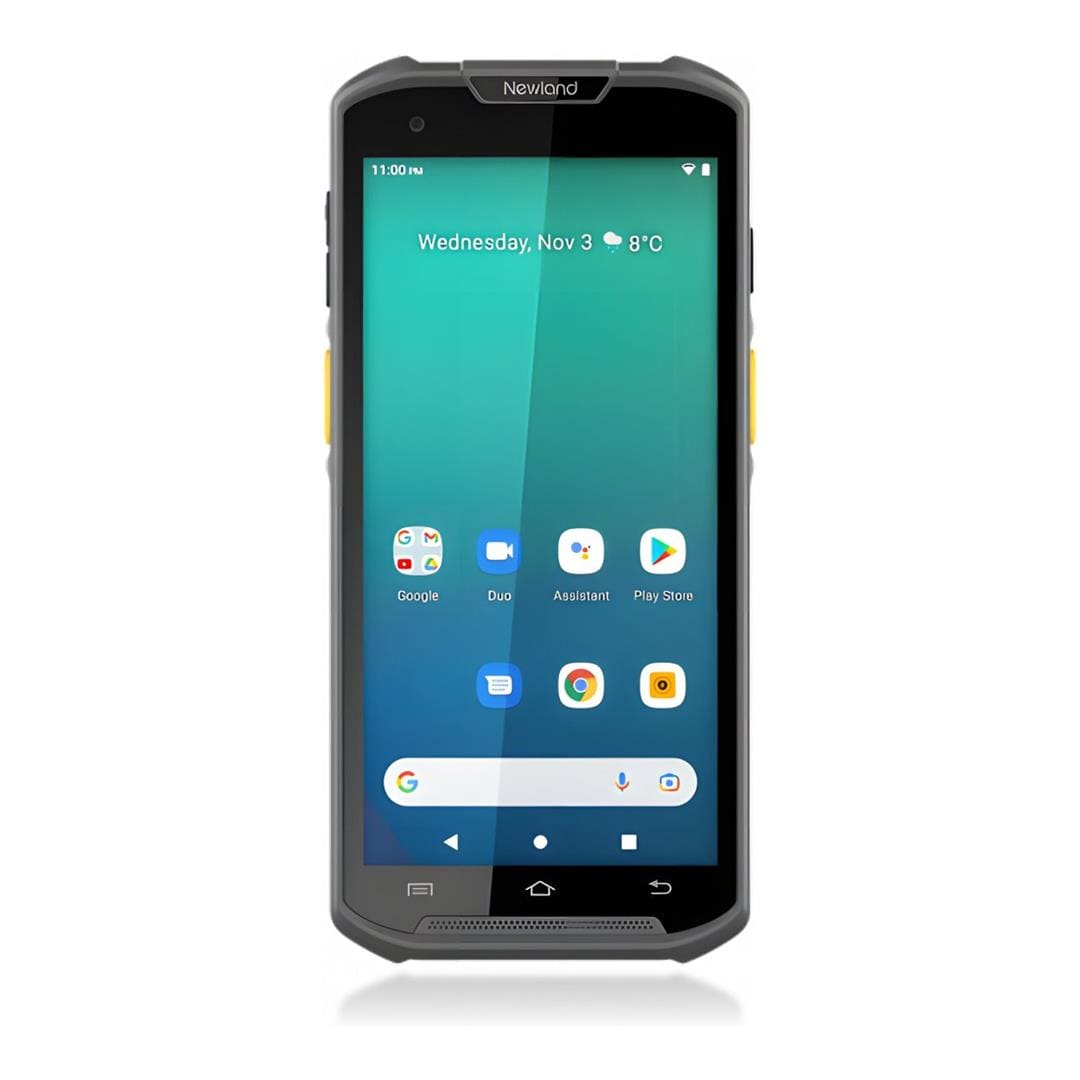

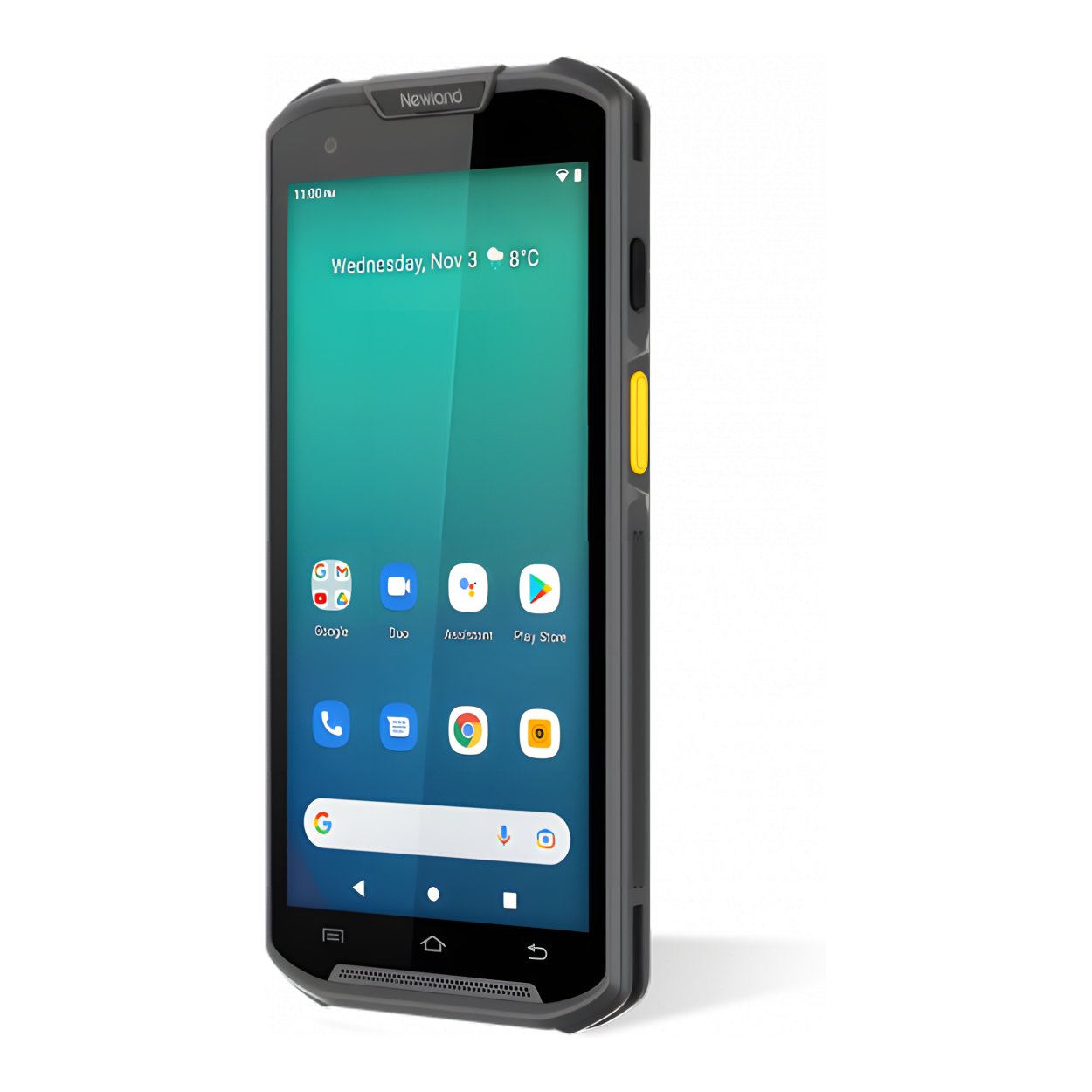

Newland MT93 Megattera Standard Barcode Scanner NLS-MT9300-W4-SS

Newland MT93 Megattera Standard Barcode Scanner NLS-MT9300-W4-SS

Running on Android 13 OS, the MT93 Megattera Standard combines a user-friendly interface with a rugged yet slim exterior. Thanks to its angled scan engine, it effectively reduces discomfort and strain that can arise from prolonged scanning. The device's powerful octa-core processor guarantees smooth performance throughout a full work shift, while the WiFi 5 and 4G guarantee steady, fast, and secure connectivity.

Features

Powerful Performance

Powered by 2.2GHz octa-core processor and a robust 4GB of RAM, the MT93 Megattera Standard can effortlessly handle multiple tasks. Running on Android 13 and featuring GMS, this device not only strengthens security measures but also guarantees a smoother and more efficient operational experience.

Intuitive and Comfortable Design

The MT93 Megattera Standard blends advanced functionality with a user-centric design. The MT93 boasts a combination of lightweight design and rugged durability. It comes equipped with a user-friendly 5.5-inch capacitive touchscreen, just like your regular smartphone. Featuring an angled scan engine, the MT93 Megattera Standard adds comfort to your workflow, effectively minimizing fatigue and discomfort associated with pro-longed scanning activities.

High-Precision Barcode Scanning

Experience unparalleled scanning precision with the high-resolution megapixel scan engine. Positioned conveniently at the device's top, it facilitates swift and accurate scanning. Activate it through a simple tap on the screen or by pressing a physical side button for effortless point-and-shoot scanning. Make fewer mistakes with the Acuscan feature that makes sure you scan the right barcodes even when they are placed closely together.

Uninterrupted Productivity

Boasting a robust 5000mAh battery, the MT93 Megattera Standard keeps you going throughout the full shift for up to 10 uninterrupted hours! Need even more power? Simply switch the battery to ensure uninterrupted workflow and reduced downtime.

Built to Last

The MT93 Megattera Standard is purpose-built to thrive in demanding work environments. Sporting an IP65 rating and successfully passing drop tests from heights of up to 1.5 meters, this device is designed to endure the challenges of your daily operations.

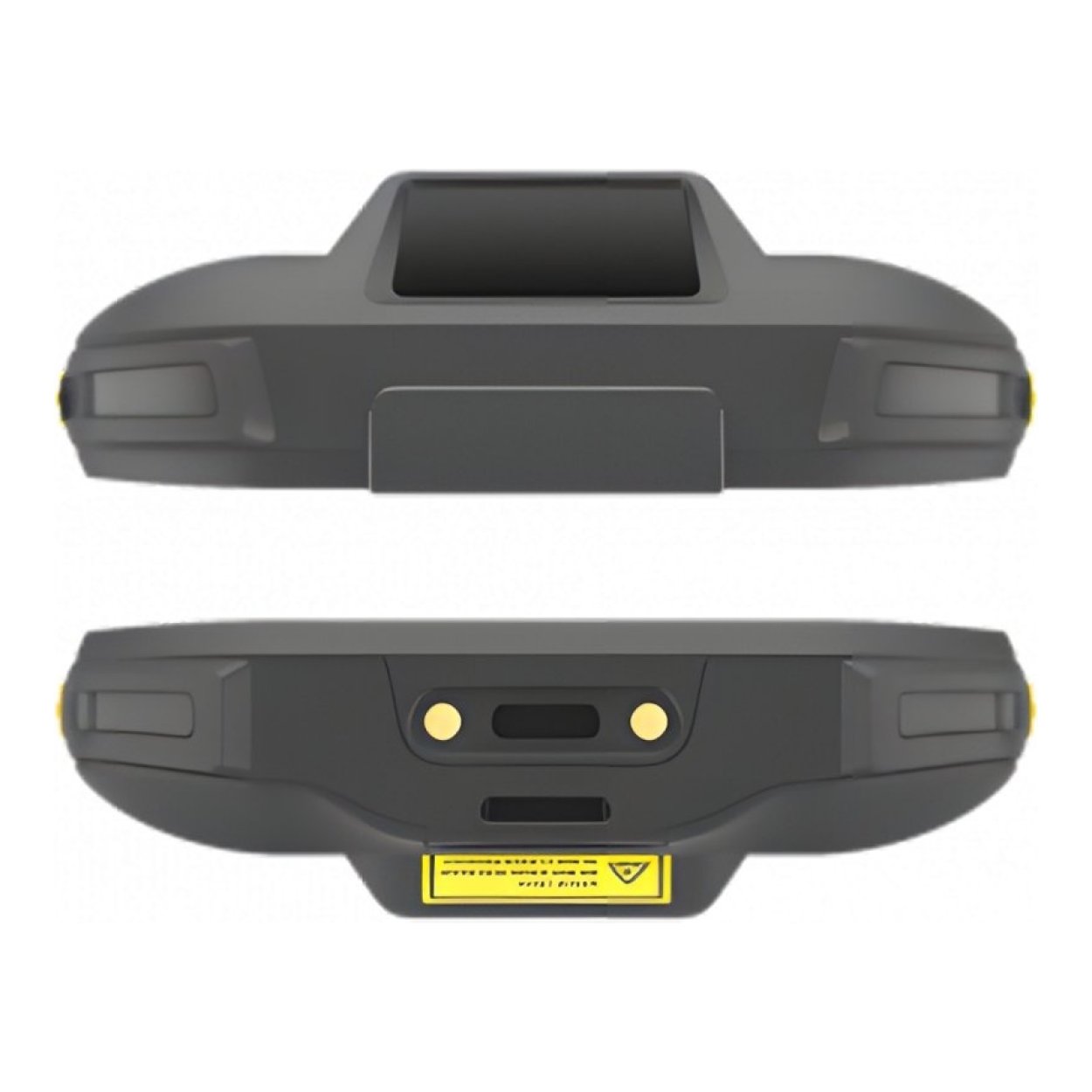

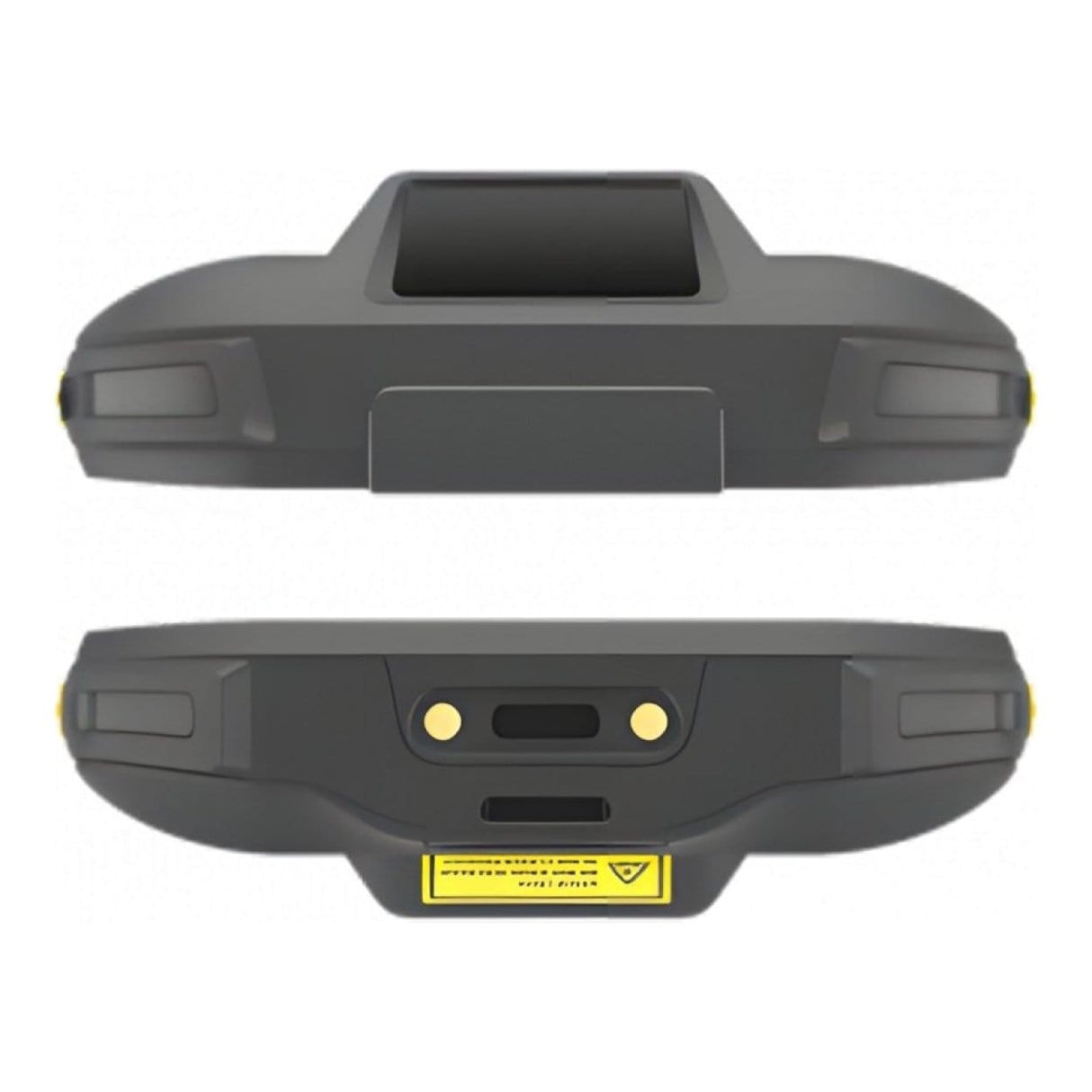

Angled scan engine for exceptional user comfort

Equipped with an angled scan engine, the MT93 Megattera Standard is an ideal solution for industries like retail, warehousing & logistics, and manufacturing. It improves ergonomics by allowing users to scan barcodes without constantly having to tilt the device or their wrist, providing better user comfort and minimizing physical fatigue. The angled scan engine also helps to better access barcodes on items that might be stored on high shelves, allowing users to scan without needing to physically reach the items or maneuver the device into difficult positions.

Technical Specifications:

Data Capture

Supported Symbologies

• 1D: All Major 1D Symbologies
• 2D: All Major 2D Symbologies

Image Sensor: 1280 × 800 CMOS
Aiming: Laser Diode
Illumination: White LED (625 ±10 nm)
Scan Rate: 60 Frames per Second

Depth of Field

• EAN-13 (13 mil): 70–610 mm
• Code 39 (5 mil): 110–290 mm
• PDF417 (6.7 mil): 110–230 mm
• DataMatrix (10 mil): 110–260 mm
• QR (15 mil): 55–410 mm

Performance

Operating System: Android 13 GMS

Processor:
2.2 GHz Octa-Core 64-Bit Processor (MT8781)

• 2 × Cortex-A76 @ 2.2 GHz
• 6 × Cortex-A55 @ 2.0 GHz

Memory

• RAM: 4 GB
• Flash Storage: 64 GB

Physical

Battery Type: 3.85 V, 5000 mAh, Swappable

Camera

• Front Camera: 5 MP

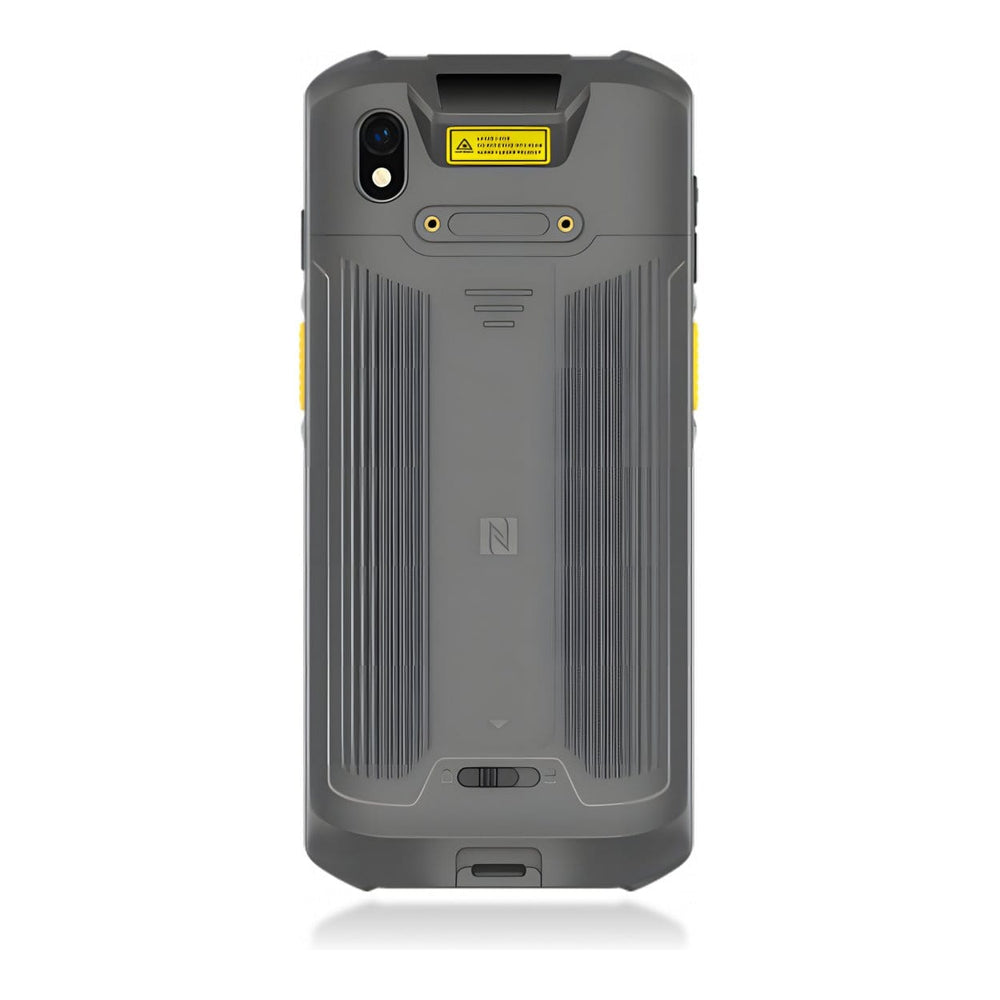

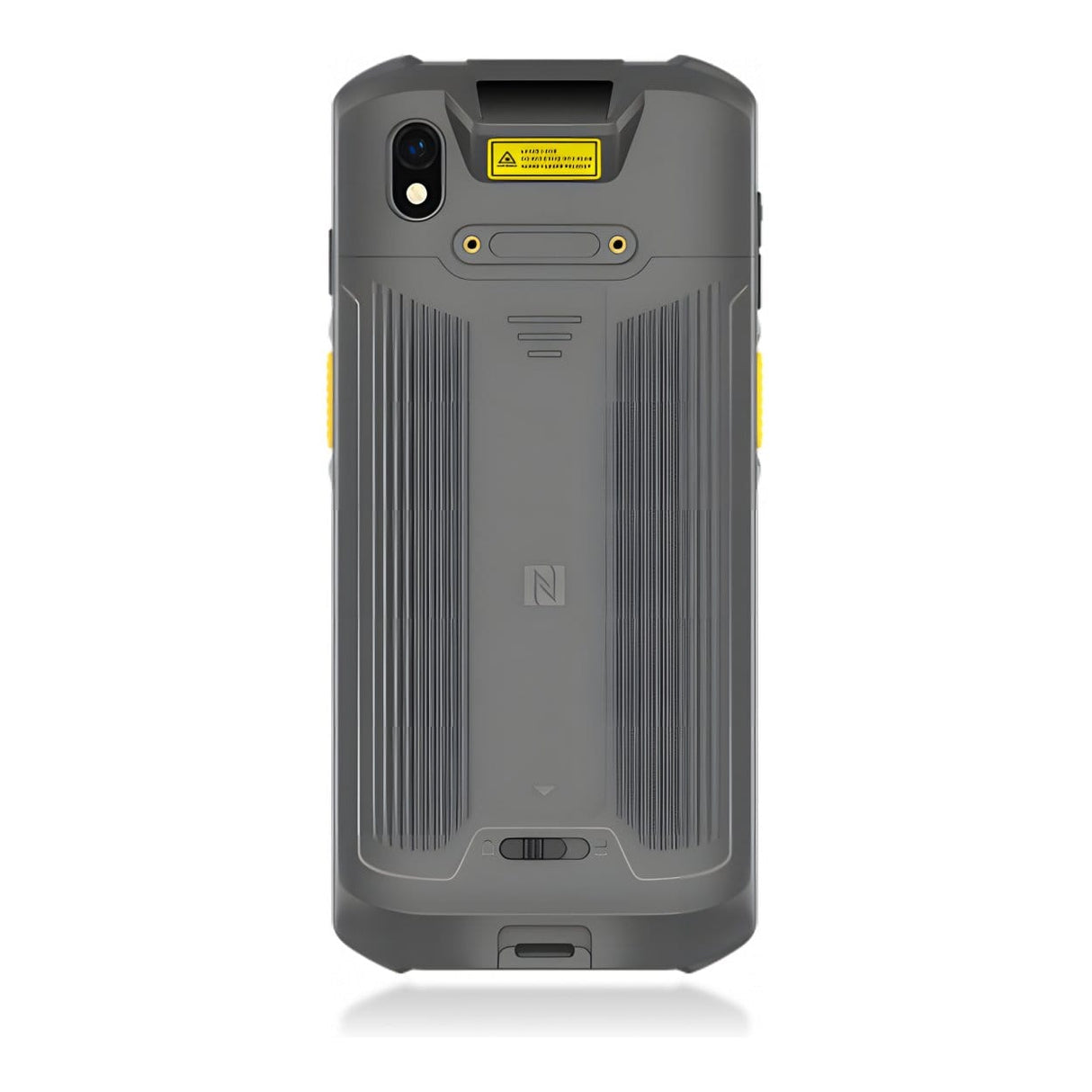

• Rear Camera: 13 MP, Autofocus with LED Flashlight

Dimensions: 159 × 74 × 15.9 mm

Display

• 5.5-Inch Display (720 × 1440)
• Multi-Point Capacitive Touch Screen with Hardened Glass
• Brightness: 380 Nits

Expansion Slot: MicroSD Card (Up to 256 GB)

Interfaces

• USB Type-C
• Bottom Charging Contacts
• Headphone Support

Keypad

• Virtual On-Screen Buttons: Menu, Home, Back

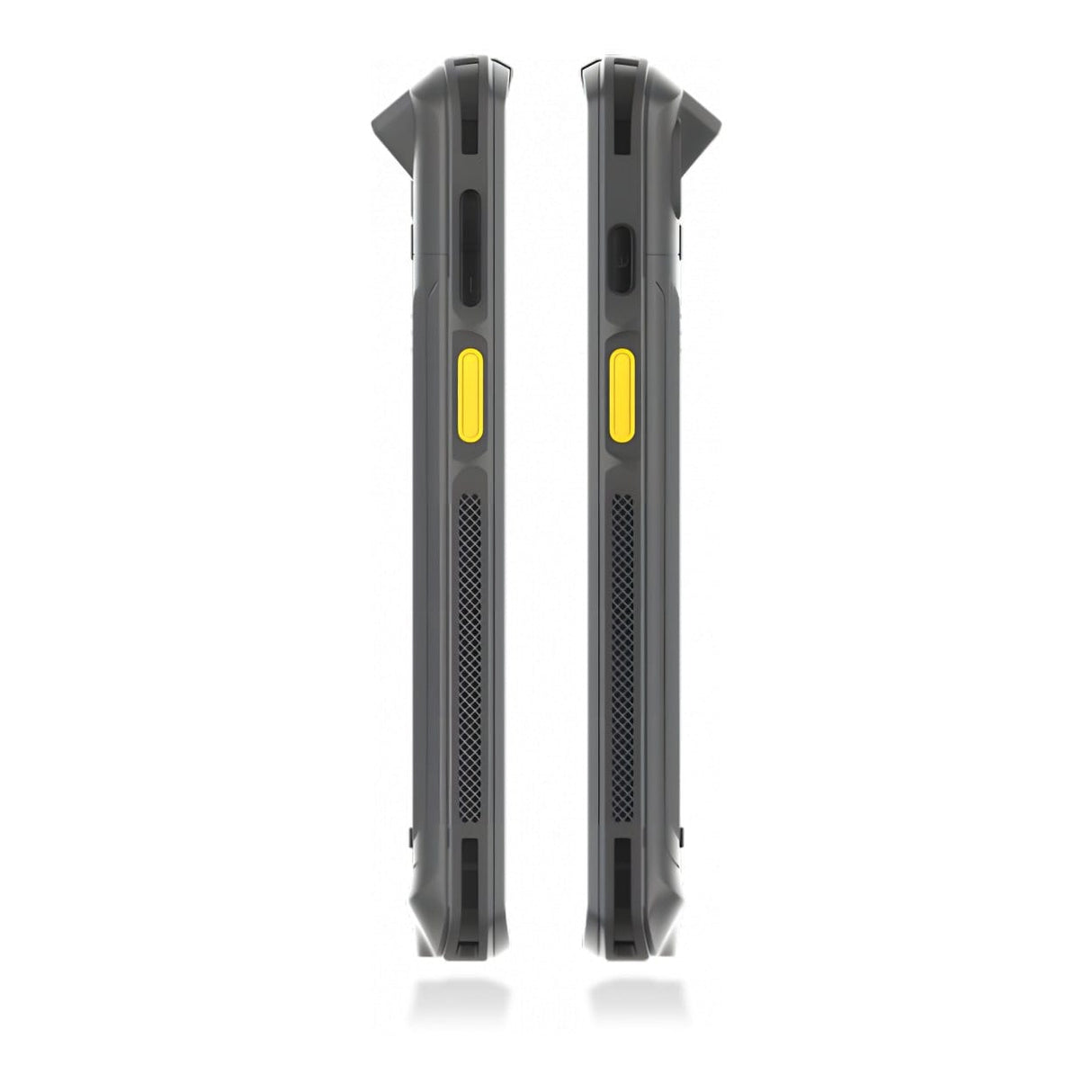

• Physical Buttons: Left and Right Scan Keys, Volume +/−, Power

Microphone: Dual Microphones with Noise Reduction

Notifications

• Vibrator
• Speaker (8Ω, 1W @ 10 cm, 103 dB)
• Multi-Color LEDs

Power Supply

• Input: AC 100–240 V, 50–60 Hz, 18 W Fast Charge
• Output: DC 5 V / 7 V / 9 V, 2 A

Sensors

• Light and Proximity Sensor
• Gravity Sensor
• Gyroscope
• Electronic Compass

SIM / TF Configuration

• Nano + Nano
• Nano + TF

Weight: 277 g (Including Battery)

Wireless

WWAN Radio

• 2G: 850 / 900 / 1800 / 1900 MHz
• 3G: WCDMA (B1, B2, B5, B8), CDMA 1X EVDO (BC0)
• 4G:
  • TDD-LTE (B34, B38, B39, B40, B41)
  • FDD-LTE (B1, B2, B3, B5, B7, B8, B20, B28 a & b)

WLAN Radio: Wi-Fi 5 (802.11 a/b/g/n/ac), Dual-Band 2.4 GHz and 5 GHz

WPAN Radio: Bluetooth 5.2 BLE (Backward Compatible)

NFC:
13.56 MHz RFID Support

• ISO14443 A/B
• MIFARE
• FeliCa
• NFC Forum Tags
• ISO15693

GPS Support

• GPS (AGPS)
• GLONASS

Environmental

Operating Temperature: −20°C to 55°C
Storage Temperature: −40°C to 70°C
Operating Humidity: 5%–95% (Non-Condensing)

Electrostatic Discharge (ESD)

• ±15 kV (Air Discharge)
• ±8 kV (Direct Discharge)

Drop Resistance: 1.5 m Drops to Concrete (Six Sides, One Drop per Side)

Ingress Protection Rating: IP65

Accessories

Standard Accessories

• Protective Case
• USB-C Cable
• Battery
• Screen Protector
• Hand Strap
• Multi-Plug Adapter

Optional Accessories

• Battery
• AC Adapter
• Cable
• Hand Strap
• Protective Case
• Protective Film

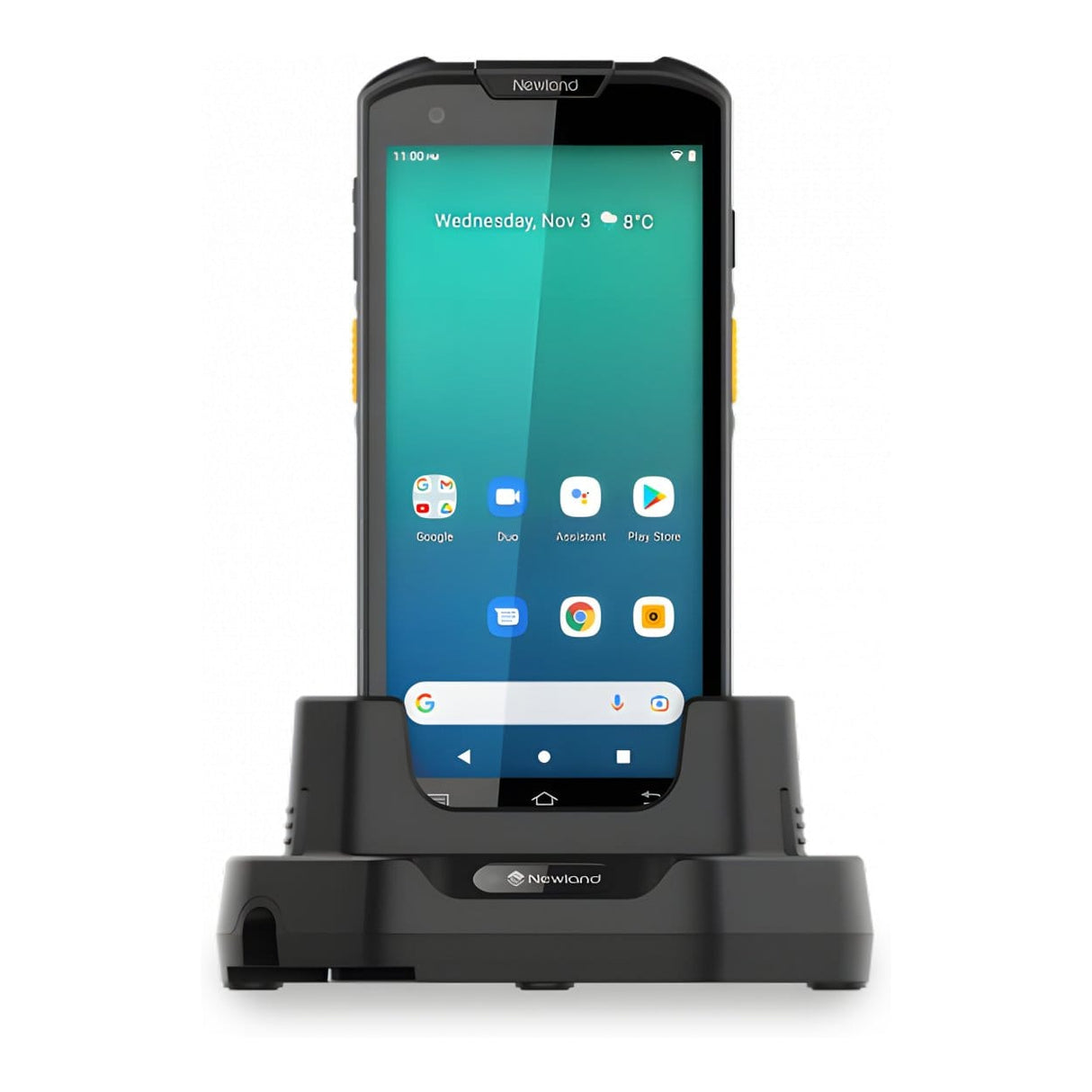

• Charging Cradle
• 4-Slot Battery Charging Cradle
• Screen Protector

Warranty

Warranty Extension Options

• +1 Year
• +3 Years

Comprehensive Service Options

• 3 Years
• 5 Years
