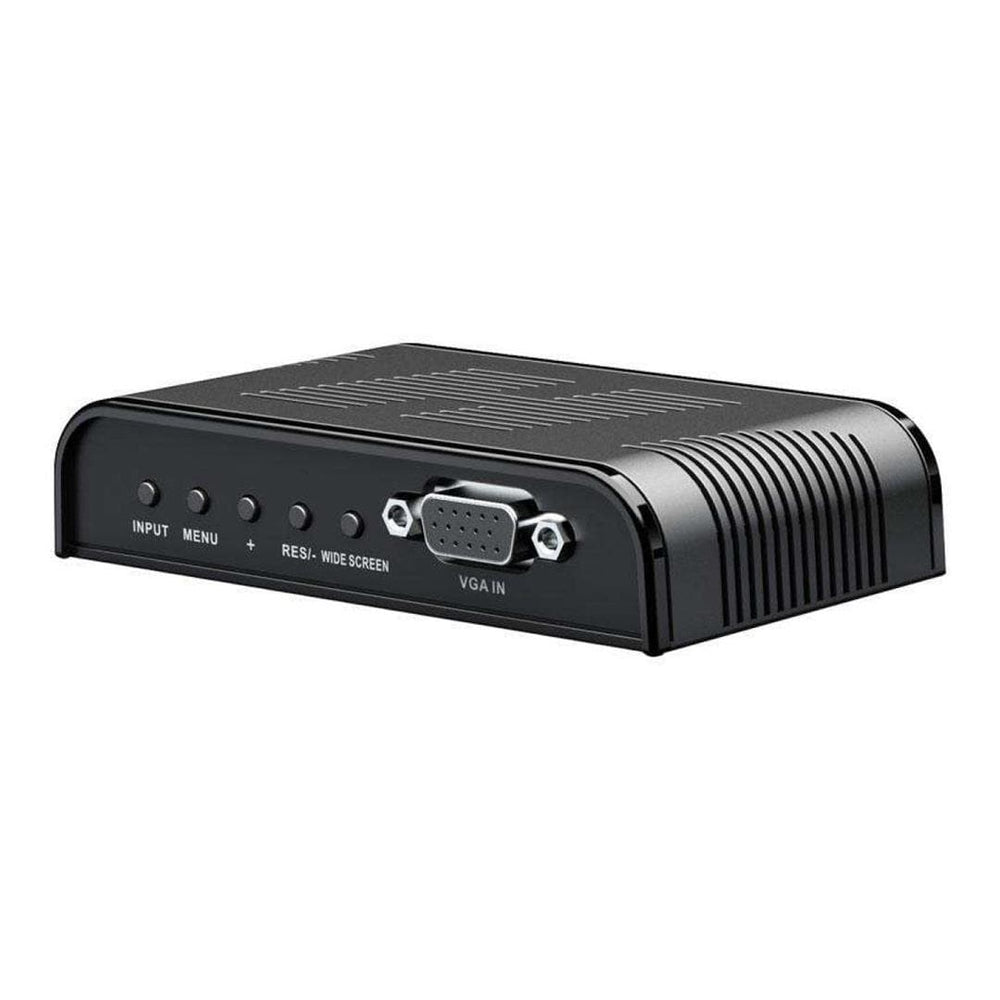

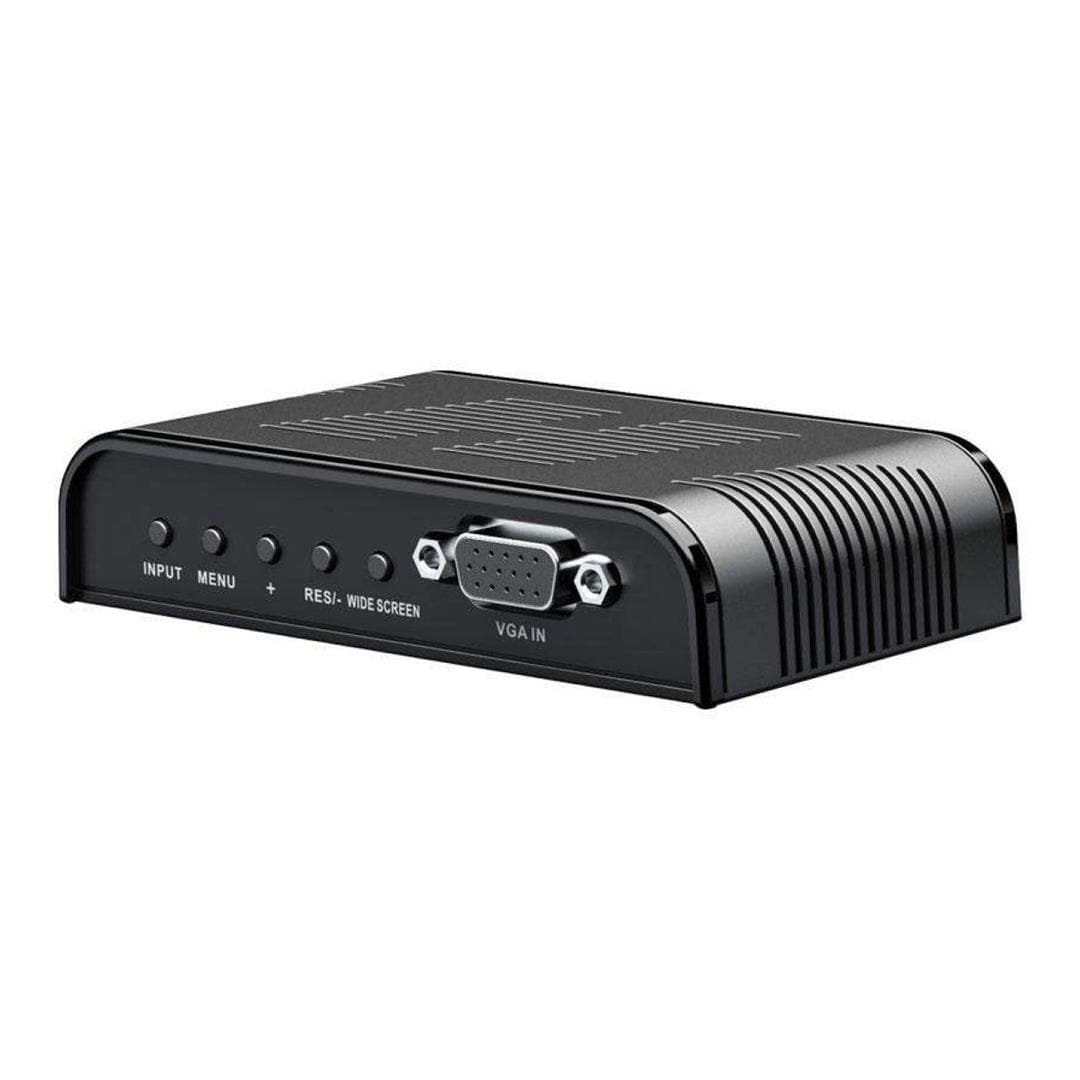

Lenkeng S-Video VGA In to Out Video Signal Converter CNV-AV-VGA-7505

Lenkeng S-Video VGA In to Out Video Signal Converter CNV-AV-VGA-7505

The Lenkeng CNV-AV-VGA-7505 is a multi-input video signal converter designed to convert analogue AV (composite), S-Video, and VGA signals into a VGA output. It is typically used to connect legacy video devices such as CCTV systems, DVD players, or older AV equipment to modern VGA monitors or projectors.

• Multi-Input Support – Accepts Composite (RCA/BNC), S-Video, and VGA inputs
• Single VGA Output – Converts all supported inputs into VGA display output
• Input Switching Function – Easily switch between connected sources
• Wide Resolution Support – Supports resolutions up to 1920 × 1080 / 1920 × 1200
• PAL/NTSC Compatibility – Works with global video standards
• Image Adjustment Controls – Brightness, contrast, hue and more can be adjusted
• Wide Screen Support – Compatible with 4:3, 16:9, and 16:10 aspect ratios

The CNV-AV-VGA-7505 is designed as a signal conversion and scaling device, allowing older analogue video sources to be displayed on VGA-compatible screens. It converts low-resolution composite or S-Video signals into higher-resolution VGA output, making it suitable for integration with modern displays.

A key advantage is its multi-input capability, enabling multiple devices to be connected simultaneously and switched between without reconnecting cables. This is particularly useful in control rooms, CCTV monitoring setups, and AV environments.

The device also functions as a video scaler, supporting a wide range of output resolutions up to Full HD, ensuring compatibility with most VGA monitors and projectors.

Additionally, built-in image adjustment controls allow users to fine-tune output quality, which is especially helpful when converting analogue signals that may vary in quality.

Specifications:

Product Type: AV/S-Video/VGA to VGA converter

Inputs:

• 1× Composite video (RCA or BNC)
• 1× S-Video
• 1× VGA

Output: 1× VGA

Supported Resolutions: Up to 1920 × 1080 / 1920 × 1200

Aspect Ratios: 4:3, 16:9, 16:10

Video Standards: PAL / NTSC

Power Input: 5V–12V DC
