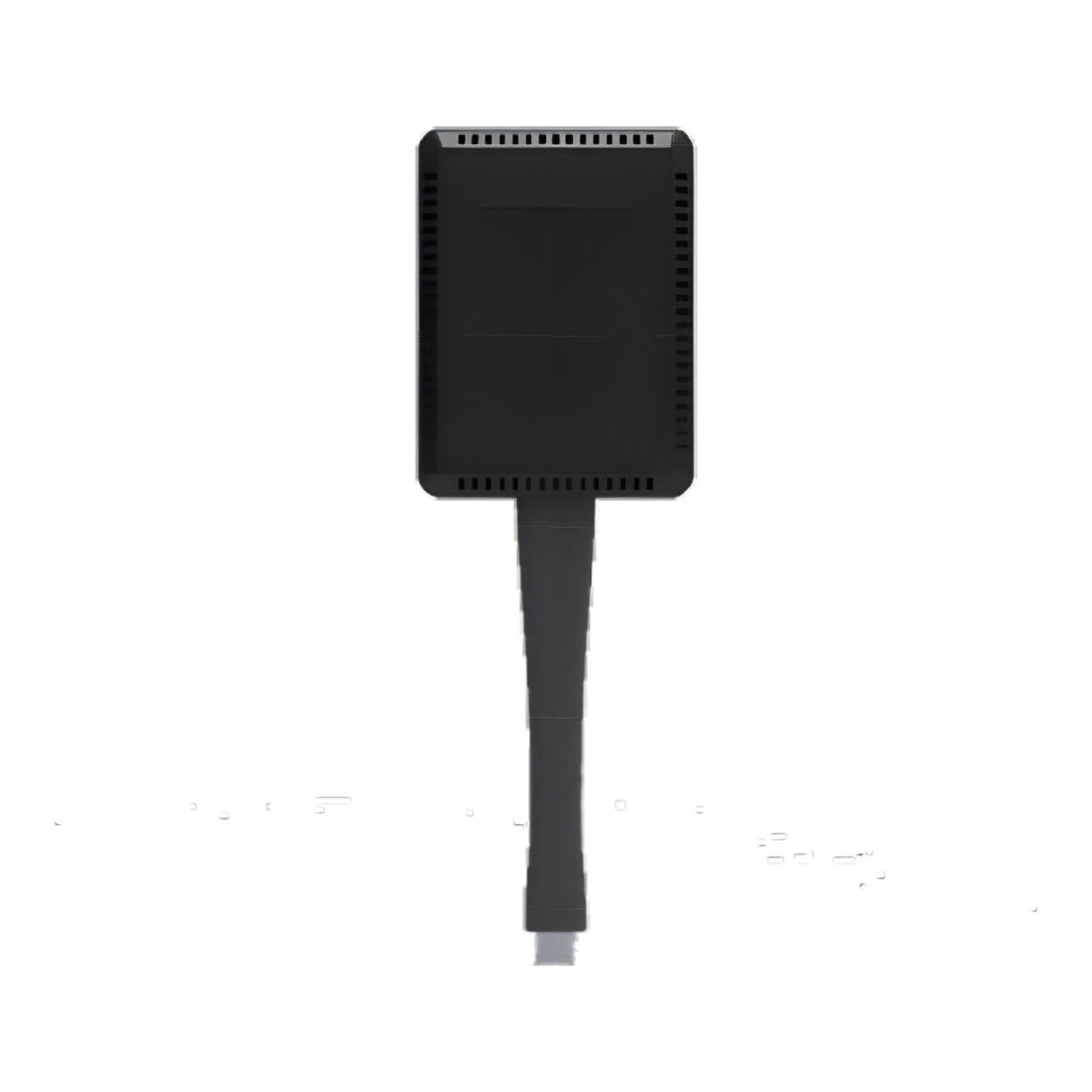

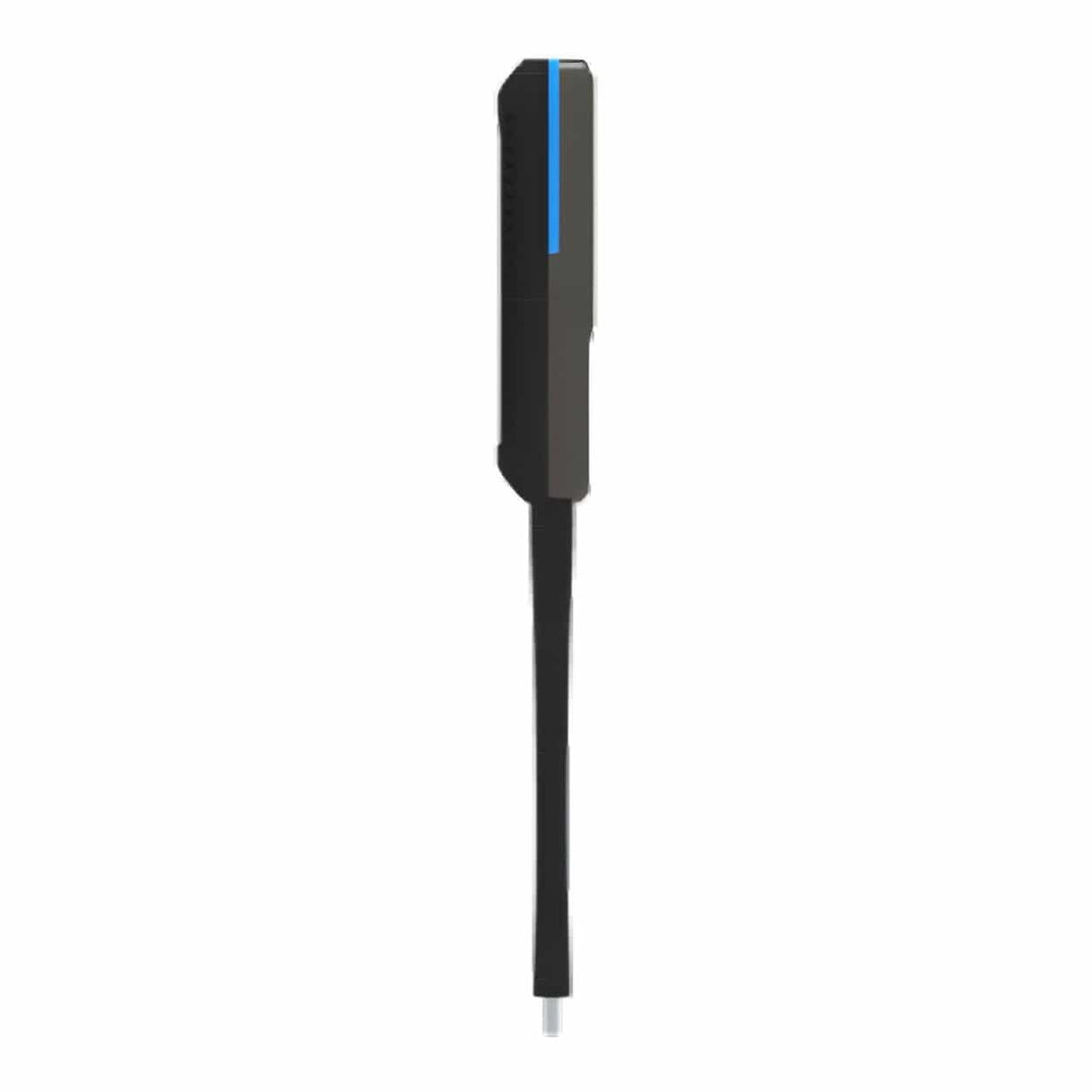

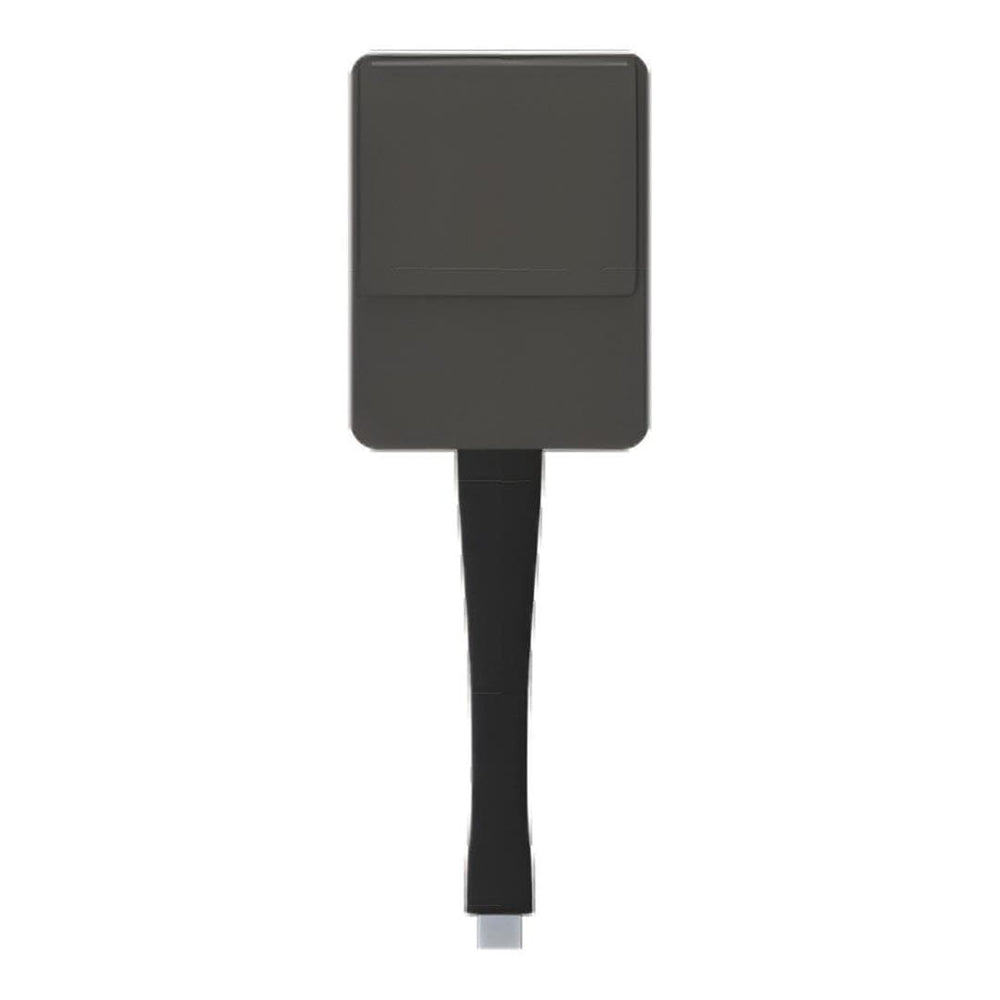

Dahua PKP-WP1B Wireless Screen Sharing Dongle

Dahua PKP-WP1B Wireless Screen Sharing Dongle

Features:

• 4K Output, Delivering a Crisp Image
• Plug and Play, No Need to Install Software or Drivers
• Hassle-Free, No Need for Cables
• Screen Projection with Just the Press of a Button
• Compatibility with Chrome, iPads, and Mainstream Operating Systems

Technical Specifications:

Hardware Parameters
Input Resolution:

• 480p
• 576p
• 720p
• 1080p
• 4K

Supported PC Timings:

• 640 × 480
• 800 × 600
• 1024 × 768
• 1280 × 720
• 1920 × 1080
• 3840 × 2160

Output Resolution:

• 720 × 480
• 720 × 576
• 1280 × 720
• 1920 × 1080 (1080p)
• 3840 × 2160

Interface: Full-Featured USB Type-C
Input Voltage: 5 VDC (USB Type-C Power Supply)
Power Consumption: 2.5 W (Average)
Current Consumption: 0.9 A (Maximum)

System Configuration
Supported Operating Systems:

• Windows 7
• Windows 8.1
• Windows 10
• Windows 11
• macOS
• Chrome OS
• Linux OS
• Android OS

Compatibility Requirement: Any Operating System Supporting Full-Featured USB Type-C

Encryption: CCMP

Authentication Protocols:

• WPA2-PSK (Pre-Shared Key)
• WPA2-Enterprise

Wireless Transmission Protocol: IEEE 802.11a/g/n
Wireless Data Rate: 54 Mbps
Frame Rate: Up To 60 Fps (FHD, Depending On Environment)
Touch Control Back: Supports 10-Point Touch

Physical Specifications
Net Weight: 80 G
Dimensions: 176 × 58 × 17 Mm
LED Indicators:

• Blue
• Green
• Red

Environmental
Operating Temperature: 0°C To +40°C (+32°F To +104°F)
Storage Temperature: -20°C To +60°C (-4°F To +140°F)
Operating Humidity: 0%–80% RH (Non-Condensing)
Transmission Distance: Up To 15 M
Frequency Band:

• 2.4 GHz
• 5 GHz (Recommended)
