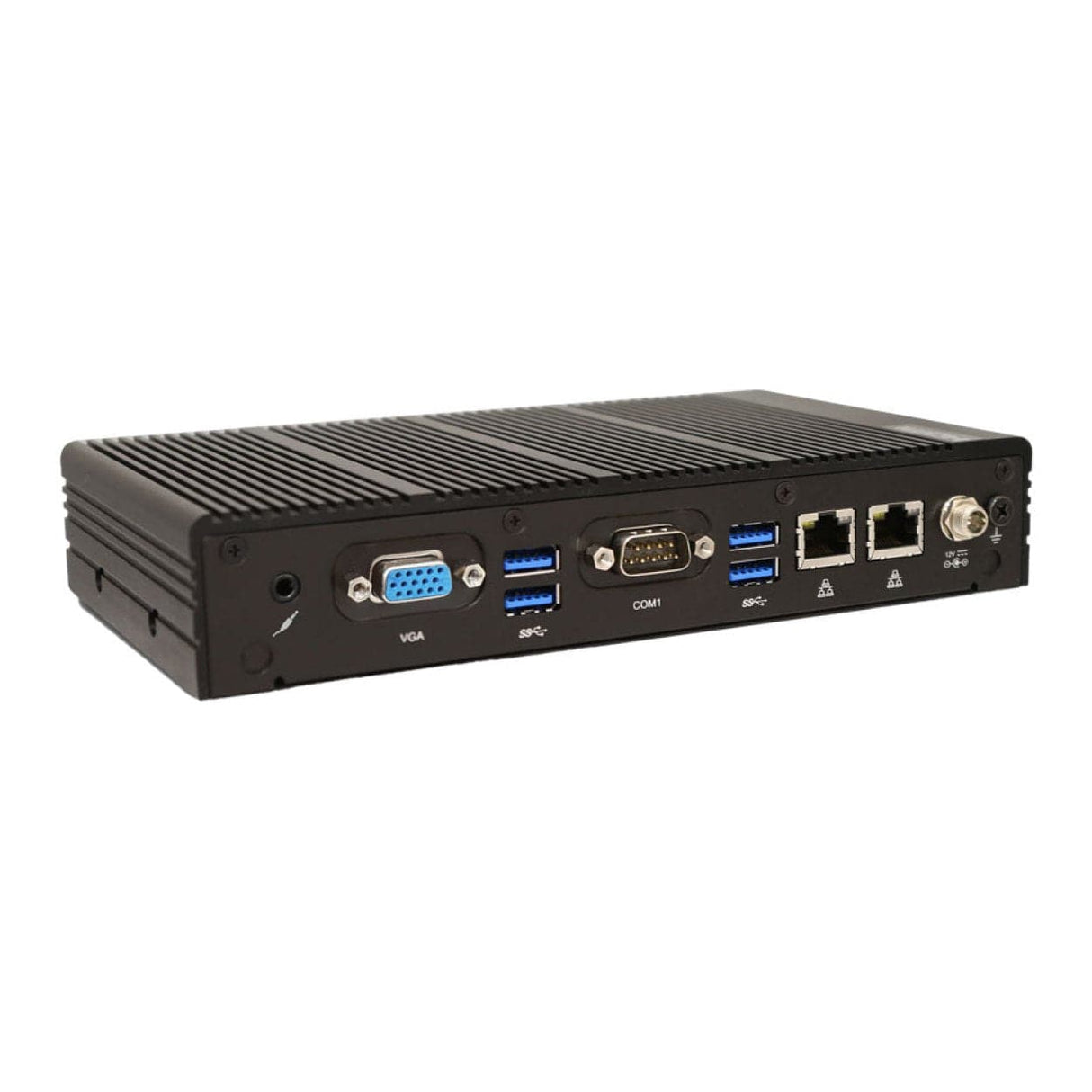

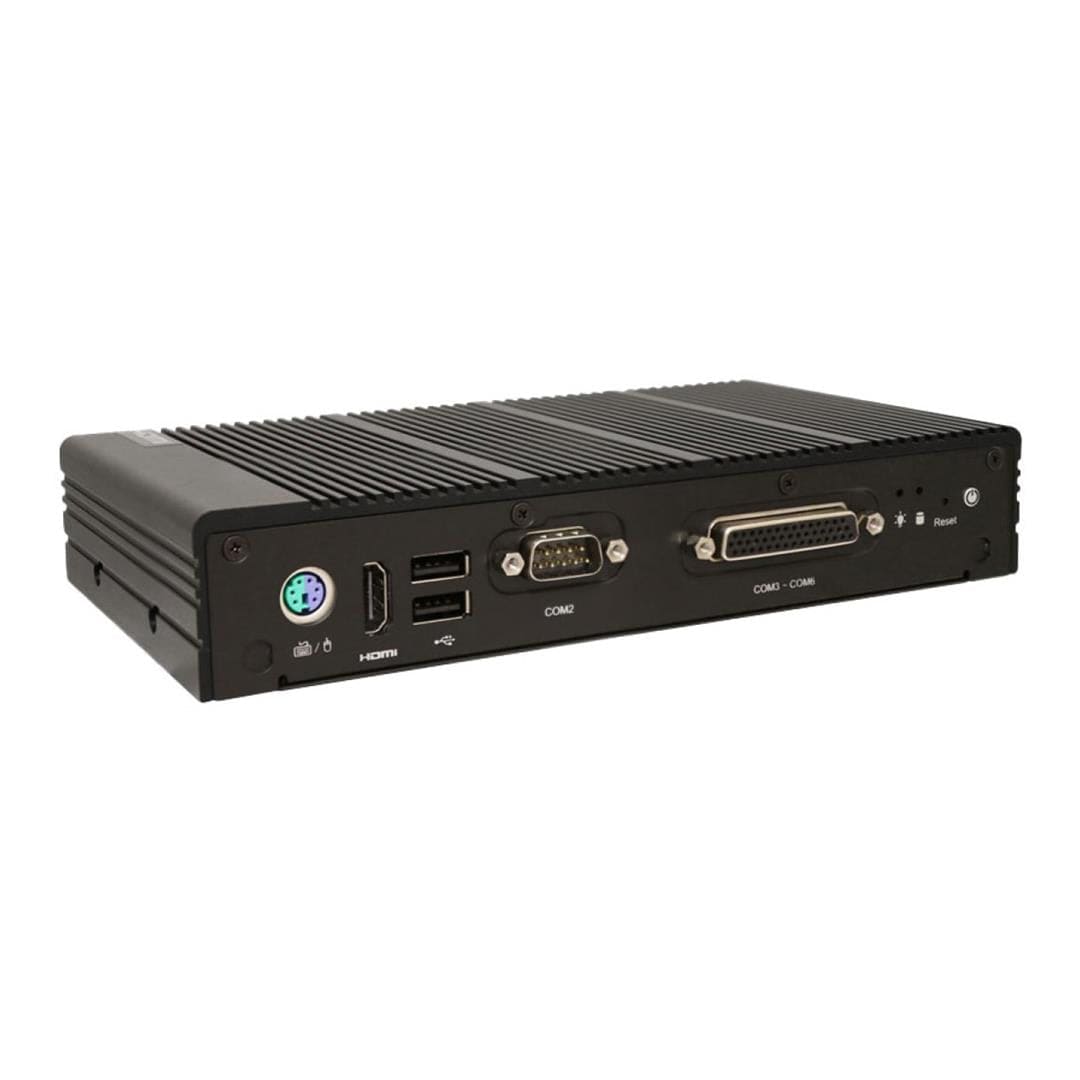

Aopen IE-SK500 Dual Display Industrial Media Player PC-SK500

Aopen IE-SK500 Dual Display Industrial Media Player PC-SK500

Rugged design for industrial applications in harsh environments

The AOPEN IE-SK500 has a unique combination of I/O ports. It has two DB9 COM ports, but also a DB44 COM port. It also includes 6× USB ports (4× USB3.0 and 2× USB2.0) as well as a PS/2 port for a keyboard or mouse.

Features:

• i5 6th Generation Intel Core CPU
• High-Input Voltage
• Supports 6 COM Ports
• PS/2 Connector

Specifications:

Dimensions: W × H × D209.8 × 38.2 × 120mm

Gross Weight: 1.94kg

Mechanical: Housing: Aluminium + SECC

Mounting: L-Type Wallmount

Supports OS: Windows 10 IoT

Certification: Complete Certification for EMC Safety UL, CB, CCC, CE, FCC, RoHS

CPU: i5 6th Generation Intel Core

L2 Cache: 3MB

BIOS: AMI UEFI

Memory: DDR4 2133Mhz up to 8GB

Graphics: Intel Core SoC, Intel HD Graphics 520

Expansion Slots

• 1× M.2 2230 for Wi-Fi (Built-In)
• 1× M.2 2242 for SATA SSD
• 1× Mini PCIe Slot for mSATA

Ethernet Chip: 2× Intel I211AT

Ethernet Speed: 10/100/1000Mbps

2.5" SSD: 1

mSATA: 1

DC Jack: 1× (12~28V)

Graphics Ports: 2× (1× VGA and 1× HDMI 1.4)

USB2.0 Port: 2

USB3.0 Port: 4

RJ45 LAN: 2

Audio: 1× (Line-out)

Antenna Holes: 4

COM Port: 6× DB9 (1× RS232, 1× RS232/422/485 Switch by BIOS, 4× RS232/48 Switch by BIOS)

Other: 1× PS/2 KB/MS, 1× Power Button, 1× Reset Button
