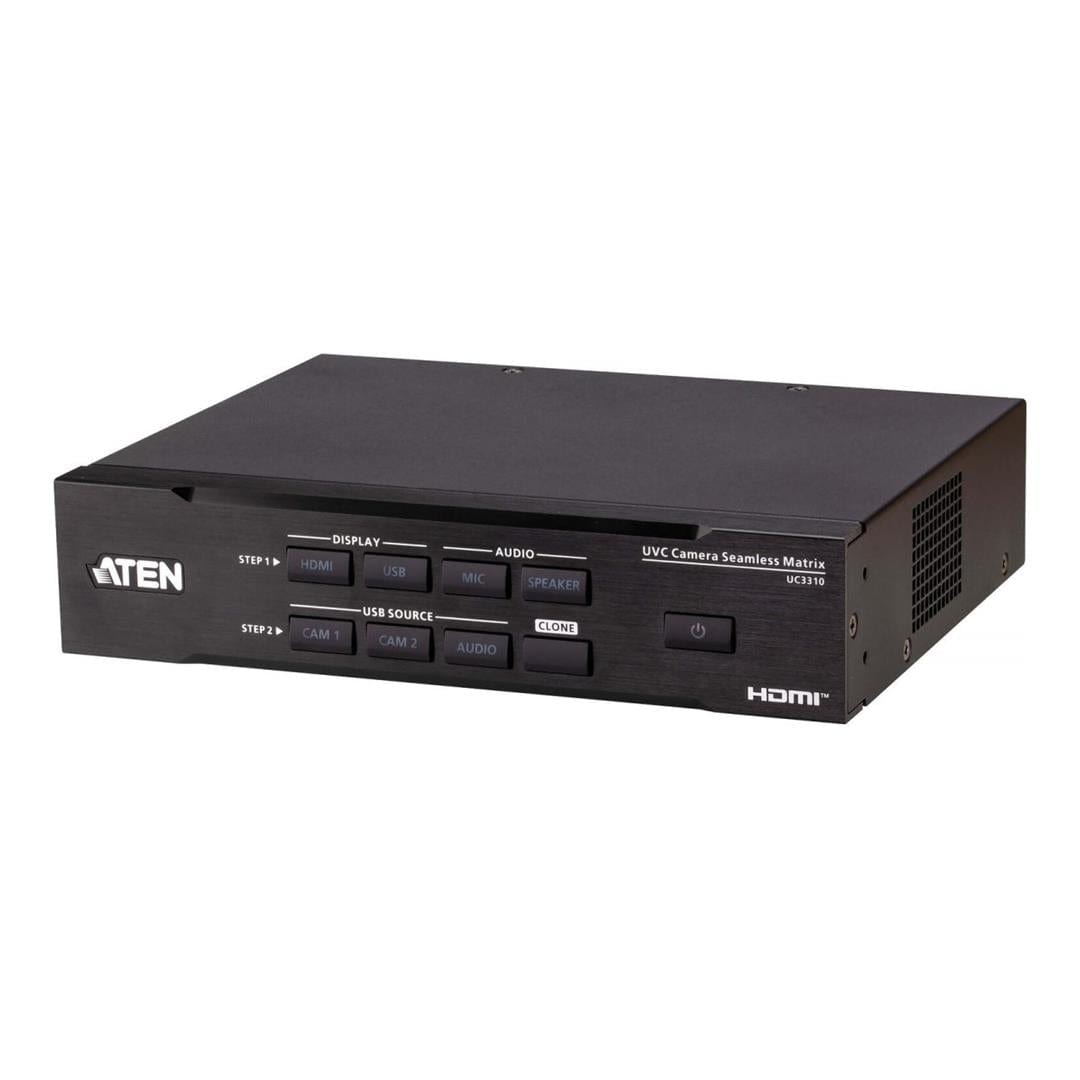

Aten UC3310 CamLive MX UVC Camera Seamless Matrix

Aten UC3310 CamLive MX UVC Camera Seamless Matrix

The CAMLIVE MX (UC3310) UVC Camera Seamless Matrix enables the conversion of up to two 4K @ 30 USB camera sources into one HDMI, allowing seamless switch among the sources. Besides, it features the encoding solution supporting 1080p@30 UVC output simultaneously for live broadcasting on popular streaming software such as Microsoft Teams, Zooms, OBS, XSplit, YouTube, Facebook, GoToWebinar, and Twitch, guaranteeing an engaging video conferencing experience with high quality images and sound.

Pushbuttons are built on the front panel for quick and intuitive signal selection. The RS-232 connection enables integration with ATEN VK series and other third-party control systems. The CAMLIVE MX also comes with RS-485 interface to support VISCA protocol for PTZ camera controller connection. An optional rack mount kit is available to give installation flexibility in media cabinets or DIT stations. The CAMLIVE MX delivers plug-and-play convenience with no software drivers needed. In addition, it runs on all major operating systems including windows 10 and macOS 10.1 for all users to customize video streams for various online meeting applications.

Features:

• Converts Two 4K30 USB Inputs to One HDMI
• USB Audio In/Out for Matrix Switching
• Supports Simultaneous 1080p30 UVC Output
• Built-In RS-485 Interface

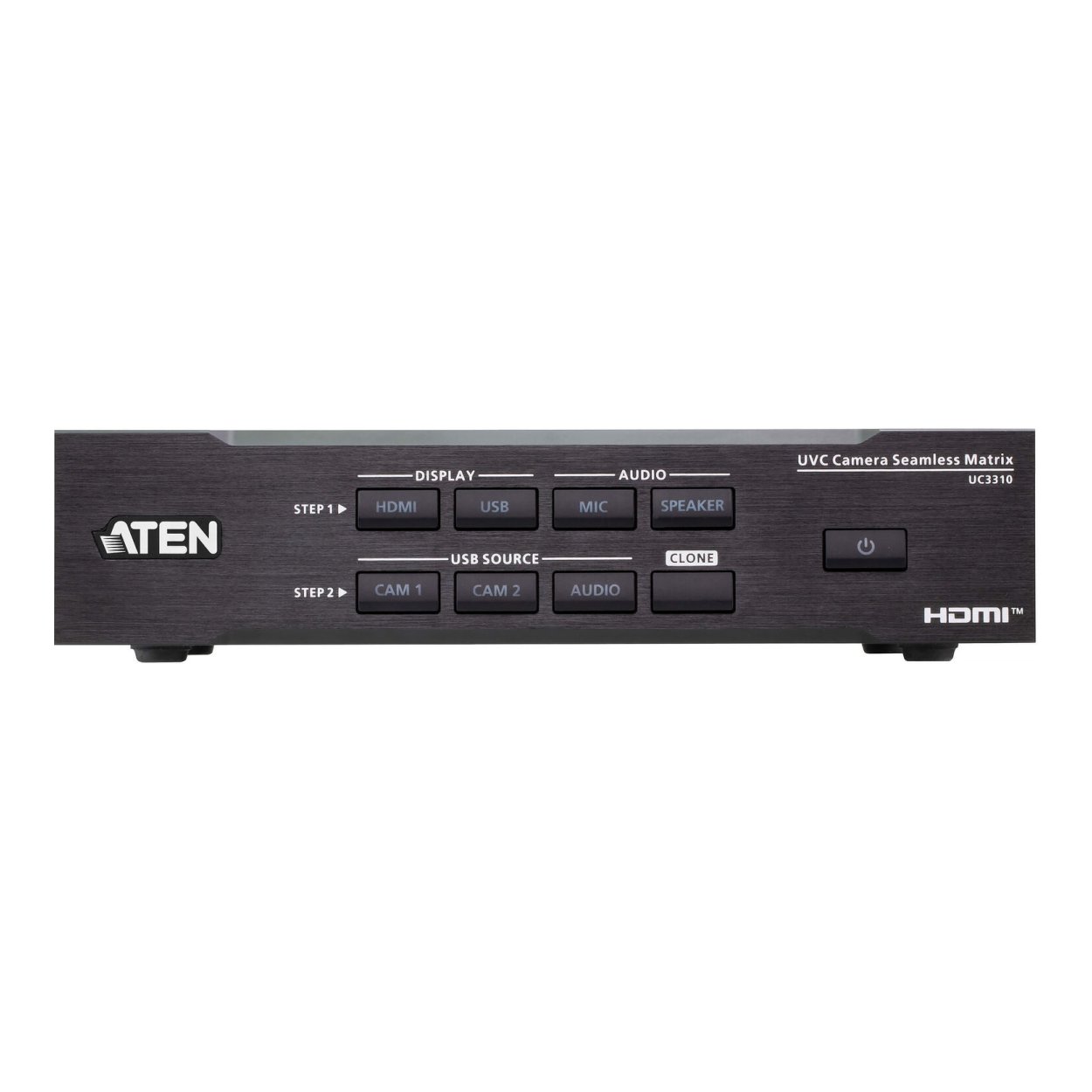

• Front-Panel Button Control
• RS-232 for Optional ATEN VK Control
• 16-Bit PCM Audio, 48 kHz

Specifications:

Product colour: Black

Host interface: USB 3.2 Gen 1 (3.1 Gen 1)

Housing material: Metal

Supported video modes: 720p, 1080p, 2160p

Audio sampling rate: 48 kHz

Audio sampling rate: 16 bit

USB connector type: USB Type-A, USB Type-C

USB version: 3.2 Gen 1 (3.1 Gen 1)

Power supply type: DC

Output voltage: 12 V
