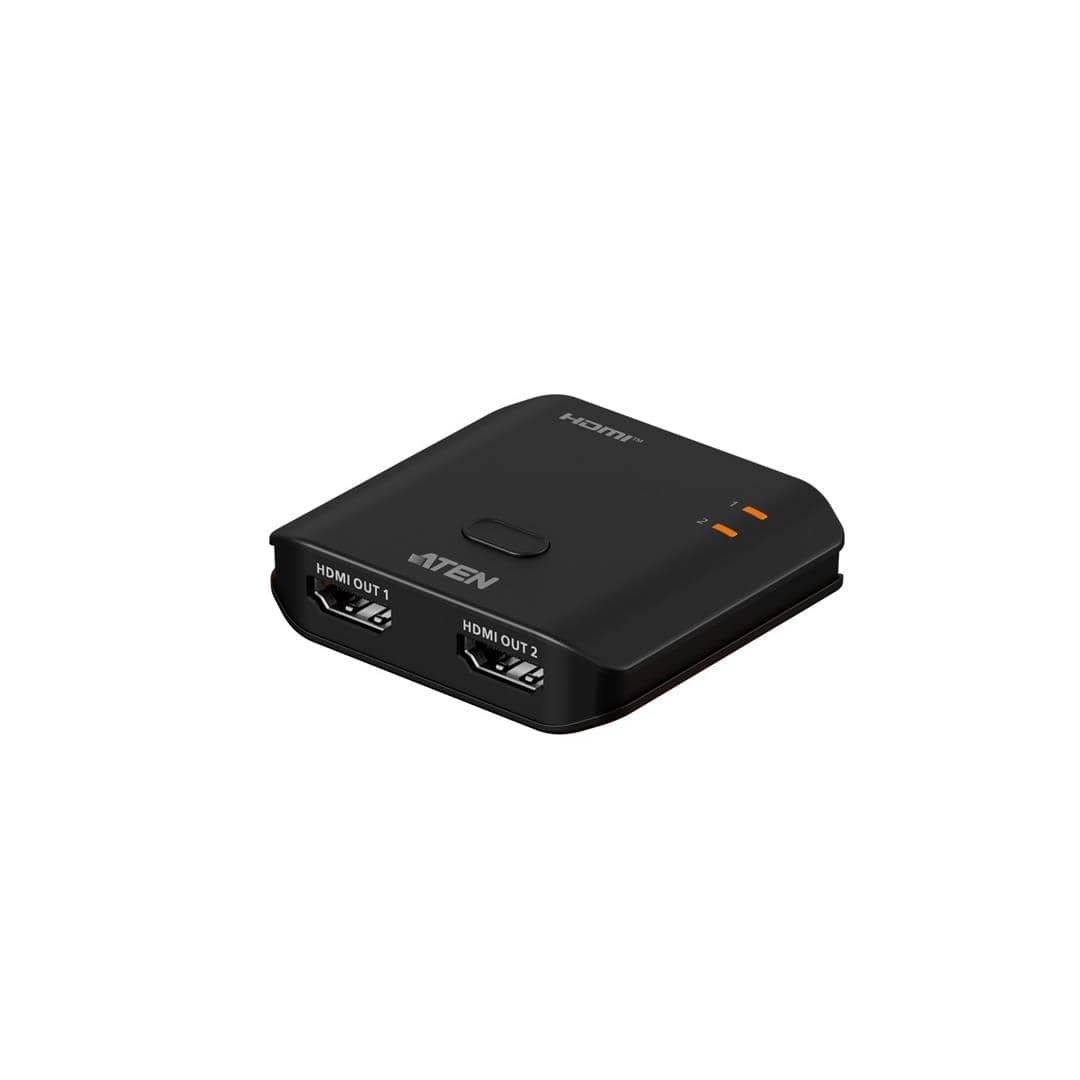

Aten 2-Port True 4K HDMI Splitter VS4812

Aten 2-Port True 4K HDMI Splitter VS4812

The Aten VS4812 2-Port True 4K HDMI Splitter is a compact and high-performance solution designed to distribute a single HDMI source to two displays simultaneously without signal loss. Built for home entertainment, professional AV setups, and dual-monitor workstations, it ensures consistent and high-quality output with support for True 4K resolution, HDR, and advanced audio formats.

• True 4K HDMI splitter delivering up to 3840 × 2160 @ 60Hz (4:4:4) resolution

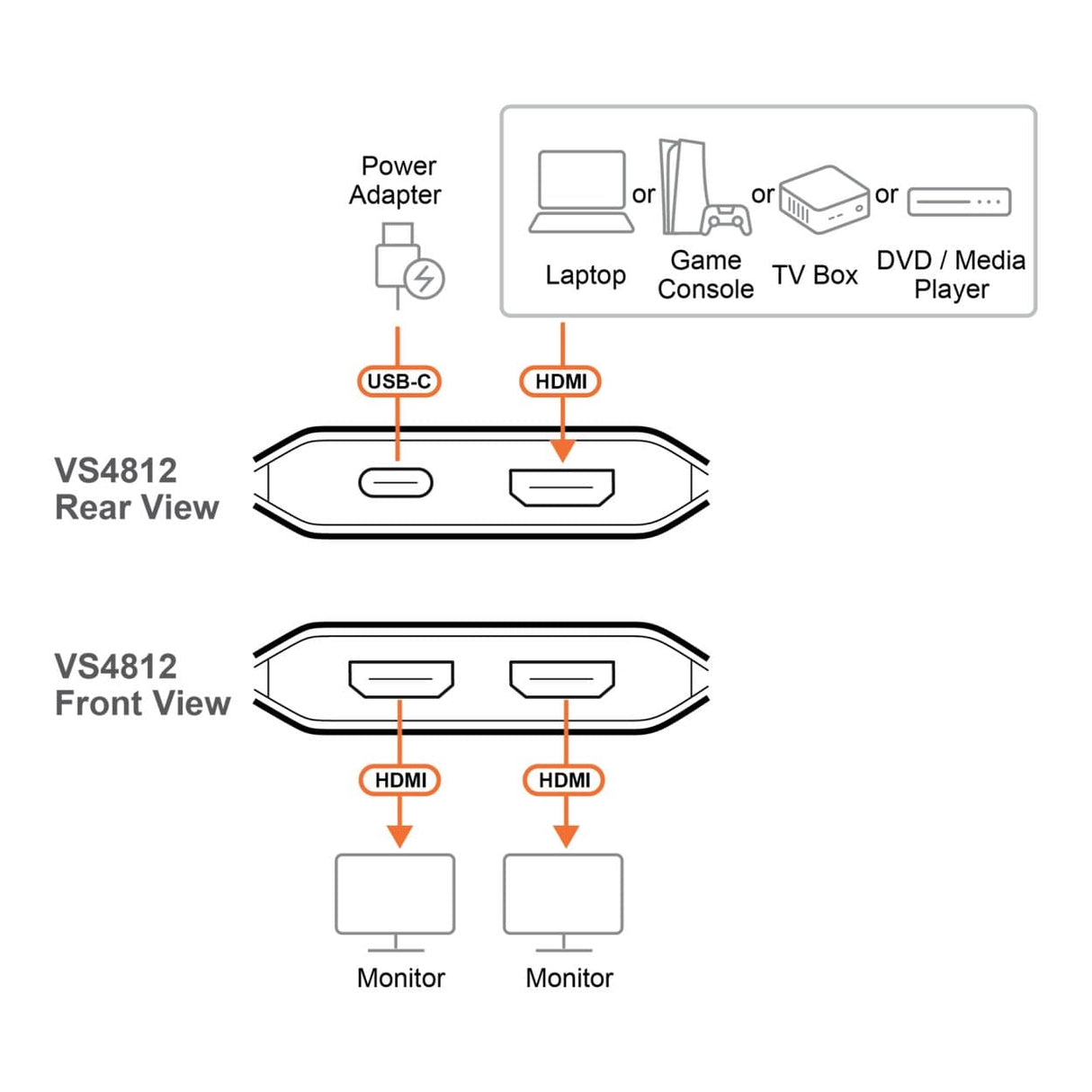

• 1-to-2 HDMI distribution for simultaneous dual-display output
• EDID Sync technology automatically optimises resolution and prevents display issues
• Supports HDR10+, 3D formats, and Deep Color for enhanced image quality
• HDCP 2.2 compliant for secure and reliable content playback
• High bandwidth support up to 18Gbps for smooth signal transmission
• Advanced audio support including LPCM 7.1, Dolby, and DTS-HD Master Audio™
• Push-button control to enable or disable the second HDMI output
• Compact and lightweight design for easy installation and portability

Specifications
Product Type: HDMI Splitter
Model: VS4812

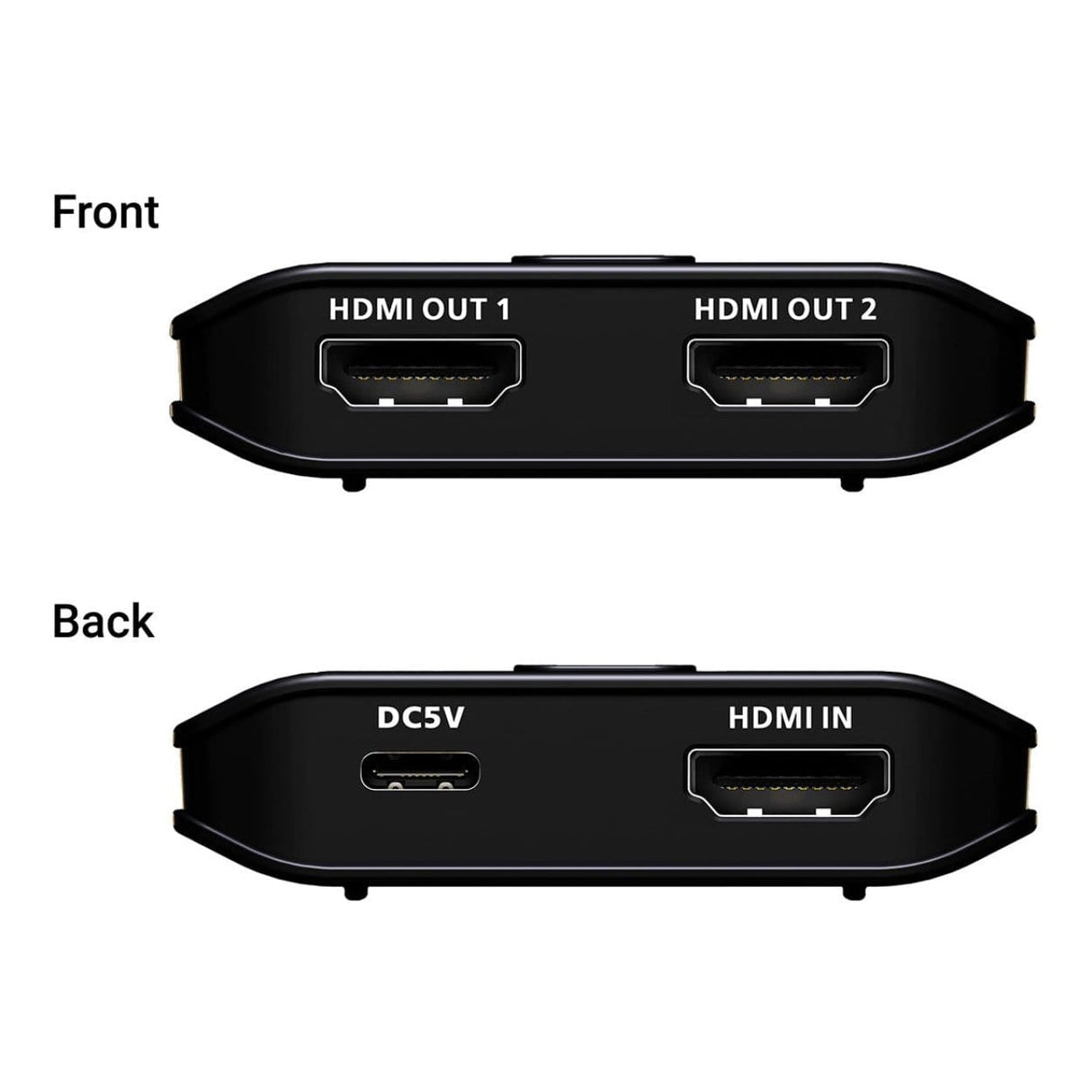

Input Ports: 1 x HDMI Type-A Female
Output Ports: 2 x HDMI Type-A Female
Maximum Resolution: 3840 × 2160 @ 60Hz (4:4:4)
Bandwidth: Up to 18Gbps
HDCP Support: HDCP 2.2
Video Support: HDR10+, 3D, Deep Color
Audio Support: LPCM 7.1, Dolby®, DTS-HD Master Audio™
Power Input: USB-C (5V / 1A)
Dimensions: Approx. 61 x 56.5 x 15.2 mm
Weight: Approx. 0.03 kg
Application: Home Entertainment, Dual Displays, AV Installations

What’s in the Box

• 1 x 2-Port True 4K HDMI Splitter
• 1 x USB Power Cable (Type-C to Type-A, approx. 1m)
