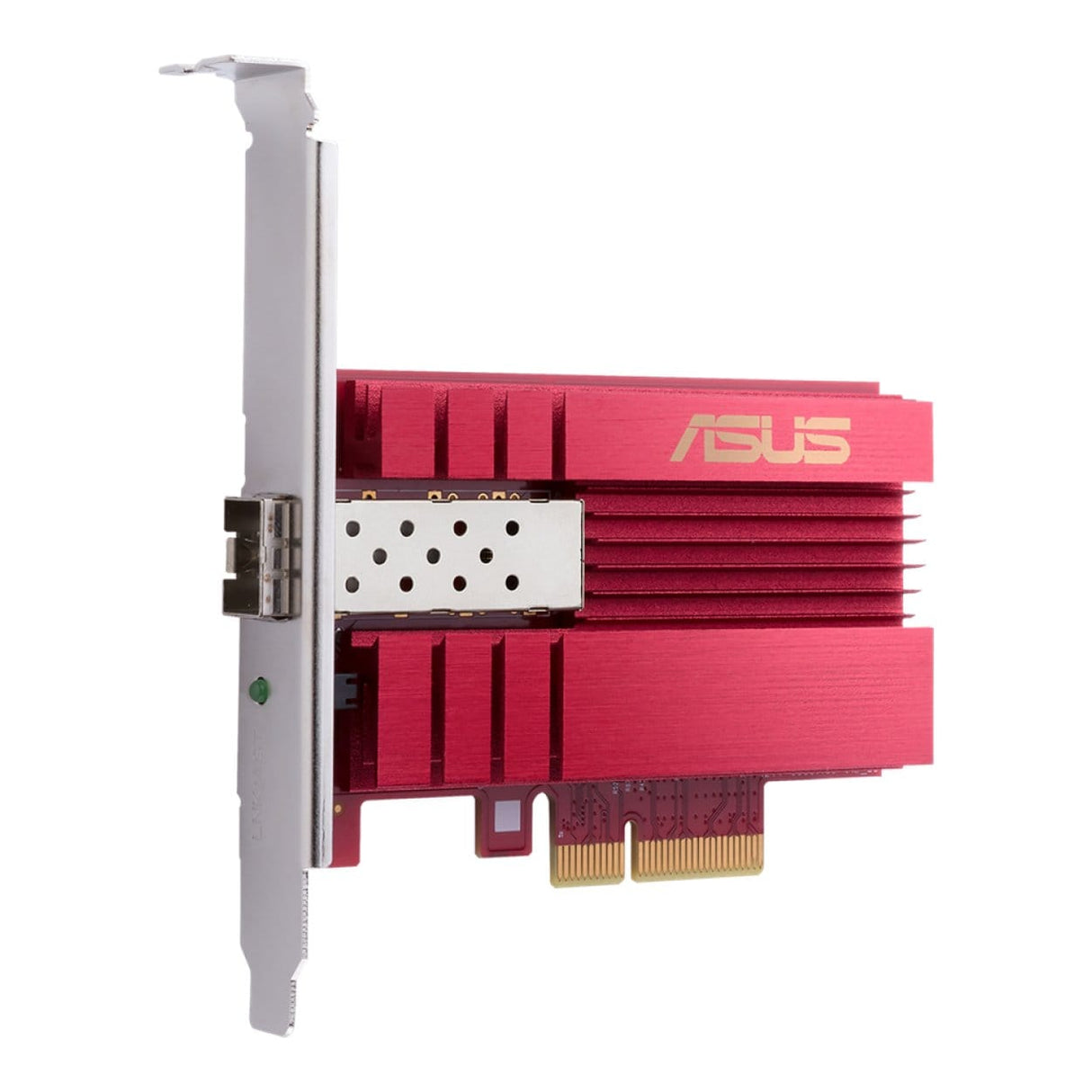

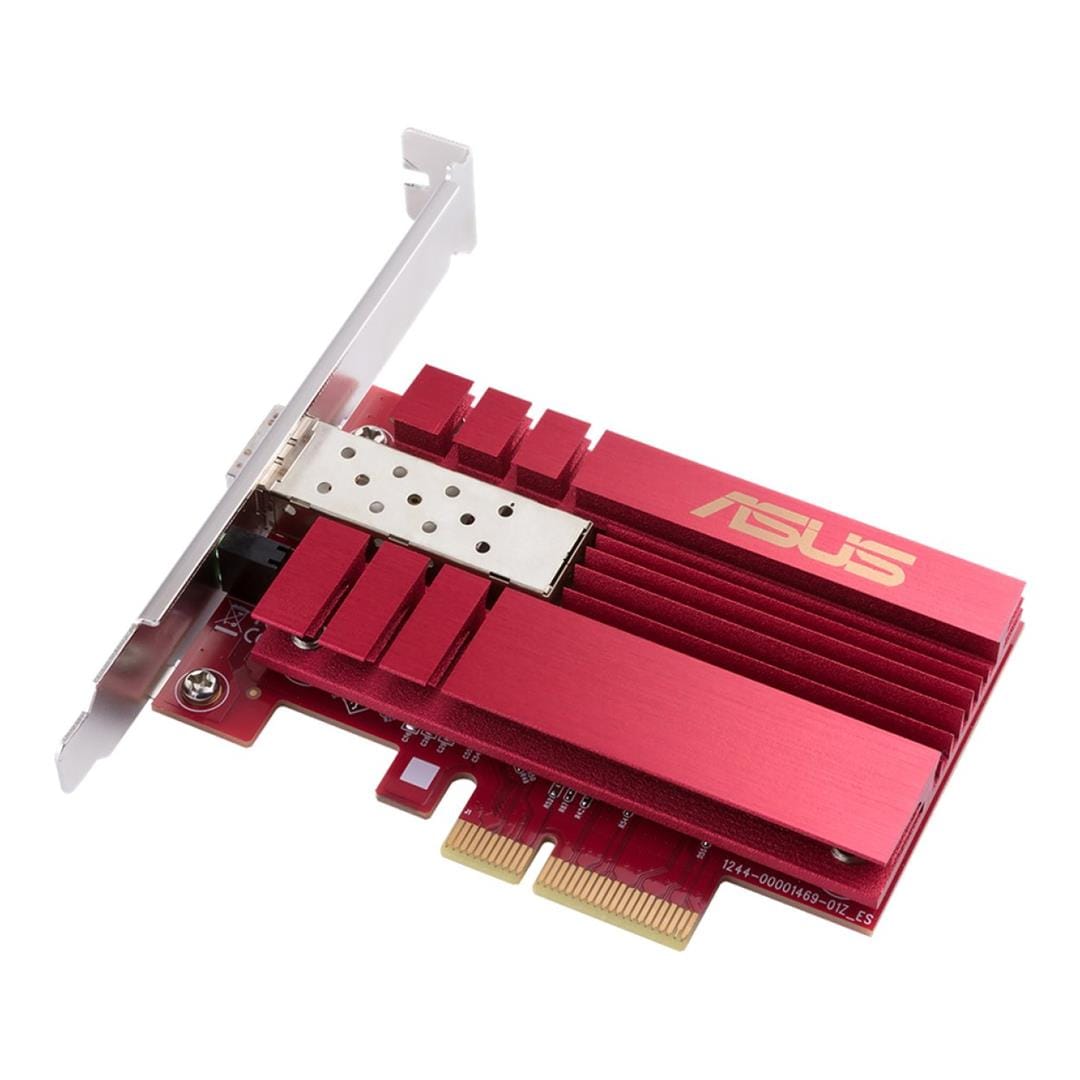

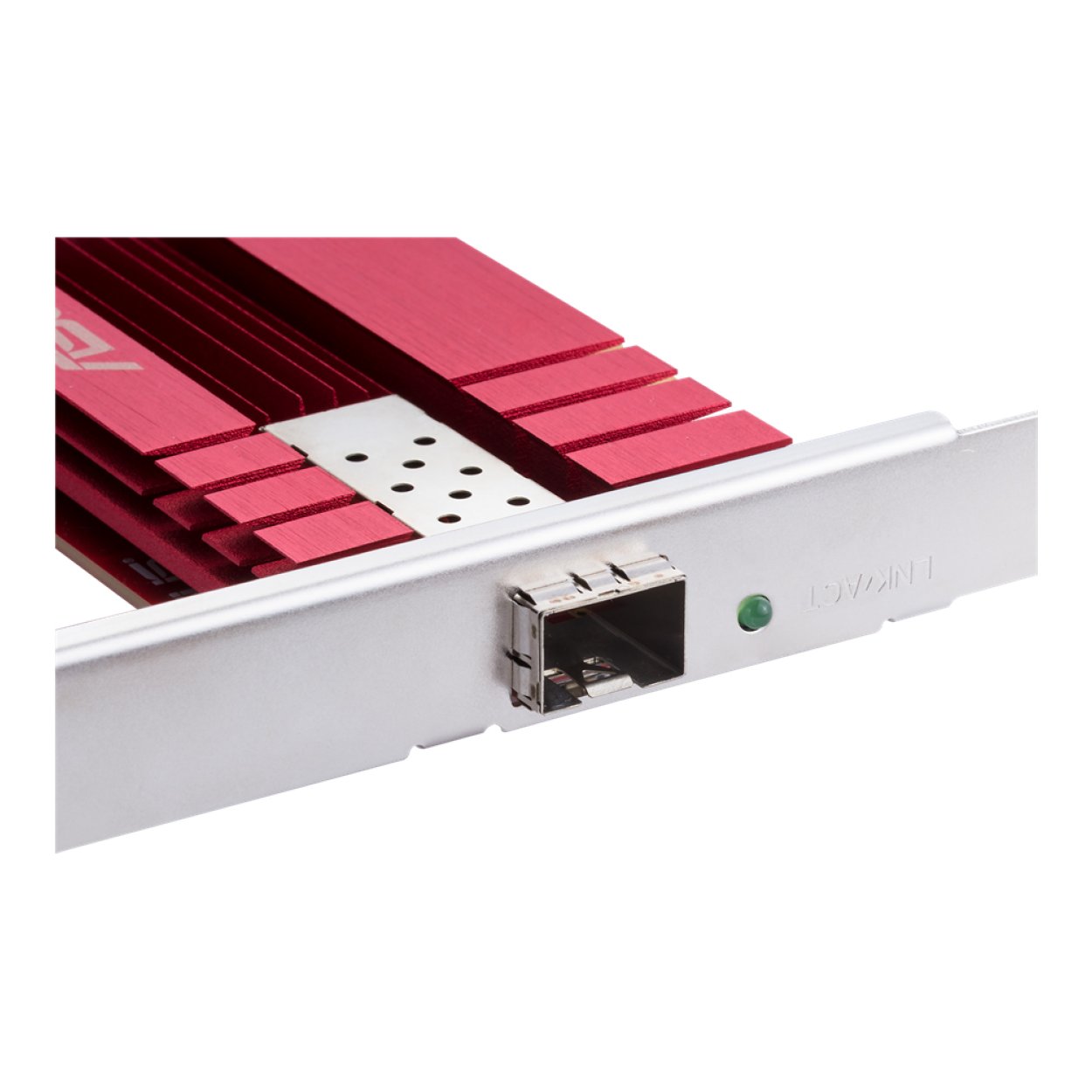

ASUS XG-C100F 10GbE SFP+ PCIe 3.0 Network Adapter 90IG0490-MO0R00

ASUS XG-C100F 10GbE SFP+ PCIe 3.0 Network Adapter 90IG0490-MO0R00

Hyper-Fast 10Gbps Networking

ASUS XG-C100F enables up to hyper-fast 10Gbps networking, over fiber-optic or DAC cables. Just slide it into a PCI Express® 2.0/3.0 x4 slot to enjoy SPF+ connections that are up to 10X faster than gigabit Ethernet — perfect for large file transfers, 4K streaming and low-latency gaming.

Features:

• Hyper-fast 10Gbps speeds – Next-gen speeds up to 10X faster than gigabit Ethernet for quick file transfers, smooth 4K streaming and low-latency gaming.
• Go-further fiber optics – The latest technology for high-speed transmissions over much-greater distances than copper cables.
• Stylish built-in cooling – Stylish aluminum heatsink efficiently expels heat for reliable non-stop operation.
• Automatic prioritization – Built-in QoS technology automatically boosts bandwidth to important streams or games.
• Direct-attach copper (DAC)– With SPF+ Cage, DAC connections are also compatible.

Go Further with Fiber Optics

XG-C100F is compatible the latest fiber-optic networking technology. This enables high-speed, high-bandwidth transmissions to travel distances that are far greater than possible over traditional RJ-45 type copper transmission- Ideal for power users, small enterprise and data center.

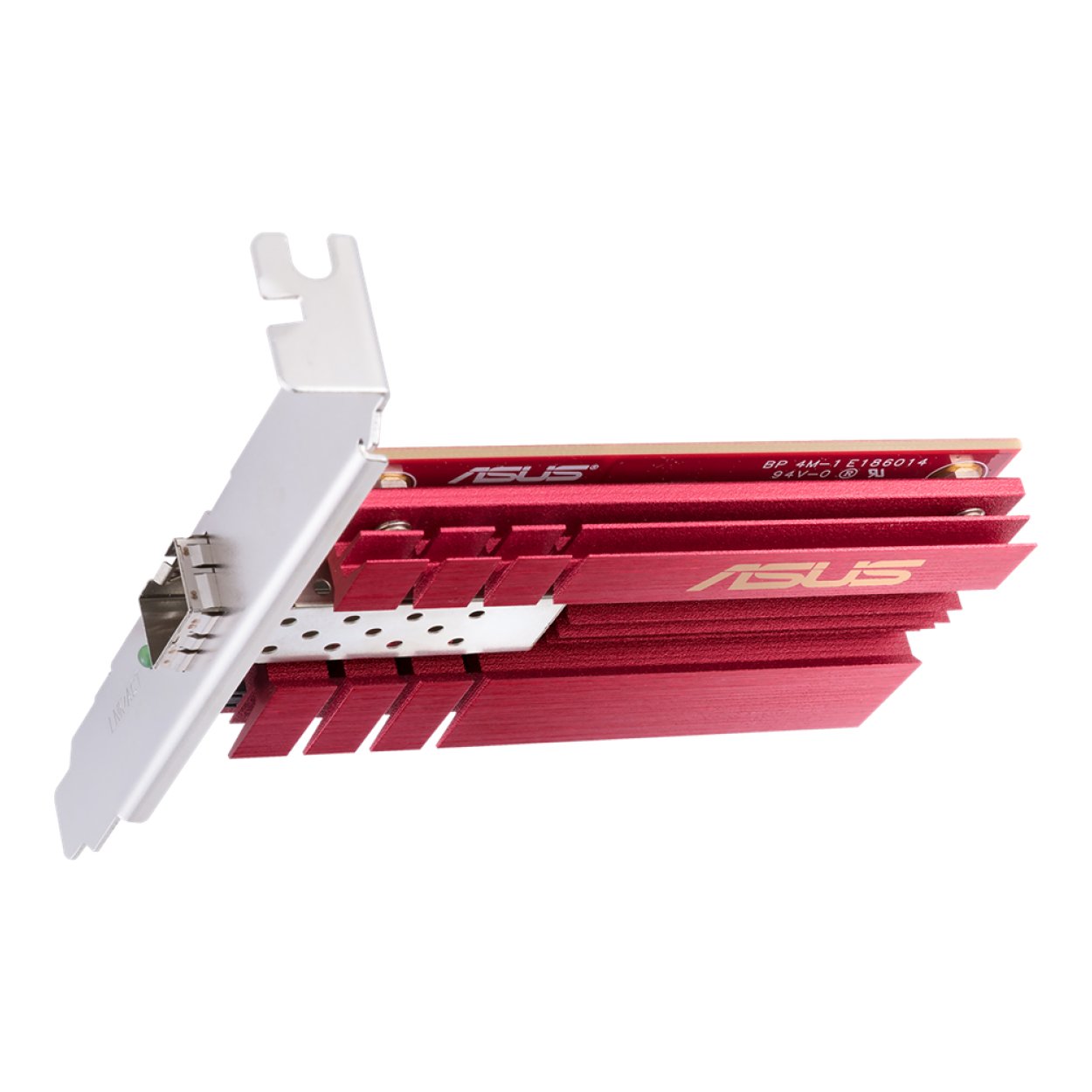

Stylish Cooling Heatsink

An efficient aluminum heatsink keeps XG-C100F cool during high-performance applications, and adds a touch of style that elevates the card's outlook above the network-interface-card crowd.

Prioritize performance, automatically

Built-in Quality-of-Service (QoS) technology automatically prioritizes bandwidth for your most important applications. Whether you're transferring loads of files, streaming 4K media or engaging in online gaming, it's easy to configure XG-C100F to ensure the important packets get through swiftly and smoothly.

Technical Specifications:

Ports & Interfaces
Connectivity technology: Wired
Host interface: PCI Express
Interface: Fiber
Fiber ports quantity: 1
Fiber optic connector: SFP+

Network
Maximum data transfer rate: 10000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ae
Ethernet LAN: 10 Gigabit Ethernet
Ethernet LAN data rates: 10000 Mbit/s
Cabling technology: 10GBase-T

Design
Component for: PC
Product colour: Red
Design: Internal
Plug and Play: Yes
LED indicators: Yes

Operational Conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 60 °C

Weight & Dimensions
Width: 113.3 mm
Depth: 120.5 mm
Height: 21.6 mm
Weight: 110 g

Packaging Content
Manual

Logistics Data
Harmonized System (HS) code: 85176990
