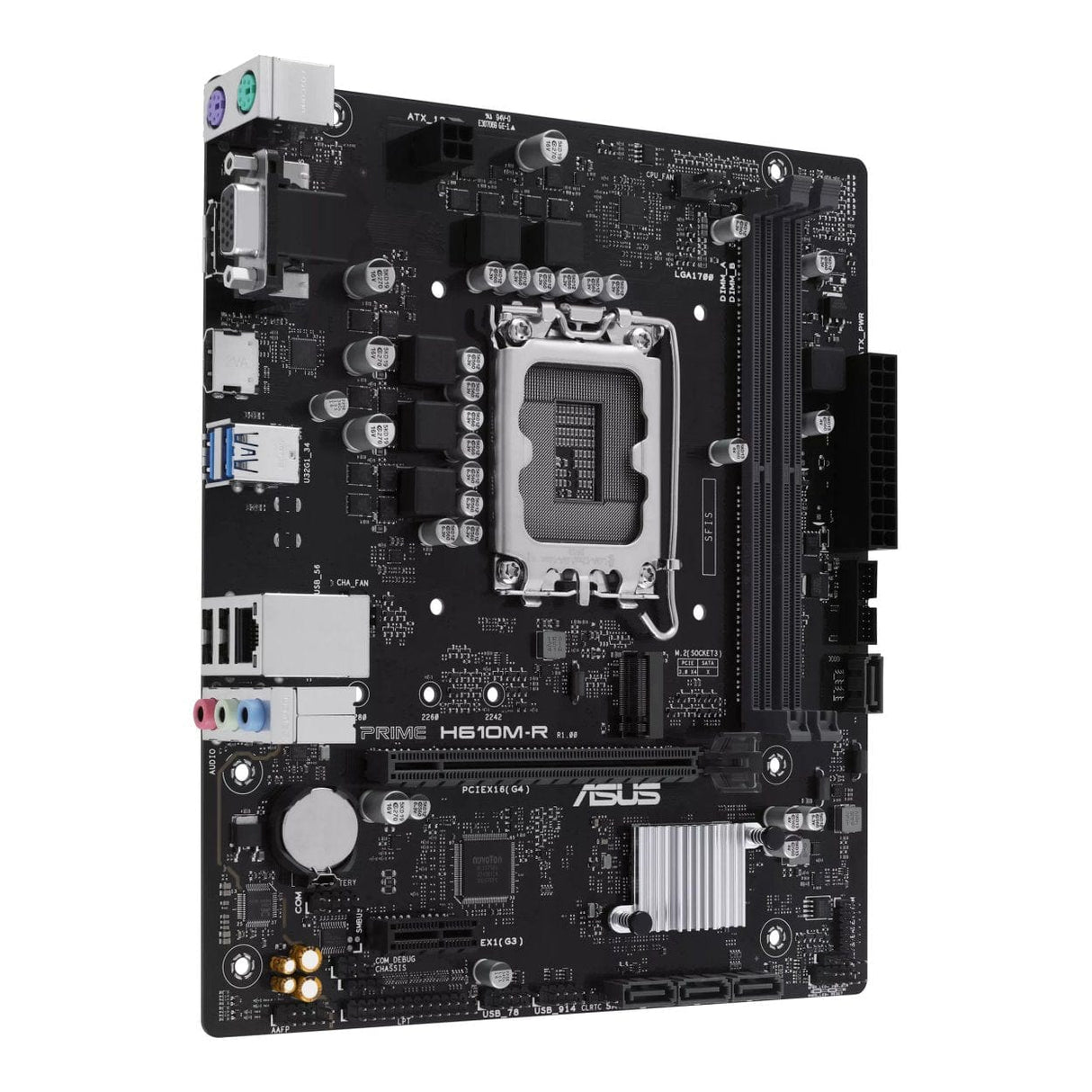

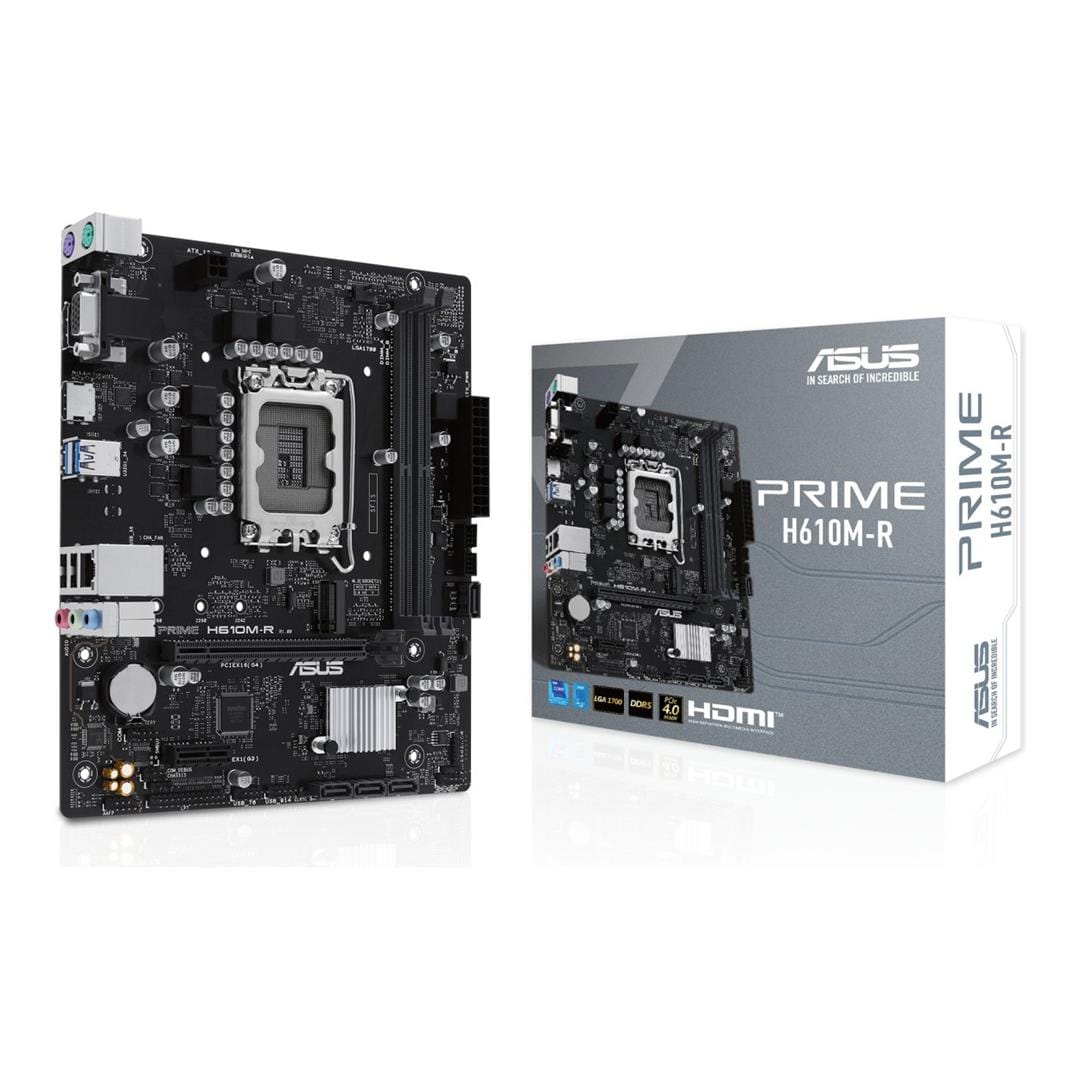

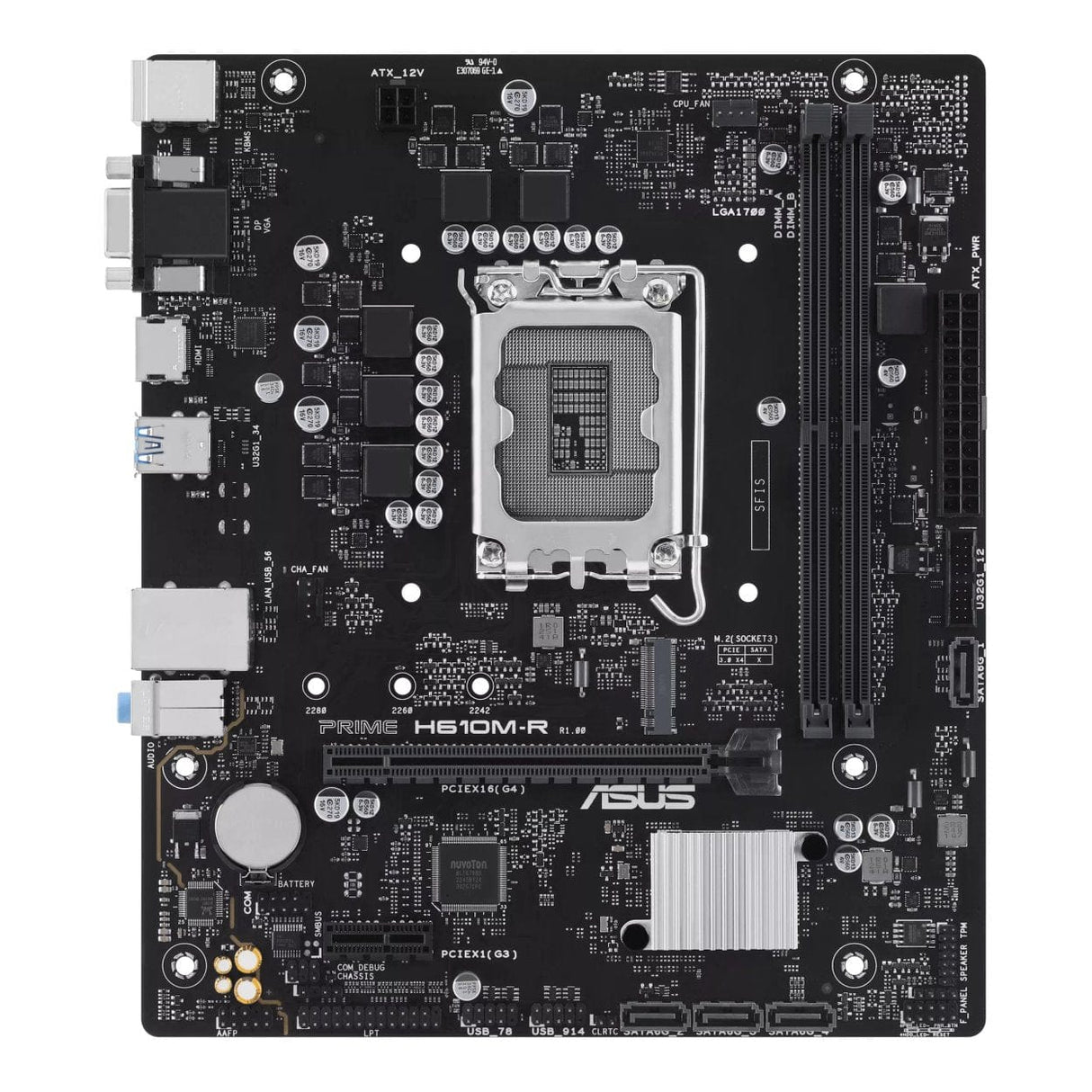

ASUS Prime H610M-R-SI Intel LGA 1700 micro ATX Motherboard 90MB1GL0-M0ECY0

ASUS Prime H610M-R-SI Intel LGA 1700 micro ATX Motherboard 90MB1GL0-M0ECY0

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14^th, 13^th & 12^th Generation Intel^® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

Features:

• Intel^® LGA 1700 Socket: Ready for 14^th, 13^th & 12^th Gen Intel^® processors
• Comprehensive Cooling: PCH heatsink
• Ultrafast Connectivity: PCIe 4.0, 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 support
• 5X Protection III: Multiple hardware safeguards for all-round protection

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

All-Around Energy Efficiency

The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

COOLING

Prime H610 series are engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Multiple Temperature Sources

Each header can dynamically reference the thermal sensor. UEFI BIOS allows you to map the temperature of CPU and motherboard.

PERFORMANCE

Prime H610 series are built to handle the additional cores and increased bandwidth of 14^th, 13^th & 12^th Generation Intel^® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

Storage

M.2 slot (up to 32 Gbps)

PRIME H610M-R offers one M.2 slot that supports data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.

Technical Specifications:

 Processor manufacturer: Intel

Processor socket: LGA 1700

Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™

Supported memory types: DDR5-SDRAM

Maximum internal memory: 96 GB

Memory slots type: DIMM

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

Ethernet interface type: Gigabit Ethernet

Component for: PC

Motherboard form factor: micro ATX

Motherboard chipset family: Intel
