Asus AX6600 Tri-Band Wi-Fi 6 Mesh System 90IG0590-MO3A30

Asus AX6600 Tri-Band Wi-Fi 6 Mesh System

Upgrade to whole-home WiFi coverage!

The ZenWiFi AX Single Pack includes one ASUS AX6600 WiFi 6 router, providing up to an extra 2750 sq. ft. of coverage to your existing network.

WiFi 6

ZenWiFi AX puts your WiFi into top gear! With a total bandwidth of up to of 6600 Mbps, it's up to 2.2X faster* than tri-band AC3000 (WiFi 5) routers **.

• *The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
• * Compatible WiFi 6 device required.
• ** The data compares speed of 4x4 11ax on 5GHz 160MHz bandwidth with 1024QAM modulation to speed of 4x4 11ac on 5GHz 80MHz with 256QAM modulation.

Add Extra ZenWiFi Nodes, with No Hassle!

Adding an extra ZenWiFi node to your network is easy. Simply follow the on-screen guidance in the ASUS Router app: it all takes just a few minutes!

Make the Internet a Safer Place for Everyone

AiProtection Pro with Advanced Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that's happening on your network via the mobile app.

Flexible Network Naming

Uniquely, ZenWiFi AX lets you choose how you name your WiFi networks: a single name for everything, or separate names for each frequency band. The choice is yours!

Tri-band. Zero slowdowns.

Unlike traditional dual-band mesh WiFi systems that sacrifice half of the total wireless bandwidth to the backhaul connection, ZenWiFi AX features a tri-band design with a full WiFi band for the backhaul, maximizing system performance and stability. With this upgraded design, you'll experience fast and stable WiFi, even when data transfers through multiple hubs to reach your device.

Backhaul Configuration

ZenWiFi AX allows flexible configuration of the backhaul connection. You can set the second 5GHz band as a dedicated or non-dedicated backhaul connection, enabling maximized backhaul speed or freeing up the fastest 5GHz band for connected devices. If you have Ethernet ports in your walls, you can also set ZenWiFi AX to use Ethernet backhaul, reserving all three WiFi bands for your wireless devices for even more stable and reliable networking.

AiMesh Technology

Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking features.

Performance Through Engineering

ZenWiFi AX features a quad-core CPU to deliver the full performance potential of WiFi 6. Its vertical housing holds a specially designed antenna and circuit board that optimizes WiFi signal strength and provides better airflow, improving thermal performance for reliable operation.

Features:

• Maximum Range : 5500 Sq Ft
• Banish WiFi Dead Zone: Tri-band mesh WiFi system with unique antenna placement delivers strong WiFi to every corner of your home providing total wireless speed of 6600Mbps
• Next-Gen Wi-Fi 6 Technology: With OFDMA and MU-MIMO ZenWiFi AX enables more efficient stable and faster transmission even when multiple devices are transmitting data at the same time
• Hassle Free Control: 3 steps setup and easy management with ASUS Router App
• Always Up-to-date Protection: The lifetime free network security powered by Trend Micro makes sure your privacy on connected devices is protected

Specifications:

• Model Name: XT8 (W-1-PK)
• Product Segment: AX6600 ultimate AX performance：574+1201+4804Mbps
• Antenna: Internal antenna x 6V
• Memory: 256 MB Flash 512 MB RAM
• Boosts Speed: OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
• Operating Frequency: 2.4G Hz, 5 GHz-1, 5 GHz-2
• Operating Mode: Wireless router mode Access point mode

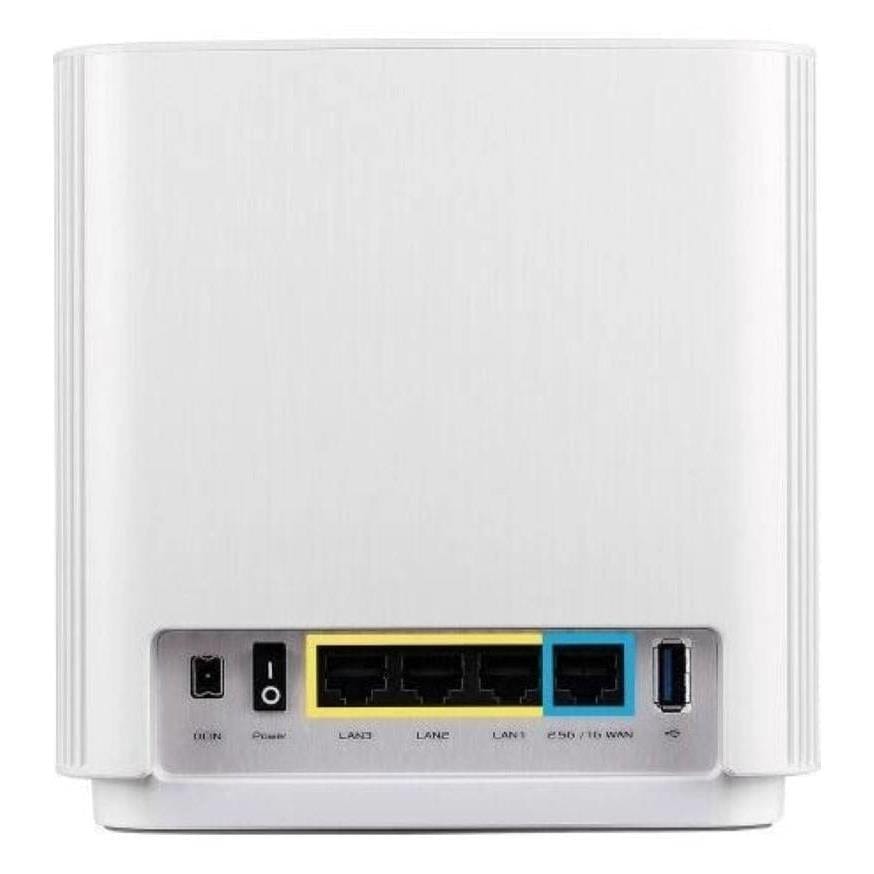

• I/O Ports: RJ45 for 2.5G BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3 USB 3.1 Gen 1 x 1
• Buttons: WPS Button, Reset Button, Power Switch

Network Standard:

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• IPv4
• IPv6
