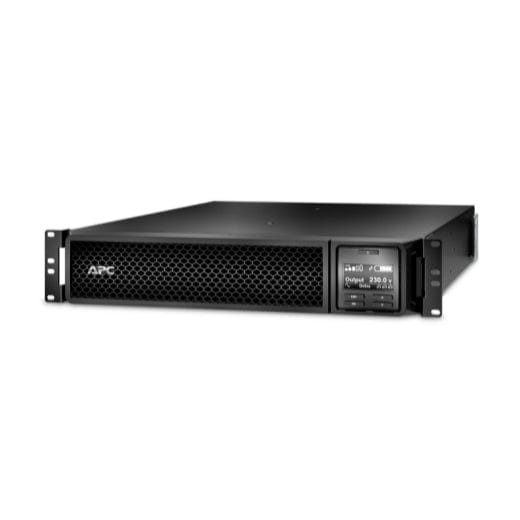

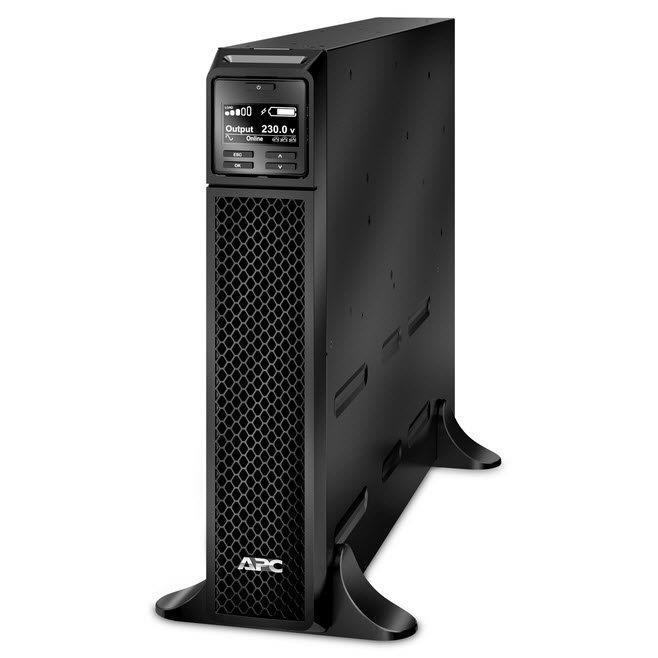

APC SRT1500XLI Smart-UPS 1500W 1.5kVA UPS

APC SRT1500XLI Smart-UPS 1500W 1.5kVA UPS

High density, double-conversion on-line power protection with scalable runtime

Features

• Best-in-class power density
• High-efficiency “green mode”
• Graphical LCD display with multicolor backlight
• Intelligent battery management
• Built-in energy meter
• Switched outlet group(s)
• Emergency power off
• Communication ports
• Communication protocols

Technical Specification

Main

Main Input Voltage: 230 V
Main Output Voltage: 230 V
Rated power in W: 1500 W
Rated power in VA: 1500 VA

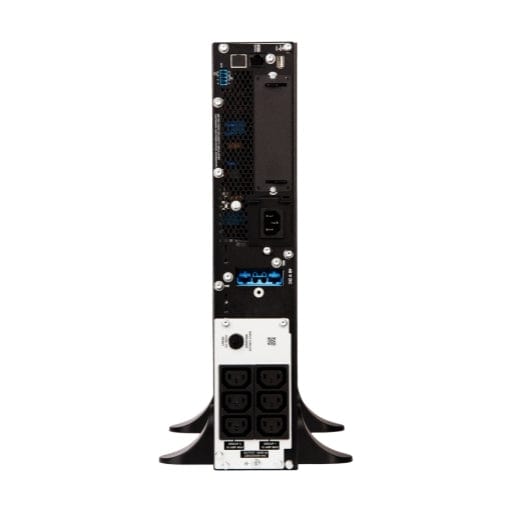

Input Connection Type: 1x IEC 60320 C14
output connection type: 6x IEC 60320 C13
Cable length: 1.83 m
Number of cables: 1

Batteries & Runtime

Battery type: Lead-acid battery
Number of battery filled slots: 1
Battery recharge time: 3 h
Battery voltage: 48 V
Battery charger power: 108 W rated
Replacement battery: APCRBC155

General

UPS type: Double conversion online
Product web sub-family: High density
Redundant: No

Physical

Product colour: Black
Dimensions (H x W x D): 43.2 x 8.5 x 50.5 cm
Net weight: 20.5 kg
Mounting mode: Rack-mounted with kit
USB compatible: Yes
Mounting position: Vertical

Input

Network frequency: 40...70 Hz auto-sensing
Input voltage limits: 100...275 V

Output

Maximum configurable power in VA: 1500 VA
Maximum configurable power in W: 1500 W
Output frequency: 50/60 Hz +/- 3 Hz sync to mains
Wave type: Sine wave
Harmonic distortion: Less than 2 %
Crest factor: 3 : 1
Bypass type: Built-in bypass

Communications & Management

Free slots: 1
Alarm: Audible and visible alarms : prioritized by severity
Emergency power off: Yes

Surge Protection and Filtering

Surge energy rate: 432 J

Package contents

• CD with software
• Communication cable
• Documentation CD
• Installation guide
• Removable support feet
• USB cable
• Warranty card
