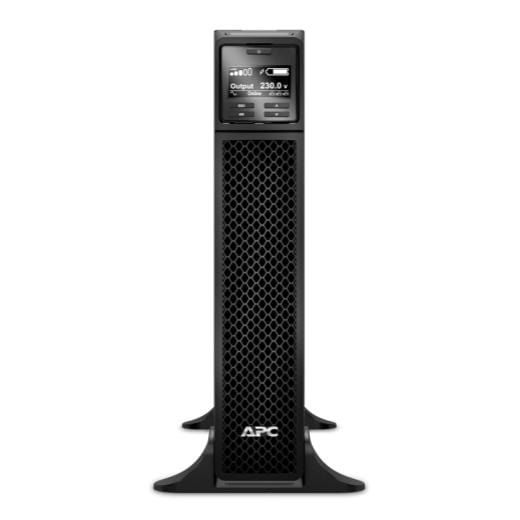

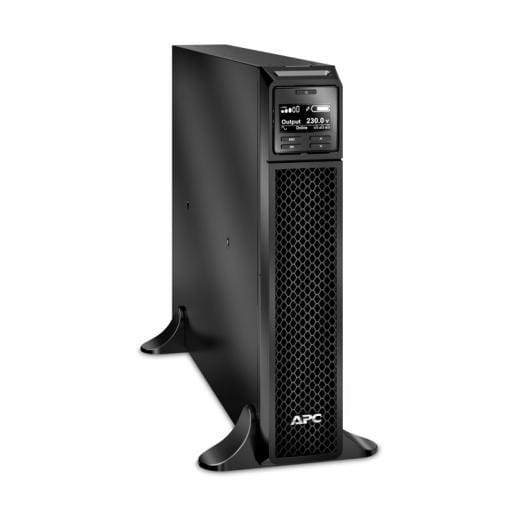

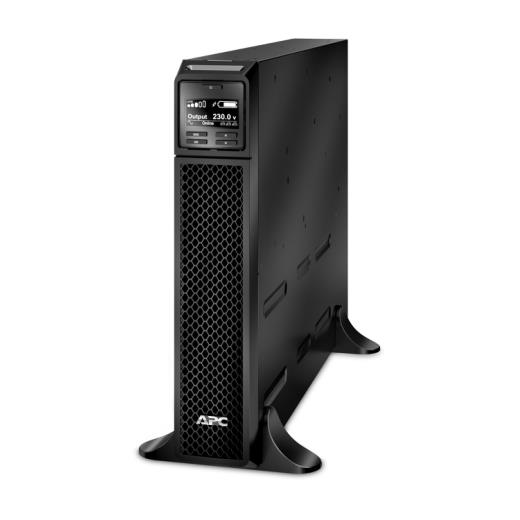

APC Smart-UPS SRT 3000VA 230V SRT3000XLI

APC Smart-UPS SRT 3000VA 230V

Features

• This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection.
• This 3000VA/2700W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance.
• The 2U rack/tower convertible SRT is external battery compatible for more runtime during prolonged outages.
• The UPS has an optional Network Management Card for network-based monitoring and PowerChute Business Edition for unattended shutdown.
• It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13/60320 C13 and 2x IEC 320 C19/60320 C19 outlets, and 2x IEC jumpers. Ideal for servers, voice/data networks, medical labs, and light industrial applications.
• It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, and VDE.
• Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Technical Specification

Main

• BS1363A British
• IEC 60320 C20
• Schuko CEE 7 / EU1-16P

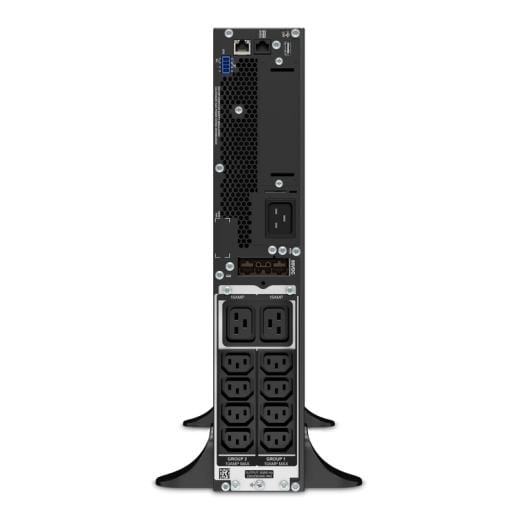

Output connection type

• 8x IEC 60320 C13
• 2x IEC Jumpers
• 2x IEC 60320 C19

Cable length: 2.44 m
Number of cables: 3

Batteries & Runtime

Battery type: Lead-acid battery
Battery recharge time: 3 h
Number of battery replacement quantity: 1
Battery voltage: 96 V
Battery charger power: 168 W rated

General

Physical

Product colour: Black
Dimension (H x W x D): 43.2 x 8.5 x 63.5 cm
Net weight: 31.3 kg
Mounting location: Front
Mounting preference: Lower
Mounting mode: Rack-mounted with kit
USB compatible: Yes
Mounting position: Vertical

Input

Network frequency: 40...70 Hz auto-sensing
Input voltage limits: 100...275 V adjustable (half load)

Output

Maximum configurable power in VA: 3000 VA
Maximum configurable power in W: 2700 W
Output frequency: 50/60 Hz +/- 3 Hz sync to mains
Wave type: Sine wave
Harmonic distortion: Less than 2 %
Crest factor: 3 : 1
Bypass type: Internal bypass (automatic and manual)

Communications & Management

Package contents

• CD with software
• Country-specific detachable power cord
• Documentation CD
• Installation guide
• Removable support feet
• USB cable
• Warranty card
