Description

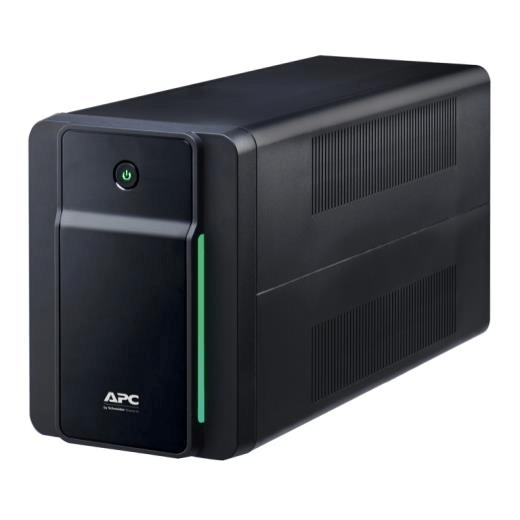

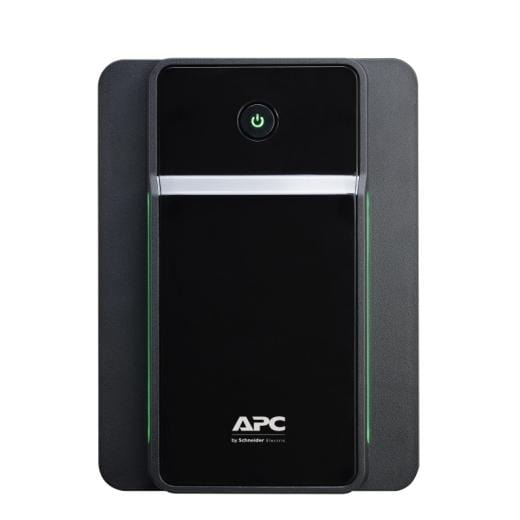

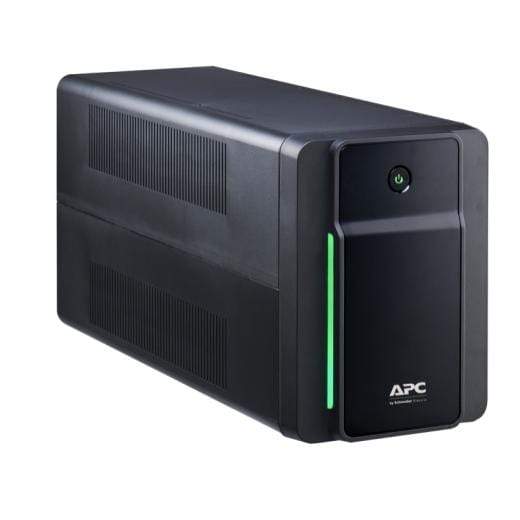

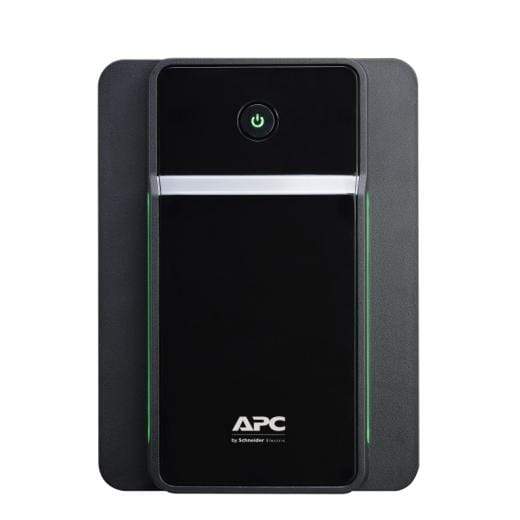

APC Back-UPS 1200VA, 230V, AVR, IEC Sockets
The APC Back-UPS 1200VA (Volt-Amps) is a compact uninterruptible power supply (UPS) designed to provide battery backup and surge protection for connected devices.
Technical Specification
Main
Rated power in VA: 1200 VA

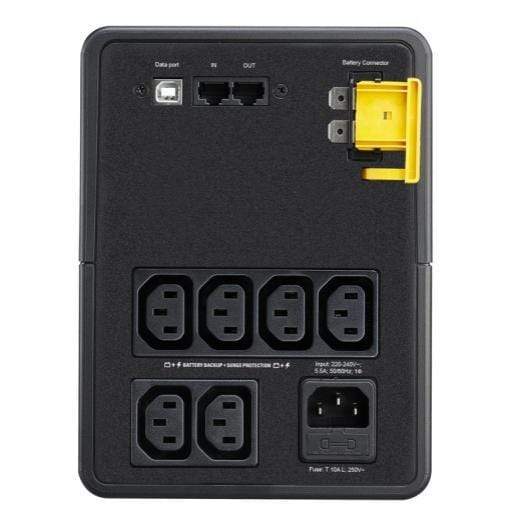

Output connection type: 6x IEC 60320 C13
Cable length: 1.22 m
Number of cables: 1
Batteries & Runtime
Battery voltage / capacity: 12 V / 9 Ah
Battery recharge time: 8 h
General
Physical
Product colour: Black
Dimension (H x W x D): 19 x 14 x 39 cm
Net weight: 7.6 kg
Mounting mode: Not rack-mountable
Input
Input voltage limits: 140...300 V
Output
Maximum configurable power in W: 650 W
Output frequency: 50/60 Hz +/- 1 Hz sync to mains
Wave type: Stepped approximation to a sinewave
UPS type: Line interactive
Half load runtime: 00:05:00 300 W
Transfer time: 6 ms typical : 10 ms maximum
Communications & Management
Control panel: LED Status display with on line : on battery
Surge Protection and Filtering
Surge energy rate: 273 J
