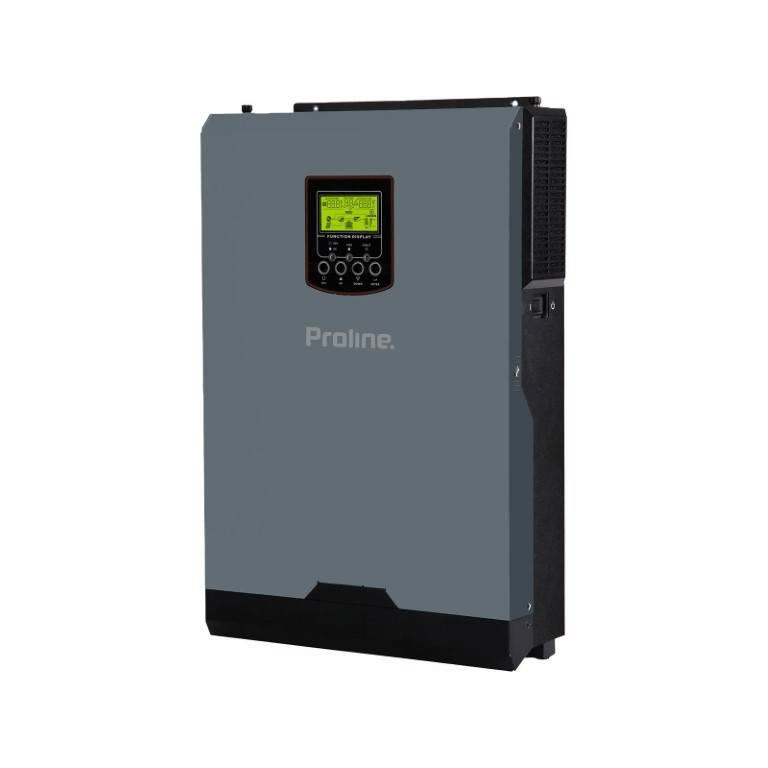

Proline 5000VA 5000W Wall-Mount MPPT Solar Inverter PAXP5000

Proline 5000VA 5000W Wall-Mount MPPT Solar Inverter PAXP5000

The Proline 5000VA 5000W Wall-Mount MPPT Solar Inverter (Model: PAXP5000) is a high-performance solar inverter designed for residential and commercial solar energy systems.

The wall-mount design of the inverter allows for easy installation on a suitable wall surface, saving valuable floor space and providing flexibility in system configuration.

Technical Specification

Input
Rated Power: 5000VA/5000W
Parallel Capability: Not Available
Voltage: 230 VAC
Selectable Voltage Range: 170-280 VAC ( Personal Computer) ; 90-280 VAC (Home Appliances)
Frequency Range: 50 Hz/60 Hz ( Auto Sensing )

Output
AC Voltage Regulation (Batt. Mode): 230VAC
Surge Power: 10000VA
Efficiency (Peak): 93%
Transfer Time: 10ms Personal Computer ; 20ms Home Appliances
Waveform: Pure Sine Wave

Battery (Not included)
Battery Voltage: 48 VDC
Floating Charge Voltage: 54 VDC
Overcharge Protection: 63 VDC

Solar Charge & AC Charger
Solar Charge Type: MPPT
Maximum PV Array Open Circuit Voltage: 500 VDC
Maximum PV Array Power: 5000 W
MPP Range @ Operating Voltage: 120-450 VDC
Maximum Solar Charge Current: 100A
Maximum AC Charge Current: 100A
Maximum Charge Current: 100A

Physical
Dimensions (D x W x H): 100 x 300 x 440
Weight: 10kg
Communication Interface: RS232 / USB / No BMS / No WIFI
