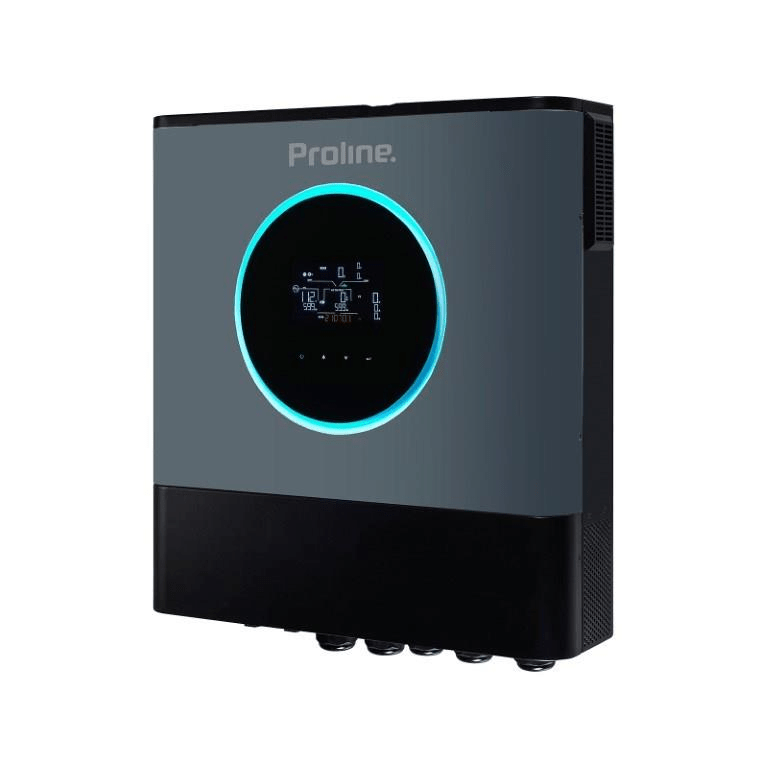

Proline 11000VA 11000W Wall-Mount MPPT Solar Inverter PAXM11T

Proline 11000VA 11000W Wall-Mount MPPT Solar Inverter PAXM11T

The Proline 11000VA 11000W Wall-Mount MPPT Solar Inverter (Model: PAXM11T) is a high-performance solar inverter designed for residential and commercial solar energy systems.

The wall-mount design of the inverter allows for easy installation on a suitable wall surface, saving valuable floor space and providing flexibility in system configuration.

Technical Specification

Input
Rated Power: 11000VA/11000W
Parallel Capability: Yes, 6 Units
Voltage: 230 VAC
Selectable Voltage Range: 170-280 VAC ( Personal Computer ) ; 90-280 VAC (Home Appliances)
Frequency Range: 50 Hz/60 Hz ( Auto Sensing )

Output
AC Voltage Regulation (Batt. Mode): 230VAC
Surge Power: 22000VA
Efficiency (Peak): 93%
Transfer Time: 10ms Personal Computer ; 20ms Home Appliances
Waveform: Pure Sine Wave

Battery (Not included)
Battery Voltage: 48 VDC
Floating Charge Voltage: 54 VDC
Overcharge Protection: 63 VDC

Solar Charge & AC Charger
Solar Charge Type: MPPT
Maximum PV Array Open Circuit Voltage: 500 VDC
Maximum PV Array Power: 11000W (5500W x 2)
MPP Range @ Operating Voltage: 90-450 VDC
Maximum Solar Charge Current: 150A
Maximum AC Charge Current: 150A
Maximum Charge Current: 150A

Physical
Dimensions (D x W x H): 158.4 x 503.6 x 530.8
Weight: 20kg
Communication Interface: USB / RS232 / RS485 / WiFi / Dry-Contact
