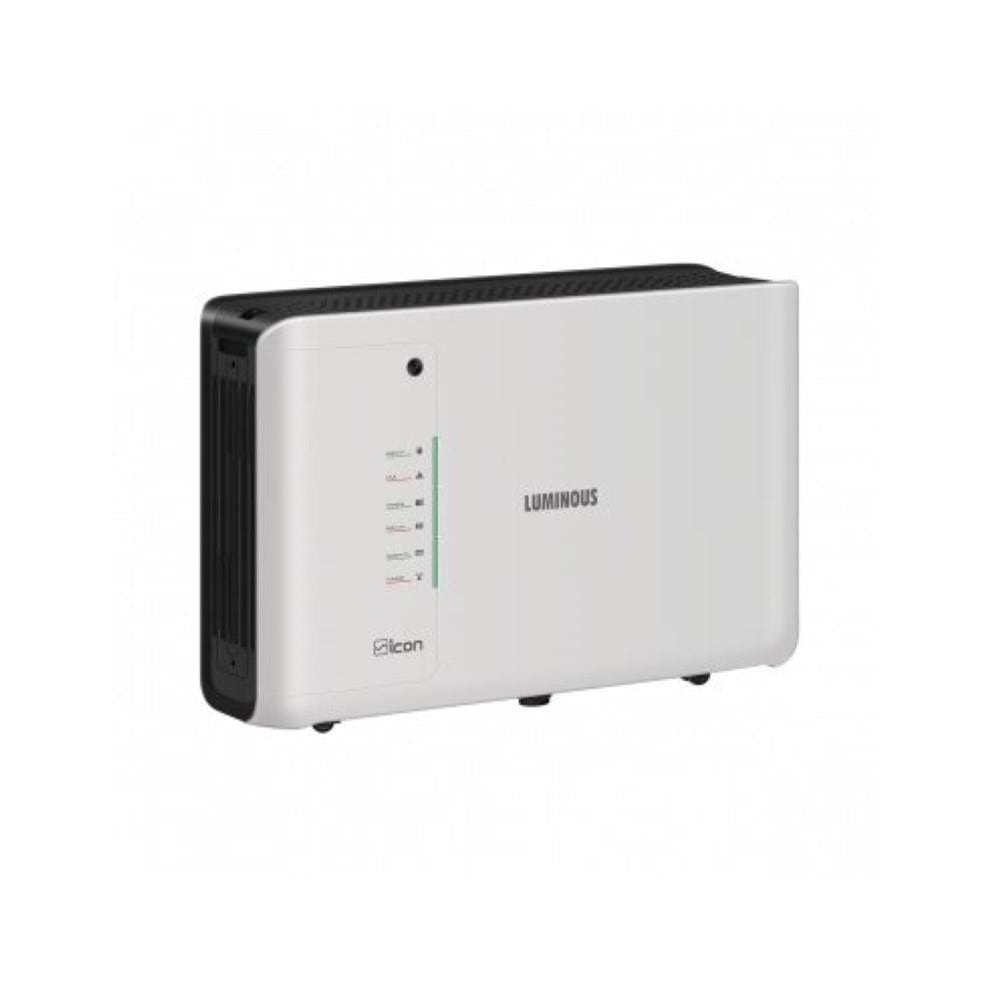

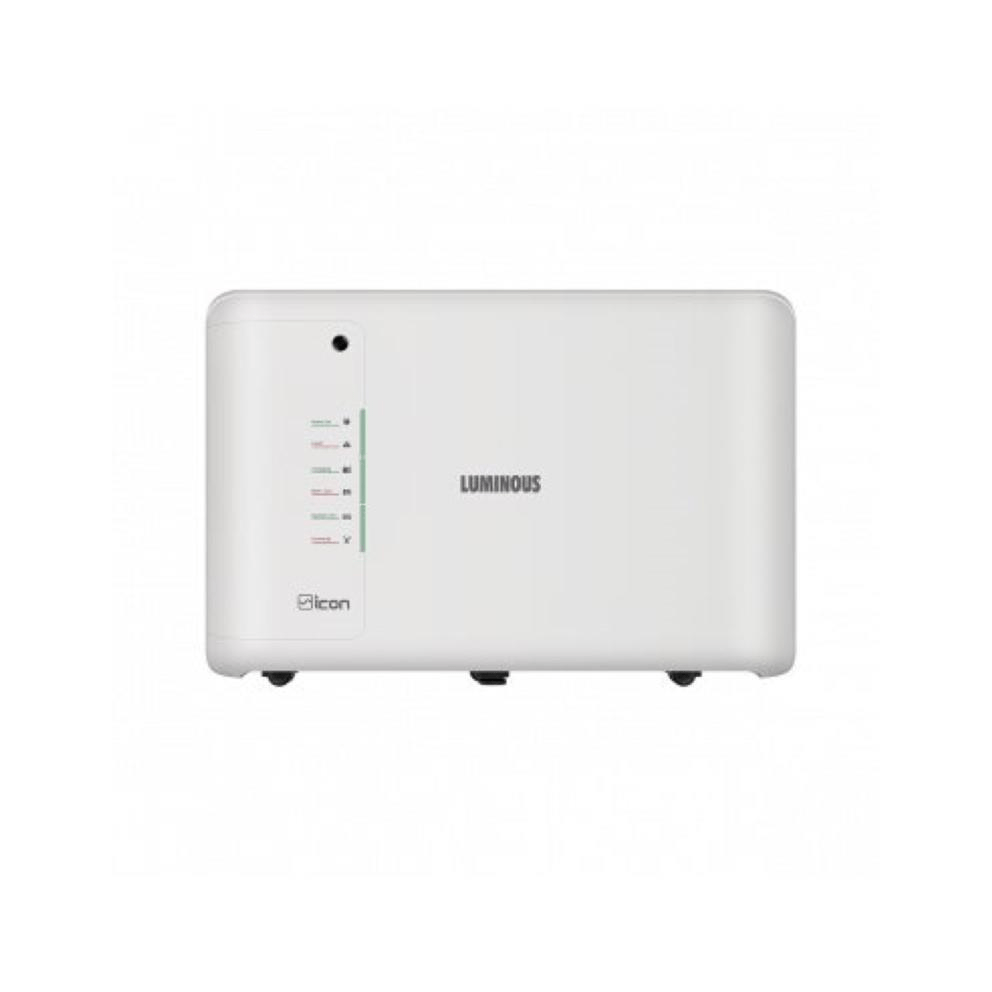

Luminous ICON 1600 1176W 1400VA 12V Pure Sinewave Inverter IICO12V-1400

Luminous ICON 1600 1176W 1400VA 12V Pure Sinewave Inverter

The Luminous ICON 1600VA, 1V inverter offers a max load of 1176W and a charging current of 21A. When purchasing this unit, a 1 x 12V Inverlast Tall Tubular battery, either 150Ah, 200Ah or 220Ah is required for operation. This is a DIY unit as it has a standard connection for AC in and AC out.

Icon Series is an Unprecedented, Revolutionary Inverter Series that promises to be an Iconic jewel in the Inverter Battery Market. A pure Sine Wave Inverter Series which features an Integrated Inverter Battery Design and an elegant Pearl White coloured dedicated battery enclosure that adds a premium Ultra Modern Look to your living room space. The Inverter Series is Ergonomically designed, making the water filling process in the battery convenient and hassle free. It supports faster low voltage battery charging starting from 90V. Icon inverter Series has no open wires as battery is encapsulated in the inverter making it completely Safe for Children.

Features:

• Pure Sine wave Inverter.
• Hassel free battery water top up.
• Fast Charge Technology- Charges the battery with full current (17A) even at 90V.
• Revolutionary design comprising of dedicated enclosure for battery.
• Safe design as it has no open wire.
• LED Indication: User-friendly Simplified inverter indications with three large twin color LED lights representing Normal (Green) and User attention (Red) conditions

Specifications:

Capacity: 1176W, 1400VA, 12V

Input

UPS mode

• Rated voltage: 230V AC
• Undervoltage Cut Off: 180 ± 5V
• Undervoltage Restoration: 190 ± 5V
• Overvoltage Cut Off: 265 ± 5V
• Overvoltage Restoration: 255 ± 5V

Output

• Rated voltage (UPS Mode): (200 - 220)V AC ± 10%
• Voltage (Mains Mode): Same as input
• Frequency (UPS / ECO Mode): 50 ± 0.5Hz
• Frequency (Mains Mode): Same as input (45-55 Hz)
• Overload: > 105%
• Transfer Time(UPS Mode): < 20 ms.

Battery

Battery Not Included

• Voltage / Type: 12V / 150Ah-250Ah (Tall Tubular)
• Number: 1
• Typical Recharge Time: 10-12 Hrs.
• Protection: Low Battery, Reverse Polarity
