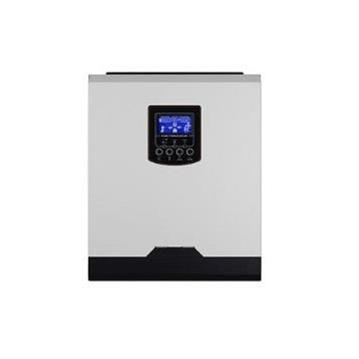

LinkQnet Axpert VP 1000-12 1000W Pure Sine Wave Inverter

LinkQnet Axpert VP 1000-12 1000W Pure Sine Wave Inverter

230V 1kVA/1000W 12VDC Inverter with 20A AC Charger and 50A 600W PWM DC Solar Charger

Note: Not consumer installable - Requires a qualified electrician with experience in off-grid, grid-connected and hybrid battery backup solar generation systemsTwo Years - Subject to installation by a qualified electrician with proof of a valid Certificate of Compliance.

Features:

• Pure sine wave inverter
• Output power factor 1
• Wide DC operating range
• Selectable input voltage range for home appliances and personal computers
• Selectable charging current based on applications
• Configurable AC/Solar input priority via LCD setting
• Compatible to AC mains or generator power
• Auto restart while AC is recovering
• Overload and short circuit protection
• Battery equalization for optimized battery performance and lifecycle
• Cold start function
• Optional RS232 to IP Web/SNMP Box available

Specifications:

• Rated Power: 1000 VA / 1000 W
• Dimensions: 88 x 225 x 320 mm
• Weight: 4.4 kgENVIRONMENT
• Humidity: 5% to 95% Relative Humidity (Non-condensing)
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -15°C to 60°C
• Parallel Capability: Not Supported

INPUT

• Voltage: 230 VAC
• Selectable Voltage Range: 170-280 VAC (For Personal Computers), 90-280 VAC (For Home Appliances)
• Frequency Range: 50 Hz/60 Hz (Auto sensing)

OUTPUT

• AC Voltage Regulation (Batt. Mode): 230VAC ± 5%
• Continuous Power/Surge Power (10 seconds): 1000VA/2000VA90-93%
• Efficiency (Peak): 10 ms (For Personal Computers)
• Transfer Time: 20 ms (For Home Appliances)
• Waveform: Pure sine wave

BATTERY

• Battery Voltage: 12 VDC
• Floating Charge Voltage: 13.5 VDC
• Overcharge Protection: 16 VDC

SOLAR CHARGER & AC CHARGER

• Maximum PV Array Open Circuit Voltage: 55VDC
• Maximum PV Array Power: 600W
• Standby Power Consumption: 5W
• Maximum Solar Charge Current: 50A
• Maximum AC Charge Current: 20A
• Maximum Charge Current: 50A
