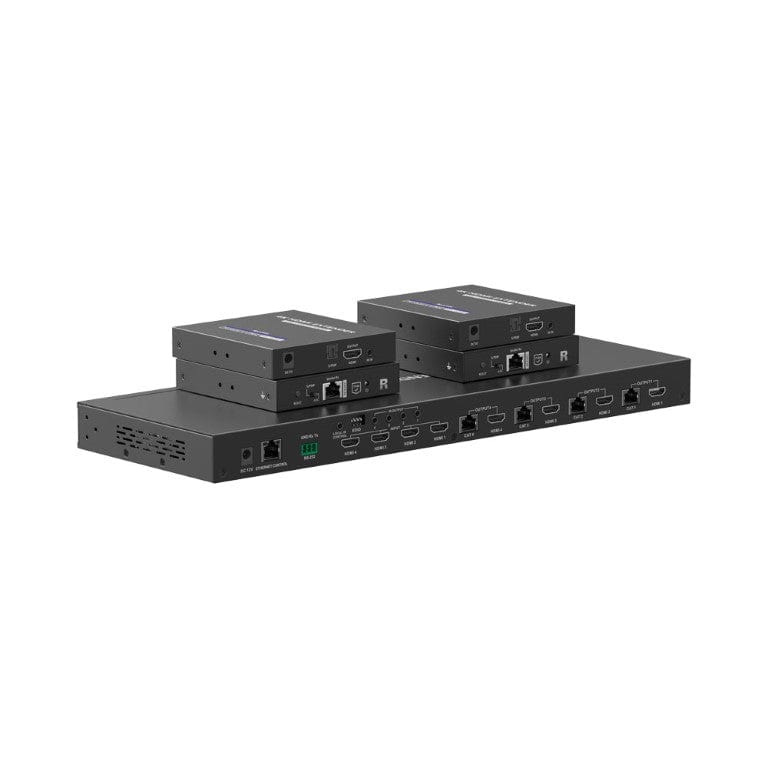

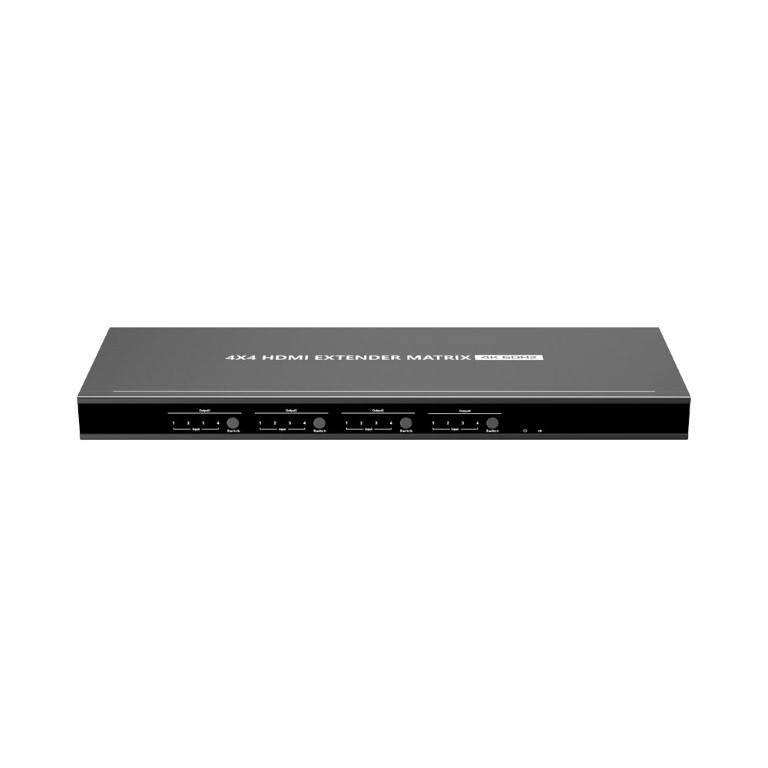

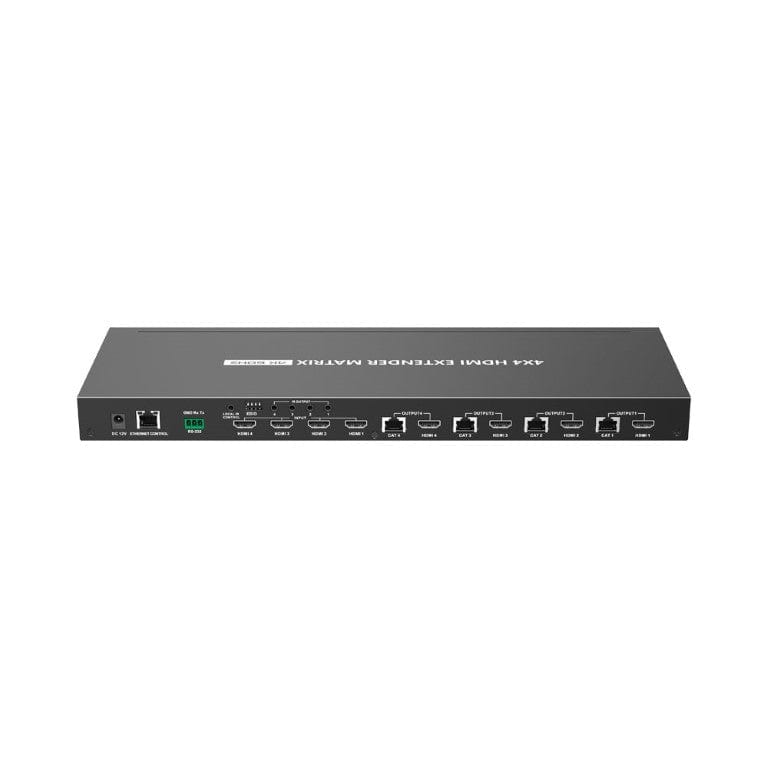

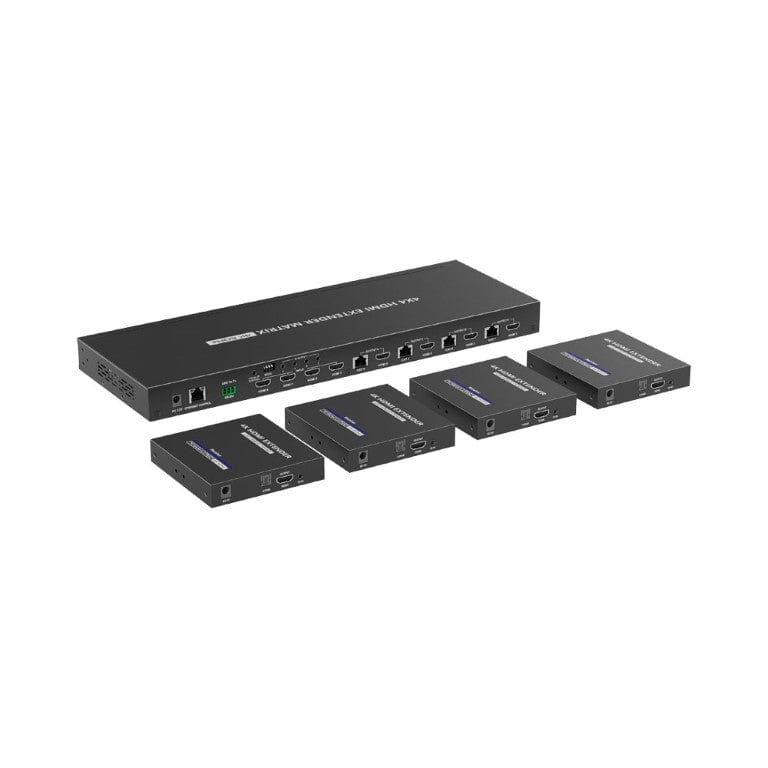

Lenkeng 4K 4x4 HDMI Matrix Extender Switch CNV-LKV844

Lenkeng 4K 4x4 HDMI Matrix Extender Switch

Lenkeng 70m 4×4 4K HDR HDMI Matrix Over CAT6/6A/7 Extender with PoC

This 4×4 HDMI matrix extender over network cable includes 4× HDMI inputs, 4× RJ45 outputs and 4× HDMI loop-outs. 4× HDMI outputs send high-definition audio/video signals to 4× UHD displays at the local site. At the same time, 4× RJ45 outputs transmit and extend the audio/video signals to 4× UHD displays, up to 70 meters away, via 4× receivers. RS-232 control, ethernet control, button control and remote control make switching/setting the input and output easy.

Features:

• ipcolor IMAGE
• 4× HDMI Sources to 4× HDMI Displays
• 4× HDMI Loop-Outs
• Distance up to 70m - 4K @60Hz (4:4:4)
• IR Passback Function
• Power Over Cable
• Multiple Control Methods

Specifications:

• HDMI version: HDMI 2.0
• HDCP version: HDCP 2.2, HDCP 1.4
• Transmission media: CAT6 / CAT6A / CAT7
• Transmission distance: ≤70m
• Video bandwidth: 600MHz (18Gbps)
• HDR10: Yes
• HDMI loop-out: TX: Yes
• Audio format supported: LPCM / DTS-HD / DTS-Audio / Dolby Digital 5.1CH / Dolby Atmos
• Input TMDS signal: 0.5~1.2Vp-p
• Input DDC Signal: 5Vp-p
• RS-232 control: Yes
• Ethernet control: Yes
• Remote control: Yes
• Power over cable (PoC): TX to RX
• HDMI interface: Type-A 19-Pins, Female
• Case material: Metal
• Weight: TX :1530g, RX: 243g
• Colour: Black
• Power supply: DC12V 3A
• Consumption: TX+RX ≤30W
• Working temperature: -20~60°C
• Storage temperature: -30~70°C
• Humidity (no condensation): 0～90%RH (no condensation)

Resolution supported:

3840 × 2160 @24/25/30/50/60Hz, 4096 × 2160 @24/25Hz, 1080i @50/60Hz, 1080p @50/60Hz, 720p @50/60Hz, 576i @50Hz, 576p @50Hz, 480i @60Hz, 480p @60Hz, 3440 × 1440, 2560 × 1440, 2560 × 1080, 2048 × 1080, 1920 × 1440, 1280 × 960, 1280 × 800, 1280 × 768, 1680 × 1050, 1360 × 768, 1366 × 768, 1600 × 900, 1024 × 768, 800 × 600

Protection

• ESD protection
• 1a Contact discharge level 2 (±4KV)
• 1b Air discharge level 3 (±8KV)
• Implementation of the standard: IEC61000-4-2
• Lightning protection, Surge protection
