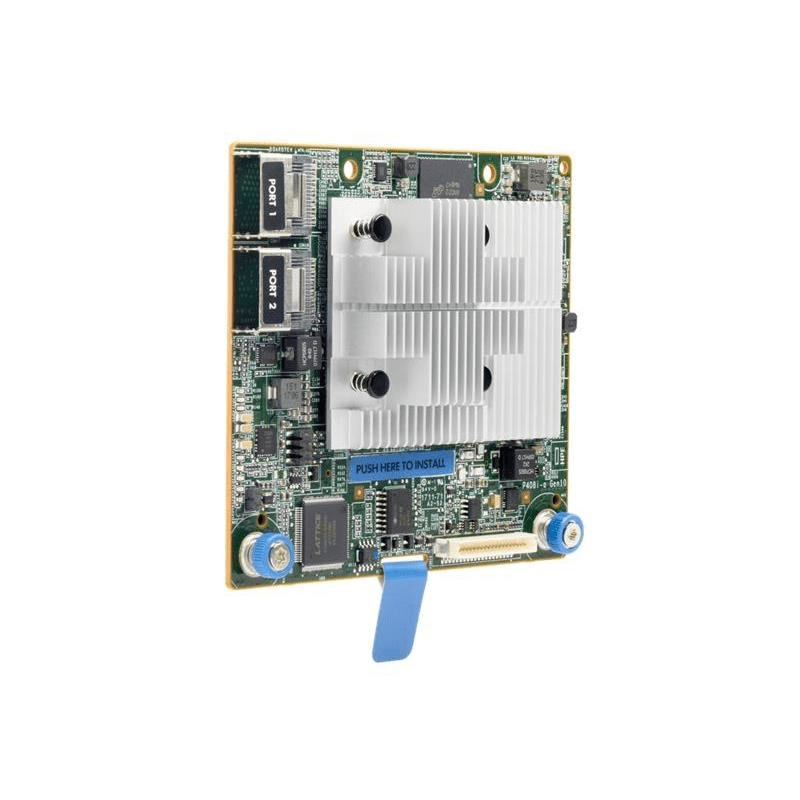

HPE Smart Array P408i-a SR Gen10 12G SAS Modular Controller 804331-B21

HPE Smart Array P408i-a SR Gen10 12G SAS Modular Controller 804331-B21

Key Features

Increased Performance for Faster Data Insights

The HPE Smart Array P408i-a SR Gen10 Controller is an enterprise-class RAID controller that increases performance in messaging, database, or general server applications and delivers 12 Gb/s SAS connectivity on HPE ProLiant Gen10 Servers when connected to 12 Gb/s internal storage devices.

Increases performance with 2 GB Flash-Backed Write Cache and reduces latency in write-intensive applications that require heavy logging such as databases.

Enhances performance in storage environments where data is read repeatedly from a large number of SSDs by using HPE SSD Smart Path to create a faster I/O path between the controller and SSD.

Accelerate access to data in HDD environments by caching hot data onto SSDs with HPE Smart Array SR SmartCache (optional license).

Built-in Reliability and Security

The HPE Smart Array P408i-a SR Gen10 Controller protects data-at-rest on any drive attached to the controller with HPE Smart Array SR Secure Encryption (optional license).

Comply with regulations for sensitive data, such as HIPAA and Sarbanes-Oxley with HPE Smart Array SR Secure Encryption—FIPS 140-2 Implementation Under Test with expected FIPS 140-2 Level 1 validation complete in 2018.

Preserve data integrity with HPE SmartSSD Wear Gauge, which alerts you to potential drive issues before a drive fails.

Long-term data retention with 2 GB Flash-Backed Write Cache for improved data reliability.

Improved Efficiency and Storage Management

The HPE Smart Array P408i-a SR Gen10 Controller has increased flexibility with Mixed Mode which operates in RAID and HBA simultaneously and eliminates the expense of having to purchase another controller.

Rapidly configure simple RAID volumes on servers with the UEFI storage configuration tool, which also facilitates scripting support to configure an array via iLO through RESTful interface.

Quickly set up, configure, and manage drives attached to the controller with HPE Smart Storage Administrator (SSA), an intuitive interface used to create RAID volumes, manage advanced controller features, and deploy Smart Array solutions.

Transfer rate

12Gb/s SAS per lane
6Gb/s SATA per lane
PCI Express 3.0 x8 lane width

Servers supported

HPE ProLiant DL360 Gen10
HPE ProLiant DL380 Gen10
HPE ProLiant ML350 Gen10
HPE ProLiant XL450 Gen10

Cache 2 GB Flash-Backed Write Cache

Certifications FIPS 140-2 Level 1 Implementation Under Test with expected validation in 2018

Additional features HPE Smart Array SR Secure Encryption (optional license)
HPE Smart Array SR SmartCache (optional license)

Ports Internal: 8 SAS lanes across 2 x4 Mini-SAS ports

Form factor Type-a modular controller

Warranty The warranty for this device is 3 years parts only.
