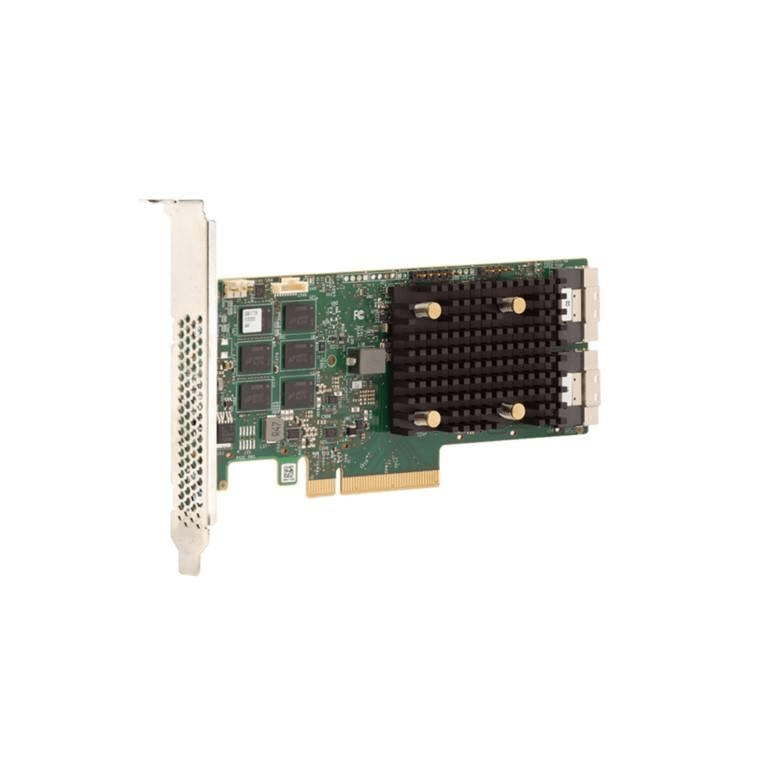

HPE MR416i-p Gen10 Plus x16 Lanes 4GB Cache NVMe/SAS 12G RAID Controller Card P06367-B21

HPE MR416i-p Gen10 Plus x16 Lanes 4GB Cache NVMe/SAS 12G RAID Controller Card P06367-B21

Broadcom MegaRAID MR416i-p x16 lanes 4 GB Cache NVMe/SAS 12 G Controller for HPE Gen10 Plus

Features

Powerful Performance

Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus feature Broadcom MR416i and Broadcom MR216i controllers with impressive performance including up to 13,700 Mbs of bandwidth, 3M random read IOPS, and 240K RAID5 random write IOPS.

2nd Generation Tri-Mode SerDes

Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus is enabled with SerDes for exceptional support of NVMe4/SAS3/SATA protocols.

With Tri-Mode support, achieve the scalability and flexibility you need for shifting business environments.

Enhanced Security

Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus is built with the HPE Silicon Root of Trust for firmware authentication and support for self-encrypting drives to help ensure protection for data at rest and prevention of malware.

Software Supported

Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus support all major OS’s including but not limited to Windows, Linux®, and VMware®; full tool suite including command line interface, web-based management, and out-of-band management support.

Technical Specification

Transfer rate: PCIe Gen4 host / Gen4 NVMe / Gen 3 SAS/SATA

Servers supported: See Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus QuickSpecs for more detail

Cache: 4 GB

Certifications: See Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus QuickSpecs

Additional Features: See Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus QuickSpecs

Ports: x8 host / x16 internal tri-mode

RAID Levels: 0, 1, 5, 6, 10, 50, 60

Form factor: Standard HH/HL PCIe add in card

Warranty: The warranty for this device is 3-years parts only.

Detailed product description: Broadcom MegaRAID MR416i-p x16 lanes 4 GB Cache NVMe/SAS 12 G Controller for HPE Gen10 Plus

Weight: 0.321 lb

Weight: 0.146 kg

Minimum dimensions ( H x W x D): 6.181 in

Minimum dimensions ( H x W x D): 15.7 cm

Secure Encrypted Drives: Supported

Storage Protocol: SATA / SAS / NVMe

Storage Management: MegaRAID Storage Administrator (MRSA), StorCLI, HII, Redfish (Inventory and Events)
