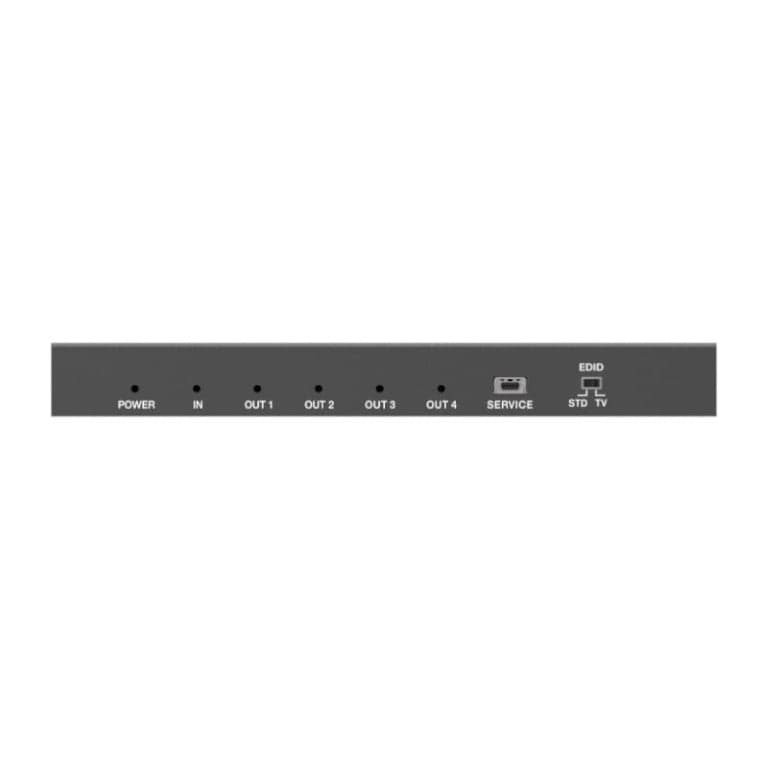

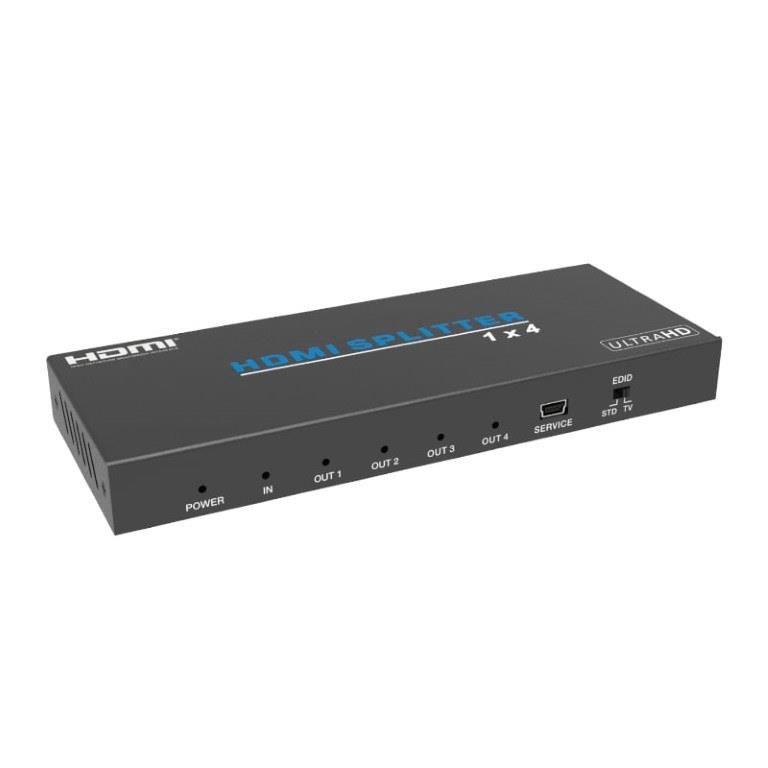

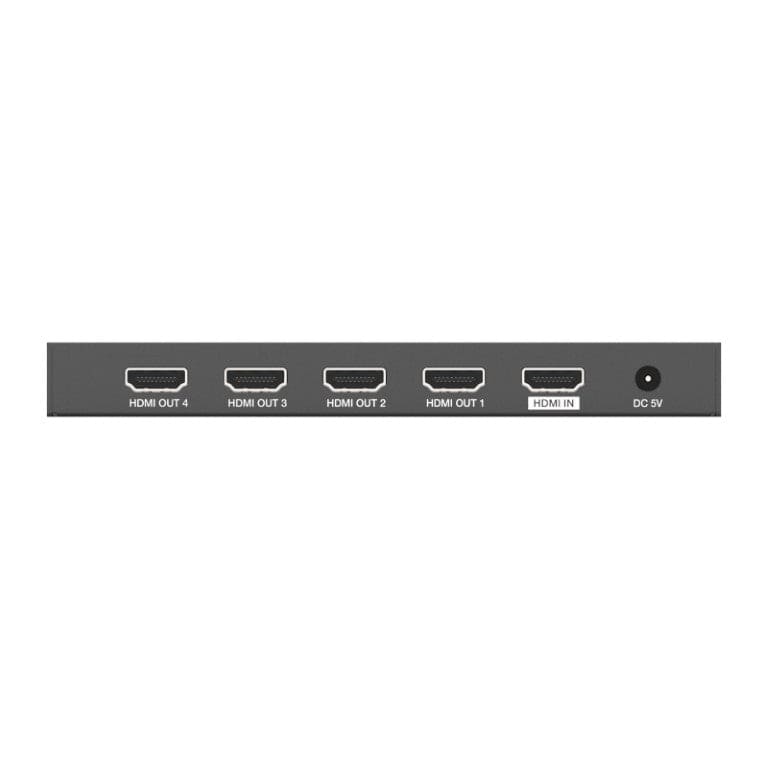

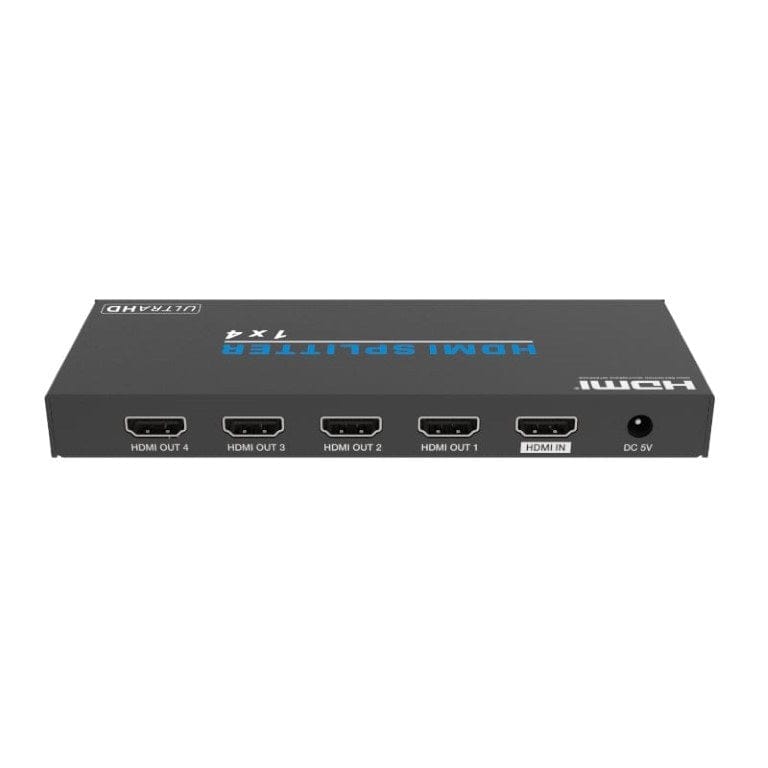

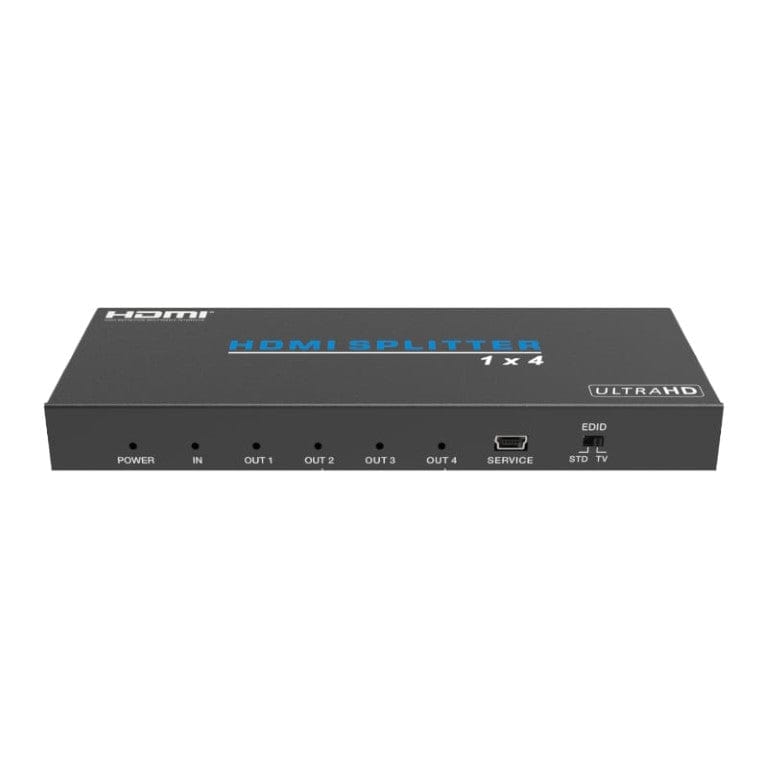

HDCVT 2.0 HDMI Splitter HDV-B14IH

HDCVT 2.0 HDMI Splitter

The HDCVT 1×4 HDMI 2.0 18Gbps Splitter is an advanced solution for splitting a single HDMI source to 4 x HDMI displays. It provides high-performance audio and video up to 4K2K@60Hz (4:4:4) and is capable of receiving, retiming and transmitting up to 18Gbps of bandwidth with no data loss. (Supporting the latest features you can be assured of reliable and high-quality HDMI distribution.)

Features:

• HDMI 2.0b, HDCP 2.2 Compliant
• Support video format up to 4K2K@60Hz with 8 bit RGB/YCBCR 4:4:4/YCBCR 4:2:2
• Supports 3D frame sequential video format up to 1080p@60
• Supports 3D frame sequential video format up to 4K2K@30Hz
• Supports high-resolution VESA mode video format up to QSXGA@60Hz
• Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
• Supports smart EDID control
• Compact design for an easy and flexible installation

Specifications:

• Chassis Material: Metal
• Silkscreen Colour: Black
• Power Consumption: 2W
• Power Supply Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
• Video Bandwidth: 600MHz/18Gbps
• Input Port: 1x HDMI Type A (19-pin female)
• Output Ports: 4x HDMI Type A
• Video Resolution: 480i~1080p@50/60Hz, 4K2K@24/25/30/60Hz
• ESD Protection: Human body model – ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
• Operating Temperature: 0°C ~ 40°C
• Storage Temperature: -20°C ~ 60°C
• Relative Humidity: 20~90% RH (non-condensing)
• Product Dimensions: 6.3 x 16.3 x 1.6 cm
• Product Weight: 260g

In the Box:

• HDCVT 1×4 HDMI 2.0 18Gbps Splitter – Black x1
• 5V/1A Power Adapter x1
• User Manual x1
