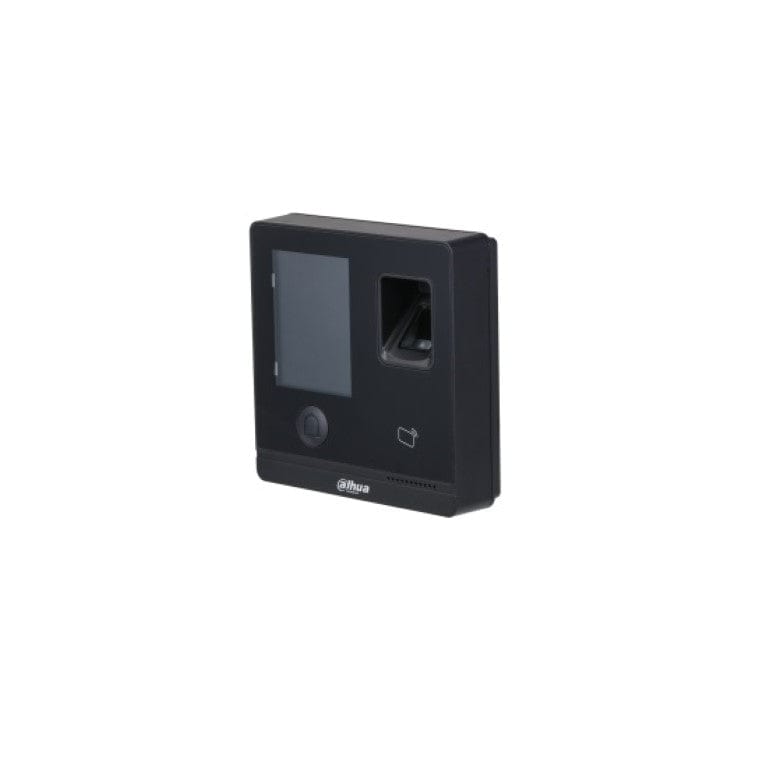

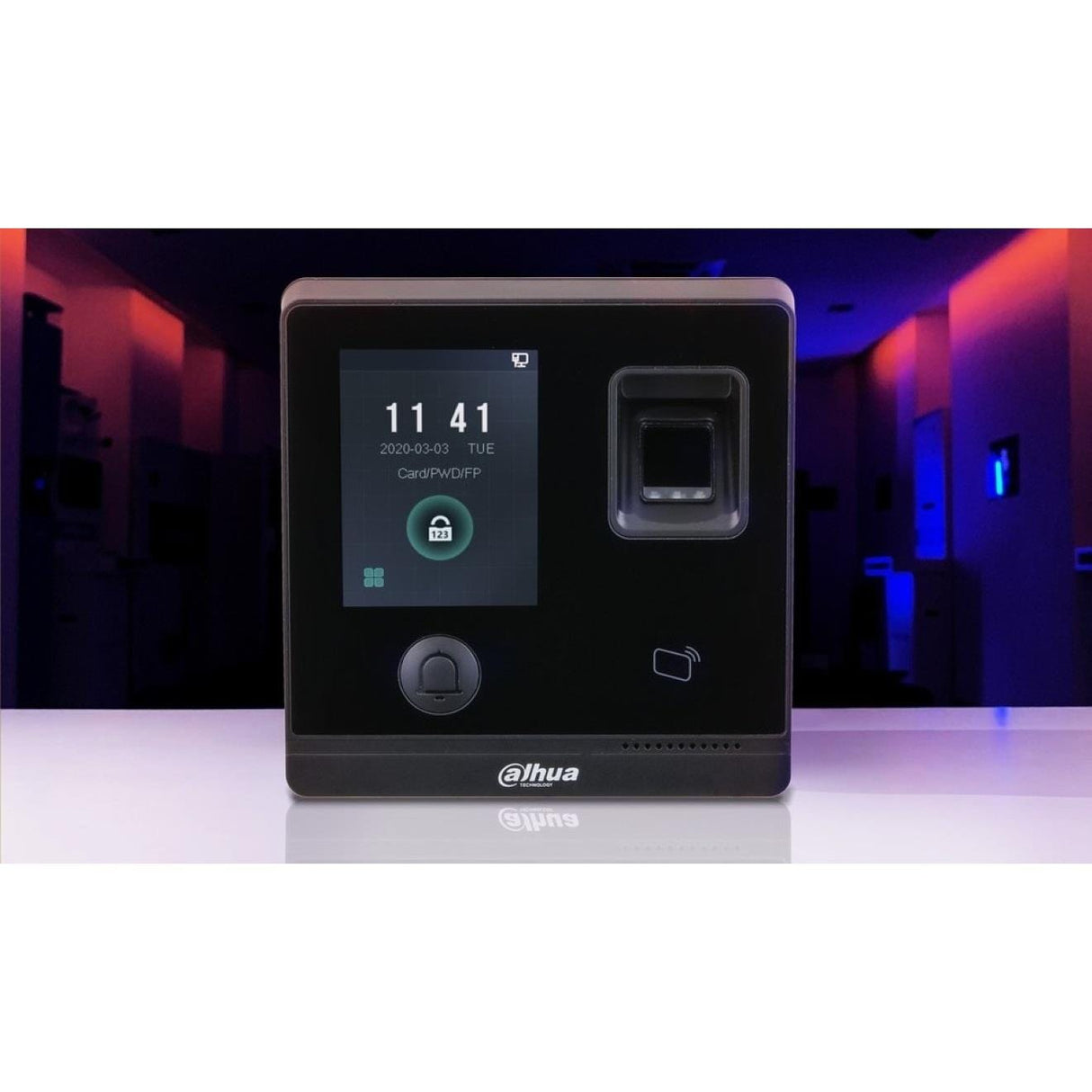

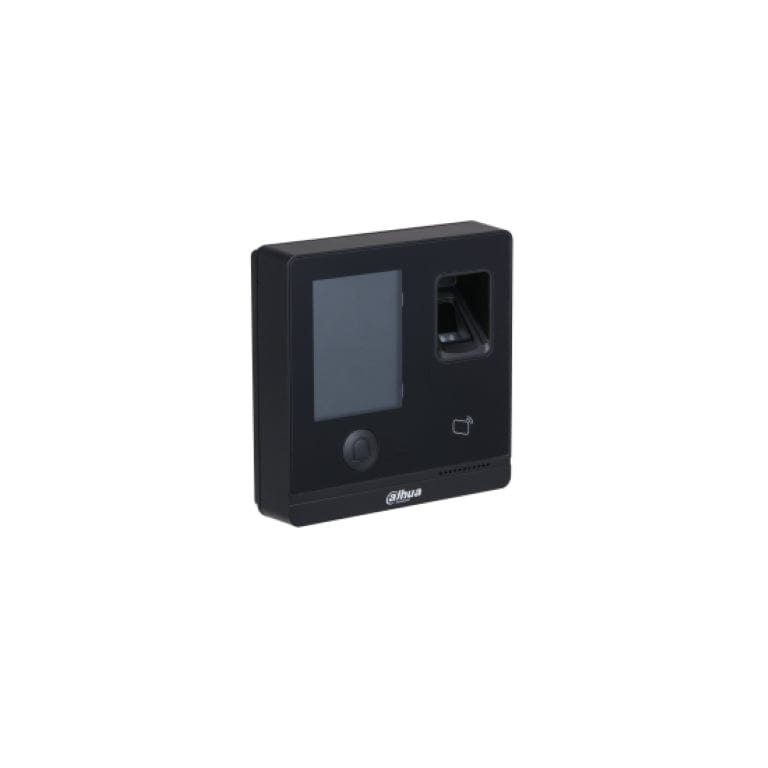

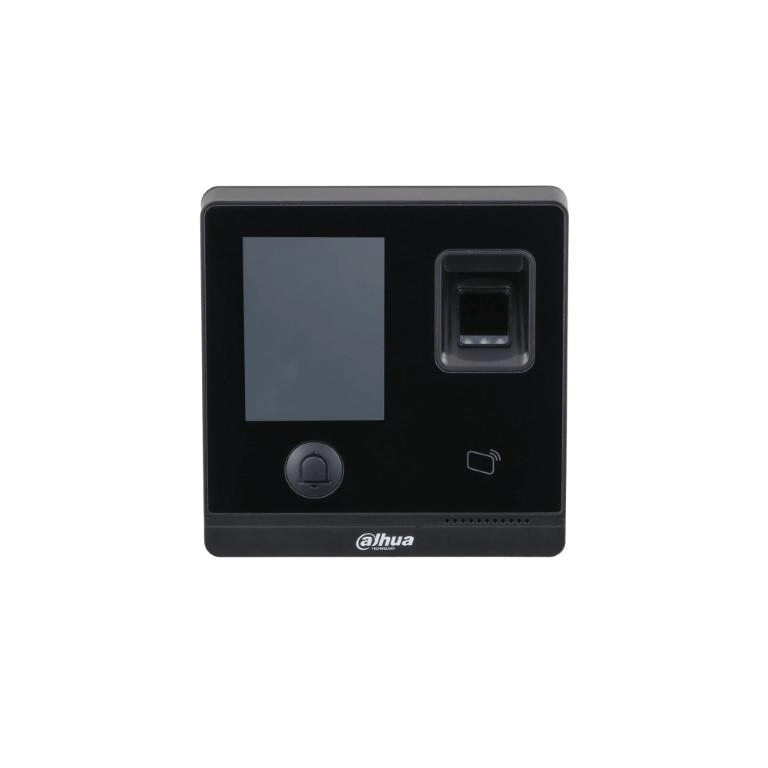

Dahua ASI1212F 2.8-inch LCD Touch Standalone Access Control

• PC+ABS housing material, and glass material for front panel , applicable for indoor scenario
• 2.8 inch LCD touch screen display with resolution of 240×320
• Deep learning algorithm makes fingerprint recognition time 1.5 s
• Support card, fingerprint, password
• Support 30,000 users, 30,000 cards, 3,000 fingerprints, 150,000 records
• Support OSDP, TCP/IP

Specifications

System:

Main Processor: Embedded processor

Network Protocol: IPv4, TCP, P2P

Button Type: Touch button

OSDP Protocol: Yes (only supported as a host)

Basic:

Display: 2.8 inch TFT touch screen

Screen Type: Capacitive screen

Resolution: 240(H)×320(V)

Voice Prompt: Yes

Buzzer: Yes

Housing Material: PC+ABS

Function:

Unlock Mode: Card/remote/password/fingerprint

Card Type: IC card

Period List: 128

Holiday Period: 128

Network Update: Yes

First Card Unlock: Yes

Remote Verification: Yes

Blacklist/Whitelist: Yes

Ads Broadcast: Support graphic advertisement play

Peripheral Card Reader: 1 RS-485, 1 Wiegand

Group Combination: Card/remote/password/fingerprint

Web Configuration on PC: Yes

Web Configuration on Mobile: Yes

Performance:

Card Reading Distance: 1 cm–3 cm (0.03 ft–0.10 ft)

Fingerprint Sensor Type: Optical fingerprint

Fingerprint Verification Mode: 1:N, 1:1

Fingerprint Comparison Time: 1.5 s

Capacity:

User: 30,000

Fingerprint: 3,000

Card: 30,000

Password: 30,000

Record: 150,000

Port:

RS-485: 1

Wiegand: 1 (input or output)

USB: 1 USB2.0 port

Network: One 10/100 Mbps self-adaptive network port

Alarm Input: 1

Alarm Output: 1

Alarm Linkage: Yes

Unlock Button: 1

Door Status Detection: 1

Lock Control: 1

Alarm:

Anti-passback: Yes

Tamper: Yes

Duress: Yes

Door Sensor Timeout: Yes

Intrusion: Yes

Illegal Card Exceeding Threshold: Yes

Duress Fingerprint: Yes
