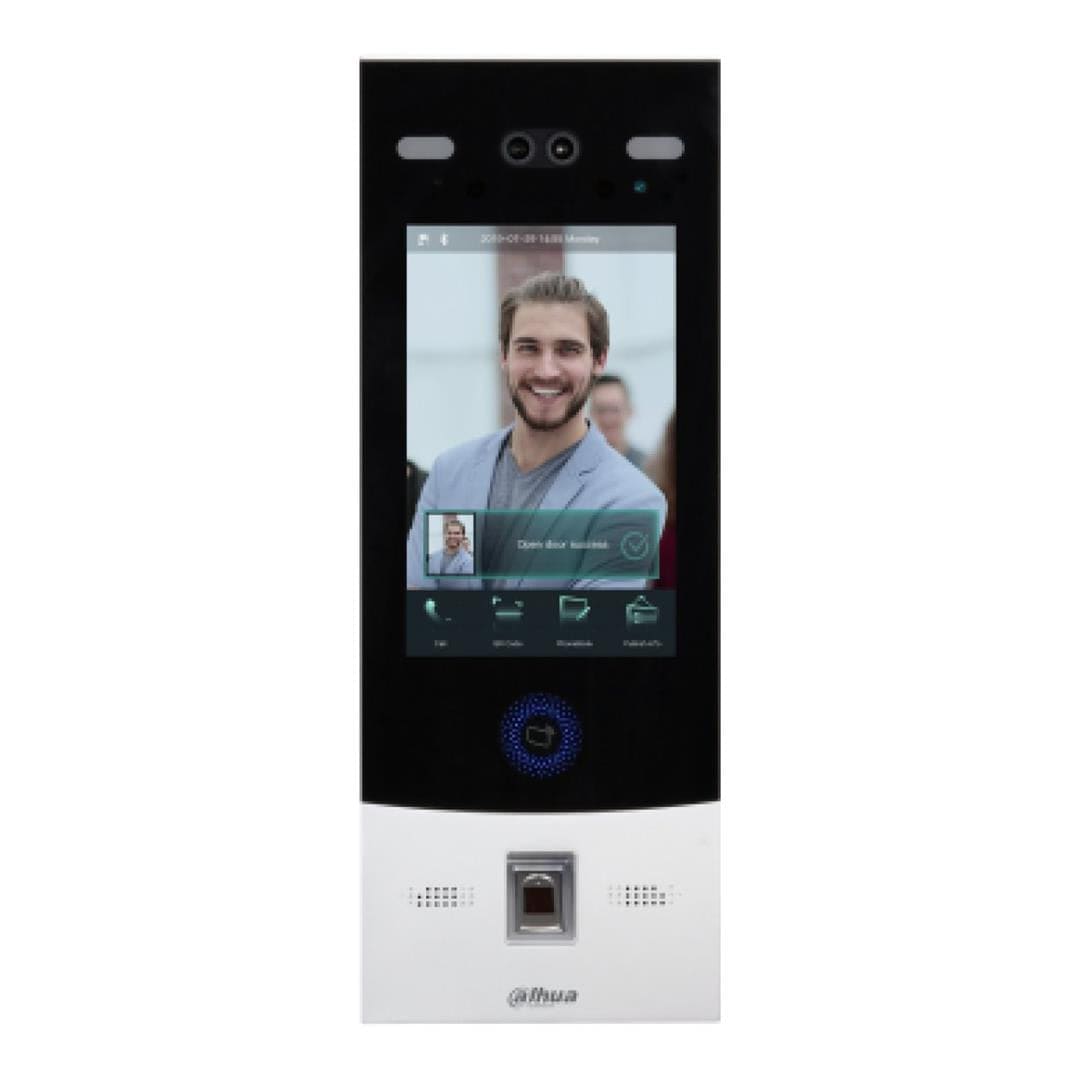

Dahua VTO7541G-S2 8-inch IP Face Recognition Apartment Door Station

Dahua VTO7541G-S2 8-inch IP Face Recognition Apartment Door Station

IP Face Recognition Apartment Door Station

• Anodized aluminium alloy middle frame
• 8 inch capacitive touch screen and high definition IPS screen; resolution: 800 (H)×1280 (V)
• Face, fingerprint, password, and card unlock
• Face verification accuracy>99%; face comparison time ≤0.2s per person; false recognition rate<0.1%
• Face profiles can be recognized, the profile angle range is 0°–90°
• Support liveness detection
• Full duplex communication
•  Outdoor stations can be managed through the platform; voice communication between mobile app and platform
• 2 MP low illuminance wide dynamic dual camera; white light fill light and IR fill light, fill light brightness can be adjusted
• Support duress alarm, tamper alarm, and fire alarm
• IK07; IP66 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
• Surface mount and flush mount

Specifications:

Main Processor: Embedded processor

Internet Protocol: IPv4, DNS, RTSP, RTP, TCP, UDP, SIP

Keyboard Type: Touch keyboard

Basic

Appearance: G serials

Display: High definition IPS screen

Screen Type: Capacitive screen

Resolution: 800 (H)×1280 (V)

Camera: 1/2.8” 2MP CMOS

Angle of View: H:88°, V:47°, D:105°

WDR: 120dB

Light Compensation: Auto white light fill light

Auto IR light fill light

Status Indicator: 1, blue-operation status

Voice prompt: Yes

Housing Material: AL+PC+ABS

Function

Unlock Mode: Remote/password/face/fingerprint/card

Online Update: Yes

Full Duplex Communication: Yes

Snapshot When Unlocking Doors: Yes

Information Release: Words can be played on the outdoor station

Leave Photos and Messages: Yes

Web Configuration: Yes

Issue Card Locally: Yes

Auto-Registration: Yes

Performance

Face Recognition Range:

• Face-camera distance: 0.3 m–2.0 m
• Human height: 1.1 m–2.4 m

Face Recognition Configuration: Anti-fake switch

Recognition threshold: Facial profile angle

Face Verification Accuracy: >99%

Face Comparison Time: ≤0.2s

Capacity

Face Capacity: 20, 000

Card Capacity: 10, 000

Fingerprint Capacity: 10, 000

Port

RS-485: 1

Wiegand: 1 (input or output)

Ethernet: 1 10M/100M/1000M Ethernet port

Alarm Input: 2 (Switch quantity)

Alarm Output: 2 (Dry contact)

Alarm Linkage: Yes

Power Output: 1 DC 12V/100ma

Exit Button: 1

Door Status Detection: 1

Lock Control: 1, normally on or off by default

Storage: Micro SD card(up to 64GB reserved for software )

Alarm

Tamper Alarm: Yes

Duress Alarm: Yes

Door Sensor Timeout: Yes
