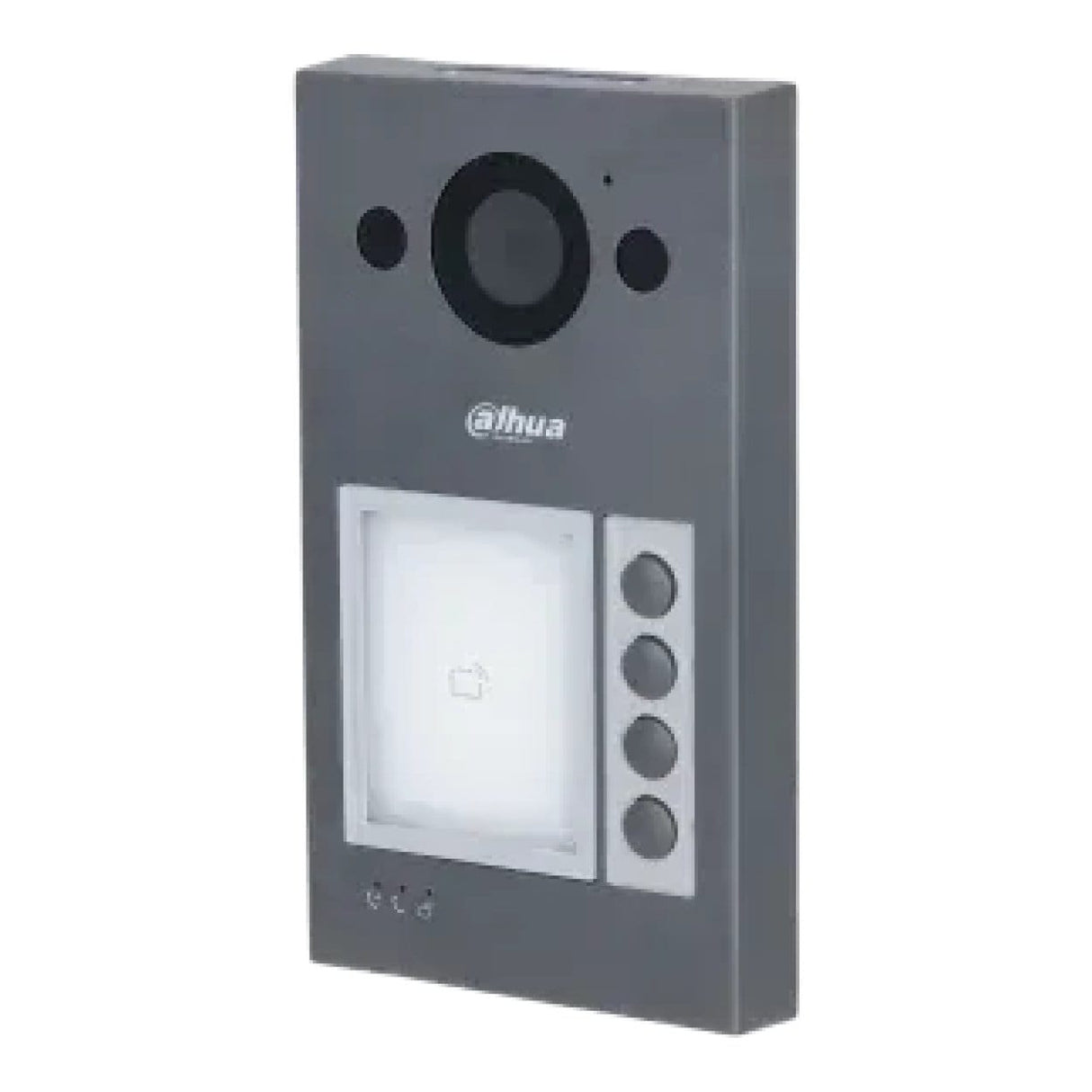

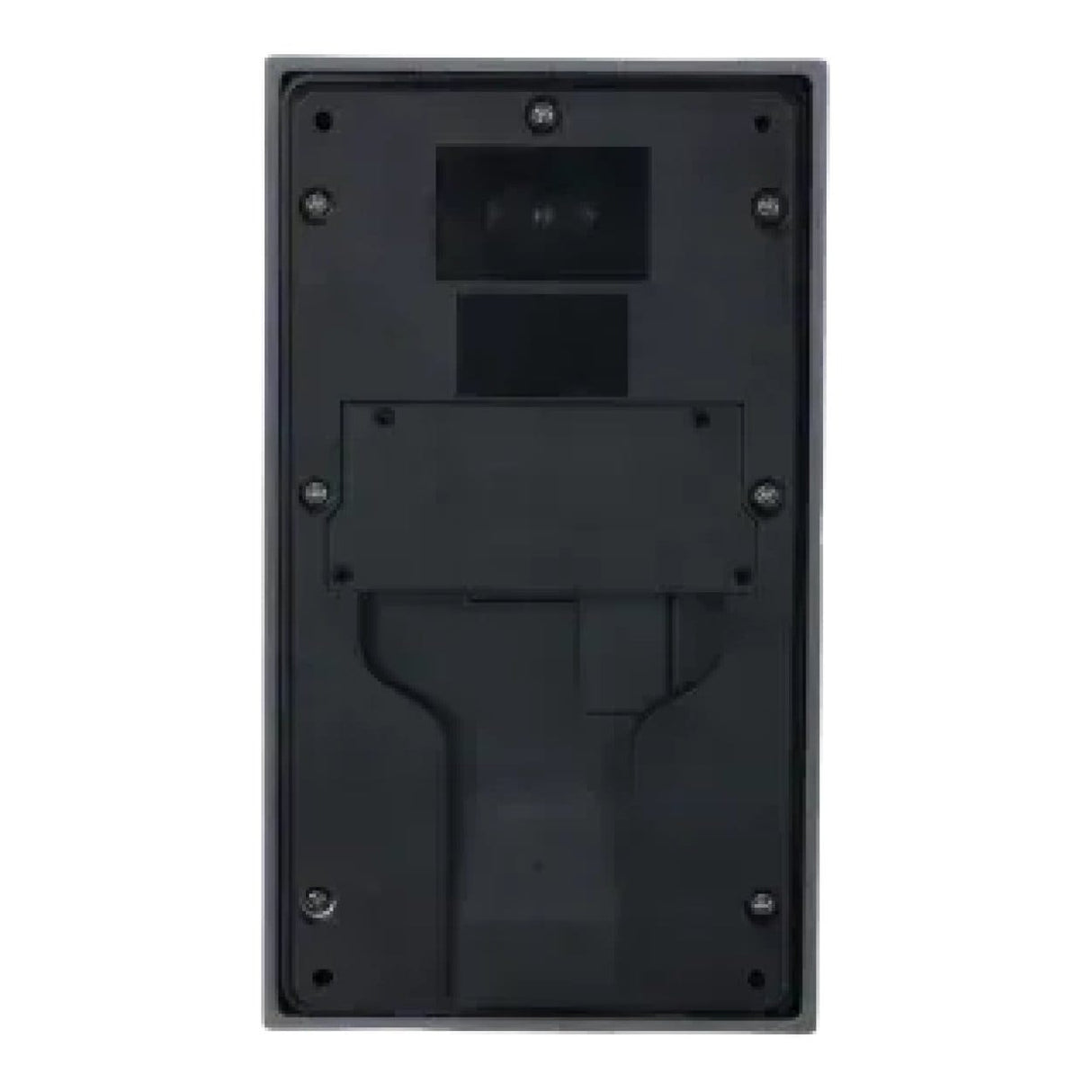

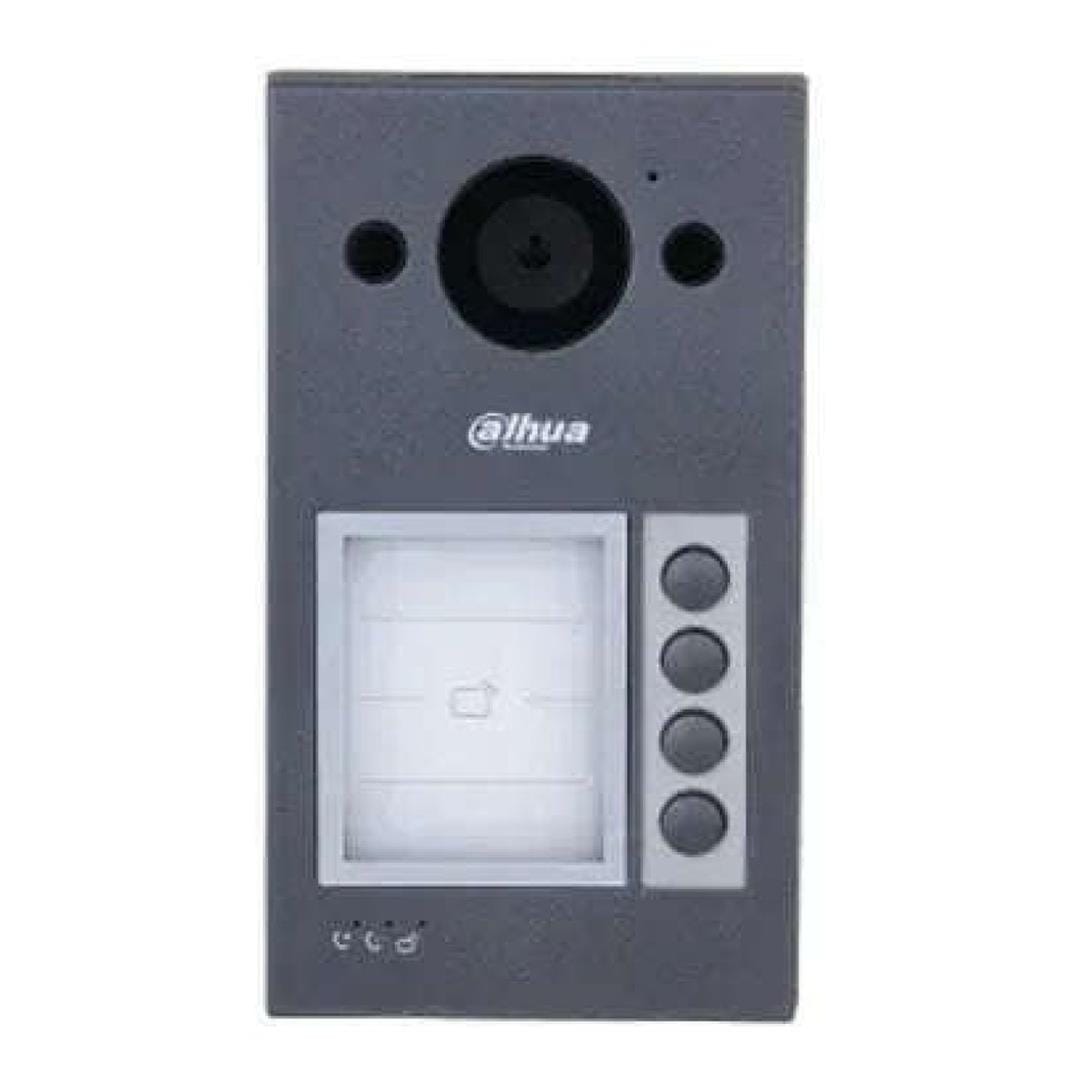

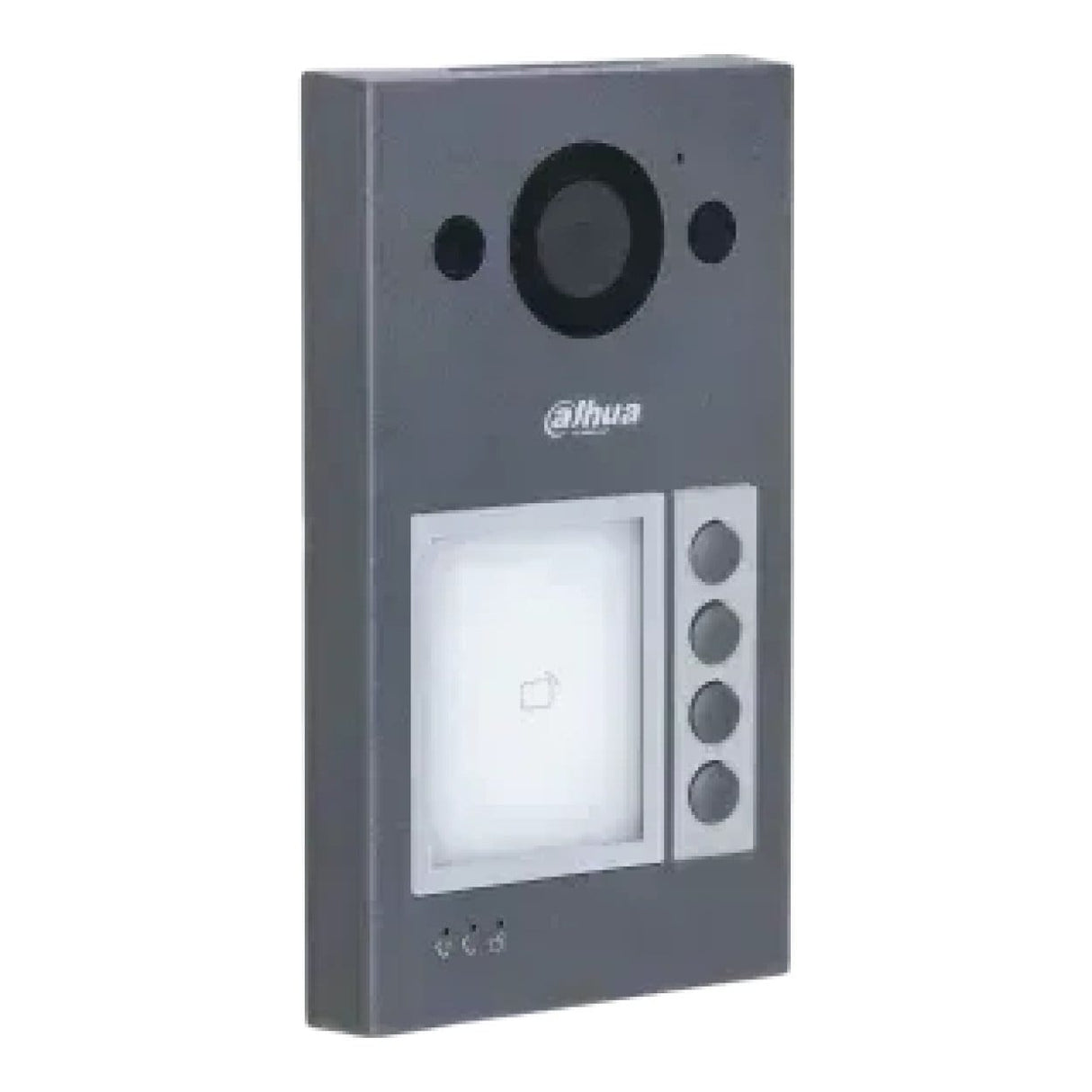

Dahua VTO3311Q-WP IP and Wi-Fi Villa Door Station

Dahua VTO3311Q-WP IP and Wi-Fi Villa Door Station

Features:

• Full metal casing design
• Customizable Number of Buttons
• Wi-Fi connection
• 1/2.8" 2-MP HD CMOS camera
• Offers twoway video call with indoor monitors
• IR illumination and auto WDR
• Supports two locks
• Voice call and unlocking through app
• IK08 and IP65 rated
• H.264 and H.265
• Unlock with IC card
• PoE power supply
• Included rain cover

Specifications:

Main Processor: Embedded Processor

Button Type: Mechanical

Interoperability: ONVIF; CGI

Network Protocol: RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF

Camera: 1/2.8" CMOS 2-MP HD camera

Field of View: H: 125°; V: 65°; D: 139°

WDR: 120 dB

Noise Reduction: 3D NR; 2D NR

Video Compression: H.264; H.265

Video Resolution:

• Main stream: 720p, WVGA, D1, and CIF;
• Sub stream: 1080p, WVGA, D1, QVGA, and CIF

Video Frame Rate:

• PAL: 25 fps
• NTSC: 30 fps

Video Bit Rate: 768 kbps8 Mbps

Light Compensation: Auto IR

Day/Night: Auto (ICR)/Color/B/W; Color/B/W

Audio Compression: G.711a; G.711u; PCM

Audio Input: 1

Audio Output: Built-in speaker

Audio Mode: Two-way audio

Audio Enhancement: Echo suppression/digital noise reduction; Echo suppression; Digital noise reduction

Audio Bit Rate: 16 kHz, 16 bit

Communication Mode: Full digital

Unlock Mode: Card; app; indoor monitor

Card Type: IC card

Auto Snapshot: Yes (SD card is inserted in the indoor monitor or door station)

Leave Videos: Yes (SD card inserted in VTH/VTO is needed)

Web Configuration: Yes

Wi-Fi: Yes

Wireless Standard: IEEE 802.11b; IEEE 802.11g; IEEE 802.11n

Wireless Frequency Range: 2.4 GHz

Storage: Micro SD card (max. 256 GB)

RS-485: 1

Alarm Input: 1

Alarm Output: 1

Power Output: 1

Exit Button: 1

Door Status Detection: 1

Lock Control: 1

Network Port: 1 × RJ-45 10/100 Mbps Ethernet port

Tamper Alarm: Yes
