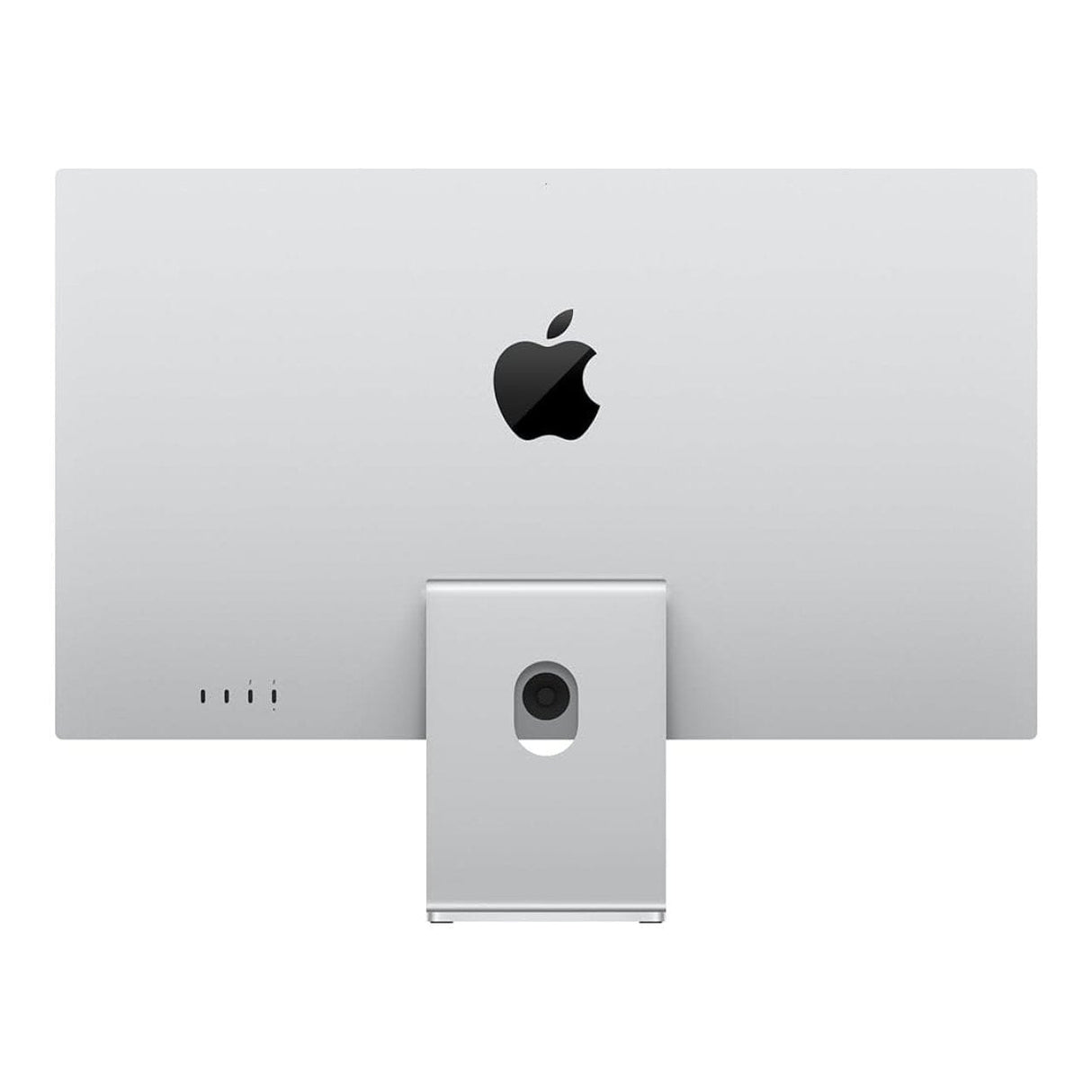

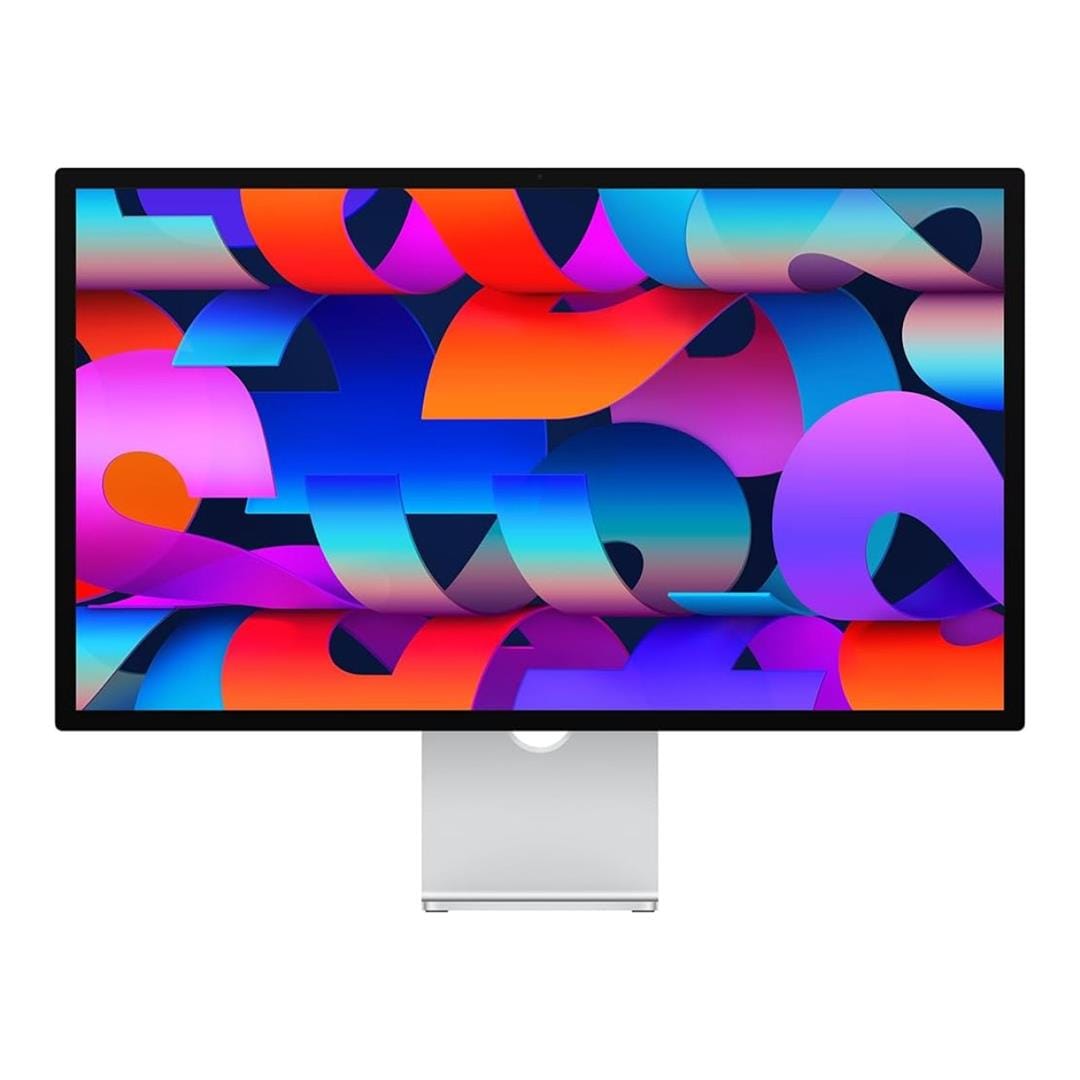

Apple Studio Display MFEX4SO/A 27-inch 5120 x 2880p 5K 16:9 60Hz 15ms IPS LCD Monitor

Apple Studio Display MFEX4SO/A 27-inch 5120 x 2880p 5K 16:9 60Hz 15ms IPS LCD Monitor

Studio Display

A sight to be bold.

See what you can do.

A big, beautiful window into new worlds, Studio Display draws you in from the moment you turn it on. It has a slim, all-screen design. And it’s packed with a phenomenal set of features so everything you do springs to life with gorgeous colour and spectacular detail.

Sensational camera and audio. Now we’re talking.

12MP Ultra Wide camera with Centre Stage. Studio Display includes a highly advanced camera with a 12MP sensor and a 122‑degree field of view. And thanks to Apple silicon, it features Centre Stage, which comes to Mac for the first time. Centre Stage keeps you centred in the frame as you move around, making video calls more engaging. When others join or leave the call, the view expands or zooms in. It also works beautifully with your favourite video conferencing apps.

So they hear you. And only you.

The studio-quality three-mic array helps you come through loud and clear on video calls and voice recordings. And with directional beamforming, everyone hears you — not what’s going on around you.

Six speakers. Cinematic sound.

Four force-cancelling woofers produce bold, articulate bass and minimise distortion. And two high-performance tweeters deliver accurate mids and crisp highs. Altogether, this is the highest‑fidelity speaker system ever created for Mac.

Hear. There. And everywhere.

Spatial Audio immerses you in sound. It’s like having your own personal cinema or concert hall. When you’re playing music or video with Dolby Atmos, the A13 Bionic chip works with all six speakers to create a sophisticated, cinematic soundstage.

Take charge of your studio.

Three USB‑C ports let you connect, power and charge devices — from networking and external drives to your keyboard, mouse or iPhone. The Thunderbolt port connects Studio Display to your Mac with a single cable. That same port can charge compatible Mac notebooks — and even fast‑charge a 14‑inch MacBook Pro.

Mac Studio and Studio Display. Dream team.

Pairs with your Mac.

Studio Display is the ultimate partner for the stunningly compact and astonishingly powerful Mac Studio. And it pairs perfectly with Mac notebooks and desktops — from MacBook Pro and MacBook Air to Mac Pro and Mac mini.

Work your magic.

Magic accessories are wireless, rechargeable, precise, comfortable — and now come in a silver-and-black option to complement the design of Studio Display and complete your studio setup.

Made for macOS.

Our hardware and software are designed together. That integration is what enables amazing features like Centre Stage, Spatial Audio and “Hey Siri”. For pro workflows, macOS supports reference modes and fine-tune calibration so you can match industry standards — whether it’s HD and SD video or broader uses such as photography, web development, design and print.

Use AR to see Studio Display in your workspace.

Open this page using Safari on your iPhone or iPad.

Designed with the earth in mind.

Studio Display was engineered to minimise its environmental impact, from how it’s designed and built to how it’s packaged — and even how it’s used. It uses 100 per cent recycled rare earth elements in all magnets. The stand is made with 100 per cent recycled aluminium. And all virgin wood fibre in its packaging comes from responsibly managed forests. Studio Display is also ENERGY STAR® certified* and free of numerous harmful substances.

Technical Specifications:

Display
Screen Size: 27-Inch (Diagonal)
Display Type: 5K Retina Display
Resolution: 5120 × 2880 at 218 Pixels Per Inch
Brightness: 600 Nits
Colour Support: Support for 1 Billion Colours
Colour Gamut: Wide Colour (P3)
Display Technology: True Tone Technology

Configurable Display Options

• Nano-Texture Glass
• Reference Modes

Reference Modes

• Apple Display (P3–600 Nits)
• HDTV Video (BT.709–BT.1886)
• NTSC Video (BT.601 SMPTE-C)
• PAL and SECAM Video (BT.601 EBU)
• Digital Cinema (P3-DCI)
• Digital Cinema (P3-D65)
• Design and Print (P3-D50)
• Photography (P3-D65)
• Internet and Web (sRGB)

Camera
Resolution: 12MP Ultra-Wide Camera
Field of View: 122°
Aperture: ƒ/2.4
Features: Centre Stage

Audio
Speaker System: High-Fidelity Six-Speaker System with Force-Cancelling Woofers
Sound Output: Wide Stereo Sound
Audio Features: Support for Spatial Audio with Dolby Atmos
Microphones: Studio-Quality Three-Microphone Array
Microphone Features: High Signal-to-Noise Ratio with Directional Beamforming
Voice Assistant Support: Support for “Hey Siri”

Connections

Upstream Port

• 1 × Thunderbolt 3 (USB-C) Port (Supports Up to 96W Host Charging)

Downstream Ports

• 3 × USB-C Ports (Up to 10Gb/s)

Stand

Tilt-Adjustable Stand
Tilt Range: −5° to +25°

Configurable Stand Options

Tilt- and Height-Adjustable Stand
Tilt Range: −5° to +25°
Height Adjustment: 105 mm

VESA Mount Adapter
VESA Compatibility: 100 × 100 mm
Orientation Support: Landscape or Portrait

Dimensions and Weight

With Tilt-Adjustable Stand
Height: 47.8 cm
Width: 62.3 cm
Depth: 16.8 cm
Weight: 6.3 kg

With Tilt- and Height-Adjustable Stand
Height (Bottom Position): 47.9 cm
Height (Top Position): 58.3 cm
Width: 62.3 cm
Depth: 20.7 cm
Weight: 7.7 kg

With VESA Mount Adapter
Height: 36.2 cm
Width: 62.3 cm
Depth: 3.1 cm
Weight: 5.5 kg

Compatibility

Mac Compatibility (macOS Monterey 12.3 or Later)

• Mac Studio (2022)
• MacBook Pro 16-Inch (2019 or Later)
• MacBook Pro 14-Inch (2021)
• MacBook Pro 13-Inch (2016 or Later)
• MacBook Pro 15-Inch (2016 or Later)
• MacBook Air (2018 or Later)
• Mac mini (2018 or Later)
• Mac Pro (2019 or Later)
• iMac 24-Inch (2021)
• iMac 27-Inch (2017 or Later)
• iMac 21.5-Inch (2017 or Later)
• iMac Pro (2017)

iPad Compatibility (iPadOS 15.4 or Later)

• iPad Pro 12.9-Inch (3rd Generation or Later)
• iPad Pro 11-Inch
• iPad Air (5th Generation)

Electrical and Operating Requirements
Line Voltage: 100–240V AC
Frequency: 50Hz to 60Hz, Single Phase
Operating Temperature: 10°C to 35°C
Relative Humidity: 5% to 90% Non-Condensing
Maximum Altitude: Tested Up to 5,000 Metres

Warranty
Technical Support: 90 Days Complimentary Telephone Technical Support
Limited Warranty: One-Year Limited Warranty

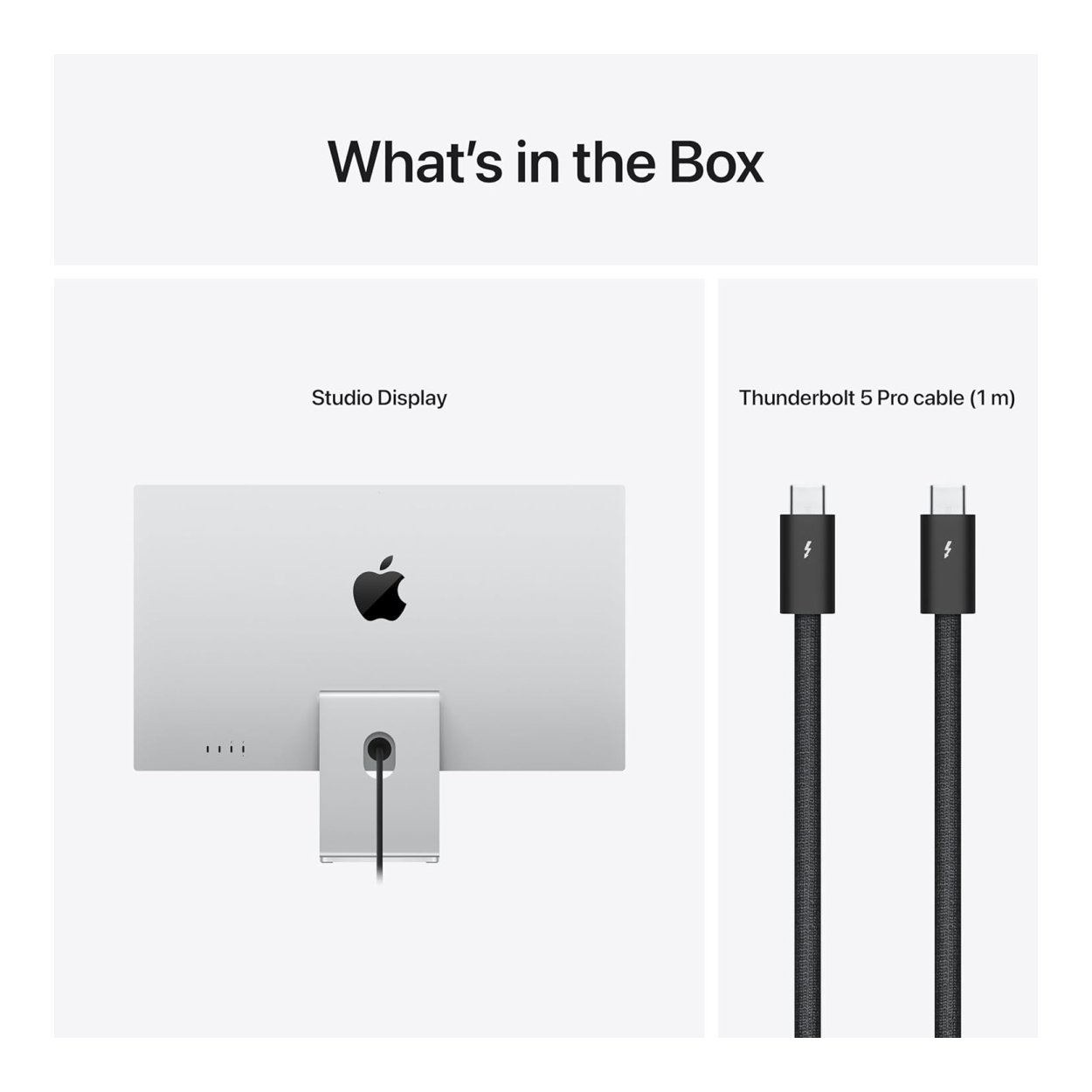

What’s in the Box:

• Studio Display
• Thunderbolt Cable (1 m)
