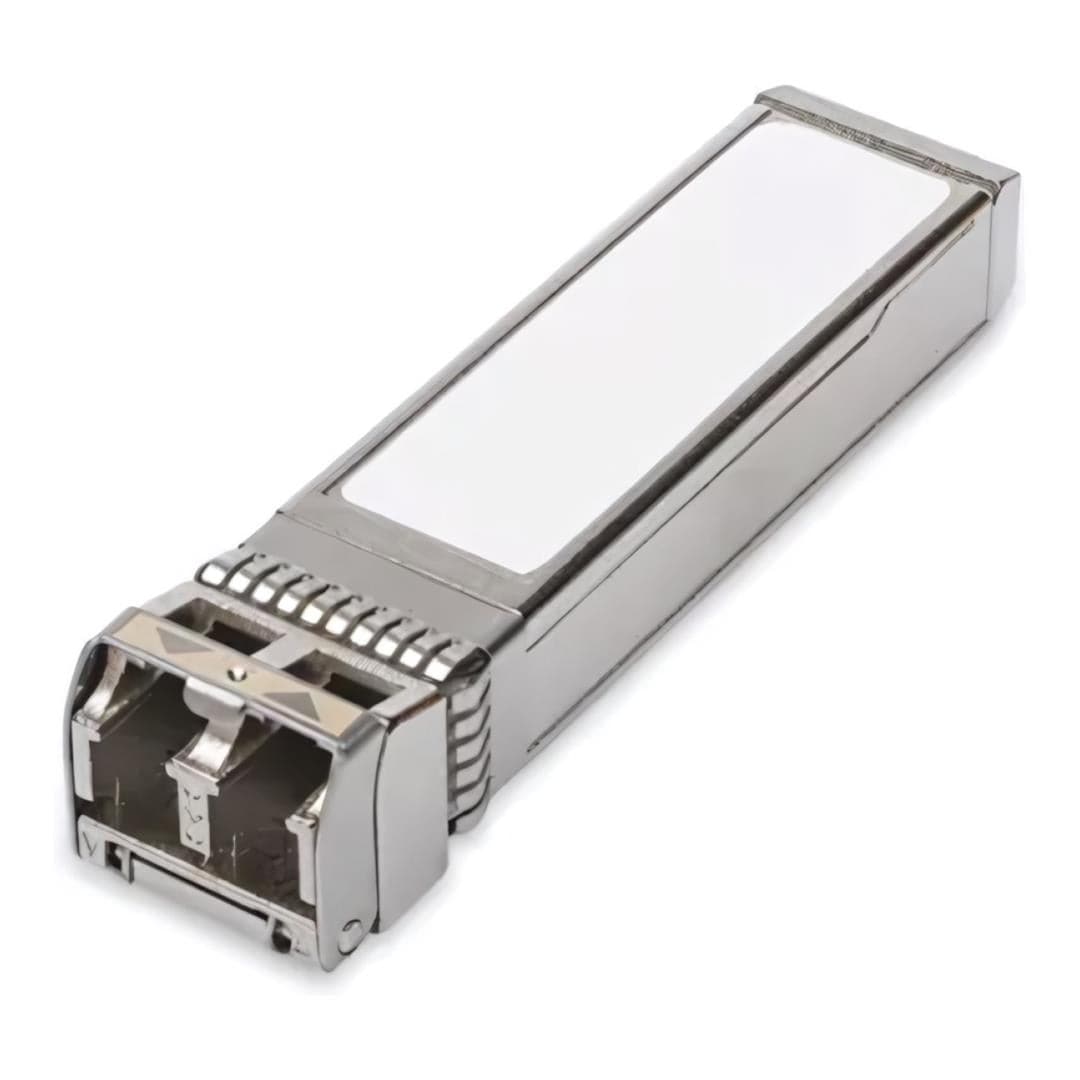

Apache Compatible 10G SFP+ LR SM 1310nm 10km LC Network Transceiver Module J9151A

Apache Compatible 10G SFP+ LR SM 1310nm 10km LC Network Transceiver Module J9151A

Apache Compatible SFP+ transceiver supports up to 10km link lengths over LC duplex SMF fiber. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, enterprise wiring closet, service provider transport application, Radio & Baseband Unit, etc.

Technical Specifications:

Form Factor: SFP+
Max Data Rate: 10.3125Gbps
Wavelength: 1310nm
Max Cable Distance: 10km
Connector: Duplex LC
Media: SMF
Transmitter Type: DFB
Receiver Type: PIN
TX Power: -8.2~0.5dBm
Receiver Sensitivity: < -14.4dBm
Power Budget: 6.2dB
Receiver Overload: 0.5dBm
Power Consumption: ≤1W
Extinction Ratio: >3.5dB
Core Size: 9/125µm
Modulation: NRZ
Commercial Temperature Range: 0 to 70°C (32 to 158°F)
Protocols: IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI
