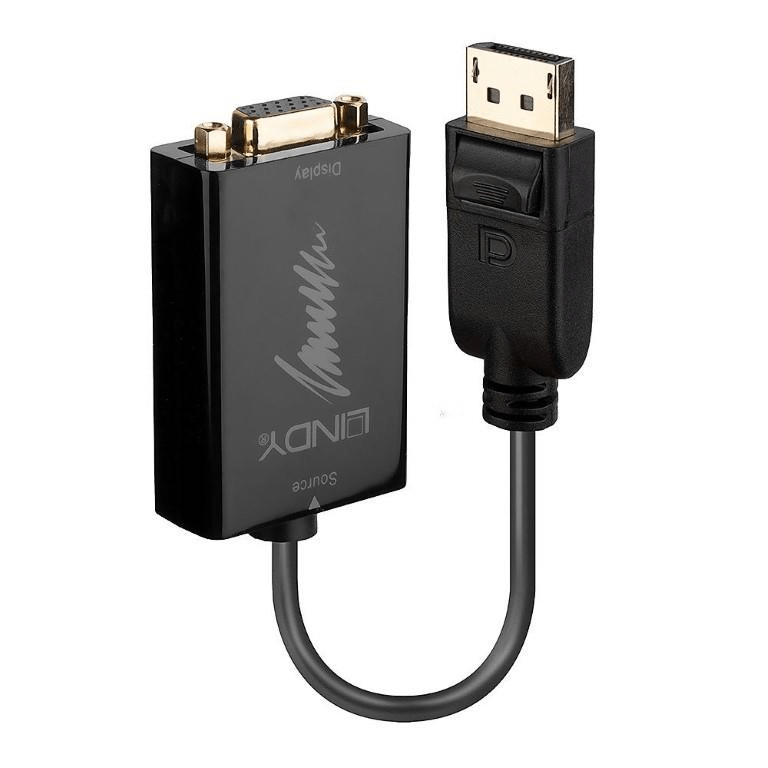

Lindy 15cm DisplayPort to VGA Active Converter 41006

Description

• Converts a DisplayPort signal into VGA
• Supports resolutions up to 1920x1080@60Hz
• Can be used to add a secondary monitor for extended or mirrored desktop
• Compact dimensions for easy installation and use
• 2 year warranty

The Lindy DisplayPort to VGA Converter is ideal for connecting a DisplayPort equipped source such as a PC or laptop to a VGA monitor. It supports high definition video resolutions up to 1920x1080@60Hz. Active conversion ensures compatibility with various graphics cards including AMD Eyefinity, NVIDIA surround and Intel Collage.

This converter can also be used to add a secondary monitor for extended or mirrored desktop modes to increase productivity and screen real estate. Internal copper shielding provides enhanced reliability and compatibility. The converter is also ideally suited for travelling due to its compact, lightweight form factor and convenient plug & play installation.

Technical details

Specifications

• AV Interface: DisplayPort to VGA
• Interface Standard: DisplayPort 1.1, VGA
• Supported Bandwidth: 180MHz
• Maximum Input Resolution: 1920x1080@60Hz
• Maximum  Output Resolution: 1920x1080@60Hz
• Chipset: ANX9833
• HDCP Support: -
• Supported Audio: -
• Separate Audio Ports: -
• Special Features: -

Connectors

• Input: DisplayPort Male
• Output: VGA Female

Physical properties

• Dimensions (approx.) WxDxH:
  • 38x61x17mm (1.5x2.4x0.67in)
  • 20x36x11mm (0.79x1.42x0.43in)/DP
• Cable Length: 150mm (5.91in)
• Housing Material: TPE
• Jacket Material: PVC
• Jacket Diameter: 6.5mm (0.26in)
• Minimum Bend Radius: 70mm (2.76in)
• Net Weight: 0.045kg (0.1lb)
• Operating Temperature: -20°C - 80°C (-4°F - 176°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)
• Humidity: 20 - 90% RH (non-condensing)
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
• Gross Weight: 0.049kg (0.011lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Package Contents

• DisplayPort to VGA Active Converter

Purchasing Information

• No.: 41006
• EAN: 4002888410069
