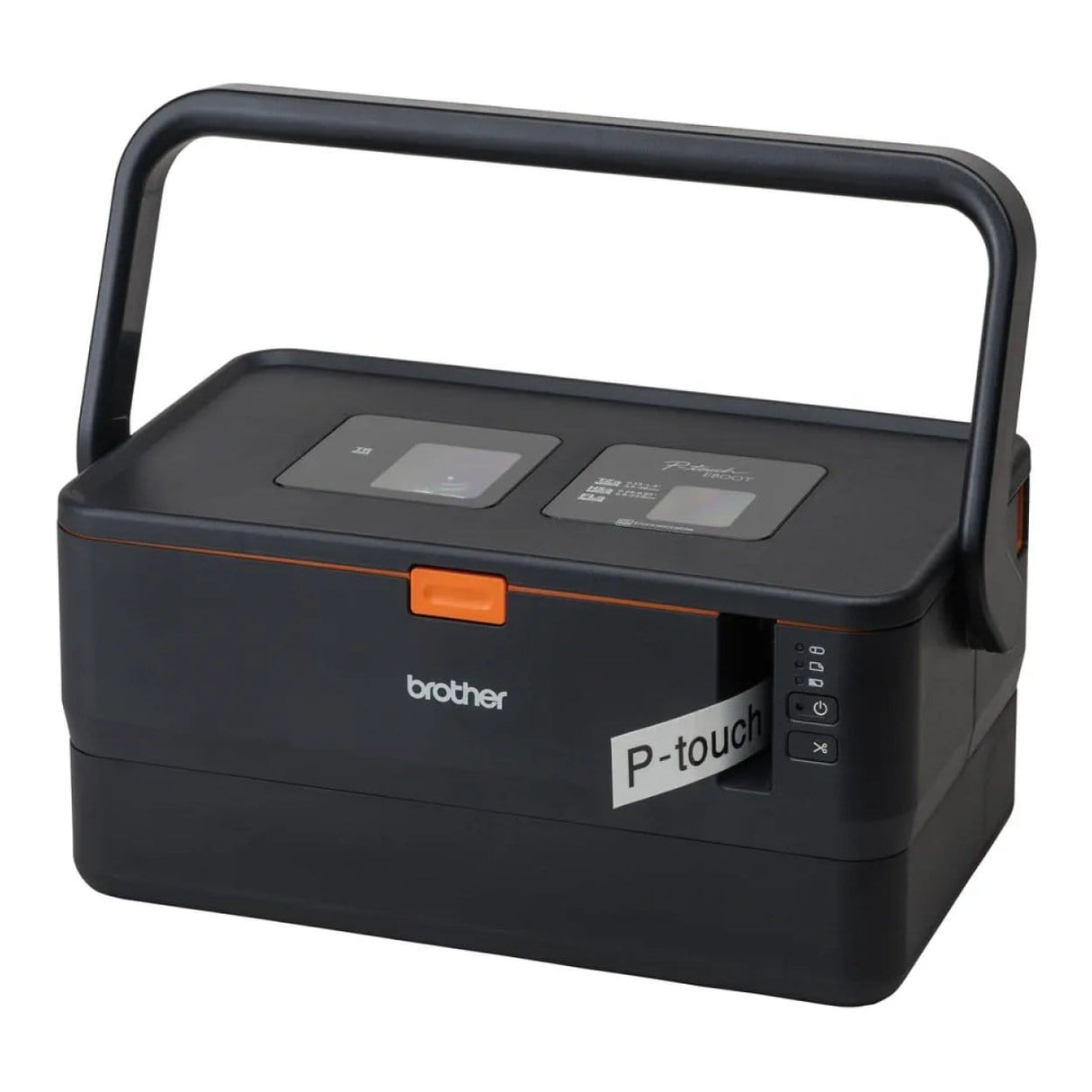

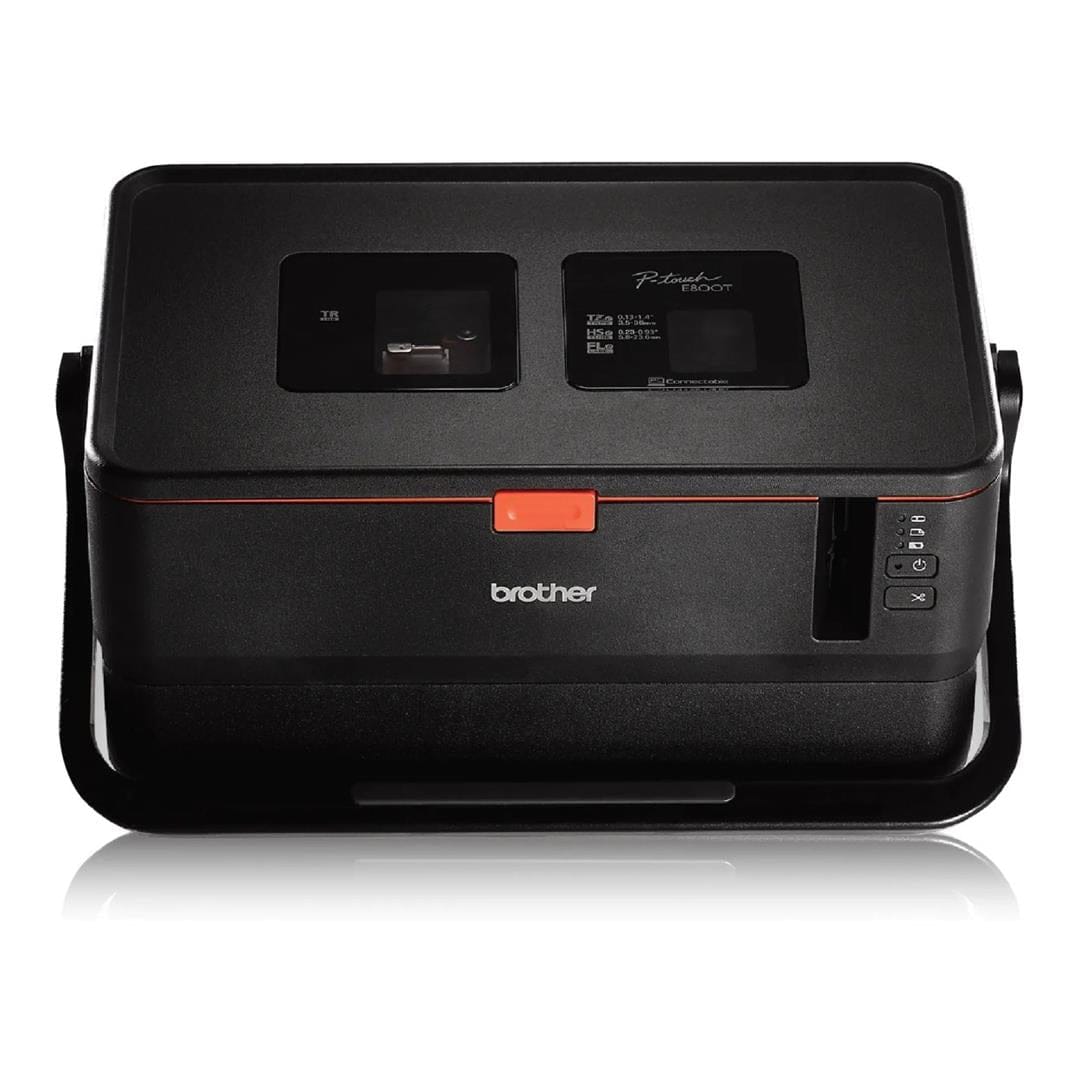

Brother PT-E800T Industrial Tube and Label Printer

Brother PT-E800T Industrial Tube and Label Printer

Industrial labelling for Electricians and Datacom Installers

The PT-E800T label printer features integrated twin engines to easily switch between tube and label print modes

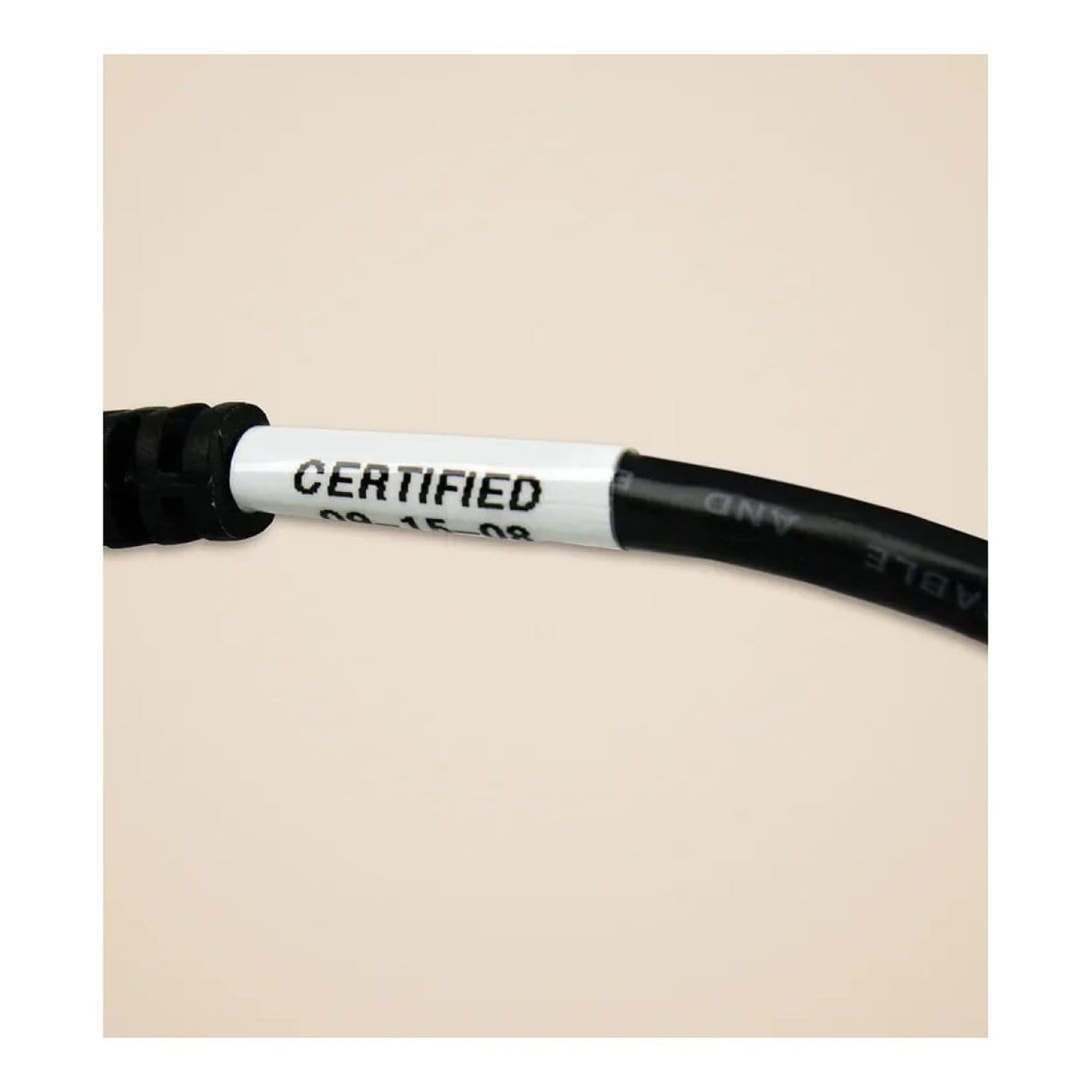

The PT-E800T industrial tube and label printer enables electricians, distribution board builders, site engineers, server installation technicians and cable installers to mark their projects easily and effectively. The robust PT-E800T prints up to 36mm wide TZe laminated labels; up to 31mm heat shrink tube; as well as direct to tube up to 6mm high, all from one compact label printer. With fast print speeds of tube printing at 40mm per second and labels at 60mm per second, the PT-E800T allows print jobs to be completed quicker and even easier with the optional rechargeable battery and base for on-site use. It can be transported to where electrical work is in progress and controlled with a laptop. Print via a USB connection with the Brother P-touch Editor software for label printing and the Brother Cable Label Tool software for tube printing. Brother is the first company to introduce industrial tube printers with integrated twin engines.

This innovation allows electricians to switch between the tube and label print modes without the need to remove or reinsert consumables before printing. Compatible with durable TZe tapes, the toughest laminated labels in the market, the PT-E800T Tube and Label Printer accepts labels of up to 36mm in width, supporting a wider range of labelling applications. Ensure the legibility of your text with the benefit of additional printable height, the PT-E800T further maximises printing options with the ability to print up to 32mm on 36mm labels, and up to 6mm on tubes.

With the PT-E800T Tube and Label Printer, electricians can replace selected components themselves, eliminating the need to rely on a distant service centre for replacement. Tube cutters, cleaners and conveyance rollers can be replaced on-site in a few easy steps. The PT-E800T Tube and Label Printer includes a free, automatic 3-year carry-in warranty against manufacturer defects.

• Print up to 36mm on TZe tapes and up to 31mm on HSe Heat Shrink tubes
• USB Connectivity
• Label creation with Ptouch Editor desktop software
• Twin engines for Tube and Label printing
• Auto and Half Cutter
• Store up to 99 label designs

Professional Label Design

From built-in templates and design elements to more advanced label design using P-touch Editor or a free Brother mobile labelling app.Brother offers a suite of free mobile apps that work seamlessly with selected Brother label printers to support mobile printing and label creation.

Brother genuine tapes and labels

Our labels have been tested against the effects of water, abrasion, temperature, chemicals and sunlight. Brother laminated labels stay legible and stay stuck and have been designed to last.Brother Genuine tapes and labels have been developed to work reliably with Brother label printers to provide high-quality, consistent output. For the best results, we recommend using only Brother Genuine supplies.

Specifications:

Keyboard: QWERTY

Print Resolution: 360 dpi

No. Of Printable Lines: Tube: 2 lines, Label: 17 lines

Cutter: Auto

Maximum Tape Width: 24mm to 50mm

Media Type: TZe Tape (Laminated), HSe (Heat-shrink Tube)

Available Tape Widths: 6 mm, 9 mm, 12 mm, 18 mm, 24 mm, 36 mm

Product Dimensions (Width X Depth X Height): 338 mm × 188 mm × 155 mm

Weight: 3.8 kg

Print Speed: Tube printing: 40 mm/sec, Label printing: 60 mm/sec

Connectivity: USB 2.0 Full Speed, IEEE 802.11b/g/n (Wireless LAN - Infrastructure Mode), IEEE 802.11b (Wireless LAN - Ad-hoc Mode), IEEE 802.11n (Wireless Direct), WPS (Wi-Fi Protected Setup) 2.0

Warranty: 3 Year Carry-in Warranty

In The Box:

• PT-E800T Tube and Label Printer
• AC Adapter with 2 pin power cable
• USB Cable
• 36mm Black on white TZe tape (8m)(TZe-261)
• 100m Black ink ribbon for tube printing (TR-100BK)
• User Manual
• Safety Guide
• Labelling design software CD-Rom
