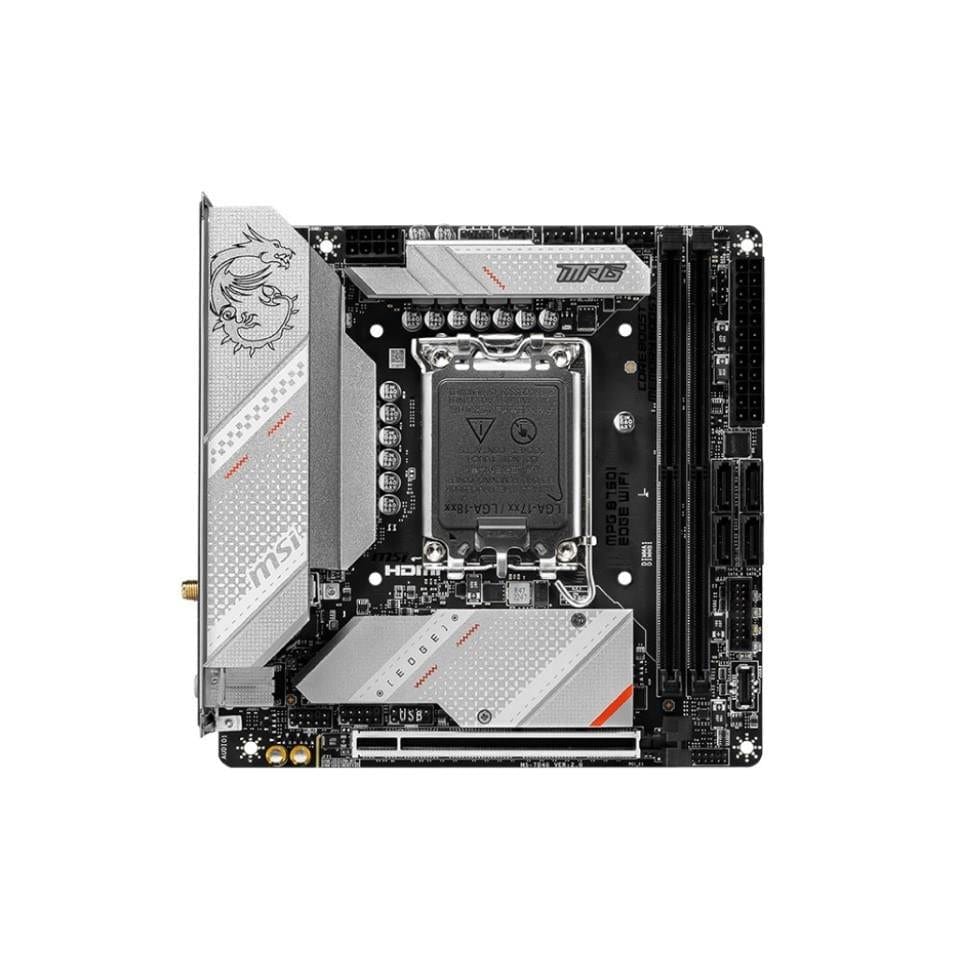

MSI B760I EDGE WIFI Intel Socket LGA 1700 Mini-ITX DDR5 Motherboard

MSI B760I EDGE WIFI Intel Socket LGA 1700 Mini-ITX DDR5 Motherboard

Be Ahead, Pop Your Style

The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

Extend Your RGB Experience With Ease

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

High-Bandwidth And Low-Latency Network

MSI's premium network solution provides incredible data transfer speed for demanding users

Latest DDR5 Memory With SMT Slot

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG B760I EDGE WIFI is ready to deliver the world class memory performance.The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.

Lightning Gen5 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 Slot

The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

Reinforced, Heavy Soldered Connections

Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

Fast and Future-Ready Storage

MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.



Latest DDR5 memory With SMT Slot

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG B760I EDGE WIFI is ready to deliver the world class memory performance.

The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.

Easy Overclocking With XMP Profile

The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stabilitMSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

Specifications:

• Chipset: INTEL B760
• CPU: Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
• LAN: Realtek RTL8125BG 2.5Gbps LAN
• RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

MEMORY

• 2x DDR5, Maximum Memory Capacity 96GB
• Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
• Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel Extreme Memory Profile (XMP)

ONBOARD GRAPHICS

• 1x HDMI
• Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz
• 1x DisplayPort
• Support DP 1.4, maximum resolution of 8K 60Hz
• *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

SLOT

• 1x PCI-E x16 slot
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

STORAGE

• 2x M.2
• M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
• M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
• 4x SATA 6G

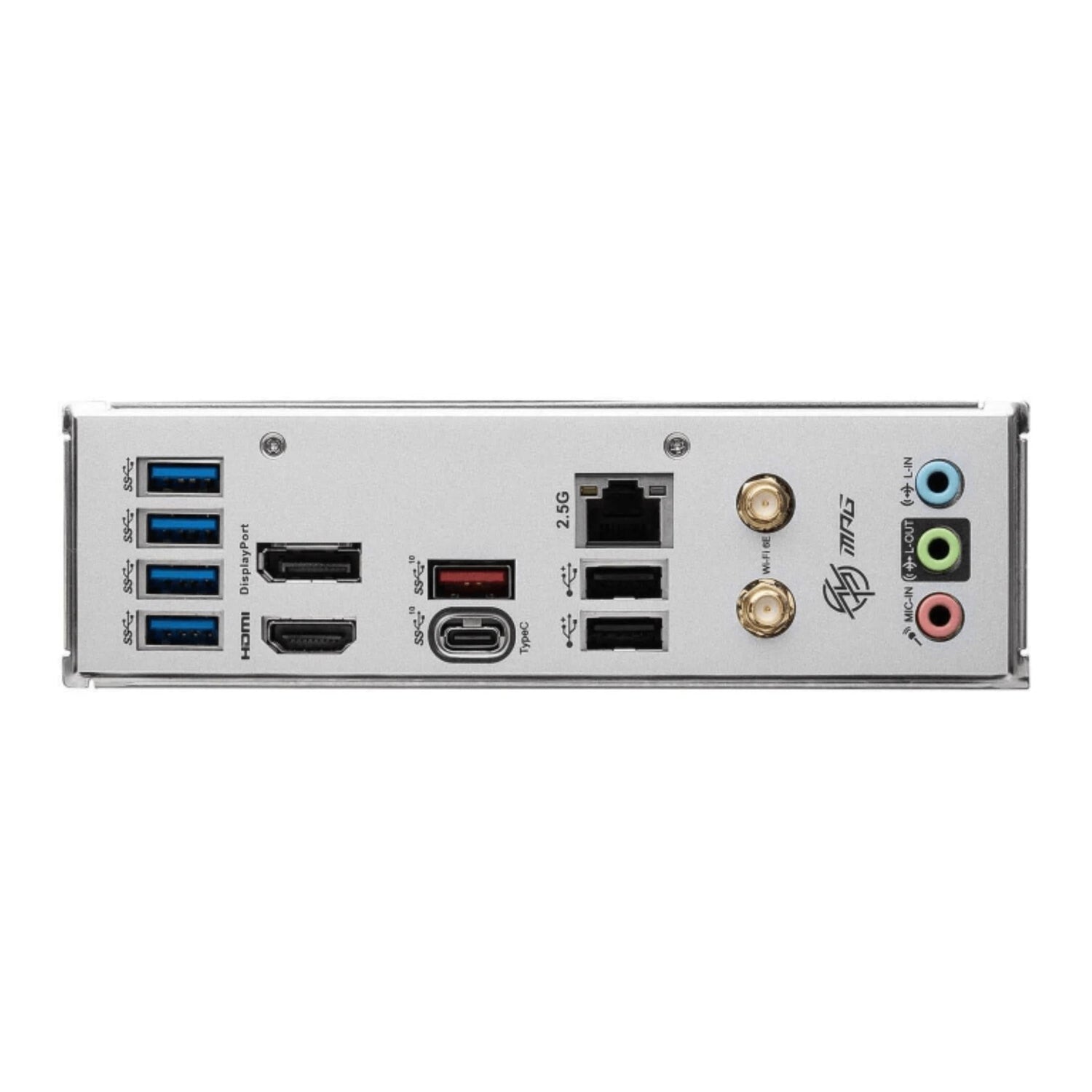

USB

• 2x USB 2.0 (Rear)
• 2x USB 2.0 (Front)
• 4x USB 3.2 Gen1 Type A (Rear)
• 2x USB 3.2 Gen1 Type A (Front)
• 1x USB 3.2 Gen2 Type A (Rear)
• 1x USB 3.2 Gen2 Type C (Rear)
• 1x USB 3.2 Gen2 Type C (Front)

WIRELESS LAN & BLUETOOTH

• Intel Wi-Fi 6E
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth^® 5.3, FIPS, FISMA
• * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
• ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIO

Realtek^® ALC897 Codec
7.1-Channel High Definition Audio

INTERNAL IO

• 1x Power Connector(ATX_PWR)
• 1x Power Connector(CPU_PWR)
• 1x CPU Fan
• 1x Pump Fan
• 1x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Addressable V2 RGB LED connector (JARGB_V2)
• 1x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 2x USB 2.0 ports
• 2x USB 3.2 Gen1 Type A ports
• 1x USB 3.2 Gen2 Type C ports
