Description

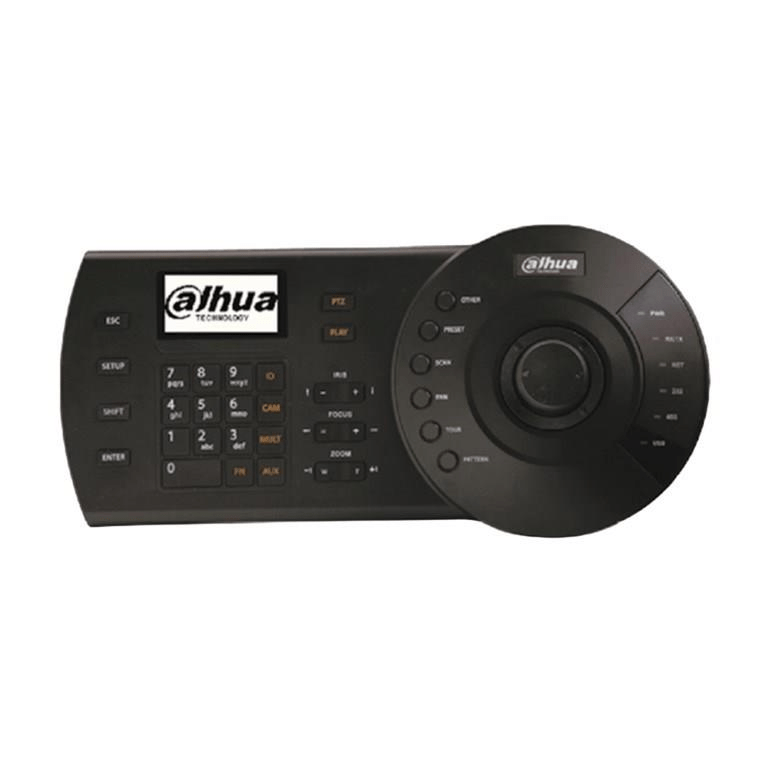

Dahua NKB1000-E Network Control Keyboard with Joystick
Features
- Dahua High Speed Dome
- Dahua Standalone DVR
- Network Video Server
- RS485, RS422 (reserved), USB, RS232 & Network
- Three Dimensional Joystick Control of PTZ Functions
- Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern Auxiliary Functions
- On-Screen Menu & User Operation Procedure Tips
- Connect to SmartPSS or DSS platform via USB
Technical Specification
Product: Dahua NKB1000-E Network Control Keyboard
Keyboard Key panel: Electromechanical
Joystick: 3-axis, vector-solving, with twisting, return to-center head
Keyboard Connector: RJ-45, RS232, RS485, RS422 (reserved), USB
Keyboard Communication: Direct Mode, Network Mode
Direct Mode Interface
-
1x RS232
-
2x RS485
-
DVR Protocol: DH-2
-
Dome Protocol: DH-SD1/PELCO-D/PELCO-P, etc
Network Mode Interface
-
1x RJ45
-
DVR/Network Dome: IP Address/Port/Protocol
Display: LCD, 75.2mm×33.85mm
Maximum Number of Users: 64 (including "admin")
Max RS485 Addresses (Each User): 256
Max Number of PTZ (IPC) That Can be Added over Network (Each User): 2048
